GlobalSpiral™ Couplings

Part Number	7347-000000-000002

G20830-1010

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	5/8-14
C Cutoff (in)	1.19
C Cutoff (mm)	30.2
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
Material	Steel
Customer Pack	1
Weight (lbs.)	0.37

G20831-1010

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	5/8-14
T Drop (in)	0.84
C Cutoff (in)	2.67
C Cutoff (mm)	67.7
L Length (in)	4.2
L Length (mm)	106.7
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.25
L (in)	4.2
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.5

G20832-1010

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	5/8-14
T Drop (in)	1.81
C Cutoff (in)	2.45
C Cutoff (mm)	62.2
L Length (in)	4.7
L Length (mm)	119.4
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.45
L (in)	4.7
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.55

G20230-1010

H1 Stem Hex (in)	1.181
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
C Cutoff (in)	1.681
C Cutoff (mm)	42.7
L Length (in)	3.701
L Length (mm)	94

G20230-1010X

H1 Stem Hex (in)	1.181
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
C Cutoff (in)	1.681
C Cutoff (mm)	42.7
L Length (in)	3.701
L Length (mm)	94
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.72
L (in)	3.7
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	100
Weight (lbs.)	0.37

G20234-1010

H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
T Drop (in)	0.63
C Cutoff (in)	2.39
C Cutoff (mm)	60.7
L Length (in)	4.37
L Length (mm)	111
Angle.	45

G20234-1010X

H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
T Drop (in)	0.63
C Cutoff (in)	2.39
C Cutoff (mm)	60.7
L Length (in)	4.37
L Length (mm)	111
Angle.	45

10GS-10FFORX90-053XB

No variation attributes.

10GS-10FFORX90-096

T Drop (in)	3.78
C Cutoff (in)	2.469
C Cutoff (mm)	62.7
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20241-1010

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1" - 14 UNS
T Drop (in)	2.76
C Cutoff (in)	2.47
C Cutoff (mm)	62.7
L Length (in)	4.45
L Length (mm)	113
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.44
L (in)	4.45
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.57

G20240-1010

H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
T Drop (in)	1.85
C Cutoff (in)	2.232
C Cutoff (mm)	56.7
L Length (in)	4.209
L Length (mm)	106.9
Angle.	90

G20239-1010

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1" - 14 UNS
T Drop (in)	1.26
C Cutoff (in)	2.22
C Cutoff (mm)	56.3
L Length (in)	4.2
L Length (mm)	106.7
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.22
L (in)	4.2
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.43

G20170-1010

H1 Stem Hex (in)	1.18
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8" - 14 UNF
C Cutoff (in)	1.8
C Cutoff (mm)	45.7
L Length (in)	3.68
L Length (mm)	93.5
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.7
L (in)	3.68
Material	Steel
Customer Pack	1
Weight (lbs.)	0.384

G20170-1010X

H1 Stem Hex (in)	1.181
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.063
H2 Nut Hex (mm)	27
T1 Thread (in)	7/8" - 14 UNF
C Cutoff (in)	1.799
C Cutoff (mm)	45.7
L Length (in)	3.681
L Length (mm)	93.5
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.7
L (in)	3.68
Material	Steel
Customer Pack	100
Weight (lbs.)	0.382

G20175-1010

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8" - 14 UNF
T Drop (in)	0.71
C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.45
L Length (mm)	113
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.48
L (in)	4.45
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	0.476

G20175-1010X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T1 Thread (in)	7/8" - 14 UNF
T Drop (in)	0.709
C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.449
L Length (mm)	113
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.48
L (in)	4.45
Angle.	45
Material	Steel
Customer Pack	100
Weight (lbs.)	0.38

G20179-1010

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8" - 14 UNF
T Drop (in)	1.42
C Cutoff (in)	2.4
C Cutoff (mm)	61
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.4
L (in)	4.37
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.524

G20179-1010X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T Drop (in)	1.417
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.4
L (in)	4.37
Angle.	90
Material	Steel
Customer Pack	100
Weight (lbs.)	0.452

G20180-1010

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8" - 14 UNF
T Drop (in)	1.85
C Cutoff (in)	2.24
C Cutoff (mm)	57
L Length (in)	4.21
L Length (mm)	106.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.23
L (in)	4.21
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.54

G20180-1010X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T1 Thread (in)	7/8" - 14 UNF
T Drop (in)	1.85
C Cutoff (in)	2.244
C Cutoff (mm)	57
L Length (in)	4.209
L Length (mm)	106.9
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.23
L (in)	4.21
Angle.	90
Material	Steel
Customer Pack	75
Weight (lbs.)	0.548

G20910-1010

H1 Stem Hex (in)	1.18
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	M24X1.5
C Cutoff (in)	1.76
C Cutoff (mm)	44.7
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.76
L (in)	3.74
Material	Steel
Notes	These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.
Customer Pack	1
Weight (lbs.)	0.45

G20300-1010

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
M Flange Diameter (in)	1.35
M Flange Diameter (mm)	34.3
T1 Thread (in)	5/8"
C Cutoff (in)	2.51
C Cutoff (mm)	63.7
L Length (in)	4.49
L Length (mm)	114
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
Working Pressure (psi)	5000
C (in)	2.51
L (in)	4.49
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.42

G20315-1010

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
M Flange Diameter (in)	1.35
M Flange Diameter (mm)	34.3
T1 Thread (in)	5/8"
T Drop (in)	2.17
C Cutoff (in)	2.35
C Cutoff (mm)	59.7
L Length (in)	4.33
L Length (mm)	110
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
Working Pressure (psi)	5000
C (in)	2.35
L (in)	4.33
Angle.	90
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.53

G20120-1010

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
T1 Thread (in)	7/8" - 14 UNF
C Cutoff (in)	1.48
C Cutoff (mm)	37.7
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.48
L (in)	3.46
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	0.29

G20225-1010

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	1" - 14 UNS
C Cutoff (in)	1.45
C Cutoff (mm)	36.7
L Length (in)	3.42
L Length (mm)	86.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.44
L (in)	3.42
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	0.3

G20165-1010

H1 Stem Hex (in)	0.94
H1 Stem Hex (mm)	23.8
T1 Thread (in)	7/8" - 14 UNF
C Cutoff (in)	1.64
C Cutoff (mm)	41.7
L Length (in)	3.62
L Length (mm)	91.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.64
L (in)	3.62
Material	Steel
Customer Pack	1
Weight (lbs.)	0.26

G20830-1012

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	3/4-14
C Cutoff (in)	1.26
C Cutoff (mm)	32
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.37
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	1.0

G20230-1012

H1 Stem Hex (in)	1.18
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
C Cutoff (in)	1.76
C Cutoff (mm)	44.7
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.76
L (in)	3.74
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.56

G20230-1012X

H1 Stem Hex (in)	1.181
H1 Stem Hex (mm)	30
H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
C Cutoff (in)	1.76
C Cutoff (mm)	44.7
L Length (in)	3.74
L Length (mm)	95

10GS-12FFORX90S

No variation attributes.

G20239-1012

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
T Drop (in)	1.89
C Cutoff (in)	2.94
C Cutoff (mm)	74.7
L Length (in)	4.21
L Length (mm)	106.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.74
L (in)	4.21
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.835

G20170-1012

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
C Cutoff (in)	1.76
C Cutoff (mm)	44.7
L Length (in)	3.74
L Length (mm)	95

G20170-1012X

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
C Cutoff (in)	1.76
C Cutoff (mm)	44.7
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.76
L (in)	3.74
Material	Steel
Customer Pack	90
Weight (lbs.)	0.42

G20174-1012

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
T Drop (in)	0.83
C Cutoff (in)	2.82
C Cutoff (mm)	71.7
L Length (in)	4.8
L Length (mm)	121.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.82
L (in)	4.8
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	0.55

G20180-1012

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
T Drop (in)	2.28
C Cutoff (in)	2.78
C Cutoff (mm)	70.7
L Length (in)	4.76
L Length (mm)	120.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.78
L (in)	4.76
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.58

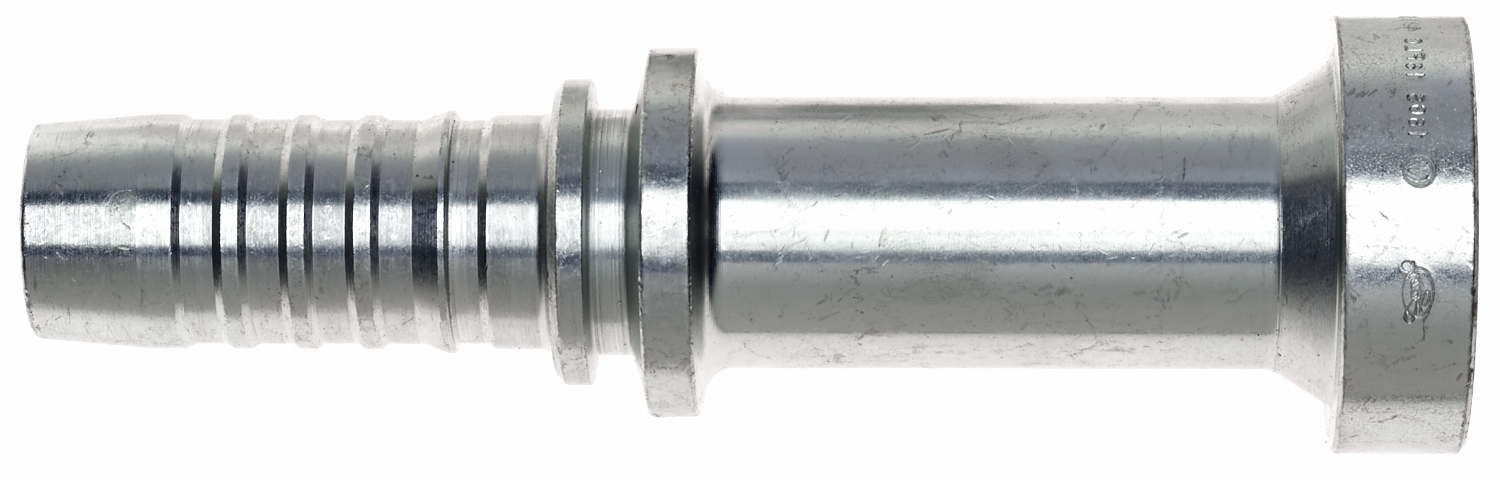

G20300-1012

C Cutoff (in)	2.311
C Cutoff (mm)	58.7
L Length (in)	4.291
L Length (mm)	109
Working Pressure (psi)	5000

G20307-1012

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	1.02
C Cutoff (in)	3.02
C Cutoff (mm)	76.7
L Length (in)	5
L Length (mm)	127
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
Working Pressure (psi)	5000
C (in)	3.02
L (in)	5
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.53

10GS-12FL90-100

No variation attributes.

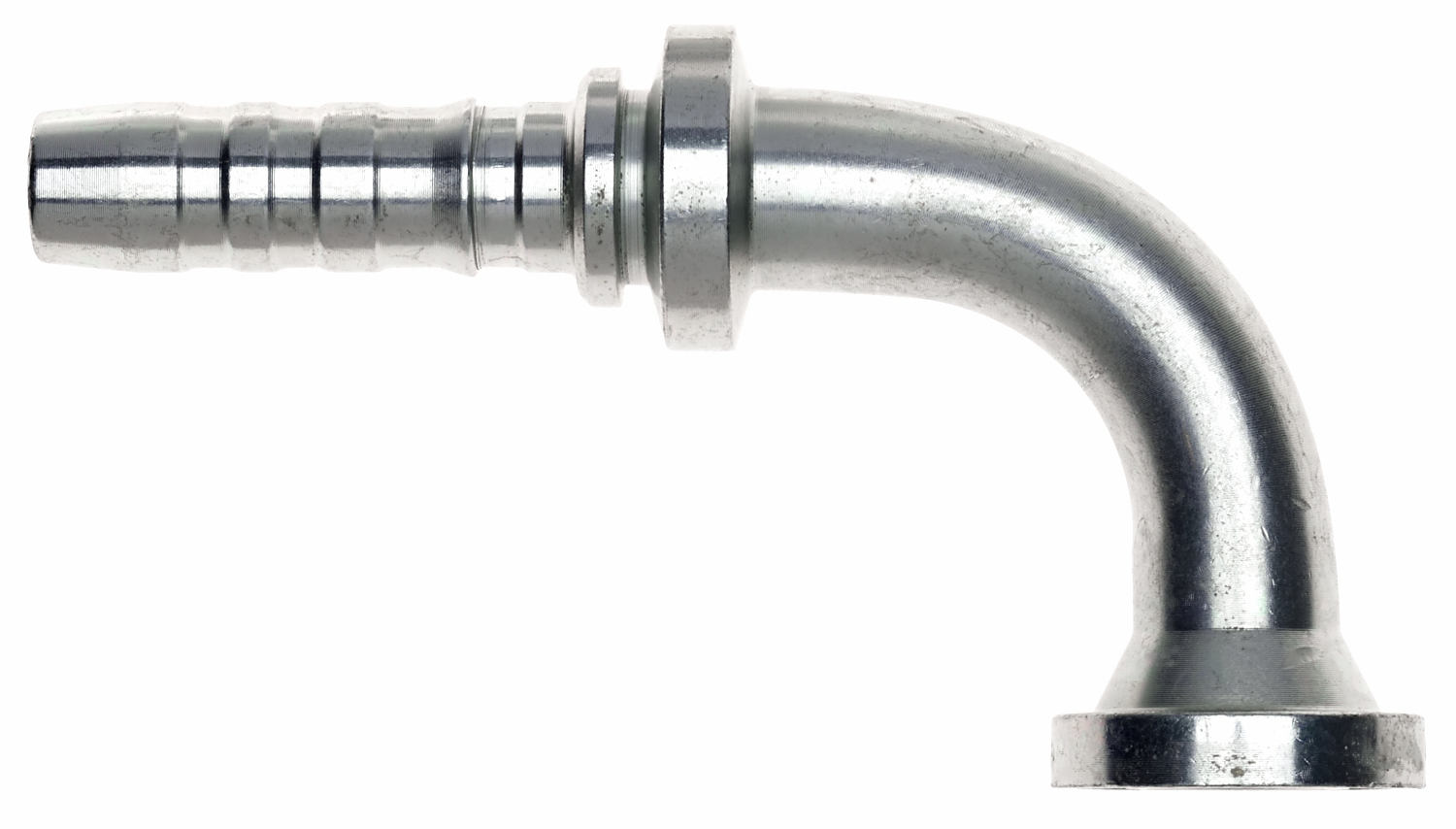

G20315-1012

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	2.28
C Cutoff (in)	2.35
C Cutoff (mm)	59.7
L Length (in)	4.33
L Length (mm)	110
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
Working Pressure (psi)	5000
C (in)	2.35
L (in)	4.33
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.59

G20350-1012

C Cutoff (in)	2.311
C Cutoff (mm)	58.7
L Length (in)	4.291
L Length (mm)	109
Working Pressure (psi)	6000

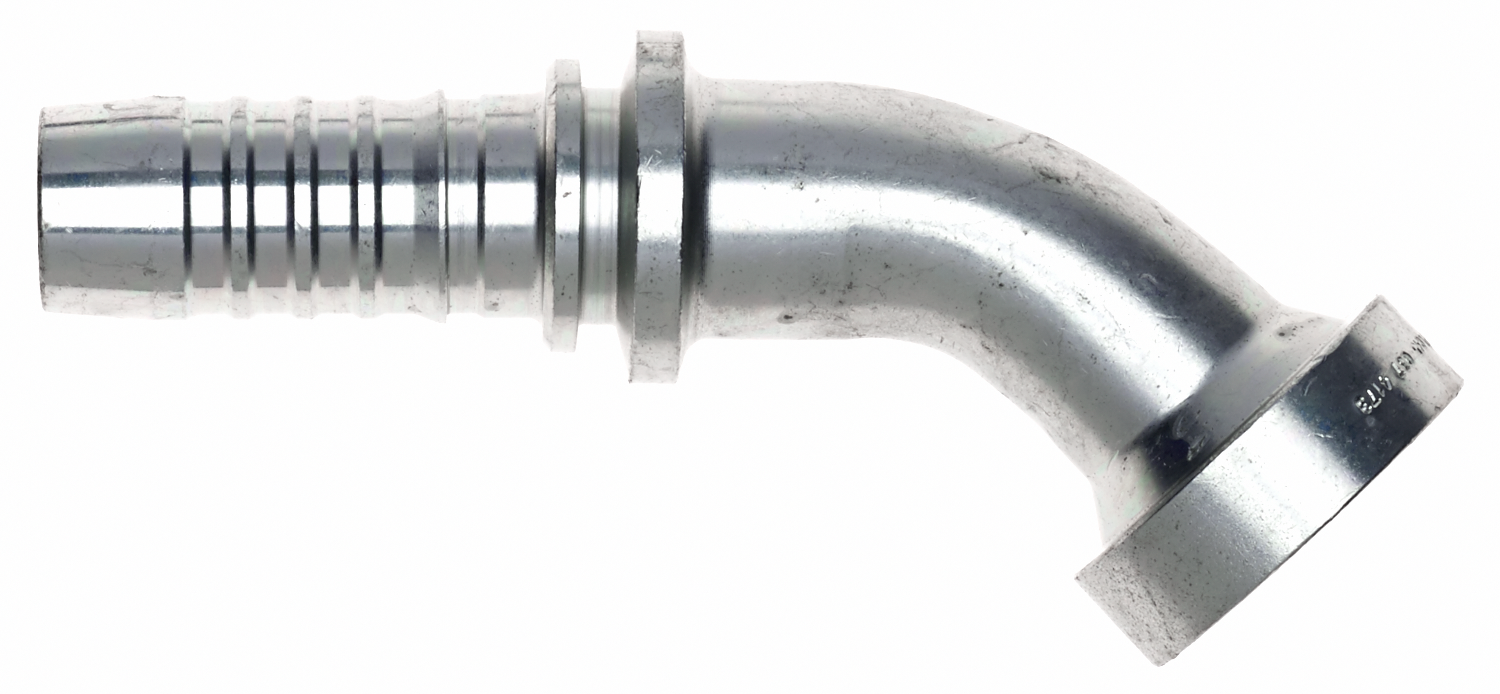

G20357-1012

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	1.02
C Cutoff (in)	3.02
C Cutoff (mm)	76.7
L Length (in)	5
L Length (mm)	127
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
Working Pressure (psi)	6000
C (in)	3.02
L (in)	5
Angle.	45
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.6

G20365-1012

T Drop (in)	2.283
C Cutoff (in)	2.37
C Cutoff (mm)	60.2
L Length (in)	4.331
L Length (mm)	110
Working Pressure (psi)	6000
Angle.	90

G20120-1012

H1 Stem Hex (in)	1.25
H1 Stem Hex (mm)	31.8
T1 Thread (in)	1.1/16" - 12 UN
C Cutoff (in)	1.48
C Cutoff (mm)	37.7
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.48
L (in)	3.46
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	0.4

G20225-1012

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
T1 Thread (in)	1.3/16" - 12 UN
C Cutoff (in)	1.52
C Cutoff (mm)	38.7
L Length (in)	3.5
L Length (mm)	88.9
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.52
L (in)	3.5
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	0.45

G20165-1012

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	1.1/16" - 12 UN
C Cutoff (in)	1.72
C Cutoff (mm)	43.7
L Length (in)	3.7
L Length (mm)	94
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.72
L (in)	3.7
Material	Steel
Customer Pack	1
Weight (lbs.)	0.37

G20100-1012

H1 Stem Hex (in)	1.13
H1 Stem Hex (mm)	28.6
T1 Thread (in)	3/4" - 14 NPTF
C Cutoff (in)	1.6
C Cutoff (mm)	40.7
L Length (in)	3.58
L Length (mm)	91
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.6
L (in)	3.58
Material	Steel
Customer Pack	1
Weight (lbs.)	0.33

G20645-1018

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	M26X1.5
A1 Outside Diameter (in)	0.71
A1 Outside Diameter (mm)	18
A1 Tube Outside Diameter (mm)	18
C Cutoff (in)	1.63
C Cutoff (mm)	41.5
L Length (in)	3.61
L Length (mm)	91.7
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.63
L (in)	3.61
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.42

G20645-1018X

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
A1 Outside Diameter (in)	0.709
A1 Outside Diameter (mm)	18
A1 Tube Outside Diameter (mm)	18
C Cutoff (in)	1.634
C Cutoff (mm)	41.5
L Length (in)	3.61
L Length (mm)	91.7
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.63
L (in)	3.61
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	90
Weight (lbs.)	0.42

10GS-18FDLORX45

No variation attributes.

G20655-1018

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	M26X1.5
T Drop (in)	2.03
A1 Outside Diameter (in)	0.71
A1 Outside Diameter (mm)	18
A1 Tube Outside Diameter (mm)	18
C Cutoff (in)	2.49
C Cutoff (mm)	63.2
L Length (in)	4.47
L Length (mm)	113.5
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.49
L (in)	4.47
Angle.	90
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.27

G20655-1018X

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T Drop (in)	2.028
A1 Outside Diameter (in)	0.709
A1 Outside Diameter (mm)	18
A1 Tube Outside Diameter (mm)	18
C Cutoff (in)	2.488
C Cutoff (mm)	63.2
L Length (in)	4.469
L Length (mm)	113.5
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.49
L (in)	4.47
Angle.	90
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	75
Weight (lbs.)	0.26

G20720-1020

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	1.96
C Cutoff (mm)	49.7
L Length (in)	3.94
L Length (mm)	100.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.96
L (in)	3.94
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.58

G20720-1020X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
A1 Outside Diameter (in)	0.787
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	1.957
C Cutoff (mm)	49.7
L Length (in)	3.941
L Length (mm)	100.1
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.96
L (in)	3.94
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	50
Weight (lbs.)	0.58

G20725-1020

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
T Drop (in)	0.98
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.81
C Cutoff (mm)	71.3
L Length (in)	4.79
L Length (mm)	121.7
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.81
L (in)	4.79
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.6

G20730-1020

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
T Drop (in)	2.01
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.45
C Cutoff (mm)	62.2
L Length (in)	4.43
L Length (mm)	112.5
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	2.45
L (in)	4.43
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.73

G20715-1020

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	1.37
C Cutoff (mm)	34.7
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.37
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	0.36

G20420-1021

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
C Cutoff (in)	1.37
C Cutoff (mm)	34.7
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.37
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	0.06

G20480-1021

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
C Cutoff (in)	1.76
C Cutoff (mm)	44.7
L Length (in)	3.27
L Length (mm)	83.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.29
L (in)	3.27
Material	Steel
Customer Pack	1
Weight (lbs.)	0.725

10GS-8FL90-150 XBULK

No variation attributes.

G20357-1008

C Cutoff (in)	2.55
C Cutoff (mm)	64.77
L Length (in)	4.53
L Length (mm)	115
Angle.	45

G20100-1008

H1 Stem Hex (in)	0.94
H1 Stem Hex (mm)	23.8
T1 Thread (in)	1/2" - 14 NPTF
C Cutoff (in)	1.45
C Cutoff (mm)	36.7
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
C (in)	1.34
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	0.26

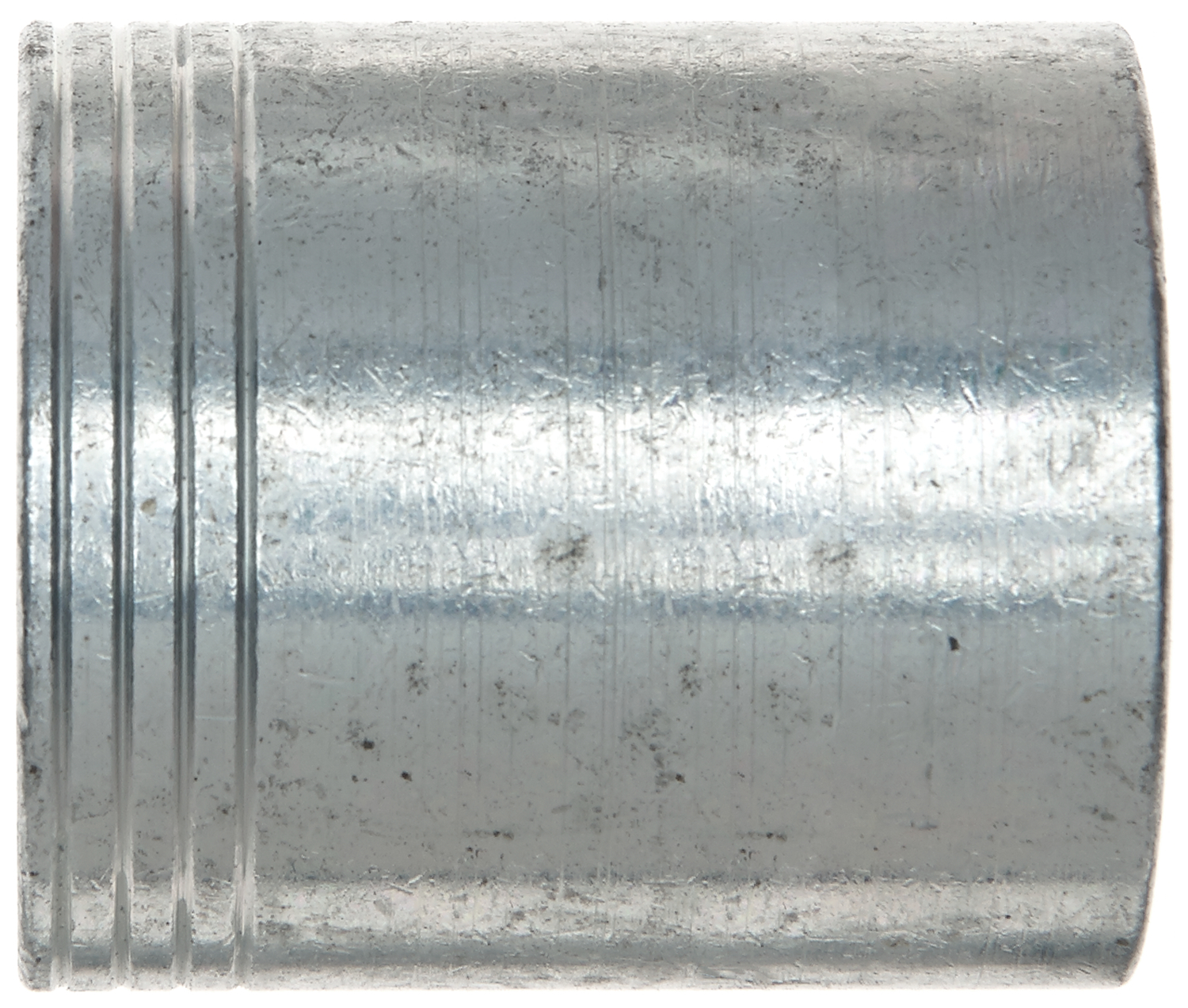

G20995-0210

A1 Outside Diameter (in)	1.33
A1 Outside Diameter (mm)	33.8
L Length (in)	1.4
L Length (mm)	35.6
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
L (in)	1.4
Outside Diameter (in)	1.33
Outside Diameter (mm)	33.8
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	1
Weight (lbs.)	0.135

G20995-0410

A1 Outside Diameter (in)	1.64
A1 Outside Diameter (mm)	41.7
L Length (in)	1.88
L Length (mm)	47.8
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
L (in)	1.88
Outside Diameter (in)	1.64
Outside Diameter (mm)	41.7
Material	Steel
Customer Pack	5
Weight (lbs.)	0.28

G20995-0410X

A1 Outside Diameter (in)	1.64
A1 Outside Diameter (mm)	41.7
L Length (in)	1.882
L Length (mm)	47.8
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
L (in)	1.88
Outside Diameter (in)	1.64
Outside Diameter (mm)	41.7
Material	Steel
Customer Pack	100
Weight (lbs.)	0.28

G20997-0410

A1 Outside Diameter (in)	1.43
A1 Outside Diameter (mm)	36.3
L Length (in)	1.81
L Length (mm)	46
Hose Inside Diameter (in)	0.63
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
L (in)	1.81
Outside Diameter (in)	1.43
Outside Diameter (mm)	36.3
Material	Steel
Customer Pack	99
Weight (lbs.)	0.25

G20997-0410X

A1 Outside Diameter (in)	1.43
A1 Outside Diameter (mm)	36.3
L Length (in)	1.811
L Length (mm)	46
Hose Inside Diameter (in)	0.626
Hose Inside Diameter (mm)	15.9
Inside Diameter (in)	0.626
Inside Diameter (mm)	15.9
L (in)	1.81
Outside Diameter (in)	1.43
Outside Diameter (mm)	36.3
Material	Steel
Customer Pack	125
Weight (lbs.)	0.25

G20230-1210

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1-14
C Cutoff (in)	1.81
C Cutoff (mm)	46
L Length (in)	3.82
L Length (mm)	97
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.81
L (in)	3.82
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.48

G20230-1210X

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
C Cutoff (in)	1.811
C Cutoff (mm)	46
L Length (in)	3.819
L Length (mm)	97

G20239-1210

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1-14
T Drop (in)	1.26
C Cutoff (in)	2.36
C Cutoff (mm)	59.9
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.36
L (in)	4.37
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.62

G20170-1210

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
H2 Nut Hex (in)	1.13
H2 Nut Hex (mm)	28.6
T1 Thread (in)	7/8-14
C Cutoff (in)	1.87
C Cutoff (mm)	47.4
L Length (in)	3.87
L Length (mm)	98.3
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.87
L (in)	3.87
Material	Steel
Customer Pack	1
Weight (lbs.)	0.44

G20170-1210X

H1 Stem Hex (in)	1.0625
H1 Stem Hex (mm)	26.99
H2 Nut Hex (in)	1.125
H2 Nut Hex (mm)	28.58
C Cutoff (in)	1.866
C Cutoff (mm)	47.4
L Length (in)	3.87
L Length (mm)	98.3

G20300-1210

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
M Flange Diameter (in)	1.35
M Flange Diameter (mm)	34.3
T1 Thread (in)	5/8"
C Cutoff (in)	2.32
C Cutoff (mm)	58.9
L Length (in)	4.33
L Length (mm)	110
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.32
L (in)	4.33
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.42

G20315-1210

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
M Flange Diameter (in)	1.35
M Flange Diameter (mm)	34.3
T1 Thread (in)	5/8"
T Drop (in)	2.17
C Cutoff (in)	2.64
C Cutoff (mm)	67
L Length (in)	4.65
L Length (mm)	118.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.64
L (in)	4.65
Angle.	90
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.59

G20830-1212

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	3/4-14
C Cutoff (in)	1.4
C Cutoff (mm)	35.5
L Length (in)	3.41
L Length (mm)	86.6
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.4
L (in)	3.41
Material	Steel
Customer Pack	1
Weight (lbs.)	0.48

G20830-1212X

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
C Cutoff (in)	1.398
C Cutoff (mm)	35.5
L Length (in)	3.409
L Length (mm)	86.6
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.4
L (in)	3.41
Material	Steel
Customer Pack	50
Weight (lbs.)	0.49

G20831-1212

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	3/4-14
T Drop (in)	1.11
C Cutoff (in)	3.29
C Cutoff (mm)	83.4
L Length (in)	5.22
L Length (mm)	132.6
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.21
L (in)	5.22
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.73

G20831-1212X

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T Drop (in)	1.114
C Cutoff (in)	3.285
C Cutoff (mm)	83.43
L Length (in)	5.22
L Length (mm)	132.6
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.21
L (in)	5.22
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	60
Weight (lbs.)	0.73

G20832-1212

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	3/4-14
T Drop (in)	2.36
C Cutoff (in)	2.95
C Cutoff (mm)	75
L Length (in)	4.89
L Length (mm)	124.2
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.88
L (in)	4.9
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.82

G20832-1212X

H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
T Drop (in)	2.362
C Cutoff (in)	2.953
C Cutoff (mm)	75
L Length (in)	4.89
L Length (mm)	124.2
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.88
L (in)	4.9
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	40
Weight (lbs.)	0.82

G20845-1212

H2 Nut Hex (in)	1.26
H2 Nut Hex (mm)	32
T1 Thread (in)	3/4-14
T Drop (in)	1.53
C Cutoff (in)	1.06
C Cutoff (mm)	27
L Length (in)	3.07
L Length (mm)	78
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.06
L (in)	3.07
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	1.0

G20230-1212

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
C Cutoff (in)	1.95
C Cutoff (mm)	49.5
L Length (in)	3.96
L Length (mm)	100.5
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.89
L (in)	1.95
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.64

G20230-1212X

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
C Cutoff (in)	1.949
C Cutoff (mm)	49.5
L Length (in)	1.949
L Length (mm)	49.5
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.89
L (in)	1.95
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	50
Weight (lbs.)	0.65

G20230-1212T

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
C Cutoff (in)	1.949
C Cutoff (mm)	49.5
L Length (in)	3.957
L Length (mm)	100.5

G20230-1212TX

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
C Cutoff (in)	1.949
C Cutoff (mm)	49.5
L Length (in)	1.949
L Length (mm)	49.5

G202481212X

No variation attributes.

G20234-1212

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
T Drop (in)	0.83
C Cutoff (in)	2.91
C Cutoff (mm)	73.9
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.91
L (in)	4.92
Angle.	45
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.75

G20234-1212X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	0.827
C Cutoff (in)	2.913
C Cutoff (mm)	74
L Length (in)	4.921
L Length (mm)	125
Angle.	45

G20234-1212T

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	0.827
C Cutoff (in)	2.913
C Cutoff (mm)	74
L Length (in)	4.921
L Length (mm)	125
Angle.	45

12GS-12FFORX90-135 XBULK

T Drop (in)	5.315
C Cutoff (in)	2.953
C Cutoff (mm)	75
L Length (in)	4.961
L Length (mm)	126
Angle.	90

12GS-12FFORX90-199 XBULK

T Drop (in)	7.835
C Cutoff (in)	2.953
C Cutoff (mm)	75
L Length (in)	4.961
L Length (mm)	126
Angle.	90

G20241-1212

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	3.78
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

G20241-1212X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	3.78
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

12GS-12FFORX90L-TCX

No variation attributes.

G20240-1212

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	2.283
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

G20240-1212X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	2.283
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

G20239-1212

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
T Drop (in)	1.89
C Cutoff (in)	3.03
C Cutoff (mm)	77
L Length (in)	5.04
L Length (mm)	128
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.03
L (in)	5.04
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.88

G20239-1212X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	1.89
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

G20239-1212T

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	1.89
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

12GS-12FFORX90S-ZN XBULK

T Drop (in)	1.89
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	5.039
L Length (mm)	128
Angle.	90

G20930-1212

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	3/4-14
C Cutoff (in)	1.86
C Cutoff (mm)	47.2
L Length (in)	3.87
L Length (mm)	98.3
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.86
L (in)	3.87
Material	Steel
Customer Pack	1
Weight (lbs.)	0.64

G20170-1212

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
C Cutoff (in)	1.85
C Cutoff (mm)	47
L Length (in)	3.87
L Length (mm)	98.3
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.86
L (in)	3.87
Material	Steel
Customer Pack	1
Weight (lbs.)	0.46

G20170-1212X

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
C Cutoff (in)	1.85
C Cutoff (mm)	47
L Length (in)	3.87
L Length (mm)	98.3
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.86
L (in)	3.87
Material	Steel
Customer Pack	50
Weight (lbs.)	0.46

G20174-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	0.827
C Cutoff (in)	3.11
C Cutoff (mm)	79
L Length (in)	5.122
L Length (mm)	130.1
Angle.	45

G20174-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	0.827
C Cutoff (in)	3.11
C Cutoff (mm)	79
L Length (in)	5.122
L Length (mm)	130.1
Angle.	45

12GS-12FJX90-063XBULK

No variation attributes.

G20181-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	3.78
C Cutoff (in)	2.441
C Cutoff (mm)	62
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20181-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	3.78
C Cutoff (in)	2.441
C Cutoff (mm)	62
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20180-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	2.283
C Cutoff (in)	2.677
C Cutoff (mm)	68
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20180-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	2.283
C Cutoff (in)	2.677
C Cutoff (mm)	68
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20179-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	1.89
C Cutoff (in)	2.677
C Cutoff (mm)	68
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20179-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	1.89
C Cutoff (in)	2.677
C Cutoff (mm)	68
L Length (in)	4.449
L Length (mm)	113
Angle.	90

G20910-1212

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X1.5
C Cutoff (in)	2
C Cutoff (mm)	50.7
L Length (in)	4
L Length (mm)	101.6
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2
L (in)	4
Material	Steel
Notes	These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.
Customer Pack	1
Weight (lbs.)	0.64

G20300-1212

C Cutoff (in)	2.362
C Cutoff (mm)	60
L Length (in)	4.37
L Length (mm)	111
Working Pressure (psi)	5000

G20300-1212X

C Cutoff (in)	2.362
C Cutoff (mm)	60
L Length (in)	4.37
L Length (mm)	111
Working Pressure (psi)	5000

G20325-1212

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	2.52
C Cutoff (in)	3.15
C Cutoff (mm)	80
L Length (in)	5.16
L Length (mm)	131.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.15
L (in)	5.16
Angle.	110
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.77

G20302-1212

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	0.43
C Cutoff (in)	3.15
C Cutoff (mm)	80
L Length (in)	5.16
L Length (mm)	131.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.15
L (in)	5.16
Angle.	22.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.55

G20302-1212X

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
T1 Thread (in)	3/4"
T Drop (in)	0.433
C Cutoff (in)	3.15
C Cutoff (mm)	80
L Length (in)	5.157
L Length (mm)	131
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
Angle.	22.5
Material	Steel

G20304-1212

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T1 Thread (in)	3/4"
T Drop (in)	0.63
C Cutoff (in)	3.07
C Cutoff (mm)	78
L Length (in)	5.08
L Length (mm)	129
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.07
L (in)	5.08
Angle.	30
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.55

12GS-12FL45-076XBULK

No variation attributes.

G20307-1212

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	1.02
C Cutoff (in)	2.87
C Cutoff (mm)	72.9
L Length (in)	4.88
L Length (mm)	124
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.87
L (in)	4.88
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.53

G20307-1212X

T Drop (in)	1.024
C Cutoff (in)	2.874
C Cutoff (mm)	73
L Length (in)	4.882
L Length (mm)	124
Working Pressure (psi)	5000
Angle.	45

G20309-1212

T Drop (in)	1.457
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Working Pressure (psi)	5000
Angle.	60

G20311-1212

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	1.65
C Cutoff (in)	3.19
C Cutoff (mm)	81
L Length (in)	5.2
L Length (mm)	132.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.19
L (in)	5.2
Angle.	67.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.73

G20317-1212

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	3.94
C Cutoff (in)	2.8
C Cutoff (mm)	71.1
L Length (in)	4.41
L Length (mm)	112
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.4
L (in)	4.41
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.86

G20317-1212X

T Drop (in)	3.937
C Cutoff (in)	2.795
C Cutoff (mm)	71
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000
Angle.	90

G20318-1212

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	0.27
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T1 Thread (in)	3/4"
T Drop (in)	4.92
C Cutoff (in)	2.8
C Cutoff (mm)	71.1
L Length (in)	4.8
L Length (mm)	121.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.8
L (in)	4.8
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.97

12GS-12FL90-140XBULK

No variation attributes.

12GS-12FL90-150XBULK

T Drop (in)	5.906
C Cutoff (in)	2.559
C Cutoff (mm)	65
L Length (in)	4.567
L Length (mm)	116
Angle.	90

G20319-1212

T Drop (in)	7.874
C Cutoff (in)	2.559
C Cutoff (mm)	65
L Length (in)	4.567
L Length (mm)	116
Working Pressure (psi)	6000
Angle.	90

12GS-12FL90-200XBULK

No variation attributes.

G20315-1212

T Drop (in)	2.283
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000
Angle.	90

G20315-1212X

T Drop (in)	2.283
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000
Angle.	90

G20400-1212

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
C Cutoff (in)	3.7
C Cutoff (mm)	94
L Length (in)	5.71
L Length (mm)	145
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.7
L (in)	5.71
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.86

G20402-1212

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T1 Thread (in)	3/4"
T Drop (in)	0.63
C Cutoff (in)	3.62
C Cutoff (mm)	91.9
L Length (in)	5.63
L Length (mm)	143
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.62
L (in)	5.63
Angle.	22.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.86

G20404-1212

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T1 Thread (in)	3/4"
T Drop (in)	0.87
C Cutoff (in)	3.5
C Cutoff (mm)	88.9
L Length (in)	5.51
L Length (mm)	140
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.5
L (in)	5.51
Angle.	30
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.86

G20407-1212

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T1 Thread (in)	3/4"
T Drop (in)	1.38
C Cutoff (in)	3.23
C Cutoff (mm)	82
L Length (in)	5.24
L Length (mm)	133.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.23
L (in)	5.24
Angle.	45
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.86

G20408-1212

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	2.6
C Cutoff (in)	4.49
C Cutoff (mm)	114
L Length (in)	6.5
L Length (mm)	165.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	4.49
L (in)	6.5
Angle.	45
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.94

G20409-1212

T Drop (in)	1.85
C Cutoff (in)	4.055
C Cutoff (mm)	103
L Length (in)	6.063
L Length (mm)	154
Angle.	60

G20415-1212

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T1 Thread (in)	3/4"
T Drop (in)	2.68
C Cutoff (in)	2.91
C Cutoff (mm)	73.9
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.91
L (in)	4.92
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.88

G20415-1212X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	2.677
C Cutoff (in)	2.913
C Cutoff (mm)	74
L Length (in)	4.921
L Length (mm)	125
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.91
L (in)	4.92
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	50
Weight (lbs.)	0.88

G20416-1212

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T1 Thread (in)	3/4"
T Drop (in)	5.04
C Cutoff (in)	2.6
C Cutoff (mm)	66
L Length (in)	4.61
L Length (mm)	117.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.6
L (in)	4.61
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.1

G20350-1212

C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.492
L Length (mm)	114.1
Working Pressure (psi)	6000

G20350-1212X

C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.492
L Length (mm)	114.1
Working Pressure (psi)	6000

G20350-1212T

C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.492
L Length (mm)	114.1
Working Pressure (psi)	6000

12GS-12FLH-ZN XBULK

C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.488
L Length (mm)	114
Working Pressure (psi)	6000

G20369-1212

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	2.52
C Cutoff (in)	2.99
C Cutoff (mm)	76
L Length (in)	3.82
L Length (mm)	97
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	6000
C (in)	1.81
L (in)	3.82
Angle.	110
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI.
Customer Pack	1
Weight (lbs.)	0.8

G20372-1212T

T Drop (in)	3.346
C Cutoff (in)	2.118
C Cutoff (mm)	53.8
L Length (in)	4.134
L Length (mm)	105
Working Pressure (psi)	6000
Angle.	135

G20352-1212

T Drop (in)	0.433
C Cutoff (in)	3.15
C Cutoff (mm)	80
L Length (in)	5.157
L Length (mm)	131
Angle.	22.5

G20352-1212T

T Drop (in)	0.433
C Cutoff (in)	3.15
C Cutoff (mm)	80
L Length (in)	5.157
L Length (mm)	131
Working Pressure (psi)	6000
Angle.	22.5

G20354-1212

T Drop (in)	0.63
C Cutoff (in)	3.071
C Cutoff (mm)	78
L Length (in)	5.079
L Length (mm)	129
Working Pressure (psi)	6000
Angle.	30

G20354-1212T

T Drop (in)	0.63
C Cutoff (in)	3.071
C Cutoff (mm)	78
L Length (in)	5.079
L Length (mm)	129
Working Pressure (psi)	6000
Angle.	30

G20357-1212

T Drop (in)	1.024
C Cutoff (in)	2.874
C Cutoff (mm)	73
L Length (in)	4.882
L Length (mm)	124
Working Pressure (psi)	6000
Angle.	45

G20357-1212X

T Drop (in)	1.024
C Cutoff (in)	2.874
C Cutoff (mm)	73
L Length (in)	4.882
L Length (mm)	124
Working Pressure (psi)	6000
Angle.	45

G20357-1212T

T Drop (in)	1.024
C Cutoff (in)	2.874
C Cutoff (mm)	73
L Length (in)	4.882
L Length (mm)	124
Working Pressure (psi)	6000
Angle.	45

G20359-1212

T Drop (in)	1.457
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Working Pressure (psi)	6000
Angle.	60

G20359-1212T

T Drop (in)	1.46
C Cutoff (in)	3.39
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	137
Working Pressure (psi)	6000
Angle.	60

12GS-12FLH90-067XBULK

No variation attributes.

12GS-12FLH90-087

No variation attributes.

G20366-1212

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	3.94
C Cutoff (in)	2.4
C Cutoff (mm)	61
L Length (in)	4.41
L Length (mm)	112
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	6000
C (in)	2.4
L (in)	4.41
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.9

12GS-12FLH90-100 XBULK

T Drop (in)	3.937
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

G20368-1212T

T Drop (in)	4.528
C Cutoff (in)	3.051
C Cutoff (mm)	77.5
L Length (in)	4.567
L Length (mm)	116
Working Pressure (psi)	6000
Angle.	90

G20367-1212

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	4.8
C Cutoff (in)	2.8
C Cutoff (mm)	71.1
L Length (in)	4.8
L Length (mm)	121.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	6000
C (in)	2.8
L (in)	4.8
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.99

G20368-1212

T Drop (in)	5.906
C Cutoff (in)	2.559
C Cutoff (mm)	65
L Length (in)	4.567
L Length (mm)	116
Working Pressure (psi)	6000
Angle.	90

12GS-12FLH90-150 XBULK

T Drop (in)	5.906
C Cutoff (in)	2.559
C Cutoff (mm)	65
L Length (in)	4.567
L Length (mm)	116
Working Pressure (psi)	6000
Angle.	90

G20365-1212

T Drop (in)	2.283
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

G20365-1212X

T Drop (in)	2.283
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

12GS-12FLH90M-TCX

T Drop (in)	2.283
C Cutoff (in)	2.677
C Cutoff (mm)	68
L Length (in)	4.685
L Length (mm)	119
Working Pressure (psi)	6000
Angle.	90

G20301-1212

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
C Cutoff (in)	3.19
C Cutoff (mm)	81
L Length (in)	5.2
L Length (mm)	132.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.19
L (in)	5.2
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.6

G20140-1212

H1 Stem Hex (in)	1.13
H1 Stem Hex (mm)	28.6
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
C Cutoff (in)	2.02
C Cutoff (mm)	51.3
L Length (in)	4.02
L Length (mm)	102.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.02
L (in)	4.02
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	1
Weight (lbs.)	0.51

G20140-1212X

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T1 Thread (in)	1.1/16" - 12 UN
C Cutoff (in)	2.02
C Cutoff (mm)	51.3
L Length (in)	4.02
L Length (mm)	102.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.02
L (in)	4.02
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	75
Weight (lbs.)	0.51

G20145-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	1.26
C Cutoff (in)	3.091
C Cutoff (mm)	78.5
L Length (in)	5.079
L Length (mm)	129
Angle.	45

G20145-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T1 Thread (in)	1.1/16" - 12 UN
T Drop (in)	1.26
C Cutoff (in)	3.091
C Cutoff (mm)	78.5
L Length (in)	5.118
L Length (mm)	130
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Angle.	45
Material	Steel

G20149-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	1.89
C Cutoff (in)	2.717
C Cutoff (mm)	69
L Length (in)	4.72
L Length (mm)	119.9
Angle.	90

G20149-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T1 Thread (in)	1.1/16" - 12 UN
T Drop (in)	1.89
C Cutoff (in)	2.717
C Cutoff (mm)	69
L Length (in)	4.72
L Length (mm)	119.9
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.72
L (in)	4.72
Angle.	90
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	40
Weight (lbs.)	0.7

G20150-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	2.283
C Cutoff (in)	2.732
C Cutoff (mm)	69.4
L Length (in)	4.72
L Length (mm)	119.9
Angle.	90

G20150-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T1 Thread (in)	1.1/16" - 12 UN
T Drop (in)	2.283
C Cutoff (in)	2.732
C Cutoff (mm)	69.4
L Length (in)	4.724
L Length (mm)	120
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Angle.	90
Material	Steel

G20151-1212

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
T Drop (in)	3.78
C Cutoff (in)	2.72
C Cutoff (mm)	69.1
L Length (in)	4.72
L Length (mm)	119.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.72
L (in)	4.72
Angle.	90
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	1
Weight (lbs.)	0.9

G20151-1212X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	3.78
C Cutoff (in)	2.717
C Cutoff (mm)	69
L Length (in)	4.72
L Length (mm)	119.9
Angle.	90

12GS-12FPLS

C Cutoff (in)	2.24
L Length (in)	4.25
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.75
Inside Diameter (mm)	19.100000000000001
C (in)	2.24
L (in)	4.25
Customer Pack	1
Weight (lbs.)	0.9482

G20537-1212

C Cutoff (in)	3.07
C Cutoff (mm)	78
L Length (in)	4.39
L Length (mm)	111.5
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.38
L (in)	4.39
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.9

G20120-1212

H1 Stem Hex (in)	1.25
H1 Stem Hex (mm)	31.75
C Cutoff (in)	1.654
C Cutoff (mm)	42
L Length (in)	3.661
L Length (mm)	93

G20120-1212X

H1 Stem Hex (in)	1.25
H1 Stem Hex (mm)	31.75
C Cutoff (in)	1.654
C Cutoff (mm)	42
L Length (in)	3.661
L Length (mm)	93
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.65
L (in)	3.66
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	75
Weight (lbs.)	0.45

G20810-1212

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
T1 Thread (in)	3/4-14
C Cutoff (in)	1.37
C Cutoff (mm)	34.7
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.37
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	0.36

G20225-1212

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
T1 Thread (in)	1 3/16-12
C Cutoff (in)	1.5
C Cutoff (mm)	38.1
L Length (in)	3.5
L Length (mm)	88.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.5
L (in)	3.5
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	0.44

G20225-1212X

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
C Cutoff (in)	1.496
C Cutoff (mm)	38
L Length (in)	3.5
L Length (mm)	88.9
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.5
L (in)	3.5
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	60
Weight (lbs.)	0.44

G20165-1212

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
C Cutoff (in)	1.654
C Cutoff (mm)	42
L Length (in)	3.661
L Length (mm)	93

G20165-1212X

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
C Cutoff (in)	1.654
C Cutoff (mm)	42
L Length (in)	3.661
L Length (mm)	93

G20100-1212

H1 Stem Hex (in)	1.0625
H1 Stem Hex (mm)	26.99
C Cutoff (in)	1.535
C Cutoff (mm)	39
L Length (in)	3.539
L Length (mm)	89.9

G20100-1212X

H1 Stem Hex (in)	1.0625
H1 Stem Hex (mm)	26.99
C Cutoff (in)	1.535
C Cutoff (mm)	39
L Length (in)	3.539
L Length (mm)	89.9
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.54
L (in)	3.54
Material	Steel
Customer Pack	100
Weight (lbs.)	0.35

G20530-1212

T1 Thread (in)	1.3/16" - 12 UN
C Cutoff (in)	1.7
L Length (in)	3.7
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.75
Inside Diameter (mm)	19.100000000000001
C (in)	1.7
L (in)	3.7
Customer Pack	1
Weight (lbs.)	0.37

G20530-1212X

C Cutoff (in)	1.654
C Cutoff (mm)	42
L Length (in)	3.661
L Length (mm)	93

12GS-12PLSOR

T1 Thread (in)	1.3/16" - 12 UN
C Cutoff (in)	1.97
L Length (in)	3.96
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.75
Inside Diameter (mm)	19.100000000000001
C (in)	1.97
L (in)	3.96
Customer Pack	1
Weight (lbs.)	0.415

G20170-1214

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
H2 Nut Hex (in)	1.375
H2 Nut Hex (mm)	34.93
C Cutoff (in)	2.055
C Cutoff (mm)	52.2
L Length (in)	4.059
L Length (mm)	103.1

G20170-1214X

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
H2 Nut Hex (in)	1.375
H2 Nut Hex (mm)	34.93
C Cutoff (in)	2.055
C Cutoff (mm)	52.2
L Length (in)	4.059
L Length (mm)	103.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.06
L (in)	4.06
Material	Steel
Customer Pack	80
Weight (lbs.)	0.55

G20165-1214

H1 Stem Hex (in)	1.25
H1 Stem Hex (mm)	31.75
C Cutoff (in)	1.693
C Cutoff (mm)	43
L Length (in)	3.701
L Length (mm)	94
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.69
L (in)	3.7
Material	Steel
Customer Pack	1
Weight (lbs.)	0.49

G20830-1216

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1-11
C Cutoff (in)	1.4
C Cutoff (mm)	35.6
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.4
L (in)	3.74
Material	Steel
Customer Pack	1
Weight (lbs.)	0.7

G20230-1216

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	2.047
C Cutoff (mm)	52
L Length (in)	4.059
L Length (mm)	103.1

G20230-1216X

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T1 Thread (in)	1.7/16" - 12 UN
C Cutoff (in)	2.047
C Cutoff (mm)	52
L Length (in)	4.059
L Length (mm)	103.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.05
L (in)	4.06
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	50
Weight (lbs.)	0.88

G20230-1216T

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	2.047
C Cutoff (mm)	52
L Length (in)	4.055
L Length (mm)	103

12GS-16FFORX-ZN XBULK

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	2.047
C Cutoff (mm)	52
L Length (in)	4.059
L Length (mm)	103.1

12GS-16FFORX45-024

No variation attributes.

G20234-1216

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.945
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Angle.	45

G20234-1216X

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.945
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Angle.	45

G20241-1216

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1 7/16-12
T Drop (in)	4.49
C Cutoff (in)	3.39
C Cutoff (mm)	86.1
L Length (in)	5.39
L Length (mm)	136.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.39
L (in)	5.39
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	1.32

G20241-1216X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	4.488
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.39
L (in)	5.39
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	30
Weight (lbs.)	1.32

G20240-1216

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1 7/16-12
T Drop (in)	2.8
C Cutoff (in)	3.39
C Cutoff (mm)	86.1
L Length (in)	5.39
L Length (mm)	136.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.39
L (in)	5.39
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	1.1

G20239-1216

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.205
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Angle.	90

G20239-1216X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.205
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Angle.	90

G20170-1216

H1 Stem Hex (in)	1.25
H1 Stem Hex (mm)	31.75
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.008
C Cutoff (mm)	51
L Length (in)	4.02
L Length (mm)	102.1

G20170-1216X

H1 Stem Hex (in)	1.25
H1 Stem Hex (mm)	31.75
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.008
C Cutoff (mm)	51
L Length (in)	4.02
L Length (mm)	102.1

G20174-1216

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	0.945
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Angle.	45

G20174-1216X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	0.945
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.39
L Length (mm)	136.9
Angle.	45

G20180-1216

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	2.795
C Cutoff (in)	3.307
C Cutoff (mm)	84
L Length (in)	5.311
L Length (mm)	134.9
Angle.	90

G20179-1216

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	2.205
C Cutoff (in)	3.307
C Cutoff (mm)	84
L Length (in)	5.311
L Length (mm)	134.9
Angle.	90

G20300-1216

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
C Cutoff (in)	2.36
C Cutoff (mm)	59.9
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.36
L (in)	4.37
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.53

G20300-1216X

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T1 Thread (in)	1"
C Cutoff (in)	2.362
C Cutoff (mm)	60
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.36
L (in)	4.37
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	50
Weight (lbs.)	0.53

G20302-1216

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	0.55
C Cutoff (in)	3.23
C Cutoff (mm)	82
L Length (in)	5.24
L Length (mm)	133.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.23
L (in)	5.24
Angle.	22.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.68

G20304-1216

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T1 Thread (in)	1"
T Drop (in)	0.75
C Cutoff (in)	2.76
C Cutoff (mm)	70.1
L Length (in)	4.76
L Length (mm)	120.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.76
L (in)	4.76
Angle.	30
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.66

G20306-1216

T Drop (in)	1.102
C Cutoff (in)	2.953
C Cutoff (mm)	75
L Length (in)	4.961
L Length (mm)	126
Working Pressure (psi)	5000
Angle.	45

G20306-1216X

T Drop (in)	1.102
C Cutoff (in)	2.953
C Cutoff (mm)	75
L Length (in)	4.961
L Length (mm)	126
Working Pressure (psi)	5000
Angle.	45

G20309-1216

T Drop (in)	1.732
C Cutoff (in)	3.346
C Cutoff (mm)	85
L Length (in)	5.35
L Length (mm)	135.9
Working Pressure (psi)	5000
Angle.	60

G20311-1216

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T1 Thread (in)	1"
T Drop (in)	2.01
C Cutoff (in)	3.07
C Cutoff (mm)	78
L Length (in)	5.08
L Length (mm)	129
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.07
L (in)	5.08
Angle.	67.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.75

G20316-1216

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	3.15
C Cutoff (in)	3.03
C Cutoff (mm)	77
L Length (in)	5.04
L Length (mm)	128
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	3.03
L (in)	5.04
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.9

12GS-16FL90-100XBULK

No variation attributes.

12GS-16FL90-150XBULK

No variation attributes.

G20315-1216

T Drop (in)	2.756
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000
Angle.	90

G20315-1216X

T Drop (in)	2.756
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000
Angle.	90

G20314-1216

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	2.4
C Cutoff (in)	3.03
C Cutoff (mm)	77
L Length (in)	4.41
L Length (mm)	112
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	5000
C (in)	2.4
L (in)	4.41
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.81

G20314-1216X

T Drop (in)	2.402
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000
Angle.	90

G20400-1216

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
C Cutoff (in)	3.7
C Cutoff (mm)	94
L Length (in)	5.71
L Length (mm)	145
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.7
L (in)	5.71
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.92

G20404-1216

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	0.87
C Cutoff (in)	3.54
C Cutoff (mm)	90
L Length (in)	5.55
L Length (mm)	141
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.54
L (in)	5.55
Angle.	30
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.95

G20407-1216

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	1.38
C Cutoff (in)	3.23
C Cutoff (mm)	82
L Length (in)	5.24
L Length (mm)	133.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.23
L (in)	5.24
Angle.	45
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	0.95

G20415-1216

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T1 Thread (in)	1"
T Drop (in)	2.68
C Cutoff (in)	3.03
C Cutoff (mm)	77
L Length (in)	4.61
L Length (mm)	117.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.6
L (in)	4.61
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.01

G20415-1216X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	2.677
C Cutoff (in)	3.031
C Cutoff (mm)	77
L Length (in)	4.61
L Length (mm)	117.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.6
L (in)	4.61
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	30
Weight (lbs.)	1.01

G20350-1216

C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.492
L Length (mm)	114.1
Working Pressure (psi)	6000

G20350-1216X

C Cutoff (in)	2.48
C Cutoff (mm)	63
L Length (in)	4.492
L Length (mm)	114.1
Working Pressure (psi)	6000

G20372-1216T

T Drop (in)	3.346
C Cutoff (in)	1.055
C Cutoff (mm)	26.8
L Length (in)	3.071
L Length (mm)	78
Working Pressure (psi)	6000
Angle.	135

12GS-16FLH135-085-ZN XBULK

T Drop (in)	3.346
C Cutoff (in)	1.055
C Cutoff (mm)	26.8
L Length (in)	3.071
L Length (mm)	78
Angle.	135

G20352-1216

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	0.55
C Cutoff (in)	3.43
C Cutoff (mm)	87.1
L Length (in)	5.43
L Length (mm)	137.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	6000
C (in)	3.43
L (in)	5.43
Angle.	22.5
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.77

G20357-1216

T Drop (in)	1.26
C Cutoff (in)	3.11
C Cutoff (mm)	79
L Length (in)	5.122
L Length (mm)	130.1
Working Pressure (psi)	6000
Angle.	45

G20357-1216X

T Drop (in)	1.26
C Cutoff (in)	3.11
C Cutoff (mm)	79
L Length (in)	5.122
L Length (mm)	130.1
Working Pressure (psi)	6000
Angle.	45

G20359-1216

T Drop (in)	1.732
C Cutoff (in)	3.346
C Cutoff (mm)	85
L Length (in)	5.35
L Length (mm)	135.9
Working Pressure (psi)	6000
Angle.	60

G203661216X

No variation attributes.

G20367-1216

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	5.51
C Cutoff (in)	2.56
C Cutoff (mm)	65
L Length (in)	4.57
L Length (mm)	116.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	6000
C (in)	2.56
L (in)	4.57
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.1

G20365-1216

T Drop (in)	2.756
C Cutoff (in)	3.189
C Cutoff (mm)	81
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

G20365-1216X

T Drop (in)	2.756
C Cutoff (in)	3.189
C Cutoff (mm)	81
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

G20364-1216

T Drop (in)	2.402
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

G20364-1216X

T Drop (in)	2.402
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	6000
Angle.	90
Material	Steel

G20364-1216T

T Drop (in)	2.402
C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	6000
Angle.	90

G20140-1216

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.055
C Cutoff (mm)	52.2
L Length (in)	4.059
L Length (mm)	103.1

G20140-1216X

H1 Stem Hex (in)	1.125
H1 Stem Hex (mm)	28.58
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.055
C Cutoff (mm)	52.2
L Length (in)	4.055
L Length (mm)	103
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Material	Steel

G20150-1216X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	2.205
C Cutoff (in)	3.386
C Cutoff (mm)	86
L Length (in)	5.394
L Length (mm)	137
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Angle.	90
Material	Steel

12GS-16FMX90-170XBULK

No variation attributes.

G20120-1216

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
C Cutoff (in)	1.535
C Cutoff (mm)	39
L Length (in)	3.539
L Length (mm)	89.9

G20225-1216

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
C Cutoff (in)	1.732
C Cutoff (mm)	44
L Length (in)	3.74
L Length (mm)	95

G20165-1216

H1 Stem Hex (in)	1.31
H1 Stem Hex (mm)	33.3
T1 Thread (in)	1 5/16-12
C Cutoff (in)	1.77
C Cutoff (mm)	45
L Length (in)	3.78
L Length (mm)	96
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.77
L (in)	3.78
Material	Steel
Customer Pack	1
Weight (lbs.)	0.6

G20165-1216X

H1 Stem Hex (in)	1.3125
H1 Stem Hex (mm)	33.34
C Cutoff (in)	1.772
C Cutoff (mm)	45
L Length (in)	3.78
L Length (mm)	96

G20100-1216

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
T1 Thread (in)	1-11 1/2
C Cutoff (in)	1.81
C Cutoff (mm)	46
L Length (in)	3.82
L Length (mm)	97
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.81
L (in)	3.82
Material	Steel
Customer Pack	1
Weight (lbs.)	0.57

G20100-1216X

H1 Stem Hex (in)	1.375
H1 Stem Hex (mm)	34.93
C Cutoff (in)	1.811
C Cutoff (mm)	46
L Length (in)	3.819
L Length (mm)	97
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.81
L (in)	3.82
Material	Steel
Customer Pack	40
Weight (lbs.)	0.57

G20720-1220

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.05
C Cutoff (mm)	52.1
L Length (in)	4.06
L Length (mm)	103.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.05
L (in)	4.06
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.48

G20720-1220X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
A1 Outside Diameter (in)	0.787
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.047
C Cutoff (mm)	52
L Length (in)	4.059
L Length (mm)	103.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.05
L (in)	4.06
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	40
Weight (lbs.)	0.48

G20725-1220

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
T Drop (in)	1.17
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	4.33
C Cutoff (mm)	110
L Length (in)	6.33
L Length (mm)	160.8
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	4.33
L (in)	6.33
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.9

G20725-1220X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	1.173
A1 Outside Diameter (in)	0.787
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	4.327
C Cutoff (mm)	109.9
L Length (in)	6.331
L Length (mm)	160.8
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	4.33
L (in)	6.33
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	40
Weight (lbs.)	0.8

G20730-1220

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
T Drop (in)	2.44
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.95
C Cutoff (mm)	75
L Length (in)	4.86
L Length (mm)	123.4
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.85
L (in)	4.86
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.87

G20730-1220X

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	2.441
A1 Outside Diameter (in)	0.787
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.953
C Cutoff (mm)	75
L Length (in)	4.858
L Length (mm)	123.4
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.85
L (in)	4.86
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	50
Weight (lbs.)	0.87

12GS-20FDHORX90-100 XBULK

T1 Thread (in)	M30X2.0
T Drop (in)	3.94
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	2.95
C Cutoff (mm)	75
L Length (in)	4.96
L Length (mm)	126
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	45
Weight (lbs.)	1.0

G20300-1220

C Cutoff (in)	2.362
C Cutoff (mm)	60
L Length (in)	4.37
L Length (mm)	111
Working Pressure (psi)	4000

G20314-1220

F Flange Head Thickness (in)	.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.126
C Cutoff (in)	3.15
C Cutoff (mm)	80
L Length (in)	5.161
L Length (mm)	131.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
Working Pressure (psi)	4000
C (in)	3.15
L (in)	5.16
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.99

G20715-1220

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	1.34
C Cutoff (mm)	34
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.34
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	0.38

G20680-1221

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X1.5
A1 Outside Diameter (in)	0.84
A1 Outside Diameter (mm)	21.3
A1 Tube Outside Diameter (mm)	21.3
C Cutoff (in)	1.38
C Cutoff (mm)	35.1
L Length (in)	3.27
L Length (mm)	83.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.29
L (in)	3.27
Material	Steel
Customer Pack	1
Weight (lbs.)	0.5

G20645-1222

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.87
A1 Outside Diameter (mm)	22
A1 Tube Outside Diameter (mm)	22
C Cutoff (in)	1.81
C Cutoff (mm)	46
L Length (in)	3.82
L Length (mm)	97
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.81
L (in)	3.82
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.6

G20650-1222

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
T Drop (in)	1.17
A1 Outside Diameter (in)	0.87
A1 Outside Diameter (mm)	22
A1 Tube Outside Diameter (mm)	22
C Cutoff (in)	3.34
C Cutoff (mm)	84.8
L Length (in)	5.35
L Length (mm)	135.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.34
L (in)	5.35
Angle.	45
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.7

G20655-1222

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
T Drop (in)	2.44
A1 Outside Diameter (in)	0.87
A1 Outside Diameter (mm)	22
A1 Tube Outside Diameter (mm)	22
C Cutoff (in)	2.95
C Cutoff (mm)	75
L Length (in)	4.86
L Length (mm)	123.4
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.86
L (in)	4.86
Angle.	90
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.88

G20615-1222

H1 Stem Hex (in)	1.26
H1 Stem Hex (mm)	32
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.87
A1 Outside Diameter (mm)	22
A1 Tube Outside Diameter (mm)	22
C Cutoff (in)	1.12
C Cutoff (mm)	28.5
L Length (in)	3.13
L Length (mm)	79.5
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.12
L (in)	3.13
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.32

G20735-1222

H1 Stem Hex (in)	1.42
H1 Stem Hex (mm)	36
T1 Thread (in)	M30X1.5
C Cutoff (in)	1.34
C Cutoff (mm)	34
L Length (in)	3.35
L Length (mm)	85.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.34
L (in)	3.35
Material	Steel
Customer Pack	1
Weight (lbs.)	0.42

G20720-1225

H2 Nut Hex (in)	1.81
H2 Nut Hex (mm)	46
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	4.23
L Length (mm)	107.4
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.22
L (in)	4.23
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.94

G20720-1225X

H2 Nut Hex (in)	1.811
H2 Nut Hex (mm)	46
A1 Outside Diameter (in)	0.984
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	4.228
L Length (mm)	107.4
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.22
L (in)	4.23
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	45
Weight (lbs.)	0.99

G20725-1225

H2 Nut Hex (in)	1.81
H2 Nut Hex (mm)	46
T1 Thread (in)	M36X2.0
T Drop (in)	1.23
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	3.4
C Cutoff (mm)	86.3
L Length (in)	5.31
L Length (mm)	134.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	3.4
L (in)	5.31
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.14

G20730-1225

H2 Nut Hex (in)	1.81
H2 Nut Hex (mm)	46
T1 Thread (in)	M36X2.0
T Drop (in)	2.52
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	2.95
C Cutoff (mm)	75
L Length (in)	4.86
L Length (mm)	123.4
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	2.85
L (in)	4.86
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.14

G20715-1225

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	1.5
C Cutoff (mm)	38.1
L Length (in)	3.5
L Length (mm)	88.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.5
L (in)	3.5
Material	Steel
Customer Pack	1
Weight (lbs.)	0.59

G20645-1228

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	1.1
A1 Outside Diameter (mm)	28
A1 Tube Outside Diameter (mm)	28
C Cutoff (in)	1.89
C Cutoff (mm)	48
L Length (in)	3.9
L Length (mm)	99.1
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.89
L (in)	3.9
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.7

G20645-1228X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
A1 Outside Diameter (in)	1.102
A1 Outside Diameter (mm)	28
A1 Tube Outside Diameter (mm)	28
C Cutoff (in)	1.89
C Cutoff (mm)	48
L Length (in)	3.902
L Length (mm)	99.1
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.89
L (in)	3.9
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	60
Weight (lbs.)	0.7

G20735-1228

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
T1 Thread (in)	M36X1.5
C Cutoff (in)	1.61
C Cutoff (mm)	41
L Length (in)	3.62
L Length (mm)	91.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.61
L (in)	3.62
Material	Steel
Customer Pack	1
Weight (lbs.)	0.66

G20300-1208

C Cutoff (in)	2.402
C Cutoff (mm)	61
L Length (in)	4.409
L Length (mm)	112
Working Pressure (psi)	5000

G20314-1208

T Drop (in)	1.969
C Cutoff (in)	2.795
C Cutoff (mm)	71
L Length (in)	4.799
L Length (mm)	121.9
Working Pressure (psi)	5000
Angle.	90

G20100-1208

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	1/2-14
C Cutoff (in)	1.54
C Cutoff (mm)	39.1
L Length (in)	3.54
L Length (mm)	89.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
C (in)	1.54
L (in)	3.54
Material	Steel
Customer Pack	1
Weight (lbs.)	0.35

G20995-0212

A1 Outside Diameter (in)	1.57
A1 Outside Diameter (mm)	39.9
L Length (in)	1.73
L Length (mm)	43.9
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
L (in)	1.73
Outside Diameter (in)	1.57
Outside Diameter (mm)	39.9
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	1
Weight (lbs.)	0.23

G20995-0412

A1 Outside Diameter (in)	1.8
A1 Outside Diameter (mm)	45.7
L Length (in)	2
L Length (mm)	50.8
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
L (in)	2
Outside Diameter (in)	1.8
Outside Diameter (mm)	45.7
Material	Steel
Customer Pack	5
Weight (lbs.)	0.4

G20995-0412X

A1 Outside Diameter (in)	1.8
A1 Outside Diameter (mm)	45.7
L Length (in)	2
L Length (mm)	50.8
Hose Inside Diameter (in)	0.752
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
L (in)	2
Outside Diameter (in)	1.8
Outside Diameter (mm)	45.7
Material	Steel
Customer Pack	75
Weight (lbs.)	0.39

G20995-0412T

A1 Outside Diameter (in)	1.8
A1 Outside Diameter (mm)	45.7
L Length (in)	2
L Length (mm)	50.8

12GS1F-4ZN XBULK

L Length (in)	2
L Length (mm)	50.8

G20997-0412X

A1 Outside Diameter (in)	1.59
A1 Outside Diameter (mm)	40.4
L Length (in)	2.01
L Length (mm)	51
Hose Inside Diameter (in)	0.75
Hose Inside Diameter (mm)	19.1
Inside Diameter (in)	0.752
Inside Diameter (mm)	19.1
L (in)	2.01
Outside Diameter (in)	1.59
Outside Diameter (mm)	40.4
Material	Steel
Customer Pack	100
Weight (lbs.)	0.3102

G20230-1612

H1 Stem Hex (in)	1.42
H1 Stem Hex (mm)	36
H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
C Cutoff (in)	2.92
C Cutoff (mm)	74.2
L Length (in)	5.15
L Length (mm)	130.8
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.15
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.42

G20230-1612X

H1 Stem Hex (in)	1.417
H1 Stem Hex (mm)	36
H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T1 Thread (in)	1.3/16" - 12 UN
C Cutoff (in)	2.921
C Cutoff (mm)	74.2
L Length (in)	5.15
L Length (mm)	130.8
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.15
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	25
Weight (lbs.)	0.95

G20170-1612

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
H2 Nut Hex (in)	1.38
H2 Nut Hex (mm)	34.9
T1 Thread (in)	1.1/16" - 12 UN
C Cutoff (in)	2
C Cutoff (mm)	50.7
L Length (in)	4.25
L Length (mm)	108
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2
L (in)	4.25
Material	Steel
Customer Pack	1
Weight (lbs.)	0.57

G20170-1612X

H1 Stem Hex (in)	1.375
H1 Stem Hex (mm)	34.93
H2 Nut Hex (in)	1.375
H2 Nut Hex (mm)	34.93
C Cutoff (in)	1.996
C Cutoff (mm)	50.7
L Length (in)	4.252
L Length (mm)	108
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2
L (in)	4.25
Material	Steel
Customer Pack	25
Weight (lbs.)	0.57

16GS-12FL90

No variation attributes.

16GS-12FL90-100XBULK

No variation attributes.

G20315-1612

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	2.28
C Cutoff (in)	3.08
C Cutoff (mm)	78.2
L Length (in)	5.31
L Length (mm)	134.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	5.08
L (in)	5.31
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.86

G20350-1612

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
C Cutoff (in)	2.86
C Cutoff (mm)	72.6
L Length (in)	5.08
L Length (mm)	129
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	2.86
L (in)	5.08
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.13

G20357-1612

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	1.02
C Cutoff (in)	3.33
C Cutoff (mm)	84.6
L Length (in)	5.55
L Length (mm)	141
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.33
L (in)	5.55
Angle.	45
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.95

G20365-1612

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	2.28
C Cutoff (in)	3.09
C Cutoff (mm)	78.6
L Length (in)	5.31
L Length (mm)	134.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.09
L (in)	5.31
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.28

G20365-1612X

F Flange Head Thickness (in)	8.9
F Flange Head Thickness (mm)	0.35
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T1 Thread (in)	3/4"
T Drop (in)	2.283
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.09
L (in)	5.31
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	20
Weight (lbs.)	1.28

G20120-1612

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
T1 Thread (in)	1 1/16-12
C Cutoff (in)	1.74
C Cutoff (mm)	44.2
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.74
L (in)	3.98
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	0.6

G20100-1612

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
T1 Thread (in)	3/4" - 14 NPTF
C Cutoff (in)	1.74
C Cutoff (mm)	44.2
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.74
L (in)	3.98
Material	Steel
Customer Pack	1
Weight (lbs.)	0.33

G20170-1614

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1.3/16" - 12 UN
C Cutoff (in)	2.01
C Cutoff (mm)	51.1
L Length (in)	4.25
L Length (mm)	108
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.01
L (in)	4.25
Material	Steel
Customer Pack	1
Weight (lbs.)	0.73

G20830-1616

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1-11
C Cutoff (in)	1.52
C Cutoff (mm)	38.6
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.52
L (in)	3.74
Material	Steel
Customer Pack	1
Weight (lbs.)	0.84

G20830-1616X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	1.52
C Cutoff (mm)	38.6
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.52
L (in)	3.74
Material	Steel
Customer Pack	40
Weight (lbs.)	0.84

G20831-1616

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1-11
T Drop (in)	1.22
C Cutoff (in)	3.9
C Cutoff (mm)	99.1
L Length (in)	6.12
L Length (mm)	155.5
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.9
L (in)	6.12
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	1.25

G20832-1616

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1-11
T Drop (in)	2.76
C Cutoff (in)	3.72
C Cutoff (mm)	94.6
L Length (in)	5.81
L Length (mm)	147.6
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.59
L (in)	5.81
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	1.44

G20230-1616

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	4.358
L Length (mm)	110.7

G20230-1616X

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	4.358
L Length (mm)	110.7
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.14
L (in)	4.36
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	40
Weight (lbs.)	1.04

G20234-1616

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.945
C Cutoff (in)	3.469
C Cutoff (mm)	88.1
L Length (in)	5.669
L Length (mm)	144
Angle.	45

G20234-1616X

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.945
C Cutoff (in)	3.469
C Cutoff (mm)	88.1
L Length (in)	5.669
L Length (mm)	144
Angle.	45

16GS-16FFORX45S-TCX

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.945
C Cutoff (in)	3.469
C Cutoff (mm)	88.1
L Length (in)	5.669
L Length (mm)	144
Angle.	45

16GS-16FFORX45S-ZN XBULK

T Drop (in)	0.945
C Cutoff (in)	3.469
C Cutoff (mm)	88.1
L Length (in)	5.669
L Length (mm)	144
Angle.	45

G20241-1616

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	4.488
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20241-1616X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	4.488
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20240-1616

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.795
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20240-1616X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.795
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20239-1616

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.205
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20239-1616X

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.205
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20239-1616T

H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
T Drop (in)	2.205
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20930-1616

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	1-11
C Cutoff (in)	2.03
C Cutoff (mm)	51.6
L Length (in)	4.25
L Length (mm)	108
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.03
L (in)	4.25
Material	Steel
Customer Pack	1
Weight (lbs.)	0.86

G20170-1616

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1 5/16-12
C Cutoff (in)	2.1
C Cutoff (mm)	53.3
L Length (in)	4.3
L Length (mm)	109.2
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.07
L (in)	4.3
Material	Steel
Customer Pack	1
Weight (lbs.)	0.7

G20170-1616X

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.098
C Cutoff (mm)	53.3
L Length (in)	4.299
L Length (mm)	109.2
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.07
L (in)	4.3
Material	Steel
Customer Pack	50
Weight (lbs.)	0.75

G20175-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1 5/16-12
T Drop (in)	1.5
C Cutoff (in)	4.08
C Cutoff (mm)	103.6
L Length (in)	6.3
L Length (mm)	160
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.07
L (in)	6.3
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	0.99

G20175-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	1.496
C Cutoff (in)	4.079
C Cutoff (mm)	103.6
L Length (in)	6.299
L Length (mm)	160
Angle.	45

G20174-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	0.945
C Cutoff (in)	3.768
C Cutoff (mm)	95.7
L Length (in)	5.98
L Length (mm)	151.9
Angle.	45

G20174-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	0.945
C Cutoff (in)	3.768
C Cutoff (mm)	95.7
L Length (in)	5.98
L Length (mm)	151.9
Angle.	45

G20177-1616

T Drop (in)	2.244
C Cutoff (in)	3.843
C Cutoff (mm)	97.6
L Length (in)	6.063
L Length (mm)	154
Angle.	60

G20177-1616X

No variation attributes.

G20181-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	4.331
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20181-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	4.331
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20180-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1 5/16-12
T Drop (in)	2.8
C Cutoff (in)	3.45
C Cutoff (mm)	87.6
L Length (in)	5.67
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.45
L (in)	5.67
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	1.25

G20180-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1.5/16" - 12 UN
T Drop (in)	2.795
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.45
L (in)	5.67
Angle.	90
Material	Steel
Customer Pack	30
Weight (lbs.)	1.25

G20179-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	2.205
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20179-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	2.205
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

16GS-16FJXMM XBULK

C Cutoff (in)	2.169
C Cutoff (mm)	55.1
L Length (in)	4.409
L Length (mm)	112

G20910-1616

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	M33X1.5
C Cutoff (in)	2.29
C Cutoff (mm)	58.2
L Length (in)	4.51
L Length (mm)	114.6
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.29
L (in)	4.51
Material	Steel
Notes	These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.
Customer Pack	1
Weight (lbs.)	0.9

G20300-1616

C Cutoff (in)	2.701
C Cutoff (mm)	68.6
L Length (in)	4.921
L Length (mm)	125
Working Pressure (psi)	5000

G20300-1616X

C Cutoff (in)	2.701
C Cutoff (mm)	68.6
L Length (in)	4.921
L Length (mm)	125
Working Pressure (psi)	5000

G20325-1616

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	2.87
C Cutoff (in)	3.61
C Cutoff (mm)	91.6
L Length (in)	5.83
L Length (mm)	148.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	3.61
L (in)	5.83
Angle.	110
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.02

G20302-1616

T Drop (in)	0.551
C Cutoff (in)	3.882
C Cutoff (mm)	98.6
L Length (in)	6.098
L Length (mm)	154.9
Working Pressure (psi)	5000
Angle.	22.5

G20302-1616X

T Drop (in)	0.551
C Cutoff (in)	3.882
C Cutoff (mm)	98.6
L Length (in)	6.098
L Length (mm)	154.9
Working Pressure (psi)	5000
Angle.	22.5

G20304-1616

T Drop (in)	0.748
C Cutoff (in)	3.803
C Cutoff (mm)	96.6
L Length (in)	6.02
L Length (mm)	152.9
Working Pressure (psi)	5000
Angle.	30

G20304-1616X

T Drop (in)	0.748
C Cutoff (in)	3.803
C Cutoff (mm)	96.6
L Length (in)	6.02
L Length (mm)	152.9
Working Pressure (psi)	5000
Angle.	30

G20307-1616

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	1.26
C Cutoff (in)	3.57
C Cutoff (mm)	90.6
L Length (in)	5.79
L Length (mm)	147.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	3.57
L (in)	5.79
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.06

G20307-1616X

T Drop (in)	1.26
C Cutoff (in)	3.567
C Cutoff (mm)	90.6
L Length (in)	5.791
L Length (mm)	147.1
Working Pressure (psi)	5000
Angle.	45

G20309-1616

T Drop (in)	1.732
C Cutoff (in)	3.961
C Cutoff (mm)	100.6
L Length (in)	6.181
L Length (mm)	157
Working Pressure (psi)	5000
Angle.	60

G20309-1616X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	1.732
C Cutoff (in)	3.961
C Cutoff (mm)	100.6
L Length (in)	6.181
L Length (mm)	157
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	3.97
L (in)	6.18
Angle.	60
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	25
Weight (lbs.)	1.22

G20311-1616

T Drop (in)	2.008
C Cutoff (in)	3.724
C Cutoff (mm)	94.6
L Length (in)	5.941
L Length (mm)	150.9
Working Pressure (psi)	5000
Angle.	67.5

16GS-16FL90-090

T Drop (in)	3.543
C Cutoff (in)	3.378
C Cutoff (mm)	85.8
L Length (in)	5.591
L Length (mm)	142
Angle.	90

16GS-16FL90-090XBULK

No variation attributes.

16GS-16FL90-090 XBULK

No variation attributes.

G20317-1616

T Drop (in)	4.724
C Cutoff (in)	3.055
C Cutoff (mm)	77.6
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	5000
Angle.	90

G20317-1616X

T Drop (in)	4.724
C Cutoff (in)	3.055
C Cutoff (mm)	77.6
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	5000
Angle.	90

G20318-1616

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	5.91
C Cutoff (in)	3.44
C Cutoff (mm)	87.4
L Length (in)	5.67
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	3.44
L (in)	5.67
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.68

G20318-1616X

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
T1 Thread (in)	1"
T Drop (in)	5.906
C Cutoff (in)	3.441
C Cutoff (mm)	87.4
L Length (in)	5.669
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
Angle.	90
Material	Steel

G20319-1616

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	8.27
C Cutoff (in)	3.02
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	3.02
L (in)	5.28
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.91

G20316-1616

T Drop (in)	3.543
C Cutoff (in)	3.039
C Cutoff (mm)	77.2
L Length (in)	5.591
L Length (mm)	142
Working Pressure (psi)	5000
Angle.	90

16GS-16FL90-260 XBULK

T Drop (in)	10.236
C Cutoff (in)	3.039
C Cutoff (mm)	77.2
L Length (in)	5.276
L Length (mm)	134
Angle.	90

G20315-1616

T Drop (in)	2.756
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Working Pressure (psi)	5000
Angle.	90

G20315-1616X

T Drop (in)	2.756
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Working Pressure (psi)	5000
Angle.	90

G20314-1616

T Drop (in)	2.402
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Working Pressure (psi)	5000
Angle.	90

G20314-1616X

T Drop (in)	2.402
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Working Pressure (psi)	5000
Angle.	90

16GS-16FL90S-TCX XBULK

No variation attributes.

G20400-1616

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
C Cutoff (in)	3.87
C Cutoff (mm)	98.2
L Length (in)	6.1
L Length (mm)	154.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.87
L (in)	6.1
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.19

G20400-1616X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
C Cutoff (in)	3.866
C Cutoff (mm)	98.2
L Length (in)	6.098
L Length (mm)	154.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.87
L (in)	6.1
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	35
Weight (lbs.)	1.19

G20402-1616

T Drop (in)	0.669
C Cutoff (in)	3.776
C Cutoff (mm)	95.9
L Length (in)	6.02
L Length (mm)	152.9
Angle.	22.5

G20404-1616

T Drop (in)	0.906
C Cutoff (in)	3.689
C Cutoff (mm)	93.7
L Length (in)	5.941
L Length (mm)	150.9
Angle.	30

G20407-1616

T Drop (in)	1.457
C Cutoff (in)	3.398
C Cutoff (mm)	86.3
L Length (in)	5.63
L Length (mm)	143
Angle.	45

G20409-1616

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T1 Thread (in)	1"
T Drop (in)	1.97
C Cutoff (in)	4.17
C Cutoff (mm)	106
L Length (in)	6.42
L Length (mm)	163.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.17
L (in)	6.42
Angle.	60
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.28

G20410-1616

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T1 Thread (in)	1"
T Drop (in)	2.24
C Cutoff (in)	3.9
C Cutoff (mm)	99.1
L Length (in)	6.14
L Length (mm)	156
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.9
L (in)	6.14
Angle.	67.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.28

G20415-1616

T Drop (in)	2.913
C Cutoff (in)	2.917
C Cutoff (mm)	74.1
L Length (in)	5.161
L Length (mm)	131.1
Angle.	90

G20415-1616X

T Drop (in)	2.913
C Cutoff (in)	2.917
C Cutoff (mm)	74.1
L Length (in)	5.161
L Length (mm)	131.1
Angle.	90

G20416-1616

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T1 Thread (in)	1"
T Drop (in)	5.2
C Cutoff (in)	2.92
C Cutoff (mm)	74.1
L Length (in)	5.16
L Length (mm)	131.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.16
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.55

G20350-1616

C Cutoff (in)	2.701
C Cutoff (mm)	68.6
L Length (in)	4.921
L Length (mm)	125
Working Pressure (psi)	6000

G20350-1616X

C Cutoff (in)	2.701
C Cutoff (mm)	68.6
L Length (in)	4.921
L Length (mm)	125
Working Pressure (psi)	6000

16GS-16FLH-TCX XBULK

No variation attributes.

G20352-1616

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	0.55
C Cutoff (in)	3.88
C Cutoff (mm)	98.6
L Length (in)	6.1
L Length (mm)	154.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.88
L (in)	6.1
Angle.	22.5
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.13

G20354-1616

T Drop (in)	0.75
C Cutoff (in)	3.8
C Cutoff (mm)	96.6
L Length (in)	6.02
L Length (mm)	152.9
Working Pressure (psi)	6000
Angle.	30

G20354-1616X

T Drop (in)	0.748
C Cutoff (in)	3.803
C Cutoff (mm)	96.6
L Length (in)	6.024
L Length (mm)	153
Working Pressure (psi)	6000
Angle.	30

G20357-1616

T Drop (in)	1.26
C Cutoff (in)	3.567
C Cutoff (mm)	90.6
L Length (in)	5.791
L Length (mm)	147.1
Working Pressure (psi)	6000
Angle.	45

G20357-1616X

T Drop (in)	1.26
C Cutoff (in)	3.567
C Cutoff (mm)	90.6
L Length (in)	5.791
L Length (mm)	147.1
Working Pressure (psi)	6000
Angle.	45

16GS16FLH60100

No variation attributes.

G20359-1616

T Drop (in)	1.732
C Cutoff (in)	3.961
C Cutoff (mm)	100.6
L Length (in)	6.181
L Length (mm)	157
Working Pressure (psi)	6000
Angle.	60

16GS-16FLH60M XBULK

No variation attributes.

G20360-1616

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	2.01
C Cutoff (in)	3.72
C Cutoff (mm)	94.6
L Length (in)	5.94
L Length (mm)	150.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.72
L (in)	5.94
Angle.	67.5
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.28

G20367-1616

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	3.54
C Cutoff (in)	3.28
C Cutoff (mm)	83.4
L Length (in)	5.52
L Length (mm)	140.2
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.28
L (in)	5.52
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.32

G20366-1616

T Drop (in)	4.724
C Cutoff (in)	3.039
C Cutoff (mm)	77.2
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	6000
Angle.	90

G20366-1616X

T Drop (in)	4.724
C Cutoff (in)	3.039
C Cutoff (mm)	77.2
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	6000
Angle.	90

16GS-16FLH90-125

T Drop (in)	4.921
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.276
L Length (mm)	134
Angle.	90

16GS-16FLH90-150 XBULK

No variation attributes.

G20368-1616

T Drop (in)	11.063
C Cutoff (in)	5.362
C Cutoff (mm)	136.2
L Length (in)	7.598
L Length (mm)	193
Working Pressure (psi)	6000
Angle.	90

G20365-1616

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	2.76
C Cutoff (in)	3.09
C Cutoff (mm)	78.6
L Length (in)	5.31
L Length (mm)	134.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.09
L (in)	5.31
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.3

G20365-1616X

T Drop (in)	2.756
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Working Pressure (psi)	6000
Angle.	90

G20364-1616

T Drop (in)	2.402
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Working Pressure (psi)	6000
Angle.	90

G20364-1616X

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T1 Thread (in)	1"
T Drop (in)	2.402
C Cutoff (in)	3.094
C Cutoff (mm)	78.6
L Length (in)	5.311
L Length (mm)	134.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.09
L (in)	5.31
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	25
Weight (lbs.)	1.28

16GS-16FLHFFCF XBULK

No variation attributes.

G20301-1616

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
C Cutoff (in)	3.41
C Cutoff (mm)	86.6
L Length (in)	5.63
L Length (mm)	143
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	5000
C (in)	3.41
L (in)	5.63
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.11

G20140-1616

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.146
C Cutoff (mm)	54.5
L Length (in)	4.37
L Length (mm)	111

G20140-1616X

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
C Cutoff (in)	2.146
C Cutoff (mm)	54.5
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.15
L (in)	4.37
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	30
Weight (lbs.)	1.22

G20145-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	1.496
C Cutoff (in)	4.039
C Cutoff (mm)	102.6
L Length (in)	6.26
L Length (mm)	159
Angle.	45

G20145-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T Drop (in)	1.496
C Cutoff (in)	4.039
C Cutoff (mm)	102.6
L Length (in)	6.26
L Length (mm)	159
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.04
L (in)	6.26
Angle.	45
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	25
Weight (lbs.)	1.33

G20150-1616X

T Drop (in)	2.795
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Angle.	90

G20149-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1 5/16-12
T Drop (in)	2.21
C Cutoff (in)	3.45
C Cutoff (mm)	87.6
L Length (in)	5.67
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.45
L (in)	5.67
Angle.	90
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	1
Weight (lbs.)	1.26

G20149-1616X

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1.5/16" - 12 UN
T Drop (in)	2.205
C Cutoff (in)	3.449
C Cutoff (mm)	87.6
L Length (in)	5.669
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.45
L (in)	5.67
Angle.	90
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	30
Weight (lbs.)	1.26

G20150-1616

H2 Nut Hex (in)	1.5
H2 Nut Hex (mm)	38.1
T1 Thread (in)	1 5/16-12
T Drop (in)	2.8
C Cutoff (in)	3.45
C Cutoff (mm)	87.6
L Length (in)	5.67
L Length (mm)	144
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.45
L (in)	5.67
Angle.	90
Material	Steel
Notes	Gates High Performance Replacement for Female JIC Fittings - Connects to Standard Male JIC Termination.
Customer Pack	1
Weight (lbs.)	1.39

G20537-1616

C Cutoff (in)	2.756
C Cutoff (mm)	70
L Length (in)	5
L Length (mm)	127
Angle.	90

G20534-1616

C Cutoff (in)	2.6
C Cutoff (mm)	66
L Length (in)	7.09
L Length (mm)	180.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.61
L (in)	7.09
Material	Steel
Customer Pack	1
Weight (lbs.)	0.85

G20120-1616

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
T1 Thread (in)	1.5/16" - 12 UN
C Cutoff (in)	1.62
C Cutoff (mm)	41.2
L Length (in)	3.86
L Length (mm)	98
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.62
L (in)	3.86
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	0.64

G20120-1616X

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
C Cutoff (in)	1.622
C Cutoff (mm)	41.2
L Length (in)	3.862
L Length (mm)	98.1

G20810-1616

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
T1 Thread (in)	1-11
C Cutoff (in)	1.62
C Cutoff (mm)	41.2
L Length (in)	3.86
L Length (mm)	98
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.62
L (in)	3.86
Material	Steel
Customer Pack	1
Weight (lbs.)	0.6

G20225-1616

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
C Cutoff (in)	1.78
C Cutoff (mm)	45.2
L Length (in)	4.02
L Length (mm)	102.1

G20225-1616X

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
C Cutoff (in)	1.78
C Cutoff (mm)	45.2
L Length (in)	4.02
L Length (mm)	102.1

G20165-1616

H1 Stem Hex (in)	1.375
H1 Stem Hex (mm)	34.93
C Cutoff (in)	1.859
C Cutoff (mm)	47.21
L Length (in)	4.091
L Length (mm)	103.9

G20165-1616X

H1 Stem Hex (in)	1.375
H1 Stem Hex (mm)	34.93
C Cutoff (in)	1.859
C Cutoff (mm)	47.21
L Length (in)	4.091
L Length (mm)	103.9

G20100-1616

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
T1 Thread (in)	1-11 1/2
C Cutoff (in)	1.94
C Cutoff (mm)	49.2
L Length (in)	4.17
L Length (mm)	105.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.94
L (in)	4.17
Material	Steel
Customer Pack	1
Weight (lbs.)	0.53

G20100-1616X

H1 Stem Hex (in)	1.375
H1 Stem Hex (mm)	34.93
C Cutoff (in)	1.937
C Cutoff (mm)	49.21
L Length (in)	4.169
L Length (mm)	105.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.94
L (in)	4.17
Material	Steel
Customer Pack	60
Weight (lbs.)	0.53

G20103-1616

H1 Stem Hex (in)	1.38
H1 Stem Hex (mm)	34.9
T1 Thread (in)	1-11 1/2
C Cutoff (in)	2.92
C Cutoff (mm)	74.2
L Length (in)	5.16
L Length (mm)	131.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.16
Material	Steel
Customer Pack	1
Weight (lbs.)	0.93

G20103-1616X

H1 Stem Hex (in)	1.375
H1 Stem Hex (mm)	34.93
C Cutoff (in)	2.921
C Cutoff (mm)	74.2
L Length (in)	5.161
L Length (mm)	131.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.16
Material	Steel
Customer Pack	45
Weight (lbs.)	0.93

G20530-1616

C Cutoff (in)	1.89
L Length (in)	4.13
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.89
L (in)	4.13
Customer Pack	1
Weight (lbs.)	0.57

16GS-16PL XBULK

No variation attributes.

G20230-1620

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
C Cutoff (in)	2.138
C Cutoff (mm)	54.3
L Length (in)	4.358
L Length (mm)	110.7

G20230-1620X

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
T1 Thread (in)	1.11/16" - 12 UN
C Cutoff (in)	2.138
C Cutoff (mm)	54.3
L Length (in)	4.358
L Length (mm)	110.7
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.14
L (in)	4.36
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	35
Weight (lbs.)	1.15

G20234-1620

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1.11/16" - 12 UN
T Drop (in)	0.98
C Cutoff (in)	4.24
C Cutoff (mm)	107.6
L Length (in)	6.46
L Length (mm)	164.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.24
L (in)	6.46
Angle.	45
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	1.45

G20234-1620X

H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
T Drop (in)	0.984
C Cutoff (in)	4.236
C Cutoff (mm)	107.6
L Length (in)	6.461
L Length (mm)	164.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.24
L (in)	6.46
Angle.	45
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	25
Weight (lbs.)	1.45

G20240-1620

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 11/16-12
T Drop (in)	3.07
C Cutoff (in)	3.83
C Cutoff (mm)	97.2
L Length (in)	6.05
L Length (mm)	153.7
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.83
L (in)	6.05
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	1.89

G20239-1620

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 11/16-12
T Drop (in)	2.52
C Cutoff (in)	3.73
C Cutoff (mm)	94.7
L Length (in)	6.06
L Length (mm)	153.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.84
L (in)	6.06
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	1.78

G20170-1620

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
C Cutoff (in)	2.307
C Cutoff (mm)	58.61
L Length (in)	4.531
L Length (mm)	115.1

G20170-1620X

H1 Stem Hex (in)	1.5
H1 Stem Hex (mm)	38.1
H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
C Cutoff (in)	2.307
C Cutoff (mm)	58.61
L Length (in)	4.531
L Length (mm)	115.1

G20174-1620

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T1 Thread (in)	1 5/8-12
T Drop (in)	0.98
C Cutoff (in)	4.23
C Cutoff (mm)	107.5
L Length (in)	6.46
L Length (mm)	164.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.23
L (in)	6.46
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	1.65

G20181-1620

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T1 Thread (in)	1 5/8-12
T Drop (in)	5.08
C Cutoff (in)	3.84
C Cutoff (mm)	97.6
L Length (in)	6.06
L Length (mm)	153.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.84
L (in)	6.06
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	2.54

G20181-1620X

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	5.079
C Cutoff (in)	3.843
C Cutoff (mm)	97.6
L Length (in)	6.063
L Length (mm)	154
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Angle.	90
Material	Steel

G20300-1620

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
C Cutoff (in)	2.69
C Cutoff (mm)	68.2
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	2.69
L (in)	4.92
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.75

G20300-1620X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
C Cutoff (in)	2.685
C Cutoff (mm)	68.21
L Length (in)	4.921
L Length (mm)	125
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	2.69
L (in)	4.92
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	35
Weight (lbs.)	0.75

G20325-1620

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.87
C Cutoff (in)	2.41
C Cutoff (mm)	61.2
L Length (in)	4.65
L Length (mm)	118.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	2.41
L (in)	4.65
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.2

G20302-1620

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T1 Thread (in)	1.1/4"
T Drop (in)	0.59
C Cutoff (in)	4.37
C Cutoff (mm)	111
L Length (in)	6.61
L Length (mm)	167.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	4.37
L (in)	6.61
Angle.	22.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.81

G20304-1620

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	0.87
C Cutoff (in)	4.29
C Cutoff (mm)	109
L Length (in)	6.54
L Length (mm)	166.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	4.29
L (in)	6.54
Angle.	30
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.81

G20307-1620

T Drop (in)	1.496
C Cutoff (in)	3.969
C Cutoff (mm)	100.8
L Length (in)	6.22
L Length (mm)	158
Working Pressure (psi)	4000
Angle.	45

G20307-1620X

T Drop (in)	1.496
C Cutoff (in)	3.969
C Cutoff (mm)	100.8
L Length (in)	6.22
L Length (mm)	158
Working Pressure (psi)	4000
Angle.	45

G20309-1620

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.17
C Cutoff (in)	3.95
C Cutoff (mm)	100.2
L Length (in)	6.18
L Length (mm)	157
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	3.94
L (in)	6.18
Angle.	60
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.88

G20311-1620

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.52
C Cutoff (in)	3.59
C Cutoff (mm)	91.2
L Length (in)	5.83
L Length (mm)	148.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	3.59
L (in)	5.83
Angle.	67.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.88

G20317-1620

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	4.72
C Cutoff (in)	3.04
C Cutoff (mm)	77.2
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	3.04
L (in)	5.28
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.56

G20315-1620

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	3.54
C Cutoff (in)	3.02
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	2.99
L (in)	5.28
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.33

G20315-1620X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	3.543
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	2.99
L (in)	5.28
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	25
Weight (lbs.)	1.33

G20314-1620

T Drop (in)	2.677
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	4000
Angle.	90

G20314-1620X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.677
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	4000
C (in)	3.02
L (in)	5.28
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	35
Weight (lbs.)	0.88

G20400-1620

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
C Cutoff (in)	3.87
C Cutoff (mm)	98.2
L Length (in)	6.1
L Length (mm)	154.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.87
L (in)	6.1
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.3

G20400-1620X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
C Cutoff (in)	3.866
C Cutoff (mm)	98.2
L Length (in)	6.098
L Length (mm)	154.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.87
L (in)	6.1
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	25
Weight (lbs.)	1.3

G20402-1620

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	0.67
C Cutoff (in)	3.78
C Cutoff (mm)	95.9
L Length (in)	6.02
L Length (mm)	152.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.78
L (in)	6.02
Angle.	22.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.3

G20404-1620

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	0.91
C Cutoff (in)	3.69
C Cutoff (mm)	93.7
L Length (in)	5.94
L Length (mm)	150.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.69
L (in)	5.94
Angle.	30
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.3

G20407-1620

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	1.46
C Cutoff (in)	3.4
C Cutoff (mm)	86.3
L Length (in)	5.63
L Length (mm)	143
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.4
L (in)	5.63
Angle.	45
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.3

G20409-1620

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	1.97
C Cutoff (in)	4.17
C Cutoff (mm)	106
L Length (in)	6.42
L Length (mm)	163.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.17
L (in)	6.42
Angle.	60
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.41

G20410-1620

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	2.24
C Cutoff (in)	3.9
C Cutoff (mm)	99.1
L Length (in)	6.14
L Length (mm)	156
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.9
L (in)	6.14
Angle.	67.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.41

G20415-1620

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	2.91
C Cutoff (in)	2.92
C Cutoff (mm)	74.1
L Length (in)	5.16
L Length (mm)	131.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.16
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.41

G20415-1620X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	2.913
C Cutoff (in)	2.917
C Cutoff (mm)	74.1
L Length (in)	5.161
L Length (mm)	131.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.16
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	25
Weight (lbs.)	1.41

G20416-1620

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	5.19
C Cutoff (in)	2.92
C Cutoff (mm)	74.2
L Length (in)	5.15
L Length (mm)	130.8
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.92
L (in)	5.15
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	1.84

G20416-1620X

T Drop (in)	5.197
C Cutoff (in)	2.921
C Cutoff (mm)	74.2
L Length (in)	5.157
L Length (mm)	131
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Angle.	90
Material	Steel

G20350-1620

F Flange Head Thickness (in)	0.41
F Flange Head Thickness (mm)	10.4
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
C Cutoff (in)	2.69
C Cutoff (mm)	68.2
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	2.69
L (in)	4.92
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.88

G20350-1620X

C Cutoff (in)	2.685
C Cutoff (mm)	68.21
L Length (in)	4.921
L Length (mm)	125
Working Pressure (psi)	6000

16GS-20FLH-TCX XBULK

No variation attributes.

G20352-1620

F Flange Head Thickness (in)	0.41
F Flange Head Thickness (mm)	10.4
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	0.59
C Cutoff (in)	4.37
C Cutoff (mm)	111
L Length (in)	6.61
L Length (mm)	167.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	4.52
L (in)	6.61
Angle.	22.5
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.3

G20354-1620

F Flange Head Thickness (in)	0.41
F Flange Head Thickness (mm)	10.4
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	0.87
C Cutoff (in)	4.3
C Cutoff (mm)	109.1
L Length (in)	6.22
L Length (mm)	158.5
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.98
L (in)	6.22
Angle.	30
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.315

G20357-1620

T Drop (in)	1.496
C Cutoff (in)	3.984
C Cutoff (mm)	101.2
L Length (in)	6.22
L Length (mm)	158
Working Pressure (psi)	6000
Angle.	45

G20365-1620

T Drop (in)	3.543
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	6000
Angle.	90

G20365-1620X

T Drop (in)	3.543
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	6000
Angle.	90

G20364-1620

T Drop (in)	2.677
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Working Pressure (psi)	6000
Angle.	90

G20364-1620X

F Flange Head Thickness (in)	10.4
F Flange Head Thickness (mm)	0.41
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	2.677
C Cutoff (in)	3.024
C Cutoff (mm)	76.8
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.02
L (in)	5.28
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	20
Weight (lbs.)	1.07

G20225-1620

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
T1 Thread (in)	1 11/16-12
C Cutoff (in)	1.94
C Cutoff (mm)	49.2
L Length (in)	4.17
L Length (mm)	105.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.78
L (in)	4.17
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	1.08

G20165-1620

H1 Stem Hex (in)	1.75
H1 Stem Hex (mm)	44.5
T1 Thread (in)	1 5/8-12
C Cutoff (in)	2.04
C Cutoff (mm)	51.7
L Length (in)	4.27
L Length (mm)	108.5
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.04
L (in)	4.27
Material	Steel
Customer Pack	1
Weight (lbs.)	0.95

G20300-1624

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
C Cutoff (in)	1.9
C Cutoff (mm)	48.2
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	3000
C (in)	1.9
L (in)	4.92
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.11

G20313-1624

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	2.36
C Cutoff (in)	3.47
C Cutoff (mm)	88.2
L Length (in)	5.71
L Length (mm)	145
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	3000
C (in)	3.47
L (in)	5.71
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.5

G20314-1624

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	3.19
C Cutoff (in)	3.04
C Cutoff (mm)	77.2
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	3000
C (in)	3.04
L (in)	5.28
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.42

G20364-1624

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	0.5
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T1 Thread (in)	1.1/2"
T Drop (in)	3.19
C Cutoff (in)	3.04
C Cutoff (mm)	77.2
L Length (in)	5.28
L Length (mm)	134.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
Working Pressure (psi)	6000
C (in)	3.04
L (in)	5.28
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.0

G20720-1625

H2 Nut Hex (in)	1.81
H2 Nut Hex (mm)	46
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	2.35
C Cutoff (mm)	59.6
L Length (in)	4.57
L Length (mm)	116.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.35
L (in)	4.57
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.16

G20720-1625X

H2 Nut Hex (in)	1.811
H2 Nut Hex (mm)	46
A1 Outside Diameter (in)	0.984
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	2.346
C Cutoff (mm)	59.6
L Length (in)	4.571
L Length (mm)	116.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.35
L (in)	4.57
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	25
Weight (lbs.)	1.13

G20725-1625

H2 Nut Hex (in)	1.81
H2 Nut Hex (mm)	46
T1 Thread (in)	M36X2.0
T Drop (in)	1.38
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	4.07
C Cutoff (mm)	103.3
L Length (in)	3.9
L Length (mm)	99.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.66
L (in)	3.9
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.41

G20730-1625

H2 Nut Hex (in)	1.81
H2 Nut Hex (mm)	46
T1 Thread (in)	M36X2.0
T Drop (in)	2.99
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	3.72
C Cutoff (mm)	94.6
L Length (in)	5.94
L Length (mm)	150.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.72
L (in)	5.94
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.66

G20730-1625X

H2 Nut Hex (in)	1.811
H2 Nut Hex (mm)	46
T Drop (in)	2.992
A1 Outside Diameter (in)	0.984
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	3.724
C Cutoff (mm)	94.6
L Length (in)	5.941
L Length (mm)	150.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.72
L (in)	5.94
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	25
Weight (lbs.)	1.66

G20715-1625

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	0.98
A1 Outside Diameter (mm)	25
A1 Tube Outside Diameter (mm)	25
C Cutoff (in)	1.58
C Cutoff (mm)	40.2
L Length (in)	3.82
L Length (mm)	97
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.58
L (in)	3.82
Material	Steel
Customer Pack	1
Weight (lbs.)	0.5

G20645-1628

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	1.1
A1 Outside Diameter (mm)	28
A1 Tube Outside Diameter (mm)	28
C Cutoff (in)	1.91
C Cutoff (mm)	48.6
L Length (in)	4.13
L Length (mm)	105
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.91
L (in)	4.13
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.84

G20650-1628

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	M36X2.0
T Drop (in)	1.22
A1 Outside Diameter (in)	1.1
A1 Outside Diameter (mm)	28
A1 Tube Outside Diameter (mm)	28
C Cutoff (in)	3.9
C Cutoff (mm)	99.1
L Length (in)	6.12
L Length (mm)	155.5
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.9
L (in)	6.12
Angle.	45
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.2

G20655-1628

H2 Nut Hex (in)	1.61
H2 Nut Hex (mm)	40.9
T1 Thread (in)	M36X2.0
T Drop (in)	2.76
A1 Outside Diameter (in)	1.1
A1 Outside Diameter (mm)	28
A1 Tube Outside Diameter (mm)	28
C Cutoff (in)	3.72
C Cutoff (mm)	94.6
L Length (in)	5.82
L Length (mm)	147.8
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.71
L (in)	5.82
Angle.	90
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.39

G20615-1628

H1 Stem Hex (in)	1.61
H1 Stem Hex (mm)	41
T1 Thread (in)	M36X2.0
A1 Outside Diameter (in)	1.1
A1 Outside Diameter (mm)	28
A1 Tube Outside Diameter (mm)	28
C Cutoff (in)	1.31
C Cutoff (mm)	33.2
L Length (in)	3.54
L Length (mm)	89.9
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.31
L (in)	3.54
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.05

G20735-1628

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
T1 Thread (in)	M36X1.5
C Cutoff (in)	1.74
C Cutoff (mm)	44.2
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.74
L (in)	3.98
Material	Steel
Customer Pack	1
Weight (lbs.)	0.97

G20720-1630

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	M42X2.0
A1 Outside Diameter (in)	1.18
A1 Outside Diameter (mm)	30
A1 Tube Outside Diameter (mm)	30
C Cutoff (in)	2.43
C Cutoff (mm)	61.6
L Length (in)	4.65
L Length (mm)	118.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.43
L (in)	4.65
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.28

G20720-1630X

H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
A1 Outside Diameter (in)	1.181
A1 Outside Diameter (mm)	30
A1 Tube Outside Diameter (mm)	30
C Cutoff (in)	2.425
C Cutoff (mm)	61.6
L Length (in)	4.65
L Length (mm)	118.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.43
L (in)	4.65
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	35
Weight (lbs.)	1.2

G20725-1630

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	M42X2.0
T Drop (in)	1.38
A1 Outside Diameter (in)	1.18
A1 Outside Diameter (mm)	30
A1 Tube Outside Diameter (mm)	30
C Cutoff (in)	4.07
C Cutoff (mm)	103.3
L Length (in)	6.29
L Length (mm)	159.8
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	4.07
L (in)	6.29
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.45

G20730-1630

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	M42X2.0
T Drop (in)	2.99
A1 Outside Diameter (in)	1.18
A1 Outside Diameter (mm)	30
A1 Tube Outside Diameter (mm)	30
C Cutoff (in)	3.72
C Cutoff (mm)	94.6
L Length (in)	5.81
L Length (mm)	147.6
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	3.59
L (in)	5.81
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.8

G20715-1630

H1 Stem Hex (in)	1.81
H1 Stem Hex (mm)	46
T1 Thread (in)	M42X2.0
A1 Outside Diameter (in)	1.18
A1 Outside Diameter (mm)	30
A1 Tube Outside Diameter (mm)	30
C Cutoff (in)	1.66
C Cutoff (mm)	42.2
L Length (in)	3.9
L Length (mm)	99.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.66
L (in)	3.9
Material	Steel
Customer Pack	1
Weight (lbs.)	0.78

G20715-1630X

H1 Stem Hex (in)	1.811
H1 Stem Hex (mm)	46
A1 Outside Diameter (in)	1.181
A1 Outside Diameter (mm)	30
A1 Tube Outside Diameter (mm)	30
C Cutoff (in)	1.661
C Cutoff (mm)	42.2
L Length (in)	3.902
L Length (mm)	99.1
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.66
L (in)	3.9
Material	Steel
Customer Pack	50
Weight (lbs.)	0.78

G20735-1635

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
T1 Thread (in)	M45X1.5
C Cutoff (in)	1.5
C Cutoff (mm)	38.2
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.5
L (in)	3.74
Material	Steel
Customer Pack	1
Weight (lbs.)	0.73

G20735-1635X

H1 Stem Hex (in)	1.969
H1 Stem Hex (mm)	50
C Cutoff (in)	1.504
C Cutoff (mm)	38.2
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	1.5
L (in)	3.74
Material	Steel
Customer Pack	20
Weight (lbs.)	0.73

G20720-1638

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	2.17
C Cutoff (mm)	55.2
L Length (in)	4.4
L Length (mm)	111.8
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
C (in)	2.17
L (in)	4.4
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.7

G20995-0216

A1 Outside Diameter (in)	1.94
A1 Outside Diameter (mm)	49.3
L Length (in)	2.059
L Length (mm)	52.3

G20995-0216X

A1 Outside Diameter (in)	1.94
A1 Outside Diameter (mm)	49.3
L Length (in)	2.059
L Length (mm)	52.3

G20995-0416

A1 Outside Diameter (in)	2.07
A1 Outside Diameter (mm)	52.6
L Length (in)	2.22
L Length (mm)	56.4
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
L (in)	2.22
Outside Diameter (in)	2.07
Outside Diameter (mm)	52.6
Material	Steel
Customer Pack	1
Weight (lbs.)	0.55

G20995-0416X

A1 Outside Diameter (in)	2.07
A1 Outside Diameter (mm)	52.6
L Length (in)	2.22
L Length (mm)	56.4
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
L (in)	2.22
Outside Diameter (in)	2.07
Outside Diameter (mm)	52.6
Material	Steel
Customer Pack	50
Weight (lbs.)	0.55

16GS1F-4ZN XBULK

L Length (in)	2.22
L Length (mm)	56.4

G20997-0416X

A1 Outside Diameter (in)	1.92
A1 Outside Diameter (mm)	48.8
L Length (in)	2.01
L Length (mm)	51
Hose Inside Diameter (in)	1
Hose Inside Diameter (mm)	25.4
Inside Diameter (in)	1
Inside Diameter (mm)	25.4
L (in)	2.01
Outside Diameter (in)	1.92
Outside Diameter (mm)	48.8
Material	Steel
Customer Pack	50
Weight (lbs.)	0.46

G20170-2016

H1 Stem Hex (in)	1.75
H1 Stem Hex (mm)	44.45
H2 Nut Hex (in)	1.625
H2 Nut Hex (mm)	41.28
C Cutoff (in)	2.28
C Cutoff (mm)	57.9
L Length (in)	5.079
L Length (mm)	129

G20307-2016

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	1.75
M Flange Diameter (mm)	44.5
T Drop (in)	1.26
C Cutoff (in)	3.62
C Cutoff (mm)	91.9
L Length (in)	6.42
L Length (mm)	163.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	5000
C (in)	3.62
L (in)	6.42
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.37

G20315-2016

T Drop (in)	2.756
C Cutoff (in)	3.5
C Cutoff (mm)	88.9
L Length (in)	6.299
L Length (mm)	160
Working Pressure (psi)	5000
Angle.	90

G20350-2016

C Cutoff (in)	3.617
C Cutoff (mm)	91.88
L Length (in)	6.421
L Length (mm)	163.1
Working Pressure (psi)	6000

G20350-2016X

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T1 Thread (in)	1"
C Cutoff (in)	3.617
C Cutoff (mm)	91.88
L Length (in)	6.421
L Length (mm)	163.1
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	3.62
L (in)	6.42
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. See Accessories for O-Rings.
Customer Pack	25
Weight (lbs.)	1.39

G20357-2016

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	1.26
C Cutoff (in)	3.93
C Cutoff (mm)	99.7
L Length (in)	6.73
L Length (mm)	170.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	3.93
L (in)	6.73
Angle.	45
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.5

G20365-2016

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	1.88
M Flange Diameter (mm)	47.8
T Drop (in)	2.76
C Cutoff (in)	3.5
C Cutoff (mm)	88.9
L Length (in)	6.3
L Length (mm)	160
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	3.5
L (in)	6.3
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.67

G20365-2016X

T Drop (in)	2.756
C Cutoff (in)	3.5
C Cutoff (mm)	88.9
L Length (in)	6.299
L Length (mm)	160
Working Pressure (psi)	6000
Angle.	90

G20830-2020

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 1/4-11
C Cutoff (in)	1.79
C Cutoff (mm)	45.4
L Length (in)	4.59
L Length (mm)	116.6
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	1.79
L (in)	4.59
Material	Steel
Customer Pack	1
Weight (lbs.)	1.47

G20831-2020

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 1/4-11
T Drop (in)	1.48
C Cutoff (in)	4.72
C Cutoff (mm)	119.9
L Length (in)	7.52
L Length (mm)	191
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.72
L (in)	7.52
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	2.42

G20832-2020

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 1/4-11
T Drop (in)	3.15
C Cutoff (in)	4.31
C Cutoff (mm)	109.4
L Length (in)	7.11
L Length (mm)	180.6
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.31
L (in)	7.11
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	2.77

G20230-2020

H1 Stem Hex (in)	1.969
H1 Stem Hex (mm)	50
H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
C Cutoff (in)	2.24
C Cutoff (mm)	56.9
L Length (in)	5.039
L Length (mm)	128

G20230-2020X

H1 Stem Hex (in)	1.969
H1 Stem Hex (mm)	50
H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
C Cutoff (in)	2.24
C Cutoff (mm)	56.9
L Length (in)	5.039
L Length (mm)	128

G20234-2020

H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
T Drop (in)	1.26
C Cutoff (in)	4.287
C Cutoff (mm)	108.9
L Length (in)	7.091
L Length (mm)	180.1
Angle.	45

G20234-2020X

H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
T Drop (in)	1.26
C Cutoff (in)	4.287
C Cutoff (mm)	108.9
L Length (in)	7.091
L Length (mm)	180.1
Angle.	45

G20241-2020

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1.11/16" - 12 UN
T Drop (in)	5.08
C Cutoff (in)	3.97
C Cutoff (mm)	100.9
L Length (in)	6.77
L Length (mm)	172
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.97
L (in)	6.77
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	2.86

G20240-2020

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 11/16-12
T Drop (in)	3.07
C Cutoff (in)	3.97
C Cutoff (mm)	100.9
L Length (in)	6.77
L Length (mm)	172
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.97
L (in)	6.77
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	2.46

G20239-2020

H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
T Drop (in)	2.52
C Cutoff (in)	3.972
C Cutoff (mm)	100.9
L Length (in)	6.772
L Length (mm)	172
Angle.	90

G20239-2020X

H2 Nut Hex (in)	1.969
H2 Nut Hex (mm)	50
T Drop (in)	2.52
C Cutoff (in)	3.972
C Cutoff (mm)	100.9
L Length (in)	6.772
L Length (mm)	172
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.97
L (in)	6.77
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	20
Weight (lbs.)	2.35

G20170-2020

H1 Stem Hex (in)	1.875
H1 Stem Hex (mm)	47.63
H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
C Cutoff (in)	2.555
C Cutoff (mm)	64.9
L Length (in)	5.291
L Length (mm)	134.4

G20170-2020X

H1 Stem Hex (in)	1.875
H1 Stem Hex (mm)	47.63
H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
C Cutoff (in)	2.555
C Cutoff (mm)	64.9
L Length (in)	5.291
L Length (mm)	134.4

G20175-2020

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	1.496
C Cutoff (in)	4.287
C Cutoff (mm)	108.9
L Length (in)	7.091
L Length (mm)	180.1
Angle.	45

G20175-2020X

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	1.496
C Cutoff (in)	4.287
C Cutoff (mm)	108.9
L Length (in)	7.091
L Length (mm)	180.1
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.29
L (in)	7.09
Angle.	45
Material	Steel
Customer Pack	15
Weight (lbs.)	2.02

G20181-2020

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	5.079
C Cutoff (in)	4.051
C Cutoff (mm)	102.9
L Length (in)	6.85
L Length (mm)	174
Angle.	90

G20180-2020

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T1 Thread (in)	1.5/8" - 12 UN
T Drop (in)	3.07
C Cutoff (in)	4.05
C Cutoff (mm)	102.9
L Length (in)	6.85
L Length (mm)	174
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.05
L (in)	6.85
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	2.8

G20180-2020X

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	3.071
C Cutoff (in)	4.051
C Cutoff (mm)	102.9
L Length (in)	6.85
L Length (mm)	174
Angle.	90

G20179-2020

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	2.52
C Cutoff (in)	4.051
C Cutoff (mm)	102.9
L Length (in)	6.85
L Length (mm)	174
Angle.	90

G20179-2020X

H2 Nut Hex (in)	2
H2 Nut Hex (mm)	50.8
T Drop (in)	2.52
C Cutoff (in)	4.051
C Cutoff (mm)	102.9
L Length (in)	6.85
L Length (mm)	174
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.05
L (in)	6.85
Angle.	90
Material	Steel
Customer Pack	15
Weight (lbs.)	2.61

G20300-2020

C Cutoff (in)	2.949
C Cutoff (mm)	74.9
L Length (in)	5.752
L Length (mm)	146.1
Working Pressure (psi)	4000

G20300-2020X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
C Cutoff (in)	2.949
C Cutoff (mm)	74.9
L Length (in)	5.752
L Length (mm)	146.1
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	4000
C (in)	2.95
L (in)	5.75
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	25
Weight (lbs.)	1.51

G20325-2020

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	3.15
C Cutoff (in)	4.33
C Cutoff (mm)	110
L Length (in)	7.13
L Length (mm)	181.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	4000
C (in)	4.33
L (in)	7.13
Angle.	110
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.13

G20302-2020

T Drop (in)	0.591
C Cutoff (in)	4.209
C Cutoff (mm)	106.9
L Length (in)	7.012
L Length (mm)	178.1
Working Pressure (psi)	4000
Angle.	22.5

G20304-2020

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T1 Thread (in)	1.1/4"
T Drop (in)	0.87
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.93
L Length (mm)	176
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	4000
C (in)	4.13
L (in)	6.93
Angle.	30
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.58

G20304-2020X

T Drop (in)	0.866
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.929
L Length (mm)	176
Working Pressure (psi)	4000
Angle.	30

G20306-2020

T Drop (in)	1.26
C Cutoff (in)	3.894
C Cutoff (mm)	98.9
L Length (in)	6.689
L Length (mm)	169.9
Working Pressure (psi)	4000
Angle.	45

G20306-2020X

T Drop (in)	1.26
C Cutoff (in)	3.894
C Cutoff (mm)	98.9
L Length (in)	6.689
L Length (mm)	169.9
Working Pressure (psi)	4000
Angle.	45

G20309-2020

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T1 Thread (in)	1.1/4"
T Drop (in)	2.17
C Cutoff (in)	4.56
C Cutoff (mm)	115.9
L Length (in)	7.36
L Length (mm)	186.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	4000
C (in)	4.56
L (in)	7.36
Angle.	60
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.89

G20311-2020

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T1 Thread (in)	1.1/4"
T Drop (in)	2.52
C Cutoff (in)	4.24
C Cutoff (mm)	107.7
L Length (in)	7.01
L Length (mm)	178.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	4000
C (in)	4.21
L (in)	7.01
Angle.	67.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.89

20GS-20FL90-130XBULK

No variation attributes.

G20317-2020

T Drop (in)	6.614
C Cutoff (in)	3.736
C Cutoff (mm)	94.9
L Length (in)	6.539
L Length (mm)	166.1
Working Pressure (psi)	4000
Angle.	90

G20315-2020

T Drop (in)	3.543
C Cutoff (in)	3.736
C Cutoff (mm)	94.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	4000
Angle.	90

G20315-2020X

T Drop (in)	3.543
C Cutoff (in)	3.736
C Cutoff (mm)	94.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	4000
Angle.	90

G20314-2020

T Drop (in)	2.677
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	4000
Angle.	90

G20314-2020X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.677
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	4000
C (in)	3.7
L (in)	6.5
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	20
Weight (lbs.)	1.89

G20400-2020

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
C Cutoff (in)	4.56
C Cutoff (mm)	115.9
L Length (in)	7.36
L Length (mm)	186.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.56
L (in)	7.36
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.09

G20400-2020X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
C Cutoff (in)	4.563
C Cutoff (mm)	115.9
L Length (in)	7.358
L Length (mm)	186.9
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.56
L (in)	7.36
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	20
Weight (lbs.)	2.09

G20402-2020

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	0.67
C Cutoff (in)	4.48
C Cutoff (mm)	113.8
L Length (in)	7.28
L Length (mm)	184.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.48
L (in)	7.28
Angle.	22.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.14

G20404-2020

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	0.95
C Cutoff (in)	4.41
C Cutoff (mm)	111.9
L Length (in)	7.2
L Length (mm)	182.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.41
L (in)	7.2
Angle.	30
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.09

G20407-2020

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	1.46
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.93
L Length (mm)	176
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.13
L (in)	6.93
Angle.	45
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.09

G20409-2020

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	2.05
C Cutoff (in)	5
C Cutoff (mm)	127
L Length (in)	7.8
L Length (mm)	198.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	5
L (in)	7.8
Angle.	60
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.44

G20410-2020

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	2.32
C Cutoff (in)	4.72
C Cutoff (mm)	119.9
L Length (in)	7.52
L Length (mm)	191
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.72
L (in)	7.52
Angle.	67.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.44

G20415-2020

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T1 Thread (in)	1.1/4"
T Drop (in)	3.03
C Cutoff (in)	3.74
C Cutoff (mm)	95
L Length (in)	6.54
L Length (mm)	166.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.74
L (in)	6.54
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.44

G20415-2020X

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	3.031
C Cutoff (in)	3.736
C Cutoff (mm)	94.9
L Length (in)	6.539
L Length (mm)	166.1
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.74
L (in)	6.54
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	15
Weight (lbs.)	2.44

20GS-20FLC90-120 XBULK

T Drop (in)	4.724
C Cutoff (in)	3.736
C Cutoff (mm)	94.9
L Length (in)	6.535
L Length (mm)	166
Angle.	90

G20416-2020

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	5.91
C Cutoff (in)	6.71
C Cutoff (mm)	170.3
L Length (in)	9.48
L Length (mm)	240.8
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	6.7
L (in)	9.48
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	4.03

G20350-2020

C Cutoff (in)	2.949
C Cutoff (mm)	74.9
L Length (in)	5.752
L Length (mm)	146.1
Working Pressure (psi)	6000

G20350-2020X

C Cutoff (in)	2.949
C Cutoff (mm)	74.9
L Length (in)	5.752
L Length (mm)	146.1
Working Pressure (psi)	6000

G20352-2020

T Drop (in)	0.591
C Cutoff (in)	4.524
C Cutoff (mm)	114.9
L Length (in)	7.319
L Length (mm)	185.9
Working Pressure (psi)	6000
Angle.	22.5

G20354-2020

T Drop (in)	0.866
C Cutoff (in)	4.445
C Cutoff (mm)	112.9
L Length (in)	7.24
L Length (mm)	183.9
Working Pressure (psi)	6000
Angle.	30

G20357-2020

T Drop (in)	1.496
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.929
L Length (mm)	176
Working Pressure (psi)	6000
Angle.	45

G20357-2020X

T Drop (in)	1.496
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.929
L Length (mm)	176
Working Pressure (psi)	6000
Angle.	45

G20359-2020

T Drop (in)	2.165
C Cutoff (in)	4.524
C Cutoff (mm)	114.9
L Length (in)	7.319
L Length (mm)	185.9
Working Pressure (psi)	6000
Angle.	60

G20364-2020

T Drop (in)	2.992
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	6000
Angle.	90

G20364-2020X

T Drop (in)	2.992
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	6000
Angle.	90

20GS-20FLH90-100XBULK

No variation attributes.

G20366-2020

F Flange Head Thickness (in)	0.41
F Flange Head Thickness (mm)	10.4
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	4.72
C Cutoff (in)	3.7
C Cutoff (mm)	94
L Length (in)	6.5
L Length (mm)	165.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	3.7
L (in)	6.5
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.95

20GS-20FLH90-140

T Drop (in)	5.512
C Cutoff (in)	3.961
C Cutoff (mm)	100.6
L Length (in)	6.772
L Length (mm)	172
Angle.	90

G20367-2020

F Flange Head Thickness (in)	0.41
F Flange Head Thickness (mm)	10.4
M Flange Diameter (in)	2.13
M Flange Diameter (mm)	54.1
T Drop (in)	5.98
C Cutoff (in)	3.7
C Cutoff (mm)	94
L Length (in)	6.5
L Length (mm)	165.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	3.7
L (in)	6.5
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.13

20GS-20FLH90-200

T Drop (in)	7.874
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.496
L Length (mm)	165
Angle.	90

20GS-20FLH90-200XBULK

T Drop (in)	7.874
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.496
L Length (mm)	165
Angle.	90

G20365-2020

T Drop (in)	3.543
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	6000
Angle.	90

G20365-2020X

T Drop (in)	3.543
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	6000
Angle.	90

20GS-20FPLS

C Cutoff (in)	3.2
L Length (in)	6
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.25
Inside Diameter (mm)	31.8
C (in)	3.2
L (in)	6
Customer Pack	1
Weight (lbs.)	3.445

G20536-2020

C Cutoff (in)	0.79
C Cutoff (mm)	20
L Length (in)	9.8
L Length (mm)	248.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	6.19
L (in)	9.8
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	2.53

G20120-2020

H1 Stem Hex (in)	1.88
H1 Stem Hex (mm)	47.6
T1 Thread (in)	1.5/8" - 12 UN
C Cutoff (in)	1.73
C Cutoff (mm)	43.9
L Length (in)	4.53
L Length (mm)	115.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	1.73
L (in)	4.53
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	1.08

G20810-2020

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
T1 Thread (in)	1 1/4-11
C Cutoff (in)	1.85
C Cutoff (mm)	47
L Length (in)	4.65
L Length (mm)	118.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	1.85
L (in)	4.65
Material	Steel
Customer Pack	1
Weight (lbs.)	1.21

G20225-2020

H1 Stem Hex (in)	1.969
H1 Stem Hex (mm)	50
C Cutoff (in)	1.925
C Cutoff (mm)	48.9
L Length (in)	4.72
L Length (mm)	119.9

G20165-2020

H1 Stem Hex (in)	1.75
H1 Stem Hex (mm)	44.5
T1 Thread (in)	1.5/8" - 12 UN
C Cutoff (in)	2.12
C Cutoff (mm)	53.9
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.12
L (in)	4.92
Material	Steel
Customer Pack	1
Weight (lbs.)	1.28

G20165-2020X

H1 Stem Hex (in)	1.75
H1 Stem Hex (mm)	44.45
C Cutoff (in)	2.121
C Cutoff (mm)	53.88
L Length (in)	4.921
L Length (mm)	125
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.12
L (in)	4.92
Material	Steel
Customer Pack	30
Weight (lbs.)	1.28

G20100-2020

H1 Stem Hex (in)	1.75
H1 Stem Hex (mm)	44.5
T1 Thread (in)	1.1/4" - 11.1/2 NPTF
C Cutoff (in)	2.2
C Cutoff (mm)	55.9
L Length (in)	5
L Length (mm)	127
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.2
L (in)	5
Material	Steel
Customer Pack	1
Weight (lbs.)	1.25

G20100-2020X

H1 Stem Hex (in)	1.75
H1 Stem Hex (mm)	44.45
C Cutoff (in)	2.2
C Cutoff (mm)	55.88
L Length (in)	5
L Length (mm)	127
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.2
L (in)	5
Material	Steel
Customer Pack	25
Weight (lbs.)	1.25

G20530-2020

No variation attributes.

G20530-2020X

C Cutoff (in)	2.122
C Cutoff (mm)	53.9
L Length (in)	4.921
L Length (mm)	125

20GS-20PLSOR

C Cutoff (in)	3.13
L Length (in)	5.92
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.25
Inside Diameter (mm)	31.8
C (in)	3.13
L (in)	5.92
Customer Pack	1
Weight (lbs.)	1.6

G20239-2024

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	2" - 12 UN
T Drop (in)	2.52
C Cutoff (in)	3.97
C Cutoff (mm)	100.9
L Length (in)	6.77
L Length (mm)	172
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.97
L (in)	6.77
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	2.795

G20170-2024

H1 Stem Hex (in)	1.875
H1 Stem Hex (mm)	47.63
H2 Nut Hex (in)	2.375
H2 Nut Hex (mm)	60.33
C Cutoff (in)	2.594
C Cutoff (mm)	65.9
L Length (in)	5.39
L Length (mm)	136.9

G20170-2024X

H1 Stem Hex (in)	1.875
H1 Stem Hex (mm)	47.63
H2 Nut Hex (in)	2.375
H2 Nut Hex (mm)	60.33
C Cutoff (in)	2.594
C Cutoff (mm)	65.9
L Length (in)	5.39
L Length (mm)	136.9

G20180-2024

H2 Nut Hex (in)	2.38
H2 Nut Hex (mm)	60.3
T1 Thread (in)	1 7/8-12
T Drop (in)	3.39
C Cutoff (in)	4.52
C Cutoff (mm)	114.9
L Length (in)	7.32
L Length (mm)	185.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.52
L (in)	7.32
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	3.32

G20300-2024

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
C Cutoff (in)	3.5
C Cutoff (mm)	88.9
L Length (in)	6.3
L Length (mm)	160
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	3.5
L (in)	6.3
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.72

G20300-2024X

C Cutoff (in)	3.499
C Cutoff (mm)	88.88
L Length (in)	6.299
L Length (mm)	160
Working Pressure (psi)	3000

G20302-2024

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	0.71
C Cutoff (in)	4.52
C Cutoff (mm)	114.9
L Length (in)	7.32
L Length (mm)	185.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	4.52
L (in)	7.32
Angle.	22.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.09

G20304-2024

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	1.18
C Cutoff (in)	4.37
C Cutoff (mm)	110.9
L Length (in)	7.17
L Length (mm)	182.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	4.37
L (in)	7.17
Angle.	30
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.05

G20306-2024

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	1.5
C Cutoff (in)	4.13
C Cutoff (mm)	104.8
L Length (in)	6.93
L Length (mm)	176
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	4.13
L (in)	6.93
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.1

G20309-2024

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	2.52
C Cutoff (in)	4.88
C Cutoff (mm)	123.9
L Length (in)	7.68
L Length (mm)	195.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	4.88
L (in)	7.68
Angle.	60
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.49

G20311-2024

F Flange Head Thickness (in)	.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	2.008
C Cutoff (in)	3.657
C Cutoff (mm)	92.9
L Length (in)	6.461
L Length (mm)	164.1
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	3.66
L (in)	6.46
Angle.	67.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.9

G20315-2024

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	4.65
C Cutoff (in)	3.7
C Cutoff (mm)	94
L Length (in)	6.5
L Length (mm)	165.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	3000
C (in)	3.7
L (in)	6.5
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.9

G20314-2024

T Drop (in)	3.189
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	3000
Angle.	90

G20314-2024X

T Drop (in)	3.189
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	3000
Angle.	90

G20400-2024

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
C Cutoff (in)	4.56
C Cutoff (mm)	115.9
L Length (in)	7.36
L Length (mm)	186.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.56
L (in)	7.36
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.37

G20407-2024

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T1 Thread (in)	1.1/2"
T Drop (in)	1.46
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.93
L Length (mm)	176
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.13
L (in)	6.93
Angle.	45
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.31

G20409-2024

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T1 Thread (in)	1.1/2"
T Drop (in)	2.05
C Cutoff (in)	5
C Cutoff (mm)	127
L Length (in)	7.8
L Length (mm)	198.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	5
L (in)	7.8
Angle.	60
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.73

G20410-2024

F Flange Head Thickness (in)	14.2
F Flange Head Thickness (mm)	0.56
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	2.32
C Cutoff (in)	4.72
C Cutoff (mm)	119.9
L Length (in)	7.52
L Length (mm)	191
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.72
L (in)	7.52
Angle.	67.5
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.73

G20415-2024

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	3.03
C Cutoff (in)	3.74
C Cutoff (mm)	95
L Length (in)	6.54
L Length (mm)	166.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	3.74
L (in)	6.54
Angle.	90
Material	Steel
Notes	NOTE: These FLC flanges are designed with a thicker flange head. The .56" flange dimension is frequently found on Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange halves. At the user's option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves. The standard Code 62 flange head thickness ranges between .305" and .495". Compatible with Code 62 O-Ring. See Accessories for recommended O-Rings. (Do Not use "D" shaped O-Rings).
Customer Pack	1
Weight (lbs.)	2.66

G20350-2024

C Cutoff (in)	3.499
C Cutoff (mm)	88.88
L Length (in)	6.299
L Length (mm)	160
Working Pressure (psi)	6000

G20350-2024X

C Cutoff (in)	3.499
C Cutoff (mm)	88.88
L Length (in)	6.299
L Length (mm)	160

G20354-2024

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	1.18
C Cutoff (in)	4.45
C Cutoff (mm)	113
L Length (in)	7.24
L Length (mm)	183.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	4.44
L (in)	7.24
Angle.	30
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.55

G20357-2024

T Drop (in)	1.732
C Cutoff (in)	4.13
C Cutoff (mm)	104.9
L Length (in)	6.929
L Length (mm)	176
Working Pressure (psi)	6000
Angle.	45

G20359-2024

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	2.52
C Cutoff (in)	4.84
C Cutoff (mm)	122.9
L Length (in)	7.64
L Length (mm)	194.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
Working Pressure (psi)	6000
C (in)	4.84
L (in)	7.64
Angle.	60
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.84

G20364-2024

T Drop (in)	3.189
C Cutoff (in)	3.697
C Cutoff (mm)	93.9
L Length (in)	6.5
L Length (mm)	165.1
Working Pressure (psi)	6000
Angle.	90

20GS-24FLH90S XBULK

No variation attributes.

G20645-2035

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	M45X2.0
A1 Outside Diameter (in)	1.38
A1 Outside Diameter (mm)	35
A1 Tube Outside Diameter (mm)	35
C Cutoff (in)	2.42
C Cutoff (mm)	61.4
L Length (in)	5.21
L Length (mm)	132.3
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.41
L (in)	5.21
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	1.68

G20720-2038

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	2.91
C Cutoff (mm)	73.9
L Length (in)	5.71
L Length (mm)	145
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.91
L (in)	5.71
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	2.23

G20720-2038X

H2 Nut Hex (in)	2.362
H2 Nut Hex (mm)	60
A1 Outside Diameter (in)	1.496
A1 Outside Diameter (mm)	38
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	2.909
C Cutoff (mm)	73.9
L Length (in)	5.709
L Length (mm)	145
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.91
L (in)	5.71
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	20
Weight (lbs.)	2.23

G20725-2038

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
T Drop (in)	1.67
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	4.92
C Cutoff (mm)	124.9
L Length (in)	7.72
L Length (mm)	196.1
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.92
L (in)	7.72
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	3.08

G20730-2038

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
T Drop (in)	3.43
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	4.31
C Cutoff (mm)	109.4
L Length (in)	7.11
L Length (mm)	180.6
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.31
L (in)	7.11
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	3.34

G20730-2038X

H2 Nut Hex (in)	2.362
H2 Nut Hex (mm)	60
T Drop (in)	3.425
A1 Outside Diameter (in)	1.496
A1 Outside Diameter (mm)	38
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	4.307
C Cutoff (mm)	109.4
L Length (in)	7.11
L Length (mm)	180.6
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	4.31
L (in)	7.11
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	10
Weight (lbs.)	3.34

G20715-2038

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
T1 Thread (in)	M52X2.0
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	2.04
C Cutoff (mm)	51.9
L Length (in)	4.84
L Length (mm)	122.9
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
C (in)	2.04
L (in)	4.84
Material	Steel
Customer Pack	1
Weight (lbs.)	1.54

G20995-0220

A1 Outside Diameter (in)	2.37
A1 Outside Diameter (mm)	60.2
L Length (in)	2.41
L Length (mm)	61.2
Hose Inside Diameter (in)	1.25
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
L (in)	2.41
Outside Diameter (in)	2.37
Outside Diameter (mm)	60.2
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	1
Weight (lbs.)	0.63

G20995-0220X

A1 Outside Diameter (in)	2.37
A1 Outside Diameter (mm)	60.2
L Length (in)	2.409
L Length (mm)	61.2
Hose Inside Diameter (in)	1.252
Hose Inside Diameter (mm)	31.8
Inside Diameter (in)	1.252
Inside Diameter (mm)	31.8
L (in)	2.41
Outside Diameter (in)	2.37
Outside Diameter (mm)	60.2
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	35
Weight (lbs.)	0.63

G20995-0420

A1 Outside Diameter (in)	2.42
A1 Outside Diameter (mm)	61.5
L Length (in)	2.669
L Length (mm)	67.8

G20995-0420X

A1 Outside Diameter (in)	2.42
A1 Outside Diameter (mm)	61.5
L Length (in)	2.669
L Length (mm)	67.8

G20995-0620

A1 Outside Diameter (in)	2.67
A1 Outside Diameter (mm)	67.8
L Length (in)	2.87
L Length (mm)	72.9

G20995-0620X

A1 Outside Diameter (in)	2.67
A1 Outside Diameter (mm)	67.8
L Length (in)	2.87
L Length (mm)	72.9

G24304-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	1.77
C Cutoff (in)	5.62
C Cutoff (mm)	142.7
L Length (in)	8.52
L Length (mm)	216.4
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5
L (in)	8.52
Angle.	30
Material	Steel
Customer Pack	1
Weight (lbs.)	4.52

24GSM1F

No variation attributes.

G22300-2420

F Flange Head Thickness (in)	.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
C Cutoff (in)	2.85
C Cutoff (mm)	72.4
L Length (in)	5.74
L Length (mm)	145.8
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	2.85
L (in)	5.74
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.51

G22306-2420

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	1.26
C Cutoff (in)	4.51
C Cutoff (mm)	114.5
L Length (in)	7.09
L Length (mm)	180.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.49
L (in)	7.09
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.06

G22314-2420

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.68
C Cutoff (in)	3.92
C Cutoff (mm)	99.6
L Length (in)	6.81
L Length (mm)	173
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	3.92
L (in)	6.81
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.26

G22314-2420X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2
M Flange Diameter (mm)	50.8
T Drop (in)	2.677
C Cutoff (in)	3.921
C Cutoff (mm)	99.6
L Length (in)	6.811
L Length (mm)	173
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	3.92
L (in)	6.81
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	12
Weight (lbs.)	2.26

G22165-2420

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
T1 Thread (in)	1 5/8-12
C Cutoff (in)	2.1
C Cutoff (mm)	53.4
L Length (in)	5
L Length (mm)	127
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.1
L (in)	5
Material	Steel
Customer Pack	1
Weight (lbs.)	1.22

G22165-2420X

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50.04
C Cutoff (in)	2.102
C Cutoff (mm)	53.4
L Length (in)	5
L Length (mm)	127
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.1
L (in)	5
Material	Steel
Customer Pack	25
Weight (lbs.)	1.22

G22102-2424

H1 Stem Hex (in)	2
H1 Stem Hex (mm)	50.8
T1 Thread (in)	1 1/2 API 5B LP
C Cutoff (in)	3.81
C Cutoff (mm)	96.7
L Length (in)	5.45
L Length (mm)	138.4
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.65
L (in)	5.45
Material	Steel
Customer Pack	1
Weight (lbs.)	2.25

G22102-2424X

H1 Stem Hex (in)	2
H1 Stem Hex (mm)	50.8
C Cutoff (in)	3.807
C Cutoff (mm)	96.7
L Length (in)	5.449
L Length (mm)	138.4
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.65
L (in)	5.45
Material	Steel
Customer Pack	20
Weight (lbs.)	2.23

G22830-2424

H2 Nut Hex (in)	2.17
H2 Nut Hex (mm)	55.1
T1 Thread (in)	1 1/2-11
C Cutoff (in)	2.02
C Cutoff (mm)	51.3
L Length (in)	4.92
L Length (mm)	125
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.01
L (in)	4.92
Material	Steel
Customer Pack	1
Weight (lbs.)	1.95

G22831-2424

H2 Nut Hex (in)	2.17
H2 Nut Hex (mm)	55.1
T1 Thread (in)	1 1/2-11
T Drop (in)	1.96
C Cutoff (in)	5.54
C Cutoff (mm)	140.8
L Length (in)	8.44
L Length (mm)	214.4
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	5.54
L (in)	8.44
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	3.0

G22832-2424

H2 Nut Hex (in)	1.97
H2 Nut Hex (mm)	50
T1 Thread (in)	1 1/2-11
T Drop (in)	3.94
C Cutoff (in)	4.76
C Cutoff (mm)	120.9
L Length (in)	7.66
L Length (mm)	194.6
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.75
L (in)	7.66
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	3.4

G22230-2424

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	2" - 12 UN
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	5.17
L Length (mm)	131.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.37
L (in)	5.17
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	1.93

G22230-2424X

H1 Stem Hex (in)	2.165
H1 Stem Hex (mm)	55
H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	2" - 12 UN
C Cutoff (in)	2.496
C Cutoff (mm)	63.4
L Length (in)	5.169
L Length (mm)	131.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.37
L (in)	5.17
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	20
Weight (lbs.)	1.9

G22235-2424

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	2-12
T Drop (in)	1.42
C Cutoff (in)	5.23
C Cutoff (mm)	132.9
L Length (in)	8.13
L Length (mm)	206.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.81
L (in)	7.61
Angle.	45
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	2.65

G22235-2424X

H2 Nut Hex (in)	2.362
H2 Nut Hex (mm)	60
T Drop (in)	1.417
C Cutoff (in)	5.228
C Cutoff (mm)	132.9
L Length (in)	8.13
L Length (mm)	206.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Angle.	45
Material	Steel

G22241-2424

H2 Nut Hex (in)	0.09
H2 Nut Hex (mm)	2.3
T1 Thread (in)	2-12
T Drop (in)	5.55
C Cutoff (in)	4.95
C Cutoff (mm)	125.8
L Length (in)	7.61
L Length (mm)	193.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.81
L (in)	7.61
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	3.11

G22240-2424

H2 Nut Hex (in)	0.09
H2 Nut Hex (mm)	2.3
T1 Thread (in)	2-12
T Drop (in)	3.39
C Cutoff (in)	4.95
C Cutoff (mm)	125.8
L Length (in)	7.61
L Length (mm)	193.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.81
L (in)	7.61
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	2.75

G22240-2424X

H2 Nut Hex (in)	0.089
H2 Nut Hex (mm)	2.25
T Drop (in)	3.386
C Cutoff (in)	4.953
C Cutoff (mm)	125.8
L Length (in)	7.61
L Length (mm)	193.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Angle.	90
Material	Steel

G22170-2424

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	59.9
T1 Thread (in)	1 7/8-12
C Cutoff (in)	2.74
C Cutoff (mm)	69.7
L Length (in)	5.64
L Length (mm)	143.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.74
L (in)	5.64
Material	Steel
Customer Pack	1
Weight (lbs.)	2.16

G22170-2424X

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50.04
H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	59.94
T1 Thread (in)	1.7/8" - 12 UN
C Cutoff (in)	2.744
C Cutoff (mm)	69.7
L Length (in)	5.642
L Length (mm)	143.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.74
L (in)	5.64
Material	Steel
Customer Pack	20
Weight (lbs.)	2.16

G22175-2424

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
H2 Nut Hex (in)	2.33
H2 Nut Hex (mm)	59.2
T1 Thread (in)	1.7/8" - 12 UN
T Drop (in)	1.97
C Cutoff (in)	6.28
C Cutoff (mm)	159.5
L Length (in)	9.17
L Length (mm)	232.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	6.28
L (in)	9.17
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	3.16

G22175-2424X

H1 Stem Hex (in)	2.167
H1 Stem Hex (mm)	55.04
H2 Nut Hex (in)	2.33
H2 Nut Hex (mm)	59.18
T Drop (in)	1.969
C Cutoff (in)	6.28
C Cutoff (mm)	159.5
L Length (in)	9.169
L Length (mm)	232.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	6.28
L (in)	9.17
Angle.	45
Material	Steel
Customer Pack	10
Weight (lbs.)	1.45

G22179-2424

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
H2 Nut Hex (in)	2.33
H2 Nut Hex (mm)	59.2
T1 Thread (in)	1.7/8" - 12 UN
T Drop (in)	3.5
C Cutoff (in)	5.45
C Cutoff (mm)	138.4
L Length (in)	8.35
L Length (mm)	212.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	5.45
L (in)	8.35
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	3.4

G22179-2424X

H1 Stem Hex (in)	2.167
H1 Stem Hex (mm)	55.04
H2 Nut Hex (in)	2.33
H2 Nut Hex (mm)	59.18
T1 Thread (in)	1.7/8" - 12 UN
T Drop (in)	3.504
C Cutoff (in)	5.449
C Cutoff (mm)	138.4
L Length (in)	8.35
L Length (mm)	212.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	5.45
L (in)	8.35
Angle.	90
Material	Steel
Customer Pack	10
Weight (lbs.)	3.35

G22180-2424

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
H2 Nut Hex (in)	2.33
H2 Nut Hex (mm)	59.2
T1 Thread (in)	1 7/8-12
T Drop (in)	4.65
C Cutoff (in)	4.56
C Cutoff (mm)	115.8
L Length (in)	7.46
L Length (mm)	189.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.56
L (in)	7.46
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	1.55

G22180-2424X

H1 Stem Hex (in)	2.167
H1 Stem Hex (mm)	55.04
H2 Nut Hex (in)	2.33
H2 Nut Hex (mm)	59.18
T Drop (in)	4.646
C Cutoff (in)	4.559
C Cutoff (mm)	115.8
L Length (in)	7.461
L Length (mm)	189.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.56
L (in)	7.46
Angle.	90
Material	Steel
Customer Pack	10
Weight (lbs.)	1.54

G22910-2424

H1 Stem Hex (in)	1.93
H1 Stem Hex (mm)	49
H2 Nut Hex (in)	2.32
H2 Nut Hex (mm)	59
T1 Thread (in)	M42X1.5
C Cutoff (in)	2.92
C Cutoff (mm)	74.2
L Length (in)	5.81
L Length (mm)	147.6
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.92
L (in)	5.81
Material	Steel
Notes	These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.
Customer Pack	1
Weight (lbs.)	2.1

G22300-2424

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
C Cutoff (in)	3.12
C Cutoff (mm)	79.3
L Length (in)	6.02
L Length (mm)	152.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	3.12
L (in)	6.02
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	1.98

G22300-2424X

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
C Cutoff (in)	3.122
C Cutoff (mm)	79.3
L Length (in)	6.02
L Length (mm)	152.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	3.12
L (in)	6.02
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	20
Weight (lbs.)	1.98

G22325-2424

F Flange Head Thickness (in)	.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	3.701
C Cutoff (in)	5.075
C Cutoff (mm)	128.9
L Length (in)	7.949
L Length (mm)	201.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.07
L (in)	7.95
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.43

G22327-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	4.69
C Cutoff (in)	4.31
C Cutoff (mm)	109.4
L Length (in)	7.2
L Length (mm)	182.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.31
L (in)	7.2
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.81

G22302-2424

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	0.71
C Cutoff (in)	5.41
C Cutoff (mm)	137.5
L Length (in)	8.31
L Length (mm)	211
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.41
L (in)	8.31
Angle.	22.5
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.58

G22304-2424

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	0.98
C Cutoff (in)	5.32
C Cutoff (mm)	135.1
L Length (in)	8.23
L Length (mm)	209
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.31
L (in)	8.23
Angle.	30
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.55

G22304-2424X

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	0.984
C Cutoff (in)	5.323
C Cutoff (mm)	135.2
L Length (in)	8.228
L Length (mm)	209
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.31
L (in)	8.23
Angle.	30
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	16
Weight (lbs.)	2.55

G22306-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	1.5
C Cutoff (in)	5.06
C Cutoff (mm)	128.5
L Length (in)	7.95
L Length (mm)	201.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.05
L (in)	7.95
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.6

G22306-2424X

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	1.496
C Cutoff (in)	5.063
C Cutoff (mm)	128.6
L Length (in)	7.949
L Length (mm)	201.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.05
L (in)	7.95
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	15
Weight (lbs.)	2.38

G22308-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	2.09
C Cutoff (in)	6.2
C Cutoff (mm)	157.5
L Length (in)	9.09
L Length (mm)	230.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	6.2
L (in)	9.09
Angle.	60
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.03

G22311-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	2.4
C Cutoff (in)	5.92
C Cutoff (mm)	150.3
L Length (in)	8.9
L Length (mm)	226.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.9
L (in)	8.9
Angle.	67.5
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.01

G22316-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	5.83
C Cutoff (in)	4.01
C Cutoff (mm)	101.9
L Length (in)	6.89
L Length (mm)	175
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.01
L (in)	6.89
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.58

G22315-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	4.09
C Cutoff (in)	4.01
C Cutoff (mm)	101.9
L Length (in)	6.89
L Length (mm)	175
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.01
L (in)	6.89
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.3

G22315-2424X

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	4.094
C Cutoff (in)	4.012
C Cutoff (mm)	101.9
L Length (in)	6.89
L Length (mm)	175
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.01
L (in)	6.89
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	10
Weight (lbs.)	1.37

G22314-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	3.19
C Cutoff (in)	4.33
C Cutoff (mm)	110
L Length (in)	7.24
L Length (mm)	183.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.33
L (in)	7.24
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.8

G22314-2424X

F Flange Head Thickness (in)	8.1
F Flange Head Thickness (mm)	0.32
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T1 Thread (in)	1.1/2"
T Drop (in)	3.189
C Cutoff (in)	4.327
C Cutoff (mm)	109.9
L Length (in)	7.24
L Length (mm)	183.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.33
L (in)	7.24
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	12
Weight (lbs.)	2.85

G22370-2424

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
C Cutoff (in)	3.12
C Cutoff (mm)	79.3
L Length (in)	6.02
L Length (mm)	152.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.12
L (in)	6.02
Material	Steel
Customer Pack	1
Weight (lbs.)	1.78

G22350-2424

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
C Cutoff (in)	3.68
C Cutoff (mm)	93.4
L Length (in)	6.57
L Length (mm)	166.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.68
L (in)	6.57
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.99

G22350-2424X

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
C Cutoff (in)	3.677
C Cutoff (mm)	93.4
L Length (in)	6.571
L Length (mm)	166.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.68
L (in)	6.57
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	20
Weight (lbs.)	2.15

G22357-2424

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	1.73
C Cutoff (in)	4.65
C Cutoff (mm)	118.1
L Length (in)	7.56
L Length (mm)	192
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.65
L (in)	7.56
Angle.	45
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.7

G22357-2424X

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	1.732
C Cutoff (in)	4.646
C Cutoff (mm)	118
L Length (in)	7.559
L Length (mm)	192
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.65
L (in)	7.56
Angle.	45
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	15
Weight (lbs.)	1.22

G22365-2424

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	3.71
C Cutoff (in)	4.27
C Cutoff (mm)	108.4
L Length (in)	6.91
L Length (mm)	175.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.01
L (in)	6.91
Angle.	90
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.12

G22365-2424X

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	2.5
M Flange Diameter (mm)	63.5
T Drop (in)	3.713
C Cutoff (in)	4.268
C Cutoff (mm)	108.4
L Length (in)	6.909
L Length (mm)	175.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.01
L (in)	6.91
Angle.	90
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	10
Weight (lbs.)	3.09

G22535-2424

C Cutoff (in)	1.54
C Cutoff (mm)	39.1
L Length (in)	7.33
L Length (mm)	186.2
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	1.53
L (in)	7.33
Material	Steel
Customer Pack	1
Weight (lbs.)	1.5004

G22537-2424X

No variation attributes.

G22795-2424

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
T1 Thread (in)	1 1/2-11
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	5.12
L Length (mm)	130.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.22
L (in)	5.12
Material	Steel
Customer Pack	1
Weight (lbs.)	1.5

G22795-2424X

H1 Stem Hex (in)	2.165
H1 Stem Hex (mm)	55
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	5.118
L Length (mm)	130
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Material	Steel

G22225-2424

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
T1 Thread (in)	2-12
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	5.12
L Length (mm)	130.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.22
L (in)	5.12
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	1.665

G22225-2424X

H1 Stem Hex (in)	2.165
H1 Stem Hex (mm)	55
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	5.122
L Length (mm)	130.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.22
L (in)	5.12
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	25
Weight (lbs.)	1.645

G22165-2424

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50
T1 Thread (in)	1.7/8" - 12 UN
C Cutoff (in)	2.21
C Cutoff (mm)	56.1
L Length (in)	5.12
L Length (mm)	130.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.22
L (in)	5.12
Material	Steel
Customer Pack	1
Weight (lbs.)	1.28

G22165-2424X

H1 Stem Hex (in)	1.97
H1 Stem Hex (mm)	50.04
C Cutoff (in)	2.22
C Cutoff (mm)	56.4
L Length (in)	5.122
L Length (mm)	130.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.22
L (in)	5.12
Material	Steel
Customer Pack	20
Weight (lbs.)	1.28

G22100-2424

H1 Stem Hex (in)	2
H1 Stem Hex (mm)	50.8
T1 Thread (in)	1.1/2" - 11.1/2 NPTF
C Cutoff (in)	2.34
C Cutoff (mm)	59.4
L Length (in)	5.24
L Length (mm)	133.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.34
L (in)	5.24
Material	Steel
Customer Pack	1
Weight (lbs.)	1.3

G22100-2424X

H1 Stem Hex (in)	2
H1 Stem Hex (mm)	50.8
C Cutoff (in)	2.34
C Cutoff (mm)	59.44
L Length (in)	5.24
L Length (mm)	133.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.34
L (in)	5.24
Material	Steel
Customer Pack	25
Weight (lbs.)	1.3

G22530-2424

C Cutoff (in)	2.5
L Length (in)	5.39
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.5
L (in)	5.39
Customer Pack	1
Weight (lbs.)	1.68

24GSP-24PL XBULK

No variation attributes.

24GSP-24PLLM XBULK

C Cutoff (in)	3.01
L Length (in)	5.91
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.01
L (in)	5.91
Customer Pack	9
Weight (lbs.)	1.386

G22170-2432

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65
H2 Nut Hex (in)	2.98
H2 Nut Hex (mm)	75.7
T1 Thread (in)	2 1/2-12
C Cutoff (in)	3.07
C Cutoff (mm)	78
L Length (in)	6.88
L Length (mm)	174.8
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.17
L (in)	6.88
Material	Steel
Customer Pack	1
Weight (lbs.)	3.0

G22170-2432X

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65.02
H2 Nut Hex (in)	2.98
H2 Nut Hex (mm)	75.69
C Cutoff (in)	3.067
C Cutoff (mm)	77.9
L Length (in)	6.882
L Length (mm)	174.8
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.17
L (in)	6.88
Material	Steel
Customer Pack	12
Weight (lbs.)	2.96

G22300-2432

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
C Cutoff (in)	3.12
C Cutoff (mm)	79.3
L Length (in)	5.79
L Length (mm)	147.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	2.99
L (in)	5.79
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.05

G22300-2432X

C Cutoff (in)	3.122
C Cutoff (mm)	79.3
L Length (in)	6.02
L Length (mm)	152.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
Material	Steel

G22302-2432

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
T Drop (in)	0.87
C Cutoff (in)	5.52
C Cutoff (mm)	140.2
L Length (in)	8.43
L Length (mm)	214.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.52
L (in)	8.43
Angle.	22.5
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.91

G22304-2432

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	1.26
C Cutoff (in)	5.39
C Cutoff (mm)	136.8
L Length (in)	8.27
L Length (mm)	210.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.39
L (in)	8.27
Angle.	30
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.9

G22306-2432

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
T Drop (in)	2.05
C Cutoff (in)	4.97
C Cutoff (mm)	126.2
L Length (in)	7.87
L Length (mm)	199.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.97
L (in)	7.87
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.89

G22306-2432X

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
T1 Thread (in)	2"
T Drop (in)	2.047
C Cutoff (in)	4.972
C Cutoff (mm)	126.3
L Length (in)	7.874
L Length (mm)	200
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
Angle.	45
Material	Steel

G22309-2432

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	2.95
C Cutoff (in)	6.34
C Cutoff (mm)	160.9
L Length (in)	9.21
L Length (mm)	233.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	6.3
L (in)	9.21
Angle.	60
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.5

G22309-2432X

T Drop (in)	2.953
C Cutoff (in)	6.335
C Cutoff (mm)	160.9
L Length (in)	9.213
L Length (mm)	234
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
Angle.	60
Material	Steel

G22311-2432

F Flange Head Thickness (in)	.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	3.346
C Cutoff (in)	5.921
C Cutoff (mm)	150.4
L Length (in)	10.201
L Length (mm)	259.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	5.9
L (in)	10.2
Angle.	67.5
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.5

G22311-2432X

T Drop (in)	3.346
C Cutoff (in)	5.921
C Cutoff (mm)	150.4
L Length (in)	8.819
L Length (mm)	224
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
Angle.	90
Material	Steel

G22315-2432

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
T Drop (in)	3.15
C Cutoff (in)	4.01
C Cutoff (mm)	101.9
L Length (in)	6.99
L Length (mm)	177.6
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.01
L (in)	6.99
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.04

G22316-2432

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	6.69
C Cutoff (in)	3.99
C Cutoff (mm)	101.4
L Length (in)	6.88
L Length (mm)	174.8
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	3.99
L (in)	6.88
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.12

G22314-2432

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	4.72
C Cutoff (in)	4.01
C Cutoff (mm)	101.9
L Length (in)	6.9
L Length (mm)	175.3
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
Working Pressure (psi)	3000
C (in)	4.01
L (in)	6.9
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.56

G22350-2432

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
C Cutoff (in)	3.68
C Cutoff (mm)	93.4
L Length (in)	6.57
L Length (mm)	166.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3.68
L (in)	6.57
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.87

G22357-2432

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T Drop (in)	2.05
C Cutoff (in)	4.97
C Cutoff (mm)	126.3
L Length (in)	7.87
L Length (mm)	199.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.98
L (in)	7.87
Angle.	45
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.48

G22364-2432

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T Drop (in)	4.72
C Cutoff (in)	4.06
C Cutoff (mm)	103.2
L Length (in)	6.96
L Length (mm)	176.8
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.06
L (in)	6.96
Angle.	90
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.12

G22720-2438

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	3
C Cutoff (mm)	76.2
L Length (in)	5.91
L Length (mm)	150.1
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3
L (in)	5.91
Material	Steel
Customer Pack	1
Weight (lbs.)	1.2

G22720-2438X

H2 Nut Hex (in)	2.362
H2 Nut Hex (mm)	60
A1 Outside Diameter (in)	1.496
A1 Outside Diameter (mm)	38
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	3.004
C Cutoff (mm)	76.3
L Length (in)	5.906
L Length (mm)	150
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	3
L (in)	5.91
Material	Steel
Customer Pack	15
Weight (lbs.)	1.2

G22730-2438

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
T Drop (in)	3.62
A1 Outside Diameter (in)	1.5
A1 Outside Diameter (mm)	38.1
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	4.76
C Cutoff (mm)	120.9
L Length (in)	7.66
L Length (mm)	194.6
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.76
L (in)	7.66
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	3.46

G22730-2438X

H2 Nut Hex (in)	2.362
H2 Nut Hex (mm)	60
T Drop (in)	3.622
A1 Outside Diameter (in)	1.496
A1 Outside Diameter (mm)	38
A1 Tube Outside Diameter (mm)	38
C Cutoff (in)	4.764
C Cutoff (mm)	121
L Length (in)	7.661
L Length (mm)	194.6
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.76
L (in)	7.66
Angle.	90
Material	Steel
Customer Pack	10
Weight (lbs.)	3.46

G22645-2442

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
A1 Outside Diameter (in)	1.65
A1 Outside Diameter (mm)	41.9
A1 Tube Outside Diameter (mm)	42
C Cutoff (in)	2.44
C Cutoff (mm)	62
L Length (in)	5.26
L Length (mm)	133.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	2.44
L (in)	5.34
Material	Steel
Customer Pack	1
Weight (lbs.)	1.94

G22650-2442

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
T Drop (in)	1.73
A1 Outside Diameter (in)	1.65
A1 Outside Diameter (mm)	41.9
A1 Tube Outside Diameter (mm)	42
C Cutoff (in)	5.32
C Cutoff (mm)	135.1
L Length (in)	8.22
L Length (mm)	208.8
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	5.32
L (in)	8.22
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	2.0

G22655-2442

H2 Nut Hex (in)	2.36
H2 Nut Hex (mm)	60
T1 Thread (in)	M52X2.0
T Drop (in)	3.62
A1 Outside Diameter (in)	1.65
A1 Outside Diameter (mm)	41.9
A1 Tube Outside Diameter (mm)	42
C Cutoff (in)	4.76
C Cutoff (mm)	120.9
L Length (in)	7.66
L Length (mm)	194.6
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	4.76
L (in)	7.66
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	2.01

G22615-2442

H1 Stem Hex (in)	2.17
H1 Stem Hex (mm)	55
T1 Thread (in)	M52X2.0
A1 Outside Diameter (in)	1.65
A1 Outside Diameter (mm)	41.9
A1 Tube Outside Diameter (mm)	42
C Cutoff (in)	1.83
C Cutoff (mm)	46.4
L Length (in)	4.72
L Length (mm)	119.9
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
C (in)	1.83
L (in)	4.72
Material	Steel
Customer Pack	1
Weight (lbs.)	2.0

G22995-0224

A1 Outside Diameter (in)	2.76
A1 Outside Diameter (mm)	70.1
L Length (in)	2.98
L Length (mm)	75.7
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
L (in)	2.98
Outside Diameter (in)	2.76
Outside Diameter (mm)	70.1
Material	Steel
Customer Pack	1
Weight (lbs.)	1.08

G22995-0424

A1 Outside Diameter (in)	2.83
A1 Outside Diameter (mm)	71.9
L Length (in)	3.01
L Length (mm)	76.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
L (in)	3.01
Outside Diameter (in)	2.83
Outside Diameter (mm)	71.9
Material	Steel
Customer Pack	1
Weight (lbs.)	1.36

G22995-0424X

A1 Outside Diameter (in)	2.83
A1 Outside Diameter (mm)	71.9
L Length (in)	3.012
L Length (mm)	76.5
Hose Inside Diameter (in)	1.5
Hose Inside Diameter (mm)	38.1
Inside Diameter (in)	1.5
Inside Diameter (mm)	38.1
L (in)	3.01
Outside Diameter (in)	2.83
Outside Diameter (mm)	71.9
Material	Steel
Customer Pack	20
Weight (lbs.)	1.32

G23357-3232

F Flange Head Thickness (in)	12.7
F Flange Head Thickness (mm)	0.5
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T1 Thread (in)	2"
T Drop (in)	2.48
C Cutoff (in)	7.19
C Cutoff (mm)	182.5
L Length (in)	11.69
L Length (mm)	297
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	6
L (in)	11.69
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	9.49

G22300-3224

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
C Cutoff (in)	3.19
C Cutoff (mm)	80.9
L Length (in)	6.53
L Length (mm)	165.9
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	2.49
L (in)	6.53
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.5

G22306-3224

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	1.5
C Cutoff (in)	4.48
C Cutoff (mm)	113.8
L Length (in)	8.1
L Length (mm)	205.8
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	4.48
L (in)	8.1
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.05

G22314-3224

F Flange Head Thickness (in)	0.32
F Flange Head Thickness (mm)	8.1
M Flange Diameter (in)	2.38
M Flange Diameter (mm)	60.5
T Drop (in)	3.19
C Cutoff (in)	4.13
C Cutoff (mm)	104.8
L Length (in)	7.76
L Length (mm)	197.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	4.13
L (in)	7.76
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.5

G22830-3232

H2 Nut Hex (in)	2.76
H2 Nut Hex (mm)	70.1
T1 Thread (in)	2-11
C Cutoff (in)	2.4
C Cutoff (mm)	61
L Length (in)	5.98
L Length (mm)	151.9
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.36
L (in)	5.98
Material	Steel
Customer Pack	1
Weight (lbs.)	3.645

G22831-3232

H2 Nut Hex (in)	2.76
H2 Nut Hex (mm)	70.1
T1 Thread (in)	2-11
T Drop (in)	2.45
C Cutoff (in)	7.25
C Cutoff (mm)	184.2
L Length (in)	10.87
L Length (mm)	276.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	7.24
L (in)	10.87
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	6.25

G22832-3232

H2 Nut Hex (in)	2.76
H2 Nut Hex (mm)	70.1
T1 Thread (in)	2-11
T Drop (in)	5.08
C Cutoff (in)	6.41
C Cutoff (mm)	162.8
L Length (in)	10.02
L Length (mm)	254.5
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	6.4
L (in)	10.02
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	7.17

G22170-3232

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65
H2 Nut Hex (in)	2.95
H2 Nut Hex (mm)	74.9
T1 Thread (in)	2 1/2-12
C Cutoff (in)	3.17
C Cutoff (mm)	80.6
L Length (in)	6.8
L Length (mm)	172.7
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	3.17
L (in)	6.8
Material	Steel
Customer Pack	1
Weight (lbs.)	3.64

G22170-3232X

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65.02
H2 Nut Hex (in)	2.95
H2 Nut Hex (mm)	74.93
T1 Thread (in)	2.1/2" - 12 UN
C Cutoff (in)	3.173
C Cutoff (mm)	80.6
L Length (in)	6.799
L Length (mm)	172.7
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	3.17
L (in)	6.8
Material	Steel
Customer Pack	9
Weight (lbs.)	3.64

32GSP-32FJX45-065

T Drop (in)	2.559
C Cutoff (in)	6.909
C Cutoff (mm)	175.5
L Length (in)	10.512
L Length (mm)	267
Angle.	45

G22180-3232

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65
H2 Nut Hex (in)	3
H2 Nut Hex (mm)	76.2
T1 Thread (in)	2.1/2" - 12 UN
T Drop (in)	5.51
C Cutoff (in)	7.07
C Cutoff (mm)	179.6
L Length (in)	10.71
L Length (mm)	272
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	7.07
L (in)	10.71
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	6.44

G22300-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
C Cutoff (in)	2.65
C Cutoff (mm)	67.3
L Length (in)	6.27
L Length (mm)	159.3
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	2.65
L (in)	6.27
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.56

G22300-3232X

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
C Cutoff (in)	2.65
C Cutoff (mm)	67.3
L Length (in)	6.272
L Length (mm)	159.3
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	2.65
L (in)	6.27
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	12
Weight (lbs.)	2.56

G22325-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	5.51
C Cutoff (in)	6.14
C Cutoff (mm)	156
L Length (in)	9.8
L Length (mm)	248.9
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.4
L (in)	9.8
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	5.84

G22329-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	5.91
C Cutoff (in)	4.7
C Cutoff (mm)	119.4
L Length (in)	8.3
L Length (mm)	210.8
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	4.7
L (in)	8.3
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	5.89

G22302-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	0.97
C Cutoff (in)	7.22
C Cutoff (mm)	183.4
L Length (in)	10.83
L Length (mm)	275.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	7.22
L (in)	10.83
Angle.	22.5
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.91

G22304-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	1.26
C Cutoff (in)	7.1
C Cutoff (mm)	180.4
L Length (in)	10.7
L Length (mm)	271.8
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	7.1
L (in)	10.7
Angle.	30
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.95

G22307-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	2.6
C Cutoff (in)	6.5
C Cutoff (mm)	165.1
L Length (in)	10.12
L Length (mm)	257.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.5
L (in)	10.12
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.92

G22307-3232X

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	2.598
C Cutoff (in)	6.496
C Cutoff (mm)	165
L Length (in)	10.122
L Length (mm)	257.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.5
L (in)	10.12
Angle.	45
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	5
Weight (lbs.)	5.0

G22309-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	2.95
C Cutoff (in)	6.59
C Cutoff (mm)	167.3
L Length (in)	10.2
L Length (mm)	259.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.56
L (in)	10.2
Angle.	60
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	5.11

G22311-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	3.35
C Cutoff (in)	6.56
C Cutoff (mm)	166.7
L Length (in)	10.2
L Length (mm)	259.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.56
L (in)	10.2
Angle.	67.5
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.72

G22314-3232

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
T Drop (in)	4.49
C Cutoff (in)	5.12
C Cutoff (mm)	130.1
L Length (in)	8.74
L Length (mm)	222
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	5.12
L (in)	8.74
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	4.7

G22314-3232X

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
T Drop (in)	4.488
C Cutoff (in)	5.122
C Cutoff (mm)	130.1
L Length (in)	8.74
L Length (mm)	222
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	5.12
L (in)	8.74
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	5
Weight (lbs.)	4.65

G22315-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	6.5
C Cutoff (in)	6.06
C Cutoff (mm)	153.9
L Length (in)	9.69
L Length (mm)	246.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.06
L (in)	9.69
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	6.79

G22315-3232X

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T1 Thread (in)	2"
T Drop (in)	6.496
C Cutoff (in)	6.063
C Cutoff (mm)	154
L Length (in)	9.689
L Length (mm)	246.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	6.06
L (in)	9.69
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	3
Weight (lbs.)	6.8

G22316-3232

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	2.81
M Flange Diameter (mm)	71.4
T Drop (in)	7.87
C Cutoff (in)	5.13
C Cutoff (mm)	130.4
L Length (in)	8.74
L Length (mm)	222
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	5.13
L (in)	8.74
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	6.1

G22350-3232

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
C Cutoff (in)	3.47
C Cutoff (mm)	88.1
L Length (in)	7.09
L Length (mm)	180.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	3.46
L (in)	7.09
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	3.4

G22350-3232X

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
C Cutoff (in)	3.465
C Cutoff (mm)	88
L Length (in)	7.091
L Length (mm)	180.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	3.46
L (in)	7.09
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	10
Weight (lbs.)	1.55

G22357-3232

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T Drop (in)	2.6
C Cutoff (in)	7.06
C Cutoff (mm)	179.2
L Length (in)	10.67
L Length (mm)	271
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	7.06
L (in)	10.67
Angle.	45
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	5.65

G22357-3232X

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T Drop (in)	2.598
C Cutoff (in)	7.055
C Cutoff (mm)	179.2
L Length (in)	10.669
L Length (mm)	271
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	7.06
L (in)	10.67
Angle.	45
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	3
Weight (lbs.)	5.63

G22365-3232

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T Drop (in)	5.43
C Cutoff (in)	5.09
C Cutoff (mm)	129.4
L Length (in)	8.72
L Length (mm)	221.5
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	5.09
L (in)	8.72
Angle.	90
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	6.235

G22365-3232X

F Flange Head Thickness (in)	0.5
F Flange Head Thickness (mm)	12.7
M Flange Diameter (in)	3.13
M Flange Diameter (mm)	79.5
T Drop (in)	5.433
C Cutoff (in)	5.094
C Cutoff (mm)	129.4
L Length (in)	8.72
L Length (mm)	221.5
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	5.09
L (in)	8.72
Angle.	90
Material	Steel
Notes	S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	4
Weight (lbs.)	6.235

32GSP-32FSA

M Flange Diameter (in)	3.25
C Cutoff (in)	2.28
L Length (in)	5.91
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.28
L (in)	5.91
Customer Pack	1
Weight (lbs.)	2.92

G22535-3232

C Cutoff (in)	1.52
C Cutoff (mm)	38.6
L Length (in)	8.76
L Length (mm)	222.5
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	1.52
L (in)	8.76
Material	Steel
Customer Pack	1
Weight (lbs.)	2.55

G22165-3232

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65
T1 Thread (in)	2.1/2" - 12 UN
C Cutoff (in)	2.72
C Cutoff (mm)	69.1
L Length (in)	6.34
L Length (mm)	161
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.72
L (in)	6.34
Material	Steel
Customer Pack	1
Weight (lbs.)	2.67

G22165-3232X

H1 Stem Hex (in)	2.56
H1 Stem Hex (mm)	65.02
C Cutoff (in)	2.72
C Cutoff (mm)	69.1
L Length (in)	6.339
L Length (mm)	161
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.72
L (in)	6.34
Material	Steel
Customer Pack	5
Weight (lbs.)	2.57

G22100-3232

H1 Stem Hex (in)	2.5
H1 Stem Hex (mm)	63.5
T1 Thread (in)	2-11 1/2
C Cutoff (in)	2.43
C Cutoff (mm)	61.7
L Length (in)	6.05
L Length (mm)	153.7
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.43
L (in)	6.05
Material	Steel
Customer Pack	1
Weight (lbs.)	2.3

G22100-3232X

H1 Stem Hex (in)	2.5
H1 Stem Hex (mm)	63.5
C Cutoff (in)	2.429
C Cutoff (mm)	61.7
L Length (in)	6.051
L Length (mm)	153.7
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.43
L (in)	6.05
Material	Steel
Customer Pack	10
Weight (lbs.)	2.25

G22102-3232

H1 Stem Hex (in)	2.5
H1 Stem Hex (mm)	63.5
T1 Thread (in)	2-11 1/2
C Cutoff (in)	4.28
C Cutoff (mm)	108.6
L Length (in)	7.9
L Length (mm)	200.7
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	4.28
L (in)	7.9
Material	Steel
Customer Pack	1
Weight (lbs.)	3.5

G22102-3232X

H1 Stem Hex (in)	2.5
H1 Stem Hex (mm)	63.5
T1 Thread (in)	2" - 11.1/2
C Cutoff (in)	4.276
C Cutoff (mm)	108.6
L Length (in)	7.902
L Length (mm)	200.7
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	4.28
L (in)	7.9
Material	Steel
Customer Pack	10
Weight (lbs.)	3.9

G22530-3232

C Cutoff (in)	2.52
L Length (in)	6.14
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.52
L (in)	6.14
Customer Pack	1
Weight (lbs.)	2.25

32GSP-32PL XBULK

No variation attributes.

32GSP-32PLLF XBULK

C Cutoff (in)	2.48
L Length (in)	6.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.48
L (in)	6.1
Customer Pack	9
Weight (lbs.)	2.7742

32GSP-32PLLM XBULK

C Cutoff (in)	2.48
L Length (in)	6.1
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
C (in)	2.48
L (in)	6.1
Customer Pack	14
Weight (lbs.)	1.936

G22300-3240

F Flange Head Thickness (in)	9.7
F Flange Head Thickness (mm)	0.38
M Flange Diameter (in)	3.31
M Flange Diameter (mm)	84.1
T1 Thread (in)	2.1/2"
C Cutoff (in)	2.65
C Cutoff (mm)	67.3
L Length (in)	8.52
L Length (mm)	216.4
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	2.99
L (in)	8.52
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	2.88

G22315-3240

F Flange Head Thickness (in)	0.38
F Flange Head Thickness (mm)	9.7
M Flange Diameter (in)	3.31
M Flange Diameter (mm)	84.1
T Drop (in)	4.33
C Cutoff (in)	6.08
C Cutoff (mm)	154.4
L Length (in)	8.52
L Length (mm)	216.4
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
Working Pressure (psi)	3000
C (in)	4.98
L (in)	8.52
Angle.	90
Material	Steel
Notes	-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	6.24

G22995-0232

A1 Outside Diameter (in)	3.29
A1 Outside Diameter (mm)	83.6
L Length (in)	3.54
L Length (mm)	89.9
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
L (in)	3.54
Outside Diameter (in)	3.29
Outside Diameter (mm)	83.6
Material	Steel
Customer Pack	1
Weight (lbs.)	1.562

G22995-0232X

A1 Outside Diameter (in)	3.29
A1 Outside Diameter (mm)	83.6
L Length (in)	3.539
L Length (mm)	89.9
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
L (in)	3.54
Outside Diameter (in)	3.29
Outside Diameter (mm)	83.6
Material	Steel
Customer Pack	10
Weight (lbs.)	1.562

G22995-0432

A1 Outside Diameter (in)	3.35
A1 Outside Diameter (mm)	85.1
L Length (in)	3.58
L Length (mm)	91
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
L (in)	3.58
Outside Diameter (in)	3.35
Outside Diameter (mm)	85.1
Material	Steel
Customer Pack	1
Weight (lbs.)	2.2

G22995-0432X

A1 Outside Diameter (in)	3.35
A1 Outside Diameter (mm)	85.1
L Length (in)	3.579
L Length (mm)	90.9
Hose Inside Diameter (in)	2
Hose Inside Diameter (mm)	50.8
Inside Diameter (in)	2
Inside Diameter (mm)	50.8
L (in)	3.58
Outside Diameter (in)	3.35
Outside Diameter (mm)	85.1
Material	Steel
Customer Pack	10
Weight (lbs.)	1.738

G20720-0610

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	M18X1.5
A1 Outside Diameter (in)	0.39
A1 Outside Diameter (mm)	10
A1 Tube Outside Diameter (mm)	10
C Cutoff (in)	1.44
C Cutoff (mm)	36.5
L Length (in)	3.24
L Length (mm)	82.3
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.41
L (in)	3.24
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.19

G20720-0612

H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	M20X1.5
A1 Outside Diameter (in)	0.47
A1 Outside Diameter (mm)	12
A1 Tube Outside Diameter (mm)	12
C Cutoff (in)	1.47
C Cutoff (mm)	37.2
L Length (in)	2.87
L Length (mm)	73
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.46
L (in)	2.87
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.2

G20725-0612

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.744
A1 Outside Diameter (in)	0.472
A1 Outside Diameter (mm)	12
C Cutoff (in)	2
C Cutoff (mm)	50.8
L Length (in)	2.969
L Length (mm)	75.4
Angle.	45

G20730-0612

H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	M20X1.5
T Drop (in)	1.46
A1 Outside Diameter (in)	0.47
A1 Outside Diameter (mm)	12
A1 Tube Outside Diameter (mm)	12
C Cutoff (in)	1.66
C Cutoff (mm)	42.2
L Length (in)	3.07
L Length (mm)	78
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.46
L (in)	3.07
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.23

G20645-0612

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	M18X1.5
A1 Outside Diameter (in)	0.47
A1 Outside Diameter (mm)	12
A1 Tube Outside Diameter (mm)	12
C Cutoff (in)	1.47
C Cutoff (mm)	37.2
L Length (in)	2.87
L Length (mm)	73
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.46
L (in)	2.87
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.17

G20655-0612

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	M18X1.5
T Drop (in)	1.46
A1 Outside Diameter (in)	0.47
A1 Outside Diameter (mm)	12
A1 Tube Outside Diameter (mm)	12
C Cutoff (in)	1.66
C Cutoff (mm)	42.2
L Length (in)	3.07
L Length (mm)	78
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.66
L (in)	3.07
Angle.	90
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.2

G20720-0614

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	M22X1.5
A1 Outside Diameter (in)	0.55
A1 Outside Diameter (mm)	14
A1 Tube Outside Diameter (mm)	14
C Cutoff (in)	1.56
C Cutoff (mm)	39.7
L Length (in)	2.97
L Length (mm)	75.4
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.56
L (in)	2.97
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.26

G20830-0606

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	3/8-19
C Cutoff (in)	0.97
C Cutoff (mm)	24.7
L Length (in)	2.34
L Length (mm)	59.4
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	0.93
L (in)	2.34
Material	Steel
Customer Pack	1
Weight (lbs.)	0.14

G20831-0606

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	3/8-19
T Drop (in)	0.61
C Cutoff (in)	1.86
C Cutoff (mm)	47.3
L Length (in)	3.27
L Length (mm)	83.1
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.86
L (in)	3.27
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.18

G20832-0606

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	3/8-19
T Drop (in)	1.26
C Cutoff (in)	1.66
C Cutoff (mm)	42.2
L Length (in)	3.07
L Length (mm)	78
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.66
L (in)	3.07
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.19

G20230-0606

H1 Stem Hex (in)	0.866
H1 Stem Hex (mm)	22
H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
C Cutoff (in)	1.307
C Cutoff (mm)	33.2
L Length (in)	2.72
L Length (mm)	69.1

G20230-0606X

H1 Stem Hex (in)	0.866
H1 Stem Hex (mm)	22
H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
C Cutoff (in)	1.307
C Cutoff (mm)	33.2
L Length (in)	2.72
L Length (mm)	69.1

G20234-0606

H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
T Drop (in)	0.433
C Cutoff (in)	1.819
C Cutoff (mm)	46.2
L Length (in)	3.228
L Length (mm)	82
Angle.	45

G20241-0606

H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
T Drop (in)	2.126
C Cutoff (in)	1.937
C Cutoff (mm)	49.2
L Length (in)	3.35
L Length (mm)	85.1
Angle.	90

G20239-0606

H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
T Drop (in)	0.906
C Cutoff (in)	1.661
C Cutoff (mm)	42.2
L Length (in)	3.071
L Length (mm)	78
Angle.	90

G20239-0606X

H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
T Drop (in)	0.906
C Cutoff (in)	1.661
C Cutoff (mm)	42.2
L Length (in)	3.071
L Length (mm)	78
Angle.	90

6GS-6FFORX90S-TCX

H2 Nut Hex (in)	0.866
H2 Nut Hex (mm)	22
T Drop (in)	0.906
C Cutoff (in)	1.661
C Cutoff (mm)	42.2
L Length (in)	3.071
L Length (mm)	78
Angle.	90

G20170-0606

H1 Stem Hex (in)	0.75
H1 Stem Hex (mm)	19.05
H2 Nut Hex (in)	0.75
H2 Nut Hex (mm)	19.05
C Cutoff (in)	1.307
C Cutoff (mm)	33.2
L Length (in)	2.72
L Length (mm)	69.1

G20170-0606X

H1 Stem Hex (in)	0.75
H1 Stem Hex (mm)	19.05
H2 Nut Hex (in)	0.75
H2 Nut Hex (mm)	19.05
C Cutoff (in)	1.307
C Cutoff (mm)	33.2
L Length (in)	2.72
L Length (mm)	69.1

G20174-0606

H2 Nut Hex (in)	0.75
H2 Nut Hex (mm)	19.1
T1 Thread (in)	9/16" - 18 UNF
T Drop (in)	0.43
C Cutoff (in)	1.82
C Cutoff (mm)	46.2
L Length (in)	3.23
L Length (mm)	82
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.82
L (in)	3.23
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	0.15

G20181-0606

H2 Nut Hex (in)	0.75
H2 Nut Hex (mm)	19.05
T Drop (in)	2.126
C Cutoff (in)	1.976
C Cutoff (mm)	50.2
L Length (in)	3.39
L Length (mm)	86.1
Angle.	90

G20179-0606

H2 Nut Hex (in)	0.75
H2 Nut Hex (mm)	19.05
T Drop (in)	0.906
C Cutoff (in)	1.701
C Cutoff (mm)	43.2
L Length (in)	3.11
L Length (mm)	79
Angle.	90

G20180-0606

H2 Nut Hex (in)	0.75
H2 Nut Hex (mm)	19.1
T1 Thread (in)	9/16-18
T Drop (in)	1.5
C Cutoff (in)	1.7
C Cutoff (mm)	43.2
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.7
L (in)	3.11
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.09

G20810-0606

H1 Stem Hex (in)	0.87
H1 Stem Hex (mm)	22
T1 Thread (in)	3/8-19
C Cutoff (in)	1.07
C Cutoff (mm)	27.2
L Length (in)	2.48
L Length (mm)	63
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.07
L (in)	2.48
Material	Steel
Customer Pack	1
Weight (lbs.)	0.11

G20225-0606

H1 Stem Hex (in)	0.75
H1 Stem Hex (mm)	19
T1 Thread (in)	1.1/16" - 16 UN
C Cutoff (in)	1.11
C Cutoff (mm)	28.2
L Length (in)	2.52
L Length (mm)	64
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.11
L (in)	2.52
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	0.12

G20165-0606

H1 Stem Hex (in)	0.69
H1 Stem Hex (mm)	17.5
T1 Thread (in)	9/16" - 18 UNF
C Cutoff (in)	1.19
C Cutoff (mm)	30.2
L Length (in)	2.6
L Length (mm)	66
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.19
L (in)	2.6
Material	Steel
Customer Pack	1
Weight (lbs.)	0.1

G20100-0606

H1 Stem Hex (in)	0.69
H1 Stem Hex (mm)	17.5
T1 Thread (in)	3/8" - 18 NPTF
C Cutoff (in)	1.31
C Cutoff (mm)	33.2
L Length (in)	2.72
L Length (mm)	69.1
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.31
L (in)	2.72
Material	Steel
Customer Pack	1
Weight (lbs.)	0.1

G20530-0606

C Cutoff (in)	1.54
L Length (in)	3
Hose Inside Diameter (in)	0.375
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.375
Inside Diameter (mm)	9.5
C (in)	1.54
L (in)	3
Customer Pack	1
Weight (lbs.)	0.14

G20230-0608

H1 Stem Hex (in)	0.87
H1 Stem Hex (mm)	22
H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	13/16-16
C Cutoff (in)	1.43
C Cutoff (mm)	36.2
L Length (in)	2.83
L Length (mm)	71.9
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.43
L (in)	2.83
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.24

6GS-8FFORX XBULK

No variation attributes.

G20234-0608

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.591
C Cutoff (in)	2.252
C Cutoff (mm)	57.2
L Length (in)	3.661
L Length (mm)	93
Angle.	45

G20240-0608

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	1.614
C Cutoff (in)	1.937
C Cutoff (mm)	49.2
L Length (in)	3.35
L Length (mm)	85.1
Angle.	90

G20170-0608

H1 Stem Hex (in)	0.75
H1 Stem Hex (mm)	19.05
H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
C Cutoff (in)	1.386
C Cutoff (mm)	35.2
L Length (in)	2.799
L Length (mm)	71.1

G20170-0608X

H1 Stem Hex (in)	0.75
H1 Stem Hex (mm)	19.05
H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
C Cutoff (in)	1.386
C Cutoff (mm)	35.2
L Length (in)	2.799
L Length (mm)	71.1

G20174-0608

H2 Nut Hex (in)	0.88
H2 Nut Hex (mm)	22.2
T1 Thread (in)	3/4-16
T Drop (in)	0.59
C Cutoff (in)	2.25
C Cutoff (mm)	57.2
L Length (in)	3.66
L Length (mm)	93
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	2.25
L (in)	3.66
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	0.18

G20180-0608

H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
T Drop (in)	1.614
C Cutoff (in)	2.173
C Cutoff (mm)	55.2
L Length (in)	3.579
L Length (mm)	90.9
Angle.	90

G20300-0608

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
C Cutoff (in)	2.13
C Cutoff (mm)	54.2
L Length (in)	3.54
L Length (mm)	89.9
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
Working Pressure (psi)	5000
C (in)	2.13
L (in)	3.54
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.22

G20165-0608

H1 Stem Hex (in)	0.8125
H1 Stem Hex (mm)	20.64
C Cutoff (in)	1.346
C Cutoff (mm)	34.18
L Length (in)	2.76
L Length (mm)	70.1

G20100-0608

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
T1 Thread (in)	1/2" - 14 NPTF
C Cutoff (in)	1.46
C Cutoff (mm)	37.2
L Length (in)	2.87
L Length (mm)	73
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
C (in)	1.46
L (in)	2.87
Material	Steel
Customer Pack	1
Weight (lbs.)	0.15

G20995-0106

A1 Outside Diameter (in)	0.96
A1 Outside Diameter (mm)	24.4
L Length (in)	1.2
L Length (mm)	30.5
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
L (in)	1.2
Outside Diameter (in)	0.96
Outside Diameter (mm)	24.4
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	1
Weight (lbs.)	0.08

G20995-0106X

A1 Outside Diameter (in)	0.96
A1 Outside Diameter (mm)	24.4
L Length (in)	1.201
L Length (mm)	30.5
Hose Inside Diameter (in)	0.374
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
Material	Steel

G20995-0206

A1 Outside Diameter (in)	1.06
A1 Outside Diameter (mm)	26.9
L Length (in)	1.2
L Length (mm)	30.5
Hose Inside Diameter (in)	0.37
Hose Inside Diameter (mm)	9.5
Inside Diameter (in)	0.374
Inside Diameter (mm)	9.5
L (in)	1.2
Outside Diameter (in)	1.06
Outside Diameter (mm)	26.9
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	1
Weight (lbs.)	0.1

G20995-0406

A1 Outside Diameter (in)	1.25
A1 Outside Diameter (mm)	31.8
L Length (in)	1.429
L Length (mm)	36.3

G20995-0406X

A1 Outside Diameter (in)	1.25
A1 Outside Diameter (mm)	31.8
L Length (in)	1.429
L Length (mm)	36.3

G20995-0406T

A1 Outside Diameter (in)	1.25
A1 Outside Diameter (mm)	31.8
L Length (in)	1.429
L Length (mm)	36.3

G20230-0810

H1 Stem Hex (in)	0.95
H1 Stem Hex (mm)	24
H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1-14
C Cutoff (in)	1.59
C Cutoff (mm)	40.5
L Length (in)	3.07
L Length (mm)	78
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.59
L (in)	3.07
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.4

G20230-0810X

H1 Stem Hex (in)	0.945
H1 Stem Hex (mm)	24
H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
C Cutoff (in)	1.594
C Cutoff (mm)	40.5
L Length (in)	3.071
L Length (mm)	78
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.59
L (in)	3.07
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	80
Weight (lbs.)	0.4

G20234-0810

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1" - 14 UNS
T Drop (in)	0.63
C Cutoff (in)	2.42
C Cutoff (mm)	61.5
L Length (in)	3.9
L Length (mm)	99.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.42
L (in)	3.9
Angle.	45
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.38

G20241-0810

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1-14
T Drop (in)	2.76
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.5
L (in)	3.98
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.05

G20240-0810

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1-14
T Drop (in)	1.85
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.5
L (in)	3.98
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.75

G20239-0810

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	1-14
T Drop (in)	1.26
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.5
L (in)	3.98
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.03

8GS-10FFOX90M

No variation attributes.

G20170-0810

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8-14
C Cutoff (in)	1.51
C Cutoff (mm)	38.4
L Length (in)	2.99
L Length (mm)	76
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.51
L (in)	2.99
Material	Steel
Customer Pack	1
Weight (lbs.)	0.25

G20170-0810X

H1 Stem Hex (in)	0.875
H1 Stem Hex (mm)	22.23
H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
C Cutoff (in)	1.512
C Cutoff (mm)	38.4
L Length (in)	2.992
L Length (mm)	76

G20174-0810

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8-14
T Drop (in)	0.63
C Cutoff (in)	2.11
C Cutoff (mm)	53.5
L Length (in)	3.58
L Length (mm)	91
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.11
L (in)	3.58
Angle.	45
Material	Steel
Customer Pack	1
Weight (lbs.)	0.24

G20174-0810X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T Drop (in)	0.63
C Cutoff (in)	2.106
C Cutoff (mm)	53.5
L Length (in)	3.579
L Length (mm)	90.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.11
L (in)	3.58
Angle.	45
Material	Steel
Customer Pack	75
Weight (lbs.)	0.24

G20181-0810

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T Drop (in)	2.756
C Cutoff (in)	2.008
C Cutoff (mm)	51
L Length (in)	3.74
L Length (mm)	95
Angle.	90

G20181-0810X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T Drop (in)	2.756
C Cutoff (in)	2.008
C Cutoff (mm)	51
L Length (in)	3.74
L Length (mm)	95
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.26
L (in)	3.74
Angle.	90
Material	Steel
Customer Pack	75
Weight (lbs.)	0.46

G20180-0810

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8" - 14 UNF
T Drop (in)	1.85
C Cutoff (in)	2.01
C Cutoff (mm)	51.1
L Length (in)	3.5
L Length (mm)	88.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.01
L (in)	3.5
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.35

G20180-0810X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T Drop (in)	1.85
C Cutoff (in)	2.008
C Cutoff (mm)	51
L Length (in)	3.5
L Length (mm)	88.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.01
L (in)	3.5
Angle.	90
Material	Steel
Customer Pack	125
Weight (lbs.)	0.35

G20179-0810

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	7/8-14
T Drop (in)	1.26
C Cutoff (in)	2.15
C Cutoff (mm)	54.5
L Length (in)	3.62
L Length (mm)	91.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.15
L (in)	3.62
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.29

G20179-0810X

H2 Nut Hex (in)	1.0625
H2 Nut Hex (mm)	26.99
T Drop (in)	1.26
C Cutoff (in)	2.146
C Cutoff (mm)	54.5
L Length (in)	3.622
L Length (mm)	92
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.15
L (in)	3.62
Angle.	90
Material	Steel
Customer Pack	125
Weight (lbs.)	0.29

G20300-0810X

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.35
M Flange Diameter (mm)	34.3
C Cutoff (in)	1.74
C Cutoff (mm)	44.1
L Length (in)	3.21
L Length (mm)	81.5
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	1.74
L (in)	3.21
Material	Steel
Notes	See Accessories for O-Rings.
Customer Pack	60
Weight (lbs.)	0.29

G20120-0810

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
T1 Thread (in)	7/8" - 14 UNF
C Cutoff (in)	1.34
C Cutoff (mm)	34
L Length (in)	2.83
L Length (mm)	71.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.34
L (in)	2.83
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	0.15

G20120-0810X

H1 Stem Hex (in)	1
H1 Stem Hex (mm)	25.4
C Cutoff (in)	1.339
C Cutoff (mm)	34
L Length (in)	2.835
L Length (mm)	72
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Material	Steel

G20225-0810

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	1-14
C Cutoff (in)	1.44
C Cutoff (mm)	36.5
L Length (in)	2.91
L Length (mm)	74
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.44
L (in)	2.91
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	0.13

G20165-0810

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
T1 Thread (in)	7/8-14
C Cutoff (in)	1.48
C Cutoff (mm)	37.5
L Length (in)	2.95
L Length (mm)	74.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.48
L (in)	2.95
Material	Steel
Customer Pack	1
Weight (lbs.)	0.18

G20165-0810X

H1 Stem Hex (in)	0.875
H1 Stem Hex (mm)	22.23
C Cutoff (in)	1.476
C Cutoff (mm)	37.5
L Length (in)	2.949
L Length (mm)	74.9

G20230-0812

H1 Stem Hex (in)	0.95
H1 Stem Hex (mm)	24
H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	1 3/16-12
C Cutoff (in)	1.63
C Cutoff (mm)	41.5
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.63
L (in)	3.11
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.54

G20230-0812X

H1 Stem Hex (in)	0.945
H1 Stem Hex (mm)	24
H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
C Cutoff (in)	1.634
C Cutoff (mm)	41.5
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.63
L (in)	3.11
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	75
Weight (lbs.)	0.54

G20239-0812

H2 Nut Hex (in)	1.417
H2 Nut Hex (mm)	36
T Drop (in)	1.89
C Cutoff (in)	2.736
C Cutoff (mm)	69.5
L Length (in)	4.209
L Length (mm)	106.9
Angle.	90

G20170-0812

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
C Cutoff (in)	1.56
C Cutoff (mm)	39.5
L Length (in)	3.03
L Length (mm)	77
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.56
L (in)	3.03
Material	Steel
Customer Pack	1
Weight (lbs.)	0.3

G20170-0812X

H1 Stem Hex (in)	0.875
H1 Stem Hex (mm)	22.23
H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
C Cutoff (in)	1.555
C Cutoff (mm)	39.5
L Length (in)	3.031
L Length (mm)	77
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.56
L (in)	3.03
Material	Steel
Customer Pack	150
Weight (lbs.)	0.31

G20179-0812

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.8
T1 Thread (in)	1 1/16-12
T Drop (in)	1.89
C Cutoff (in)	2.89
C Cutoff (mm)	73.5
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.89
L (in)	4.37
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.46

G20179-0812X

H2 Nut Hex (in)	1.25
H2 Nut Hex (mm)	31.75
T Drop (in)	1.89
C Cutoff (in)	2.894
C Cutoff (mm)	73.5
L Length (in)	4.37
L Length (mm)	111
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Angle.	90
Material	Steel

G20300-0812

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
C Cutoff (in)	2.38
C Cutoff (mm)	60.5
L Length (in)	3.86
L Length (mm)	98
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.38
L (in)	3.86
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.18

G20300-0812X

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
C Cutoff (in)	2.38
C Cutoff (mm)	60.45
L Length (in)	3.661
L Length (mm)	93
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.38
L (in)	3.66
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	60
Weight (lbs.)	0.18

G20307-0812

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	1.02
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.5
L (in)	3.98
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.38

G20307-0812X

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	1.024
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.5
L (in)	3.98
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	75
Weight (lbs.)	0.38

G20315-0812

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	2.28
C Cutoff (in)	1.98
C Cutoff (mm)	50.4
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	1.98
L (in)	3.46
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.84

G20315-0812X

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.5
M Flange Diameter (mm)	38.1
T Drop (in)	2.283
C Cutoff (in)	1.984
C Cutoff (mm)	50.4
L Length (in)	3.461
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	1.98
L (in)	3.46
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	45
Weight (lbs.)	0.84

G20350-0812

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
C Cutoff (in)	2.19
C Cutoff (mm)	55.5
L Length (in)	3.66
L Length (mm)	93
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	6000
C (in)	2.19
L (in)	3.66
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.37

G20357-0812

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	1.02
C Cutoff (in)	2.5
C Cutoff (mm)	63.5
L Length (in)	3.98
L Length (mm)	101.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	6000
C (in)	2.5
L (in)	3.98
Angle.	45
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.42

G20365-0812

F Flange Head Thickness (in)	0.35
F Flange Head Thickness (mm)	8.9
M Flange Diameter (in)	1.63
M Flange Diameter (mm)	41.4
T Drop (in)	2.28
C Cutoff (in)	1.99
C Cutoff (mm)	50.5
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	6000
C (in)	1.99
L (in)	3.46
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.46

G20100-0812

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	3/4-14
C Cutoff (in)	1.56
C Cutoff (mm)	39.5
L Length (in)	3.03
L Length (mm)	77
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.56
L (in)	3.03
Material	Steel
Customer Pack	1
Weight (lbs.)	0.31

G20100-0812X

H1 Stem Hex (in)	1.0625
H1 Stem Hex (mm)	26.99
C Cutoff (in)	1.557
C Cutoff (mm)	39.54
L Length (in)	3.031
L Length (mm)	77
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.56
L (in)	3.03
Material	Steel
Customer Pack	150
Weight (lbs.)	0.31

G20645-0815

H2 Nut Hex (in)	0.87
H2 Nut Hex (mm)	22.1
T1 Thread (in)	M22X1.5
A1 Outside Diameter (in)	0.59
A1 Outside Diameter (mm)	15
A1 Tube Outside Diameter (mm)	15
C Cutoff (in)	1.4
C Cutoff (mm)	35.5
L Length (in)	2.87
L Length (mm)	73
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.4
L (in)	2.87
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.25

G20650-0815

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	M22X1.5
T Drop (in)	1.74
A1 Outside Diameter (in)	0.59
A1 Outside Diameter (mm)	15
A1 Tube Outside Diameter (mm)	15
C Cutoff (in)	2.25
C Cutoff (mm)	57.2
L Length (in)	3.72
L Length (mm)	94.5
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.25
L (in)	3.72
Angle.	45
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.3

G20655-0815

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	M22X1.5
T Drop (in)	1.65
A1 Outside Diameter (in)	0.59
A1 Outside Diameter (mm)	15
A1 Tube Outside Diameter (mm)	15
C Cutoff (in)	1.99
C Cutoff (mm)	50.5
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.98
L (in)	3.46
Angle.	90
Material	Steel
Notes	Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.32

G20720-0816

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	M24X1.5
A1 Outside Diameter (in)	0.63
A1 Outside Diameter (mm)	16
A1 Tube Outside Diameter (mm)	16
C Cutoff (in)	1.63
C Cutoff (mm)	41.5
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.63
L (in)	3.11
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.32

G20720-0816X

H2 Nut Hex (in)	1.181
H2 Nut Hex (mm)	30
A1 Outside Diameter (in)	0.63
A1 Outside Diameter (mm)	16
A1 Tube Outside Diameter (mm)	16
C Cutoff (in)	1.634
C Cutoff (mm)	41.5
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.63
L (in)	3.11
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	100
Weight (lbs.)	0.43

G20725-0816

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	M24X1.5
T Drop (in)	0.85
A1 Outside Diameter (in)	0.63
A1 Outside Diameter (mm)	16
A1 Tube Outside Diameter (mm)	16
C Cutoff (in)	2.23
C Cutoff (mm)	56.7
L Length (in)	3.7
L Length (mm)	94
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.23
L (in)	3.7
Angle.	45
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.37

G20730-0816

H2 Nut Hex (in)	1.18
H2 Nut Hex (mm)	30
T1 Thread (in)	M24X1.5
T Drop (in)	1.73
A1 Outside Diameter (in)	0.63
A1 Outside Diameter (mm)	16
A1 Tube Outside Diameter (mm)	16
C Cutoff (in)	1.99
C Cutoff (mm)	50.5
L Length (in)	3.39
L Length (mm)	86.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.91
L (in)	3.39
Angle.	90
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.4

G20715-0816

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	M24X1.5
A1 Outside Diameter (in)	0.63
A1 Outside Diameter (mm)	16
A1 Tube Outside Diameter (mm)	16
C Cutoff (in)	1.18
C Cutoff (mm)	30
L Length (in)	1.17
L Length (mm)	29.7
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.18
L (in)	1.17
Material	Steel
Customer Pack	1
Weight (lbs.)	0.2

G20420-0817

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
C Cutoff (in)	1.24
C Cutoff (mm)	31.5
L Length (in)	2.72
L Length (mm)	69.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.24
L (in)	2.72
Material	Steel
Customer Pack	1
Weight (lbs.)	0.05

G20480-0817

F Flange Head Thickness (in)	0.56
F Flange Head Thickness (mm)	14.2
C Cutoff (in)	1.634
C Cutoff (mm)	41.5
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.63
L (in)	3.11
Material	Steel
Customer Pack	1
Weight (lbs.)	0.64

G20720-0820

H2 Nut Hex (in)	1.42
H2 Nut Hex (mm)	36.1
T1 Thread (in)	M30X2.0
A1 Outside Diameter (in)	0.79
A1 Outside Diameter (mm)	20
A1 Tube Outside Diameter (mm)	20
C Cutoff (in)	1.75
C Cutoff (mm)	44.5
L Length (in)	3.11
L Length (mm)	79
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.96
L (in)	3.11
Material	Steel
Notes	Nut Hex per ISO Draft International Standards 12151-2.
Customer Pack	1
Weight (lbs.)	0.48

G20830-0808

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	1/2-14
C Cutoff (in)	0.93
C Cutoff (mm)	23.5
L Length (in)	2.4
L Length (mm)	61
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	0.93
L (in)	2.4
Material	Steel
Customer Pack	1
Weight (lbs.)	0.22

G20830-0808X

H2 Nut Hex (in)	1.063
H2 Nut Hex (mm)	27
C Cutoff (in)	0.926
C Cutoff (mm)	23.53
L Length (in)	2.402
L Length (mm)	61
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	0.93
L (in)	2.4
Material	Steel
Customer Pack	150
Weight (lbs.)	0.22

G20831-0808

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	1/2-14
T Drop (in)	0.67
C Cutoff (in)	2.13
C Cutoff (mm)	54.1
L Length (in)	3.6
L Length (mm)	91.4
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.13
L (in)	3.6
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.43

G20831-0808X

H2 Nut Hex (in)	1.063
H2 Nut Hex (mm)	27
T Drop (in)	0.669
C Cutoff (in)	2.13
C Cutoff (mm)	54.1
L Length (in)	3.598
L Length (mm)	91.4
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.13
L (in)	3.6
Angle.	45
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	100
Weight (lbs.)	0.43

G20832-0808

H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	1/2-14
T Drop (in)	1.48
C Cutoff (in)	1.99
C Cutoff (mm)	50.5
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.99
L (in)	3.46
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	1
Weight (lbs.)	0.32

G20832-0808X

H2 Nut Hex (in)	1.063
H2 Nut Hex (mm)	27
T Drop (in)	1.476
C Cutoff (in)	1.988
C Cutoff (mm)	50.5
L Length (in)	3.461
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.99
L (in)	3.46
Angle.	90
Material	Steel
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6.
Customer Pack	100
Weight (lbs.)	0.33

G20230-0808

H1 Stem Hex (in)	0.95
H1 Stem Hex (mm)	24
H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	13/16-16
C Cutoff (in)	1.34
C Cutoff (mm)	34
L Length (in)	2.87
L Length (mm)	73
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.4
L (in)	2.87
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.15

G20230-0808X

H1 Stem Hex (in)	0.945
H1 Stem Hex (mm)	24
H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
C Cutoff (in)	1.339
C Cutoff (mm)	34
L Length (in)	2.87
L Length (mm)	72.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.4
L (in)	2.87
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	200
Weight (lbs.)	0.21

8GS-8FFORX-TCX

No variation attributes.

G20234-0808

H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	13/16-16
T Drop (in)	0.59
C Cutoff (in)	2.22
C Cutoff (mm)	56.5
L Length (in)	3.7
L Length (mm)	94
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.22
L (in)	3.7
Angle.	45
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.285

G20234-0808X

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	0.591
C Cutoff (in)	2.224
C Cutoff (mm)	56.5
L Length (in)	3.701
L Length (mm)	94
Angle.	45

G20241-0808

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	3.268
C Cutoff (in)	1.909
C Cutoff (mm)	48.5
L Length (in)	3.39
L Length (mm)	86.1
Angle.	90

8GS-8FFORX90LXBULK

No variation attributes.

G20240-0808

H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	13/16-16
T Drop (in)	1.61
C Cutoff (in)	1.91
C Cutoff (mm)	48.5
L Length (in)	3.39
L Length (mm)	86.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.91
L (in)	3.39
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.26

8GS-8FFORX90MXBULK

T Drop (in)	1.614
C Cutoff (in)	1.909
C Cutoff (mm)	48.5
L Length (in)	3.386
L Length (mm)	86
Angle.	90

G20239-0808

H2 Nut Hex (in)	0.95
H2 Nut Hex (mm)	24.1
T1 Thread (in)	13/16-16
T Drop (in)	1.14
C Cutoff (in)	1.91
C Cutoff (mm)	48.5
L Length (in)	3.39
L Length (mm)	86.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.91
L (in)	3.39
Angle.	90
Material	Steel
Notes	Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal.
Customer Pack	1
Weight (lbs.)	0.3

G20239-0808X

H2 Nut Hex (in)	0.945
H2 Nut Hex (mm)	24
T Drop (in)	1.142
C Cutoff (in)	1.909
C Cutoff (mm)	48.5
L Length (in)	3.39
L Length (mm)	86.1
Angle.	90

G20170-0808

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
H2 Nut Hex (in)	0.88
H2 Nut Hex (mm)	22.2
T1 Thread (in)	3/4-16
C Cutoff (in)	1.36
C Cutoff (mm)	34.5
L Length (in)	2.83
L Length (mm)	71.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.36
L (in)	2.83
Material	Steel
Customer Pack	1
Weight (lbs.)	0.31

G20170-0808X

H1 Stem Hex (in)	0.875
H1 Stem Hex (mm)	22.23
H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
C Cutoff (in)	1.358
C Cutoff (mm)	34.5
L Length (in)	2.831
L Length (mm)	71.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.36
L (in)	2.83
Material	Steel
Customer Pack	250
Weight (lbs.)	0.165

G20174-0808

H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
T Drop (in)	0.591
C Cutoff (in)	2.224
C Cutoff (mm)	56.5
L Length (in)	3.701
L Length (mm)	94
Angle.	45

G20174-0808X

H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
T Drop (in)	0.591
C Cutoff (in)	2.224
C Cutoff (mm)	56.5
L Length (in)	3.701
L Length (mm)	94
Angle.	45

G20181-0808

H2 Nut Hex (in)	0.88
H2 Nut Hex (mm)	22.2
T1 Thread (in)	3/4-16
T Drop (in)	2.52
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	3.62
L Length (mm)	91.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.15
L (in)	3.62
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.66

G20181-0808X

H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
T Drop (in)	2.52
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	3.622
L Length (mm)	92
Angle.	90

G20180-0808

H2 Nut Hex (in)	0.88
H2 Nut Hex (mm)	22.2
T1 Thread (in)	3/4-16
T Drop (in)	1.61
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	3.62
L Length (mm)	91.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.15
L (in)	3.62
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.26

G20180-0808X

H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
T1 Thread (in)	3/4" - 16 UN
T Drop (in)	1.61
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	3.622
L Length (mm)	92
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.15
L (in)	3.62
Angle.	90
Material	Steel
Customer Pack	70
Weight (lbs.)	0.55

G20179-0808

H2 Nut Hex (in)	0.88
H2 Nut Hex (mm)	22.2
T1 Thread (in)	3/4-16
T Drop (in)	1.14
C Cutoff (in)	1.91
C Cutoff (mm)	48.6
L Length (in)	3.39
L Length (mm)	86.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.91
L (in)	3.39
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.44

G20179-0808X

H2 Nut Hex (in)	0.875
H2 Nut Hex (mm)	22.23
T Drop (in)	1.142
C Cutoff (in)	1.913
C Cutoff (mm)	48.6
L Length (in)	3.39
L Length (mm)	86.1
Angle.	90

G20182-0808

H2 Nut Hex (in)	0.88
H2 Nut Hex (mm)	22.2
T1 Thread (in)	3/4-16
T Drop (in)	4.06
C Cutoff (in)	2.15
C Cutoff (mm)	54.5
L Length (in)	3.62
L Length (mm)	91.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	2.15
L (in)	3.62
Angle.	90
Material	Steel
Customer Pack	1
Weight (lbs.)	0.4

G20910-0808

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
H2 Nut Hex (in)	1.06
H2 Nut Hex (mm)	26.9
T1 Thread (in)	M22X1.5
C Cutoff (in)	1.46
C Cutoff (mm)	37.1
L Length (in)	2.93
L Length (mm)	74.4
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.46
L (in)	2.93
Material	Steel
Notes	These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.
Customer Pack	1
Weight (lbs.)	0.22

G20300-0808

F Flange Head Thickness (in)	6.9
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
C Cutoff (in)	2.19
C Cutoff (mm)	55.5
L Length (in)	3.66
L Length (mm)	93
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.19
L (in)	3.66
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.18

G20300-0808X

C Cutoff (in)	2.185
C Cutoff (mm)	55.5
L Length (in)	3.661
L Length (mm)	93
Working Pressure (psi)	5000

G20302-0808

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
T Drop (in)	0.35
C Cutoff (in)	2.3
C Cutoff (mm)	58.5
L Length (in)	3.78
L Length (mm)	96
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.3
L (in)	3.78
Angle.	22.5
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.24

G20307-0808

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
T Drop (in)	0.75
C Cutoff (in)	2.22
C Cutoff (mm)	56.5
L Length (in)	3.7
L Length (mm)	94
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.22
L (in)	3.7
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.29

G20307-0808X

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
T Drop (in)	0.748
C Cutoff (in)	2.224
C Cutoff (mm)	56.5
L Length (in)	3.701
L Length (mm)	94
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.22
L (in)	3.7
Angle.	45
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	125
Weight (lbs.)	0.29

G20309-0808

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
T Drop (in)	1.06
C Cutoff (in)	2.62
C Cutoff (mm)	66.5
L Length (in)	4.09
L Length (mm)	104
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	2.62
L (in)	4.09
Angle.	60
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.57

G20315-0808

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
T Drop (in)	1.58
C Cutoff (in)	1.99
C Cutoff (mm)	50.5
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	1.99
L (in)	3.46
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.57

G20315-0808X

F Flange Head Thickness (in)	0.27
F Flange Head Thickness (mm)	6.9
M Flange Diameter (in)	1.19
M Flange Diameter (mm)	30.2
T Drop (in)	1.575
C Cutoff (in)	1.988
C Cutoff (mm)	50.5
L Length (in)	3.461
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	5000
C (in)	1.99
L (in)	3.46
Angle.	90
Material	Steel
Notes	-8FL, -12FL, -16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	70
Weight (lbs.)	0.57

G20350-0808

C Cutoff (in)	2.185
C Cutoff (mm)	55.5
L Length (in)	3.661
L Length (mm)	93
Working Pressure (psi)	6000

G20350-0808X

C Cutoff (in)	2.185
C Cutoff (mm)	55.5
L Length (in)	3.661
L Length (mm)	93
Working Pressure (psi)	6000

G20357-0808

T Drop (in)	0.748
C Cutoff (in)	2.224
C Cutoff (mm)	56.5
L Length (in)	3.701
L Length (mm)	94
Working Pressure (psi)	6000
Angle.	45

G20365-0808

F Flange Head Thickness (in)	0.31
F Flange Head Thickness (mm)	7.9
M Flange Diameter (in)	1.25
M Flange Diameter (mm)	31.8
T Drop (in)	1.58
C Cutoff (in)	1.99
C Cutoff (mm)	50.5
L Length (in)	3.46
L Length (mm)	87.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
Working Pressure (psi)	6000
C (in)	1.99
L (in)	3.46
Angle.	90
Material	Steel
Notes	All FLH sizes Maximum Working Pressure 6,000 PSI. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Customer Pack	1
Weight (lbs.)	0.57

G20120-0808

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
T1 Thread (in)	3/4" - 16 UN
C Cutoff (in)	1.28
C Cutoff (mm)	32.6
L Length (in)	2.76
L Length (mm)	70.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.26
L (in)	2.76
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	1
Weight (lbs.)	0.13

G20120-0808X

H1 Stem Hex (in)	0.875
H1 Stem Hex (mm)	22.23
C Cutoff (in)	1.283
C Cutoff (mm)	32.6
L Length (in)	2.76
L Length (mm)	70.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.26
L (in)	2.76
Material	Steel
Notes	SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End.
Customer Pack	200
Weight (lbs.)	0.13

G20810-0808

H1 Stem Hex (in)	1.06
H1 Stem Hex (mm)	27
T1 Thread (in)	1/2-14
C Cutoff (in)	1.18
C Cutoff (mm)	30
L Length (in)	2.66
L Length (mm)	67.6
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.81
L (in)	2.66
Material	Steel
Customer Pack	1
Weight (lbs.)	0.19

G20225-0808

H1 Stem Hex (in)	0.87
H1 Stem Hex (mm)	22
T1 Thread (in)	1.3/16" - 16 UN
C Cutoff (in)	1.2
C Cutoff (mm)	30.5
L Length (in)	2.68
L Length (mm)	68.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.2
L (in)	2.68
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	1
Weight (lbs.)	0.2

G20225-0808X

H1 Stem Hex (in)	0.866
H1 Stem Hex (mm)	22
C Cutoff (in)	1.201
C Cutoff (mm)	30.5
L Length (in)	2.681
L Length (mm)	68.1
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.2
L (in)	2.68
Material	Steel
Notes	Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Customer Pack	100
Weight (lbs.)	0.2

G20165-0808

H1 Stem Hex (in)	0.81
H1 Stem Hex (mm)	20.6
T1 Thread (in)	3/4-16
C Cutoff (in)	1.36
C Cutoff (mm)	34.5
L Length (in)	2.83
L Length (mm)	71.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.36
L (in)	2.83
Material	Steel
Customer Pack	1
Weight (lbs.)	0.11

G20165-0808X

H1 Stem Hex (in)	0.8125
H1 Stem Hex (mm)	20.64
C Cutoff (in)	1.358
C Cutoff (mm)	34.5
L Length (in)	2.831
L Length (mm)	71.9

G20100-0808

H1 Stem Hex (in)	0.88
H1 Stem Hex (mm)	22.2
T1 Thread (in)	1/2" - 14 NPTF
C Cutoff (in)	1.44
C Cutoff (mm)	36.5
L Length (in)	2.91
L Length (mm)	74
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.43
L (in)	2.91
Material	Steel
Customer Pack	1
Weight (lbs.)	0.11

G20100-0808X

H1 Stem Hex (in)	0.875
H1 Stem Hex (mm)	22.23
C Cutoff (in)	1.437
C Cutoff (mm)	36.5
L Length (in)	2.909
L Length (mm)	73.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.43
L (in)	2.91
Material	Steel
Customer Pack	225
Weight (lbs.)	0.15

G20530-0808

C Cutoff (in)	1.5
L Length (in)	3.01
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.5
L (in)	3.01
Customer Pack	1
Weight (lbs.)	0.18

G20530-0808X

C Cutoff (in)	1.535
C Cutoff (mm)	39
L Length (in)	3.031
L Length (mm)	77

8GS-8PLSOR

C Cutoff (in)	1.73
L Length (in)	3.21
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
C (in)	1.73
L (in)	3.21
Customer Pack	1
Weight (lbs.)	0.2266

G20995-0208

A1 Outside Diameter (in)	1.15
A1 Outside Diameter (mm)	29.2
L Length (in)	1.47
L Length (mm)	37.3
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
L (in)	1.47
Outside Diameter (in)	1.15
Outside Diameter (mm)	29.2
Material	Steel
Notes	Consult eCrimp for wire braid types and sizes.
Customer Pack	1
Weight (lbs.)	0.1

G20995-0408

A1 Outside Diameter (in)	1.35
A1 Outside Diameter (mm)	34.3
L Length (in)	1.45
L Length (mm)	36.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
L (in)	1.44
Outside Diameter (in)	1.35
Outside Diameter (mm)	34.3
Material	Steel
Customer Pack	5
Weight (lbs.)	0.18

G20995-0408X

A1 Outside Diameter (in)	1.35
A1 Outside Diameter (mm)	34.3
L Length (in)	1.453
L Length (mm)	36.9
Hose Inside Diameter (in)	0.5
Hose Inside Diameter (mm)	12.7
Inside Diameter (in)	0.5
Inside Diameter (mm)	12.7
L (in)	1.44
Outside Diameter (in)	1.35
Outside Diameter (mm)	34.3
Material	Steel
Customer Pack	200
Weight (lbs.)	0.18

G20997-0408

A1 Outside Diameter (in)	1.21
A1 Outside Diameter (mm)	30.7
L Length (in)	1.457
L Length (mm)	37

8GSID1F-4 XBULK

No variation attributes.

G20230-1616T

H1 Stem Hex (in)	1.614
H1 Stem Hex (mm)	41
H2 Nut Hex (in)	1.614
H2 Nut Hex (mm)	41
C Cutoff (in)	2.15
C Cutoff (mm)	54.6
L Length (in)	4.37
L Length (mm)	111

G20363-1616

T Drop (in)	17.717
C Cutoff (in)	4.106
C Cutoff (mm)	104.3
L Length (in)	6.339
L Length (mm)	161
Working Pressure (psi)	6000
Angle.	90

G20995-0416T

A1 Outside Diameter (in)	2.07
A1 Outside Diameter (mm)	52.6
L Length (in)	2.22
L Length (mm)	56.4

10GS-10FFORX90SXBULK

No variation attributes.

10GS-12FL45-062XBULK

Angle.	45

10GS-12MBSPPXBULK

No variation attributes.

12GS-12FLH30MXBULK

No variation attributes.

12GS-12FLH90-122XBULK

T Drop (in)	4.803
C Cutoff (in)	2.795
C Cutoff (mm)	71
L Length (in)	4.799
L Length (mm)	121.9
Working Pressure (psi)	6000
Angle.	90

12GS-16FLH15-008XBULK

Angle.	15

16GS-20FLH22MXBULK

No variation attributes.

20GS-16FLH45MXBULK

No variation attributes.

20GS-20FLH110-112

No variation attributes.

20MGS-20FL45S-032XB

No variation attributes.

24GSP-32FL90-080XBULK

No variation attributes.

32GSP-32FFORX

No variation attributes.

G24350-3224

No variation attributes.

G24415-3232

No variation attributes.

73477524

No variation attributes.

73478501

No variation attributes.

73477673

No variation attributes.

73477883

No variation attributes.

73475133

No variation attributes.

73477339

No variation attributes.

73478003

T Drop (in)	3.031
C Cutoff (in)	3.787
C Cutoff (mm)	96.2
L Length (in)	6.457
L Length (mm)	164
Angle.	90

73470293

No variation attributes.

73477859

No variation attributes.

73477965

No variation attributes.

734732469

No variation attributes.

73477344

No variation attributes.

73470336

No variation attributes.

73478707

No variation attributes.

734782245

No variation attributes.

73470555

No variation attributes.

73475124

No variation attributes.

73477465

No variation attributes.

73477322

No variation attributes.

H2 Nut Hex (in)	0.089 – 3
H2 Nut Hex (mm)	2.25 – 76.2
T1 Thread (in)	5/8-14, 1" - 14 UNS, 7/8" - 14 UNF, M24X1.5, 5/8", 3/4-14, +62 more
C Cutoff (in)	0.79 – 7.25
C Cutoff (mm)	20 – 184.2
L Length (in)	1.17 – 11.69
L Length (mm)	29.7 – 297
Hose Inside Diameter (in)	0.37 – 2
Hose Inside Diameter (mm)	9.5 – 50.8
Inside Diameter (in)	0.374 – 2
Inside Diameter (mm)	9.5 – 50.8
Material	Steel
Customer Pack	1 – 250
Weight (lbs.)	0.03 – 9.49
T Drop (in)	0.35 – 17.717
C (in)	0.93 – 7.24
L (in)	1.17 – 11.69
Angle.	15 – 135
Notes	S, M and L Drops and Hex per ISO Working Draft 12151-6., Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal., These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style., See Accessories for O-Rings., SAE J1926/2 ISO 11926-2 Heavy Duty (S Series) Stud End., Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention., +13 more
H1 Stem Hex (in)	0.69 – 2.56
H1 Stem Hex (mm)	17.5 – 65.02
F Flange Head Thickness (in)	0.27 – 14.2
F Flange Head Thickness (mm)	0.27 – 14.2
M Flange Diameter (in)	1.19 – 3.31
M Flange Diameter (mm)	30.2 – 84.1
Working Pressure (psi)	3000 – 6000
A1 Outside Diameter (in)	0.39 – 3.35
A1 Outside Diameter (mm)	10 – 85.1
A1 Tube Outside Diameter (mm)	10 – 42
Outside Diameter (in)	0.96 – 3.35
Outside Diameter (mm)	24.4 – 85.1

ID	533
Code	7347-000000-000002
Categories	Spiral Wire Hose And Couplings

GlobalSpiral™ Couplings

Attributes

Description

Variations (960)

G20830-1010

G20831-1010

G20832-1010

G20230-1010

G20230-1010X

G20234-1010

G20234-1010X

10GS-10FFORX90-053XB

10GS-10FFORX90-096

G20241-1010

G20240-1010

G20239-1010

G20170-1010

G20170-1010X

G20175-1010

G20175-1010X

G20179-1010

G20179-1010X

G20180-1010

G20180-1010X

G20910-1010

G20300-1010

G20315-1010

G20120-1010

G20225-1010

G20165-1010

G20830-1012

G20230-1012

G20230-1012X

10GS-12FFORX90S

G20239-1012

G20170-1012

G20170-1012X

G20174-1012

G20180-1012

G20300-1012

G20307-1012

10GS-12FL90-100

G20315-1012

G20350-1012

G20357-1012

G20365-1012

G20120-1012

G20225-1012

G20165-1012

G20100-1012

G20645-1018

G20645-1018X

10GS-18FDLORX45

G20655-1018

G20655-1018X

G20720-1020

G20720-1020X

G20725-1020

G20730-1020

G20715-1020

G20420-1021

G20480-1021

10GS-8FL90-150 XBULK

G20357-1008

G20100-1008

G20995-0210

G20995-0410

G20995-0410X

G20997-0410

G20997-0410X

G20230-1210

G20230-1210X

G20239-1210

G20170-1210

G20170-1210X

G20300-1210

G20315-1210

G20830-1212

G20830-1212X

G20831-1212
