Attributes
| Part Number | 4319-000000-000000 |
|---|
Description

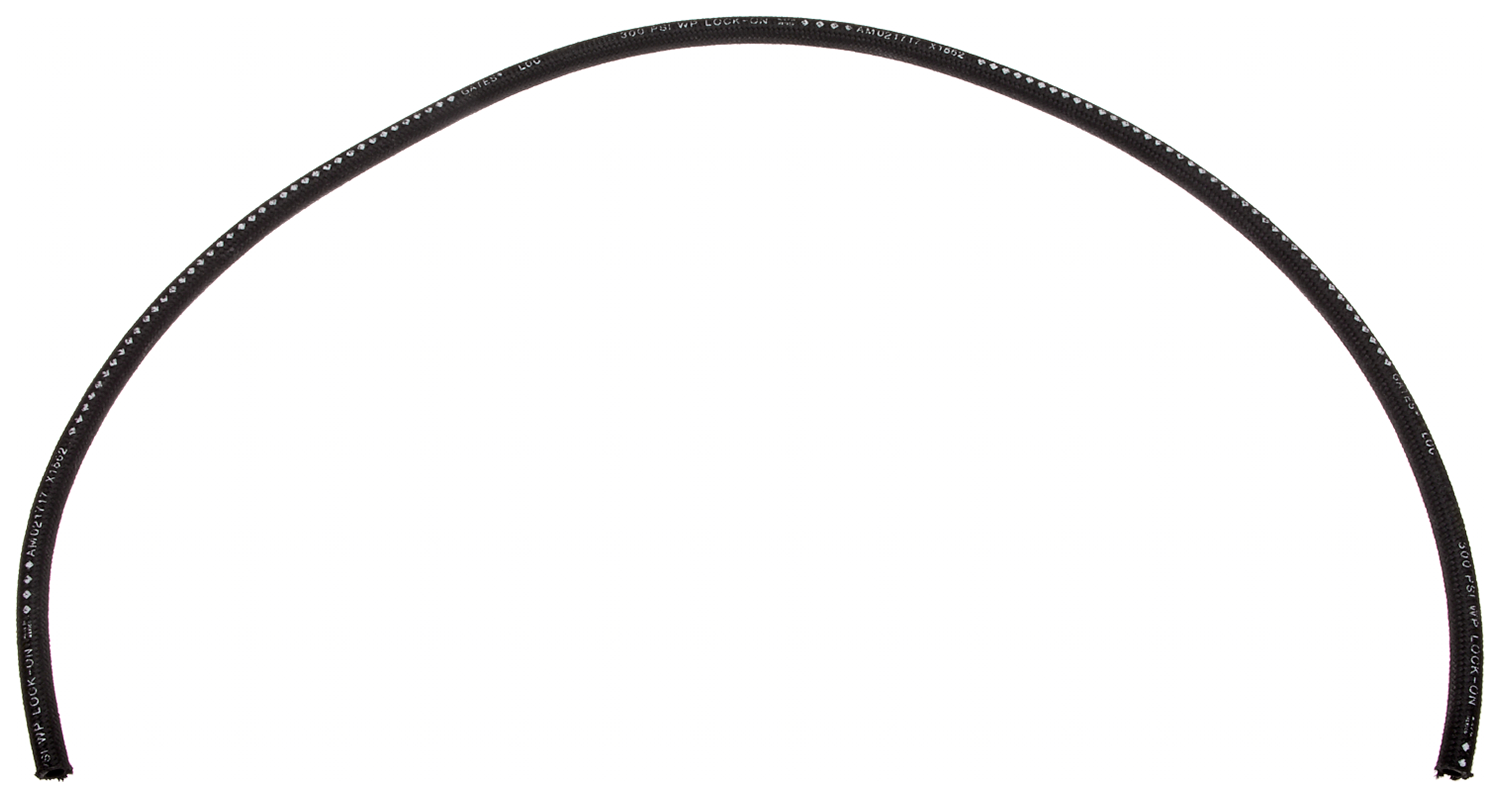

LOC Lock-On Hose Gates LOC Lock-On Hose is ideal for petroleum-based hydraulic oils, glycol anti–freeze compounds, water, engine lubricating oils and air. Lock–On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Recommended For: Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. For use with Field Attachable LOC Couplings [G36 Series], use clamp over G37 single bead and G38 barbed fittings with clamp. Oil and mildew resistant textile braided cover impregnated with synthetic rubber. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F (+52°C).
Variations (13)
70033
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.9 |
| Hose Outside Diameter (mm) | 22.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.9 |
| Outside Diameter (mm) | 22.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.213 |
| Packaging | F |
70034
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1 |
| Hose Outside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1 |
| Outside Diameter (mm) | 25.4 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.25 |
| Packaging | F |
86691
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.52 |
| Hose Outside Diameter (mm) | 13.2 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 13.2 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.56 |
| Packaging | T |
70030
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.52 |
| Hose Outside Diameter (mm) | 13.2 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 13.2 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
| Packaging | F |
86630
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Lock-On |
| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
| Packaging | S |
70231
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Lock-On |
| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.15 |
| Packaging | N |
86692
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.39 |
| Hose Inside Diameter (mm) | 9.8 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.64 |
| Outside Diameter (mm) | 16.3 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.73 |
| Packaging | T |
70031
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.64 |
| Hose Outside Diameter (mm) | 16.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.64 |
| Outside Diameter (mm) | 16.3 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
| Packaging | F |
86693
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 1 |
| Weight (lbs.) | 7.55 |
| Packaging | T |
70032
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.14606 |
| Packaging | F |
43190028
No variation attributes.
43190078
No variation attributes.
431900757
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3 – 7 |
| Minimum Bend Radius (mm) | 76.2 – 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 – 0.75 |
| Hose Inside Diameter (mm) | 6.4 – 19.1 |
| Hose Outside Diameter (in) | 0.52 – 1 |
| Hose Outside Diameter (mm) | 13.2 – 25.4 |
| Inside Diameter (in) | 0.25 – 0.75 |
| Inside Diameter (mm) | 6.4 – 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 – 107 |
| Outside Diameter (in) | 0.52 – 1 |
| Outside Diameter (mm) | 13.2 – 25.4 |
| Use | Lock-On |
| Color | Black, Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant, Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber, Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2, SAE 30R6, SAE 30R7 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 30R2. 30R6. 30R7Air to +160°F., Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, glycol anti-freeze compounds, water, engine lubricating oils and air. Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F. |
| Customer Pack | 1 – 350 |
| Weight (lbs.) | 0.09 – 7.55 |
| Packaging | F, T, S, N |
| Vacuum (In. Hg) | 28 |
PDF Documents
No PDF documents.
