Attributes
| Part Number | 3284-000000-000001 |
|---|
Description
LOL Lock-On Hose Recommended for petroleum–based hydraulic oils, water, glycol anti–freeze solutions, engine lubricating oils and air; Lock–On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. Recommended For: Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. For use with Field Attachable LOC Couplings [G36 Series], GLX™ Couplings [G44 Series] and G37 single bead and G38 barbed fittings with clamp. Available in 6 colors for easy color coding; black Polychloroprene (LOLA), blue (LOLB), green (LOLG), red (LOLR), yellow (LOLY) and gray (LOLC). Black cover only meets Flame Resistance Acceptance Designation MSHA 2G. Packaged in UPS shippable reels.
Features and Benefits Available in 6 colors for easy color coding. Validated with Lock-On Plus reusable couplings. Temperature Range: -40°C to +100°C -40°F to +212°F Air Only: -40°C to +71°C -40°F to +160°F Design factor: 4:1. For water emulsions see Temperature Limits Table.
Variations (80)
1/4X100 BLK LOL PLUS
No variation attributes.
85965
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 12.1 |
| Packaging | T |
70679
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.23 |
| Packaging | F |
85970
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.95 |
| Packaging | T |
70680
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |

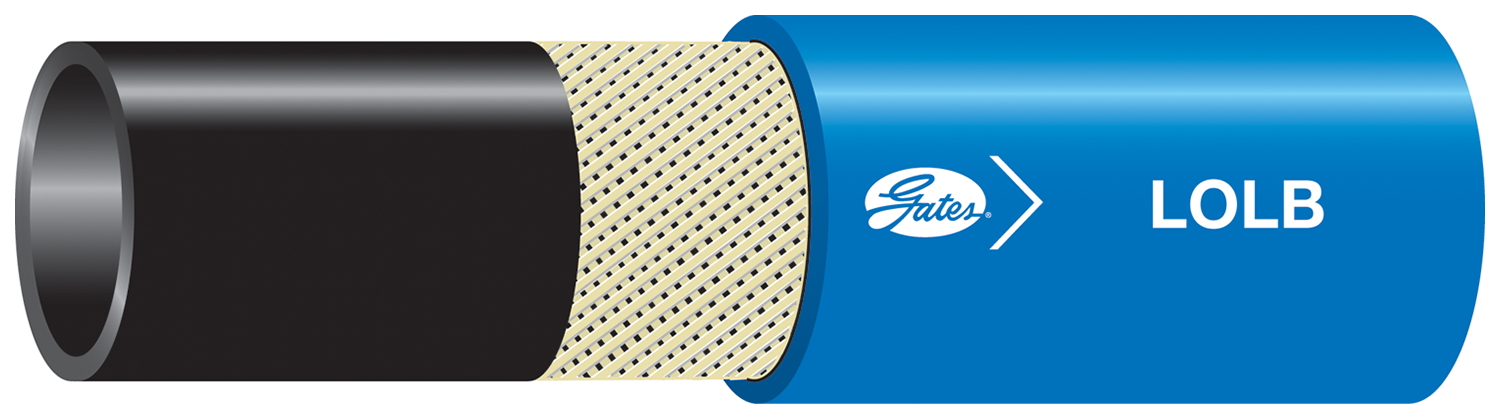

| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.23 |
| Packaging | F |
70684
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |

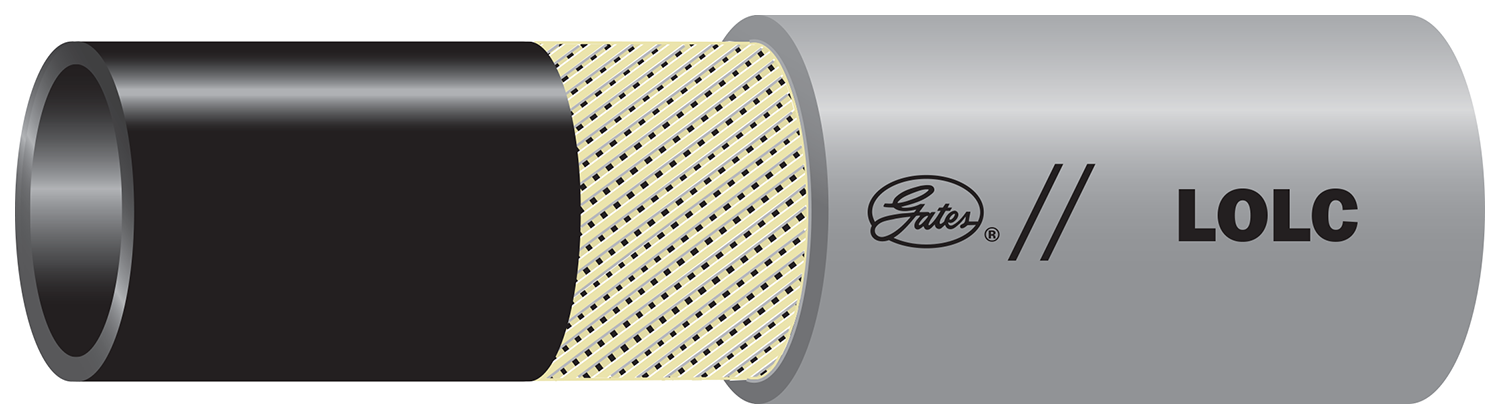

| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.23 |
| Packaging | F |
70681
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |

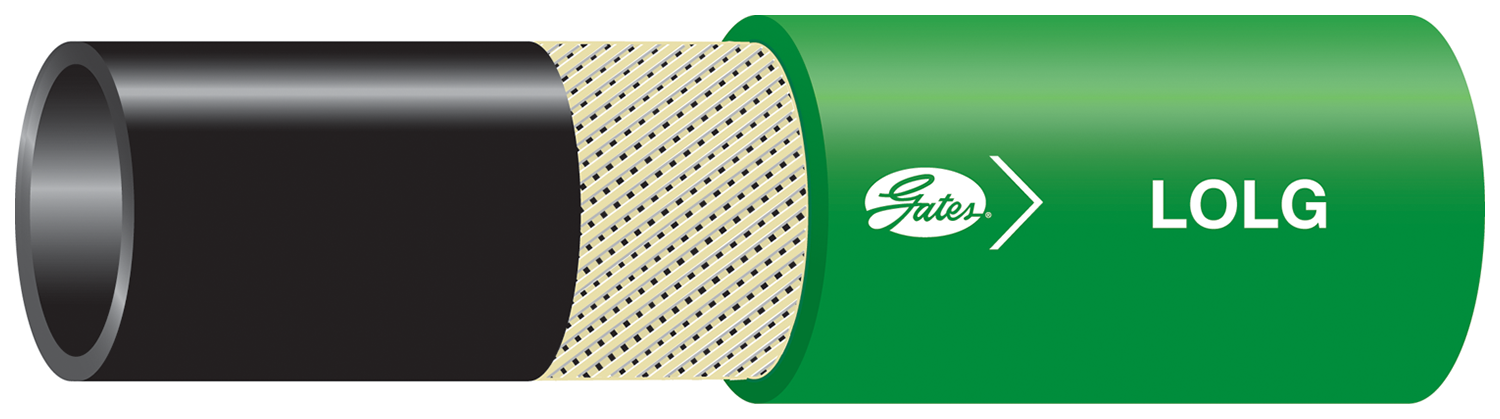

| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.23 |
| Packaging | F |
70682
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |

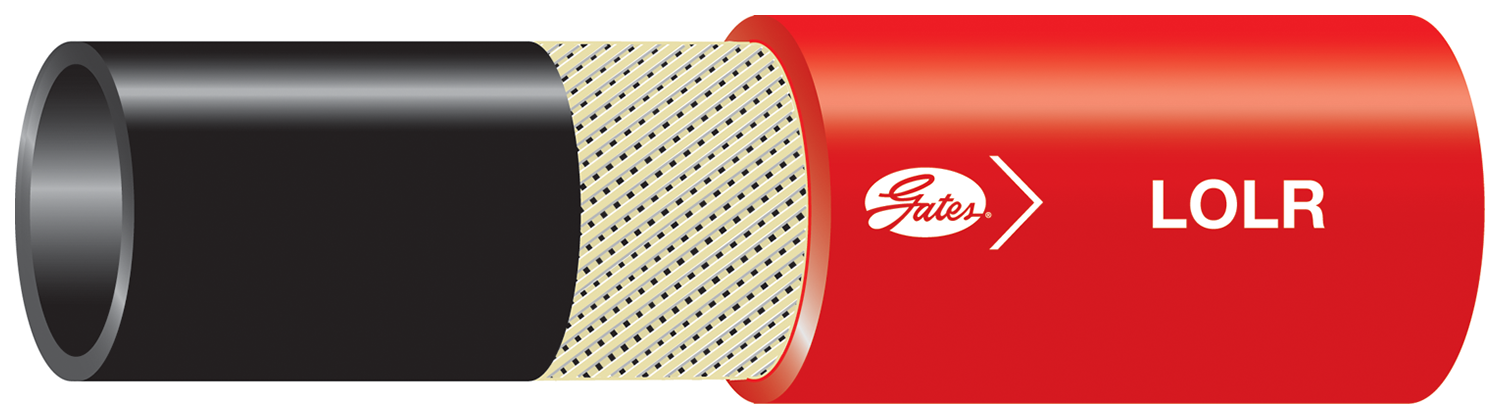

| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.23 |
| Packaging | F |
70683
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Lock-On |

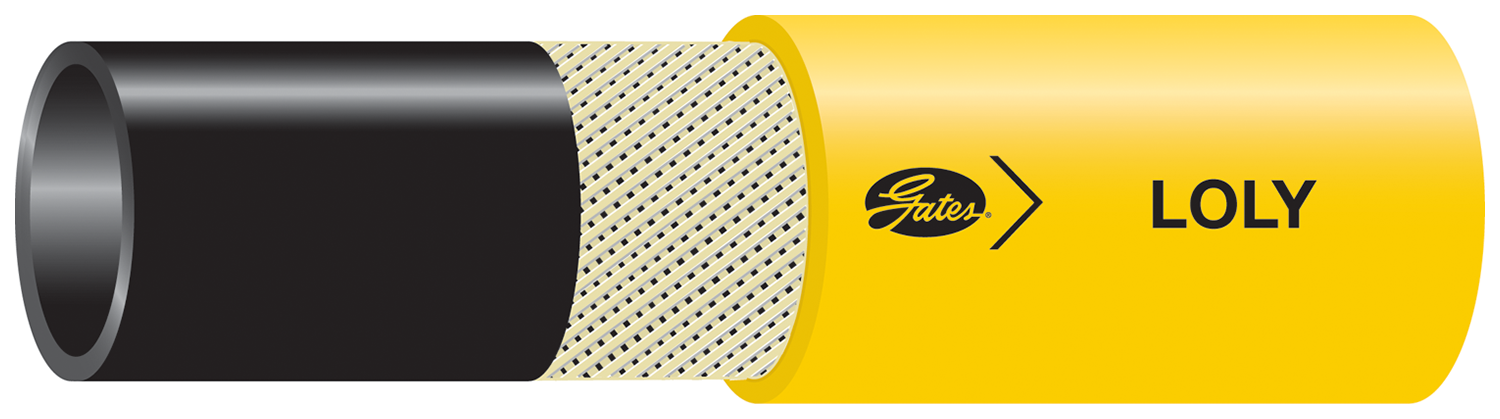

| Color | Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.23 |
| Packaging | F |
12LOLA PLUSXREEL
No variation attributes.
85966
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 13.93 |
| Packaging | T |
70686
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.28 |
| Packaging | F |
85971
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.85 |
| Packaging | T |
70687
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.28 |
| Packaging | F |
70691
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.28 |
| Packaging | F |
85975
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.87 |
| Packaging | T |
70688
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.28 |
| Packaging | F |
85979
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.87 |
| Packaging | T |
70689
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.28 |
| Packaging | F |
70690
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 69 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Use | Lock-On |
| Color | Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.28 |
| Packaging | F |
1LOLA+ LG RL
No variation attributes.
70650
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.41 |
| Hose Outside Diameter (mm) | 10.4 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10.4 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.07 |
| Packaging | F |
70651
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.41 |
| Hose Outside Diameter (mm) | 10.4 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10.4 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.07 |
| Packaging | F |
70653
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.41 |
| Hose Outside Diameter (mm) | 10.4 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10.4 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.07 |
| Packaging | F |
70654
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.41 |
| Hose Outside Diameter (mm) | 10.4 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10.4 |
| Use | Lock-On |
| Color | Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.07 |
| Packaging | F |
4LOLA PLUSXREEL
No variation attributes.
85961
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.99 |
| Packaging | T |
70657
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 145 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 475 |
| Weight (lbs.) | 0.08 |
| Packaging | F |
4LOLAX350'
No variation attributes.
85967
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.96 |
| Packaging | T |
70658
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 145 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 475 |
| Weight (lbs.) | 0.08 |
| Packaging | F |
70662
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 145 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 475 |
| Weight (lbs.) | 0.08 |
| Packaging | F |
85972
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.97 |
| Packaging | T |
70659
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 145 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 475 |
| Weight (lbs.) | 0.08 |
| Packaging | F |
85976
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.97 |
| Packaging | T |
70660
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 145 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 475 |
| Weight (lbs.) | 0.08 |
| Packaging | F |
70661
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 145 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Lock-On |
| Color | Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 475 |
| Weight (lbs.) | 0.08 |
| Packaging | F |
85960
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.57 |
| Packaging | T |
85962
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.13 |
| Packaging | T |
70664
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.1 |
| Packaging | F |
6LOLA PLUSXREEL
No variation attributes.
85963
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.36 |
| Packaging | T |
70665
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.13 |
| Packaging | F |
6LOLAXREEL 1 LGTH
No variation attributes.
85968
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.12 |
| Packaging | T |
70666
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.13 |
| Packaging | F |
70670
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.13 |
| Packaging | F |
6LOLCX300
No variation attributes.
85973
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.14 |
| Packaging | T |
70667
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.13 |
| Packaging | F |
85977
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.14 |
| Packaging | T |
70668
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.13 |
| Packaging | F |
70669
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 16 |
| Use | Lock-On |
| Color | Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.13 |
| Packaging | F |
8LOLA PLUSXREEL
No variation attributes.
85964
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 8.55 |
| Packaging | T |
70672
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.17 |
| Packaging | F |
85969
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.19 |
| Packaging | T |
70673
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.17 |
| Packaging | F |
70677
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Gray |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.17 |
| Packaging | F |
85974
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.21 |
| Packaging | T |
70674
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Green |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.17 |
| Packaging | F |
85978
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.21 |
| Packaging | T |
70675
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Red |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.17 |
| Packaging | F |
70676
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 19.6 |
| Use | Lock-On |
| Color | Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.17 |
| Packaging | F |
320111046
No variation attributes.
32843173
No variation attributes.
32840408
No variation attributes.
32844162
No variation attributes.
32842538
No variation attributes.
32843171
No variation attributes.
32845138
No variation attributes.
32844695
No variation attributes.
32845380
No variation attributes.
32842508
No variation attributes.
32843170
No variation attributes.
32845379
No variation attributes.
32843169
No variation attributes.
32843172
No variation attributes.
32845378
No variation attributes.
32845137
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 15 – 28 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 – 7 |
| Minimum Bend Radius (mm) | 76.2 – 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.19 – 0.75 |
| Hose Inside Diameter (mm) | 4.8 – 19.1 |
| Hose Outside Diameter (in) | 0.41 – 1.06 |
| Hose Outside Diameter (mm) | 10.4 – 26.9 |
| Inside Diameter (in) | 0.1875 – 0.75 |
| Inside Diameter (mm) | 4.8 – 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 – 145 |
| Outside Diameter (in) | 0.41 – 1.06 |
| Outside Diameter (mm) | 10.4 – 26.9 |
| Use | Lock-On |
| Color | Black, Blue, Gray, Green, Red, Yellow |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Heat, Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA |
| Notes | Meets MSHA 2G. Air to +160°F., Air to +160°F. |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils, and air. Lock-On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application. |
| Customer Pack | 1 – 475 |
| Weight (lbs.) | 0.07 – 13.93 |
| Packaging | T, F |
PDF Documents
Hydraulics Catalog
Open PDF
