Attributes
| Part Number | 4319-000000-000001 |
|---|
Description

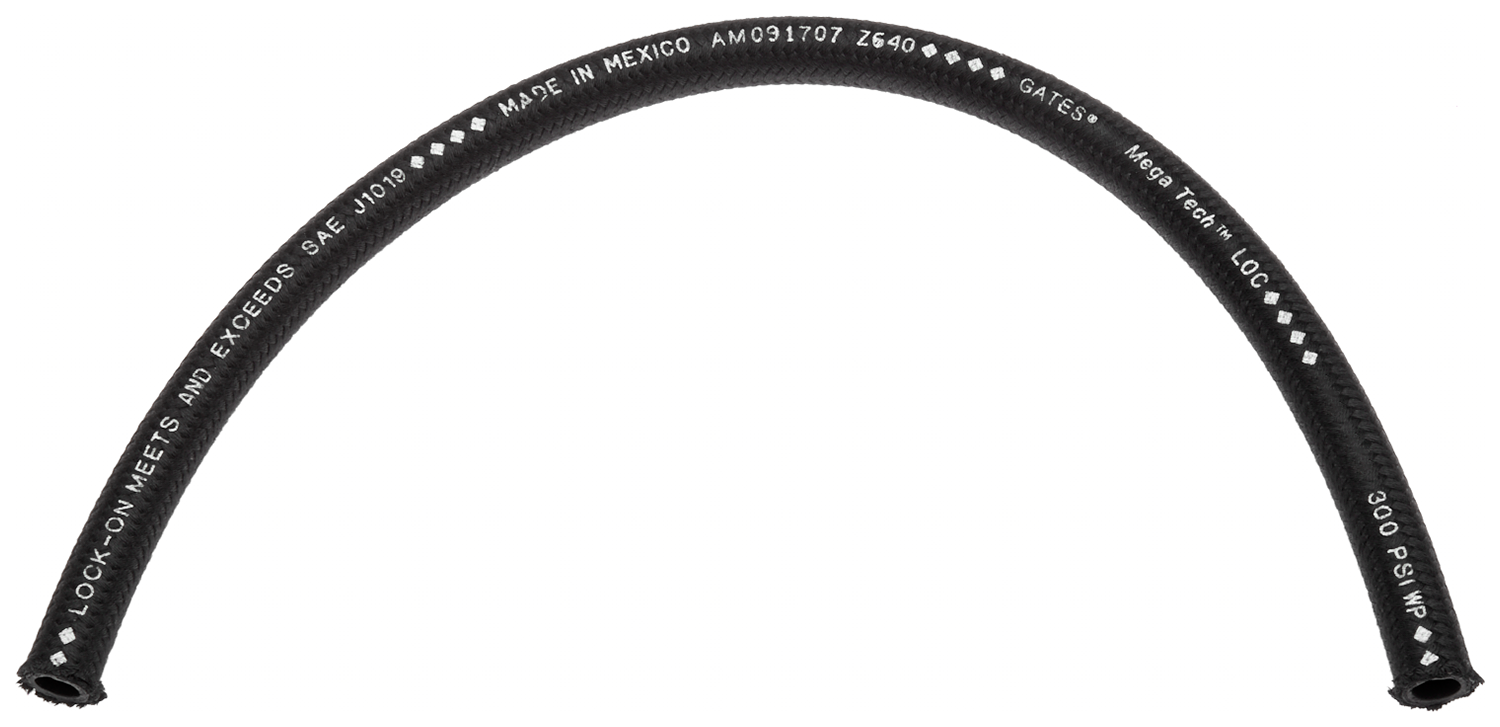

MegaTech™ LOC 1-Fiber Braid High-Temp Lock-On Hose LOC hose is recommended for high-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. Recommended For: High-temperature (+300F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. For use with Field Attachable LOC Couplings [G36 Series] and MegaCrimp™ Couplings [G25 Series]. 300 psi constant pressure for all ID's.
Variations (14)
76996
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.64 |
| Hose Inside Diameter (mm) | 16.3 |
| Hose Outside Diameter (in) | 0.91 |
| Hose Outside Diameter (mm) | 23.1 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 79 |
| Outside Diameter (in) | 0.91 |
| Outside Diameter (mm) | 23.1 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 260 |
| Weight (lbs.) | 0.21 |
| Packaging | D |
76997
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.76 |
| Hose Inside Diameter (mm) | 19.3 |
| Hose Outside Diameter (in) | 1.08 |
| Hose Outside Diameter (mm) | 27.3 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 67 |
| Outside Diameter (in) | 1.08 |
| Outside Diameter (mm) | 27.4 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.25 |
| Packaging | D |
76998
| Continuous Operating Temperature Range | -40°F to +300°F |
|---|---|
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 300 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.33 |
| Hose Outside Diameter (mm) | 33.8 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.33 |
| Outside Diameter (mm) | 33.8 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series]; MegaCrimp® Couplings [G25 Series] |
| Use | Lock-On |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | CPE - Type J |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.335 |
| Packaging | D |
76993
| Continuous Operating Temperature Range | -40°F to +300°F |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 300 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 175 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series] |
| Use | Lock-On |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | CPE - Type J |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 575 |
| Weight (lbs.) | 0.1 |
| Packaging | D |
76994
| Continuous Operating Temperature Range | -40°F to +300°F |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 300 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.64 |
| Hose Outside Diameter (mm) | 16.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 183 |
| Outside Diameter (in) | 0.64 |
| Outside Diameter (mm) | 16.3 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series] |
| Use | Lock-On |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | CPE - Type J |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.12 |
| Packaging | D |
76995
| Continuous Operating Temperature Range | -40°F to +300°F |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 300 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.78 |
| Hose Outside Diameter (mm) | 19.8 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 102 |
| Outside Diameter (in) | 0.78 |
| Outside Diameter (mm) | 19.8 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series] |
| Use | Lock-On |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | CPE - Type J |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 335 |
| Weight (lbs.) | 0.162 |
| Packaging | D |
12MEGATECH LOC X BALE
No variation attributes.
16MEGATECH LOC X BALE
No variation attributes.
4MEGATECH LOC X BALE
No variation attributes.
6MEGATECH LOC X BALE
No variation attributes.
43192207
No variation attributes.
43191711
No variation attributes.
43192205
No variation attributes.
43192206
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 3 – 7 |
| Minimum Bend Radius (mm) | 76.2 – 177.8 |
| Min. Burst Pressure (psi) | 300 – 1200 |
| Hose Inside Diameter (in). | 0.25 – 1 |
| Hose Inside Diameter (mm) | 6.4 – 25.4 |
| Hose Outside Diameter (in) | 0.5 – 1.33 |
| Hose Outside Diameter (mm) | 12.7 – 33.8 |
| Inside Diameter (in) | 0.25 – 1 |
| Inside Diameter (mm) | 6.4 – 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 61 – 183 |
| Outside Diameter (in) | 0.5 – 1.33 |
| Outside Diameter (mm) | 12.7 – 33.8 |
| Use | Lock-On |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Recommended For | High-temperature (+300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 200 – 600 |
| Weight (lbs.) | 0.1 – 0.335 |
| Packaging | D |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series]; MegaCrimp® Couplings [G25 Series], Field Attachable LOC Couplings [G36 Series] |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | CPE - Type J |
