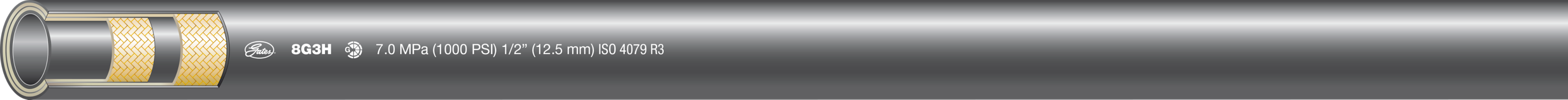

G3H High Temperature 2-Fiber Braid Hose - SAE 100R3 G3H High-Temp hose is recommended for hydraulic oil lines, anti–freeze solutions or water. Recommended For: Hydraulic oil lines, anti-freeze solutions or water. For use with GLX™ Couplings [G44 Series] and MegaCrimp™ Couplings [G25 Series]. Meets or exceeds requirements of SAE 100R3.
Features and Benefits Temperature Range: Constant: -40°C to +135°C -40°F to +275°F Intermittent: +149°C +300°F Size: 1/4" to 2".
Variations (18)
70421
| Dynamic WP (Max.psi) (1) | 900 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 5.5 |
| Minimum Bend Radius (mm) | 140 |
| Min. Burst Pressure (psi) | 3600 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1.1 |
| Hose Outside Diameter (mm) | 27.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 900 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.1 |
| Outside Diameter (mm) | 27.9 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.377 |
| Packaging | D |
85954
| Dynamic WP (Max.psi) (1) | 750 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 3000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.25 |
| Hose Outside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 750 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.25 |
| Outside Diameter (mm) | 31.8 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 12.48 |
| Packaging | T |
70119
| Dynamic WP (Max.psi) (1) | 750 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 3000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.25 |
| Hose Outside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 750 |
| Length (m) | 49 |
| Outside Diameter (in) | 1.25 |
| Outside Diameter (mm) | 31.8 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 160 |
| Weight (lbs.) | 0.48 |
| Packaging | D |
85955
| Dynamic WP (Max.psi) (1) | 565 |
|---|---|
| Vacuum (In. Hg) | 20 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 2260 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.5 |
| Hose Outside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 565 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 38.1 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 15.43 |
| Packaging | T |
70120
| Dynamic WP (Max.psi) (1) | 565 |
|---|---|
| Vacuum (In. Hg) | 20 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 7.9 |
| Minimum Bend Radius (mm) | 200 |
| Min. Burst Pressure (psi) | 2260 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.5 |
| Hose Outside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 565 |
| Length (m) | 37 |
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 38.1 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 120 |
| Weight (lbs.) | 0.62 |
| Packaging | U |
85956
| Dynamic WP (Max.psi) (1) | 375 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Min. Burst Pressure (psi) | 1500 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.75 |
| Hose Outside Diameter (mm) | 44.5 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 375 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.75 |
| Outside Diameter (mm) | 44.5 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 32.0 |
| Packaging | T |
70422
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 304.8 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.94 |
| Hose Outside Diameter (mm) | 49.3 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 40 |
| Outside Diameter (in) | 1.94 |
| Outside Diameter (mm) | 49.3 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 131 |
| Weight (lbs.) | 0.88 |
| Packaging | D |
85951
| Dynamic WP (Max.psi) (1) | 1250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 5000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.56 |
| Hose Outside Diameter (mm) | 14.2 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 1250 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.35 |
| Packaging | T |
85950
| Dynamic WP (Max.psi) (1) | 1200 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 4800 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 1200 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 16.8 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 9.25 |
| Packaging | T |
85952
| Dynamic WP (Max.psi) (1) | 1125 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 4500 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.75 |
| Hose Outside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 1125 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.75 |
| Outside Diameter (mm) | 19.1 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.37 |
| Packaging | T |
20G3HXCTN
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Min. Burst Pressure (psi) | 375 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Working Pressure (psi) | 375 |
| Length (m) | 37 |
| Outside Diameter (in) | 1.75 |
| Outside Diameter (mm) | 44.5 |
| Coupling Recommendation | GLX® Couplings [G44 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 2-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
4G3HXCTN
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1250 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Working Pressure (psi) | 1250 |
| Length (m) | 139 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 2-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
6G3HXCTN
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 1125 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Working Pressure (psi) | 1125 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.75 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 2-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
85953
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 1000 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 |
| Weight (lbs.) | 8.08 |
| Packaging | T |
70126
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1000 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 69 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Coupling Recommendation | GLX® Couplings [G44 Series]; MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 2-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
10G3HXCARTON
No variation attributes.
33194456
No variation attributes.
331900917
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 300 – 1250 |
|---|---|
| Vacuum (In. Hg) | 10 – 28 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 3 – 12 |
| Minimum Bend Radius (mm) | 76.2 – 304.8 |
| Min. Burst Pressure (psi) | 375 – 5000 |
| Hose Inside Diameter (in). | 0.25 – 1.5 |
| Hose Inside Diameter (mm) | 6.4 – 38.1 |
| Hose Outside Diameter (in) | 0.56 – 1.94 |
| Hose Outside Diameter (mm) | 14.2 – 49.3 |
| Inside Diameter (in) | 0.25 – 1.5 |
| Inside Diameter (mm) | 6.4 – 38.1 |
| Working Pressure (psi) | 300 – 1250 |
| Length (m) | 8 – 139 |
| Outside Diameter (in) | 0.56 – 1.94 |
| Outside Diameter (mm) | 14.2 – 49.3 |
| Use | Transfer |
| Color | Black |
| Reinforcement | 2-braid, textile |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R3 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R3. Oil Lines. Intermittent to +300°F. |
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. |
| Customer Pack | 1 – 200 |
| Weight (lbs.) | 0.377 – 32.0 |
| Packaging | D, T, U |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Coupling Recommendation | GLX® Couplings [G44 Series], MegaCrimp® Couplings [G25 Series], GLX® Couplings [G44 Series]; MegaCrimp® Couplings [G25 Series] |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Construction: Reinforcement | 2-braid, textile |
| Construction: Tube | Nitrile - Type C |
PDF Documents
Hydraulics Catalog
Open PDF
