Attributes
| Part Number | 4504-000000-000000 |
|---|
Description

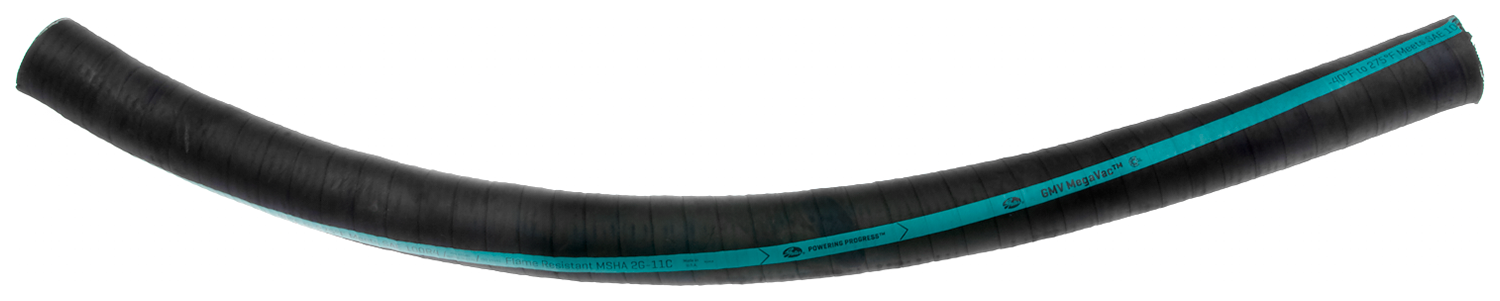

GMV Global MegaVac™ Return Line and Suction Hose - SAE 100R4 For use with petroleum and water base hydraulic fluids in suction lines or in low–pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV–GL with use of HeatGuard™ high temp sleeve. Recommended For: Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Uses half the bend radius of SAE 100R4. For use with GL Couplings [G43 Series], GlobalSpiral™ Plus Couplings [G22 Series] and MegaCrimp™ Couplings [G25 Series]. Easy installation with 1:1 bend radius which saves time and is kink-free. Industry-leading flexibility solves complex routings through tight spaces using less hose. Uses a helical spiral-wire to prevent hose collapse under suction. Meets SAE 100R4, J30R5, and J20R5 (except tube dimensions).
Features and Benefits Uses a helical spiral-wire to prevent hose collapse under suction. Meets marine ABS and DNV-GL with use of HeatGuard high temp sleeve. Meets Flame Resistance Acceptance Designation MSHA 2G. Standards: SAE 100R4. Cover: MSHA approved. Temperature Range: -40°C to +135°C -40°F to +275°F Size: 3/4" to 4".
Variations (12)
85577
| Dynamic WP (Max.psi) (1) | 350 |
|---|---|
| Vacuum (In. Hg) | 25 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 63.5 |
| Min. Burst Pressure (psi) | 1400 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.22 |
| Hose Outside Diameter (mm) | 31 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 350 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.22 |
| Outside Diameter (mm) | 31 |
| Use | Return |
| Color | Black |
| Reinforcement | 2-spiral, textile, helical wire |
| Tube | Nitrile - Type C; Black; High Temperature Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R4 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping (used with fire sleeve), AS - Australian Standard, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 100R4YES. DNV-GL with HeatGuard high temp sleeve. Meets MSHA 2G. |
| Recommended For | Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV-GL with use of HeatGuard® high temp sleeve. |
| Customer Pack | 1 |
| Weight (lbs.) | 11.22 |
| Packaging | T |
70184
No variation attributes.
85578
| Dynamic WP (Max.psi) (1) | 300 |
|---|---|
| Vacuum (In. Hg) | 25 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.45 |
| Hose Outside Diameter (mm) | 36.8 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.45 |
| Outside Diameter (mm) | 36.8 |
| Use | Return |
| Color | Black |
| Reinforcement | 2-spiral, textile, helical wire |
| Tube | Nitrile - Type C; Black; High Temperature Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R4 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping (used with fire sleeve), AS - Australian Standard, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 100R4YES. DNV-GL with HeatGuard high temp sleeve. Meets MSHA 2G. |
| Recommended For | Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV-GL with use of HeatGuard® high temp sleeve. |
| Customer Pack | 1 |
| Weight (lbs.) | 13.52 |
| Packaging | T |
70185
No variation attributes.
85579
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 25 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.76 |
| Hose Outside Diameter (mm) | 44.7 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 250 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.76 |
| Outside Diameter (mm) | 44.7 |
| Use | Return |
| Color | Black |
| Reinforcement | 2-spiral, textile, helical wire |
| Tube | Nitrile - Type C; Black; High Temperature Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R4 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping (used with fire sleeve), AS - Australian Standard, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 100R4YES. DNV-GL with HeatGuard high temp sleeve. Meets MSHA 2G. |
| Recommended For | Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV-GL with use of HeatGuard® high temp sleeve. |
| Customer Pack | 1 |
| Weight (lbs.) | 19.17 |
| Packaging | T |
70186
No variation attributes.
20GMV
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 250 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 137 |
| Outside Diameter (in) | 1.76 |
| Outside Diameter (mm) | 44.7 |
| Coupling Recommendation | GL Couplings [G43 Series]; GlobalSpiral™ Plus Couplings [G22 Series]; MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 2-spiral, textile, helical wire |
| Tube | Nitrile - Type C; Black; High Temperature Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 2-spiral, textile, helical wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 100R4YES. DNV-GL with HeatGuard high temp sleeve. Meets MSHA 2G. |
45041144
No variation attributes.
73344838
No variation attributes.
45041101
No variation attributes.
310500087
No variation attributes.
45041149
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 250 – 350 |
|---|---|
| Vacuum (In. Hg) | 25 |
| Continuous Operating Temperature Range | -40°F to +275°F |
| Minimum Bend Radius (in) | 2.5 – 4 |
| Minimum Bend Radius (mm) | 63.5 – 101.6 |
| Min. Burst Pressure (psi) | 250 – 1400 |
| Hose Inside Diameter (in). | 0.75 – 1.25 |
| Hose Inside Diameter (mm) | 19.1 – 31.8 |
| Hose Outside Diameter (in) | 1.22 – 1.76 |
| Hose Outside Diameter (mm) | 31 – 44.7 |
| Inside Diameter (in) | 0.75 – 1.25 |
| Inside Diameter (mm) | 19.1 – 31.8 |
| Working Pressure (psi) | 250 – 350 |
| Length (m) | 8 – 137 |
| Outside Diameter (in) | 1.22 – 1.76 |
| Outside Diameter (mm) | 31 – 44.7 |
| Use | Return |
| Color | Black |
| Reinforcement | 2-spiral, textile, helical wire |
| Tube | Nitrile - Type C; Black; High Temperature Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | SAE 100R4 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping (used with fire sleeve), AS - Australian Standard, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 100R4YES. DNV-GL with HeatGuard high temp sleeve. Meets MSHA 2G. |
| Recommended For | Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV-GL with use of HeatGuard® high temp sleeve. |
| Customer Pack | 1 |
| Weight (lbs.) | 11.22 – 19.17 |
| Packaging | T |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) |
| Coupling Recommendation | GL Couplings [G43 Series]; GlobalSpiral™ Plus Couplings [G22 Series]; MegaCrimp® Couplings [G25 Series] |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Construction: Reinforcement | 2-spiral, textile, helical wire |
| Construction: Tube | Nitrile - Type C |
