Attributes
| Part Number | 3289-000000-000001 |
|---|
Description

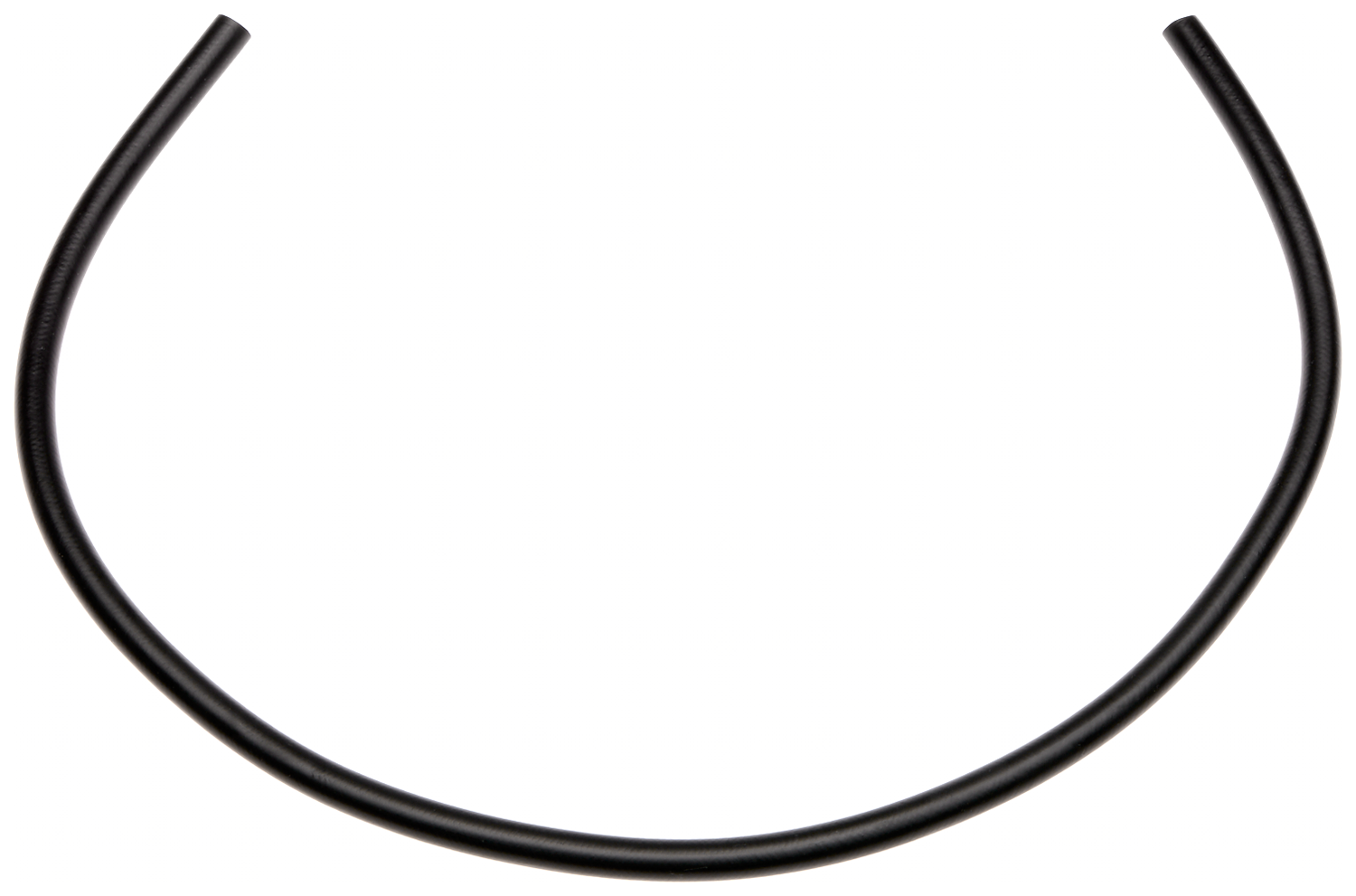

Transmission Oil Cooler Hose Gates Transmission Oil Cooler Hose is engineered with synthetic rubber tube, and an oil and abrasion resistant black neoprene cover, to provide a safe, heat, ozone, and chemical-resistant connecting line between the oil cooler and transmission. The cooler hose is reinforced with a braided cord for increased strength, supporting a working pressure of 250 psi. Easy-to-follow instructions and hose diameter indicator in each package. Temperature Range: -40°C to +135°C (-40°F to +275°F). Oil and abrasion resistant black neoprene cover.

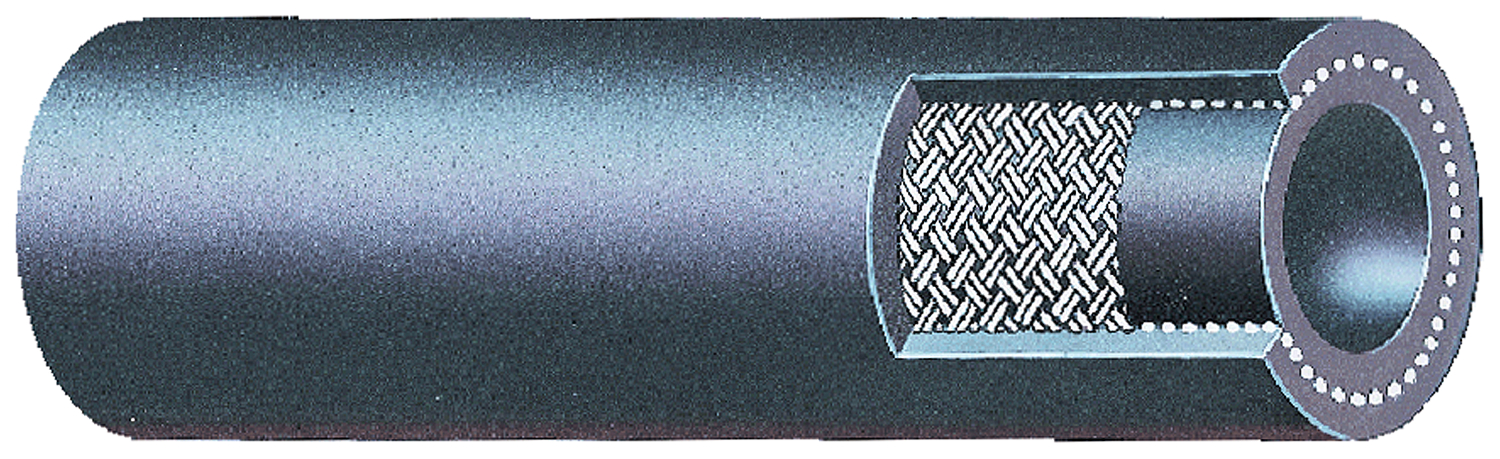

Structured Hose Construction The braided cord construction on Gates® Transmission Oil Cooler Hose is engineered to maintain shape, performance, and structure, even under continuous pressure and in consistently high temperature operating conditions.
Features and Benefits Nitrile tube and CSM cover. Synthetic Fiber Reinforcement. Meets or exceeds SAE 100R6. Offered in 3 ft, 25 ft, and 50 ft lengths. Recyclable retail packaging.
Gates Brings OE to the Aftermarket. Gates® engineers our industrials aftermarket parts in partnership with the top industrial OEMs around the world, so you can trust premium-grade industrial parts with exceptional fit, function and performance. Our Transmission Oil Cooler Hoses are engineered for leak-resistant service to protect your equipment engines and eliminate transmission fluid loss.
Variations (11)
27056
| Centerline Length (ft) | 3 |
|---|---|
| Hose Inside Diameter (in). | 0.312 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 2 (in) | 0.3125 |
| Working Pressure (psi) | 400 |
| Customer Pack | 54 |
| Weight (lbs.) | 0.3 |
27057
| Centerline Length (ft) | 3 |
|---|---|
| Hose Inside Diameter (in). | 0.375 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 2 (in) | 0.375 |
| Working Pressure (psi) | 400 |
| Customer Pack | 54 |
| Weight (lbs.) | 0.35 |
27058
| Centerline Length (ft) | 25 |
|---|---|
| Hose Inside Diameter (in). | 0.312 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 2 (in) | 0.3125 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 |
| Weight (lbs.) | 2.52 |
27059
| Centerline Length (ft) | 25 |
|---|---|
| Hose Inside Diameter (in). | 0.375 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 2 (in) | 0.375 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 |
| Weight (lbs.) | 3.12 |
27060
| Centerline Length (ft) | 50 |
|---|---|
| Hose Inside Diameter (in). | 0.312 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 2 (in) | 0.3125 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 |
| Weight (lbs.) | 5.04 |
27061
| Centerline Length (ft) | 50 |
|---|---|
| Hose Inside Diameter (in). | 0.375 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 2 (in) | 0.375 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 |
| Weight (lbs.) | 6.25 |
27065
| Centerline Length (ft) | 3 |
|---|---|
| Hose Inside Diameter (in). | 0.5 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 2 (in) | 0.5 |
| Working Pressure (psi) | 400 |
| Customer Pack | 24 |
| Weight (lbs.) | 0.53 |
27066
| Centerline Length (ft) | 25 |
|---|---|
| Hose Inside Diameter (in). | 0.5 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 2 (in) | 0.5 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 |
| Weight (lbs.) | 4.42 |
27067
| Centerline Length (ft) | 50 |
|---|---|
| Hose Inside Diameter (in). | 0.5 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 2 (in) | 0.5 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 |
| Weight (lbs.) | 8.85 |
6TOC TRANS OIL COOLER HOSE
No variation attributes.
33194315
No variation attributes.
Specifications
| Centerline Length (ft) | 3 – 50 |
|---|---|
| Hose Inside Diameter (in). | 0.312 – 0.5 |
| Inside Diameter 1 (in) | 0.3125 – 0.5 |
| Inside Diameter 2 (in) | 0.3125 – 0.5 |
| Working Pressure (psi) | 400 |
| Customer Pack | 1 – 54 |
| Weight (lbs.) | 0.3 – 8.85 |
