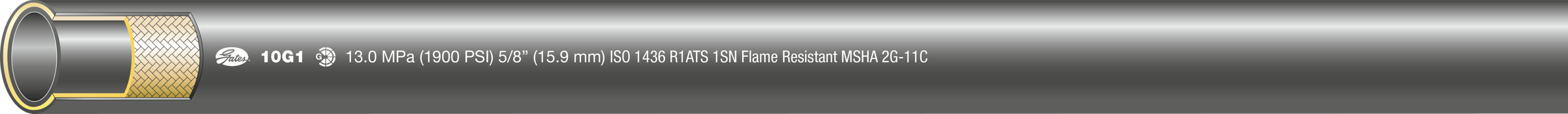

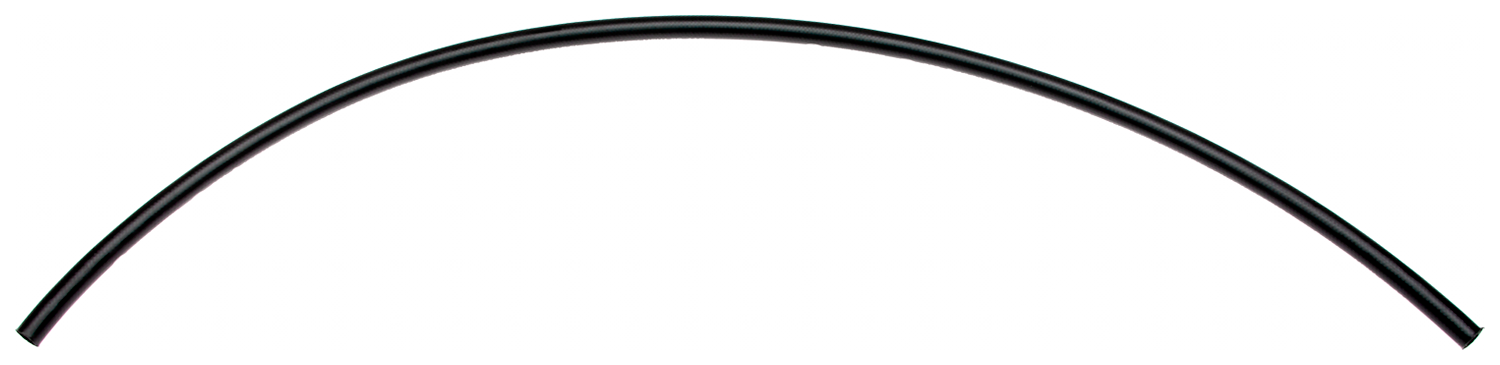

G1 Wire Braid Hose - EN 853 1SN Global G1 hose is recommended for medium-pressure hydraulic lines and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids. Recommended For: Medium-pressure hydraulic lines. For use with Field Attachable Type T Couplings [G27 Series], GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series], Power Crimp™ Couplings (-3 Only), Power Crimp Grease Couplings and Stainless Steel Braid Couplings [G17 Series]. Tested to industry-standard 450,000 impulse cycles. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features and Benefits -4 to -20 validated with MegaCrimp™; -24, -32 with GlobalSpiral™ Plus. Meets Flame Resistance Acceptance Designation MSHA 2G. 50% of SAE 100R1 bend radius at rated working pressure. Type approvals: DNV, GL, LR, BV and ABS. Cover: MSHA approved. Temperature Range: -40°C to +100°C -40°F to +212°F Size: 1/4" to 2".
Variations (48)
10G1 XBALE
| Dynamic WP (Max.psi) (1) | 1900 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3.9 |
| Minimum Bend Radius (mm) | 100 |
| Min. Burst Pressure (psi) | 7600 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.93 |
| Hose Outside Diameter (mm) | 23.6 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 1900 |
| Length (m) | 473 |
| Outside Diameter (in) | 0.93 |
| Outside Diameter (mm) | 23.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1550 |
| Weight (lbs.) | 0.34 |
| Packaging | R |
70612
| Dynamic WP (Max.psi) (1) | 1900 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 7600 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.93 |
| Hose Outside Diameter (mm) | 23.6 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 1900 |
| Length (m) | 67 |
| Outside Diameter (in) | 0.93 |
| Outside Diameter (mm) | 23.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.33 |
| Packaging | F |
86614
| Dynamic WP (Max.psi) (1) | 1525 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 9 |
| Minimum Bend Radius (mm) | 228.6 |
| Min. Burst Pressure (psi) | 6100 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 1525 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 |
| Weight (lbs.) | 21.07 |
| Packaging | T |
12G1 XBALE
| Dynamic WP (Max.psi) (1) | 1525 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 120 |
| Min. Burst Pressure (psi) | 6100 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 1525 |
| Length (m) | 427 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1400 |
| Weight (lbs.) | 0.43 |
| Packaging | R |
70603
| Dynamic WP (Max.psi) (1) | 1525 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 9 |
| Minimum Bend Radius (mm) | 228.6 |
| Min. Burst Pressure (psi) | 6100 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 1525 |
| Length (m) | 67 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.42 |
| Packaging | F |
86615
| Dynamic WP (Max.psi) (1) | 1300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 304.8 |
| Min. Burst Pressure (psi) | 5200 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.4 |
| Hose Outside Diameter (mm) | 35.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 1300 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.4 |
| Outside Diameter (mm) | 35.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 |
| Weight (lbs.) | 31.2 |
| Packaging | T |
16G1 XBALE
| Dynamic WP (Max.psi) (1) | 1275 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 5100 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.4 |
| Hose Outside Diameter (mm) | 35.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 1300 |
| Length (m) | 213 |
| Outside Diameter (in) | 1.4 |
| Outside Diameter (mm) | 35.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 700 |
| Weight (lbs.) | 0.62 |
| Packaging | R |
70604
| Dynamic WP (Max.psi) (1) | 1300 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 304.8 |
| Min. Burst Pressure (psi) | 5200 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.4 |
| Hose Outside Diameter (mm) | 35.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 1300 |
| Length (m) | 50 |
| Outside Diameter (in) | 1.4 |
| Outside Diameter (mm) | 35.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 165 |
| Weight (lbs.) | 0.62 |
| Packaging | F |
70205
No variation attributes.
70271
| Dynamic WP (Max.psi) (1) | 925 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 16 |
| Minimum Bend Radius (mm) | 406.4 |
| Min. Burst Pressure (psi) | 3700 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.71 |
| Hose Outside Diameter (mm) | 43.4 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 925 |
| Length (m) | 37 |
| Outside Diameter (in) | 1.71 |
| Outside Diameter (mm) | 43.4 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 120 |
| Weight (lbs.) | 0.85 |
| Packaging | A |
20G1XBALE
| Continuous Operating Temperature Range | -40°F to +212°F |
|---|---|
| Minimum Bend Radius (in) | 16 |
| Minimum Bend Radius (mm) | 406.4 |
| Min. Burst Pressure (psi) | 3 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.71 |
| Hose Outside Diameter (mm) | 43.4 |
| Working Pressure (psi) | 925 |
| Length (m) | 183 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | One braid of high-tensile steel wire. |
| Tube | Black, oil-resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | Meets Flame Resistance Acceptance Designation "MSHA 2G". |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.85 |
| Packaging | R |
70278
| Dynamic WP (Max.psi) (1) | 725 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 9.8 |
| Minimum Bend Radius (mm) | 250 |
| Min. Burst Pressure (psi) | 2900 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.96 |
| Hose Outside Diameter (mm) | 49.8 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 725 |
| Length (m) | 37 |
| Outside Diameter (in) | 1.96 |
| Outside Diameter (mm) | 49.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 120 |
| Weight (lbs.) | 1.04 |
| Packaging | A |
70279
| Dynamic WP (Max.psi) (1) | 600 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 12.4 |
| Minimum Bend Radius (mm) | 315 |
| Min. Burst Pressure (psi) | 2400 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.51 |
| Hose Outside Diameter (mm) | 63.8 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Working Pressure (psi) | 600 |
| Length (m) | 37 |
| Outside Diameter (in) | 2.51 |
| Outside Diameter (mm) | 63.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 120 |
| Weight (lbs.) | 1.48 |
| Packaging | A |
70611
| Dynamic WP (Max.psi) (1) | 3625 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 14500 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 3625 |
| Length (m) | 134 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 11.9 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 440 |
| Weight (lbs.) | 0.13 |
| Packaging | E |
70200
| Continuous Operating Temperature Range | -40°F to +212°F |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 14 |
| Hose Inside Diameter (in). | 0.188 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Working Pressure (psi) | 3625 |
| Length (m) | 244 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | One braid of high-tensile steel wire. |
| Tube | Black, oil-resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | Meets Flame Resistance Acceptance Designation "MSHA 2G". |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 800 |
| Weight (lbs.) | 0.13 |
| Packaging | D |
86611
| Dynamic WP (Max.psi) (1) | 3275 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 13100 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 3275 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 13.5 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 |
| Weight (lbs.) | 7.84 |
| Packaging | T |
70600
| Dynamic WP (Max.psi) (1) | 3275 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 13100 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 3275 |
| Length (m) | 122 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 13.5 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 440 |
| Weight (lbs.) | 0.16 |
| Packaging | E |
70199
| Dynamic WP (Max.psi) (1) | 3125 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114.3 |
| Min. Burst Pressure (psi) | 12500 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.6 |
| Hose Outside Diameter (mm) | 15.2 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 3125 |
| Length (m) | 168 |
| Outside Diameter (in) | 0.6 |
| Outside Diameter (mm) | 15.2 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 550 |
| Weight (lbs.) | 0.18 |
| Packaging | D |
70970
| Dynamic WP (Max.psi) (1) | 3125 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114.3 |
| Min. Burst Pressure (psi) | 12500 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.6 |
| Hose Outside Diameter (mm) | 15.2 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 3125 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.6 |
| Outside Diameter (mm) | 15.2 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.18 |
| Packaging | E |
86631
| Continuous Operating Temperature Range | -40°F to +212°F |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 2 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 2600 |
| Length (m) | 30 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 17.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 |
| Weight (lbs.) | 23.35 |
| Packaging | T |
86612
| Minimum Bend Radius (in) | 5 |
|---|---|
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 2600 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 2600 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 17.3 |
| Coupling Recommendation | Field Attachable Type T Couplings [G27 Series]; GlobalSpiral™ Couplings [G20 Series]; MegaCrimp® Couplings [G25 Series]; Stainless Steel Braid Couplings [G17 Series] |
| Color | Black |
| Cover | Nitrile/PVC - Type C2. Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
6G1 XBALE
| Dynamic WP (Max.psi) (1) | 2600 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2.6 |
| Minimum Bend Radius (mm) | 65 |
| Min. Burst Pressure (psi) | 10400 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 2600 |
| Length (m) | 1159 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 17.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 3800 |
| Weight (lbs.) | 0.24 |
| Packaging | R |
70601
| Dynamic WP (Max.psi) (1) | 2600 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 10400 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 2600 |
| Length (m) | 117 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 17.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 385 |
| Weight (lbs.) | 0.23 |
| Packaging | E |
4G1XCTN
No variation attributes.
6G1XCTN
No variation attributes.
8G1XCTN
No variation attributes.
10G1XCTN
No variation attributes.
86633
| Dynamic WP (Max.psi) (1) | 2325 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 9300 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 2325 |
| Length (m) | 30 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 |
| Weight (lbs.) | 28.74 |
| Packaging | T |
86613
| Dynamic WP (Max.psi) (1) | 2325 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 9300 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 2325 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 |
| Weight (lbs.) | 14.6 |
| Packaging | T |
8G1 XBALE
| Dynamic WP (Max.psi) (1) | 2325 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 90 |
| Min. Burst Pressure (psi) | 9300 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 2325 |
| Length (m) | 854 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 2800 |
| Weight (lbs.) | 0.29 |
| Packaging | R |
8G1 XLG REEL
| Dynamic WP (Max.psi) (1) | 2325 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 9300 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 2325 |
| Length (m) | 152 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.29 |
| Packaging | D |
70602
| Dynamic WP (Max.psi) (1) | 2325 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 9300 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 2325 |
| Length (m) | 101 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G. |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 330 |
| Weight (lbs.) | 0.29 |
| Packaging | F |
48C1TXCTN
No variation attributes.
46572514
No variation attributes.
465706337
No variation attributes.
46570684
No variation attributes.
46570681
No variation attributes.
46570114
No variation attributes.
465706187
No variation attributes.
465706287
No variation attributes.
465706197
No variation attributes.
465706227
No variation attributes.
46570687
No variation attributes.
46572141
No variation attributes.
46570667
No variation attributes.
46570624
No variation attributes.
46570709
No variation attributes.
46570686
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 600 – 3625 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2.6 – 16 |
| Minimum Bend Radius (mm) | 65 – 406.4 |
| Min. Burst Pressure (psi) | 2 – 14500 |
| Hose Inside Diameter (in). | 0.188 – 2 |
| Hose Inside Diameter (mm) | 4.8 – 50.8 |
| Hose Outside Diameter (in) | 0.47 – 2.51 |
| Hose Outside Diameter (mm) | 11.9 – 63.8 |
| Inside Diameter (in) | 0.1875 – 2 |
| Inside Diameter (mm) | 4.8 – 50.8 |
| Working Pressure (psi) | 600 – 3625 |
| Length (m) | 15 – 1159 |
| Outside Diameter (in) | 0.47 – 2.51 |
| Outside Diameter (mm) | 11.9 – 63.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire, One braid of high-tensile steel wire. |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol, Black, oil-resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. |
| Construction: Cover | Nitrile/PVC - Type C2 |
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S |
| Meets These Agency Specifications | AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 1SN R1853 1SN. 100R1. Meets MSHA 2G., Meets Flame Resistance Acceptance Designation "MSHA 2G". |
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. |
| Customer Pack | 1 – 3800 |
| Weight (lbs.) | 0.13 – 31.2 |
| Packaging | R, F, T, A, E, D |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Coupling Recommendation | Field Attachable Type T Couplings [G27 Series]; GlobalSpiral™ Couplings [G20 Series]; MegaCrimp® Couplings [G25 Series]; Stainless Steel Braid Couplings [G17 Series] |
| Cover | Nitrile/PVC - Type C2. Black |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | Nitrile - Type C |
PDF Documents
Hydraulics Catalog
Open PDF
