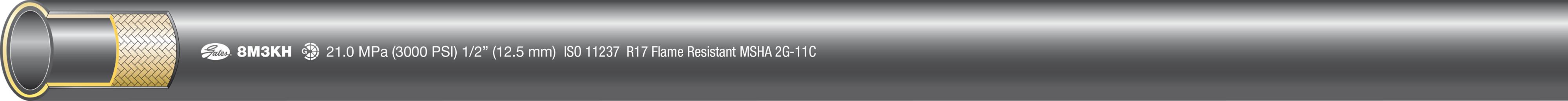

M3KH Wire Braid Hose - 225 Bar - High Temp +121°C Recommended for high-pressure hydraulic oil line applications Global M3KH hose is easy to route and install in extremely tight areas. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids. Recommended For: Elevated temperature high-pressure hydraulic oil lines. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series]. Rated at 3250 psi working pressure. Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing. Tested to industry-leading 600,000 impulse cycles. MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features and Benefits Mega3000™ High temp rated at 3250 PSI working pressure and 13,000 burst for all ID's. 70% of EN 857 2SC and 50% of EN 853 2SN bend radius at rated working pressure. Alternative to spiral hoses in high pressure lines where flexibility is required. Validated with MegaCrimp™. Working pressure: 22.5 MPa. Cover: MSHA approved. Temperature Range: -40°C to +121°C -40°F to +250°F Design factor: 4:1. Size: 1/4" to 1".
Variations (5)
70955
| Dynamic WP (Max.psi) (1) | 3250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 120 |
| Min. Burst Pressure (psi) | 13000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 3250 |
| Length (m) | 67 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 18752 Grade C. 11237 R17. 857 1SC. 100R17. Meets MSHA 2G. |
| Recommended For | Elevated temperature high-pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.65 |
| Packaging | F |
70907
| Dynamic WP (Max.psi) (1) | 3250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 13000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.48 |
| Hose Outside Diameter (mm) | 37.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 3250 |
| Length (m) | 50 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 37.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 18752 Grade C. 11237 R17. 857 1SC. 100R17. Meets MSHA 2G. |
| Recommended For | Elevated temperature high-pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. |
| Customer Pack | 165 |
| Weight (lbs.) | 0.9393 |
| Packaging | F |
70898
| Dynamic WP (Max.psi) (1) | 3250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 50 |
| Min. Burst Pressure (psi) | 13000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.48 |
| Hose Outside Diameter (mm) | 12.2 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 3250 |
| Length (m) | 134 |
| Outside Diameter (in) | 0.48 |
| Outside Diameter (mm) | 12.2 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 18752 Grade C. 11237 R17. 857 1SC. 100R17. Meets MSHA 2G. |
| Recommended For | Elevated temperature high-pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. |
| Customer Pack | 440 |
| Weight (lbs.) | 0.13 |
| Packaging | N |
70899
| Dynamic WP (Max.psi) (1) | 3250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.6 |
| Minimum Bend Radius (mm) | 65 |
| Min. Burst Pressure (psi) | 13000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.65 |
| Hose Outside Diameter (mm) | 16.5 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 3250 |
| Length (m) | 101 |
| Outside Diameter (in) | 0.65 |
| Outside Diameter (mm) | 16.5 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 18752 Grade C. 11237 R17. 857 1SC. 100R17. Meets MSHA 2G. |
| Recommended For | Elevated temperature high-pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. |
| Customer Pack | 330 |
| Weight (lbs.) | 0.21 |
| Packaging | N |
70953
| Dynamic WP (Max.psi) (1) | 3250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 90 |
| Min. Burst Pressure (psi) | 13000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 3250 |
| Length (m) | 67 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 18752 Grade C. 11237 R17. 857 1SC. 100R17. Meets MSHA 2G. |
| Recommended For | Elevated temperature high-pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.31 |
| Packaging | N |
Specifications
| Dynamic WP (Max.psi) (1) | 3250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2 – 6 |
| Minimum Bend Radius (mm) | 50 – 152.4 |
| Min. Burst Pressure (psi) | 13000 |
| Hose Inside Diameter (in). | 0.25 – 1 |
| Hose Inside Diameter (mm) | 6.4 – 25.4 |
| Hose Outside Diameter (in) | 0.48 – 1.48 |
| Hose Outside Diameter (mm) | 12.2 – 37.6 |
| Inside Diameter (in) | 0.25 – 1 |
| Inside Diameter (mm) | 6.4 – 25.4 |
| Working Pressure (psi) | 3250 |
| Length (m) | 50 – 134 |
| Outside Diameter (in) | 0.48 – 1.48 |
| Outside Diameter (mm) | 12.2 – 37.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire, 1-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 18752 Grade C. 11237 R17. 857 1SC. 100R17. Meets MSHA 2G. |
| Recommended For | Elevated temperature high-pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. |
| Customer Pack | 165 – 440 |
| Weight (lbs.) | 0.13 – 0.9393 |
| Packaging | F, N |
