Attributes
| Part Number | 4657-000000-000051 |
|---|
Description

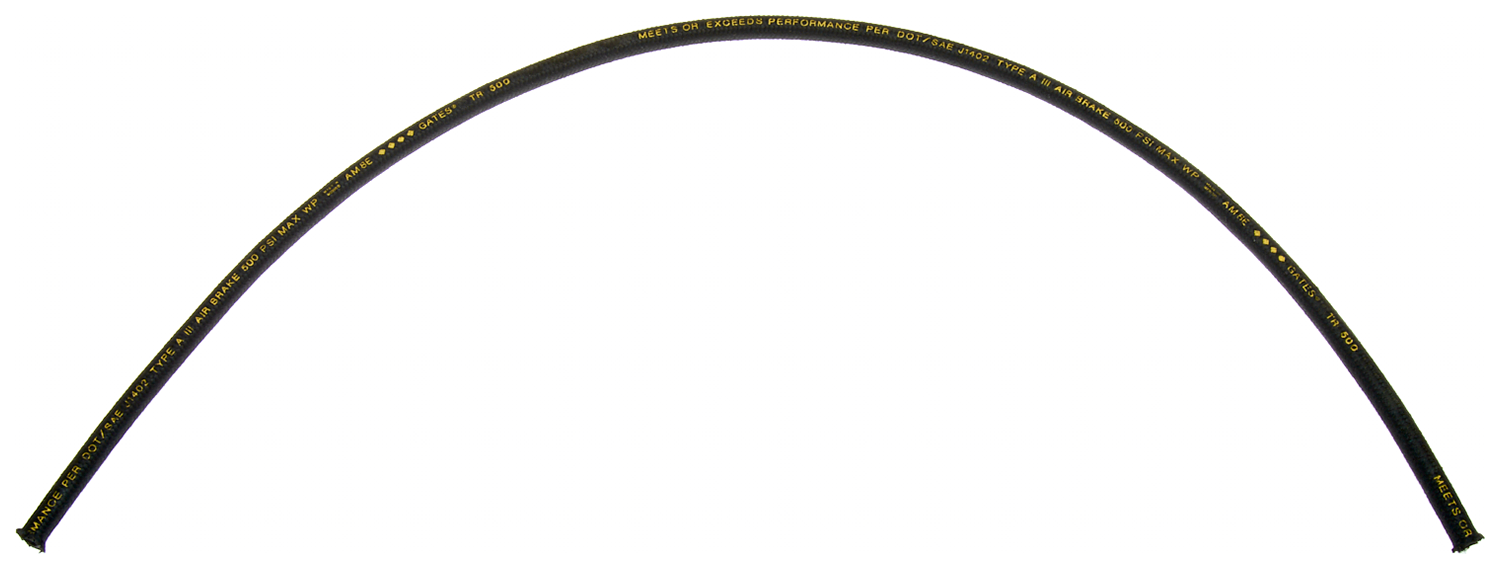

TR500 High Temperature Air Brake Hydraulic Hose - SAE J1402 Recommended for air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Not recommended for gasoline or diesel fuel applications. Recommended For: Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Not recommended for gasoline or diesel fuel applications. For use with GL Couplings [G43 Series] and GlobalSpiral™ Plus Couplings [G22 Series]. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10).
Variations (12)
85749
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.8 |
| Minimum Bend Radius (mm) | 71.1 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.93 |
| Hose Outside Diameter (mm) | 23.6 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.93 |
| Outside Diameter (mm) | 23.6 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 14.59 |
| Packaging | E |
70885
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.8 |
| Minimum Bend Radius (mm) | 70 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.93 |
| Hose Outside Diameter (mm) | 23.6 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 500 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.93 |
| Outside Diameter (mm) | 23.6 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.29 |
| Packaging | E |
85750
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.04 |
| Hose Outside Diameter (mm) | 26.4 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.04 |
| Outside Diameter (mm) | 26.4 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 16.77 |
| Packaging | E |
70886
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 90 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.04 |
| Hose Outside Diameter (mm) | 26.4 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 500 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.04 |
| Outside Diameter (mm) | 26.4 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.34 |
| Packaging | E |
85751
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114.3 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.3 |
| Hose Outside Diameter (mm) | 33 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.3 |
| Outside Diameter (mm) | 33 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 22.7 |
| Packaging | T |
70887
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114.3 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.3 |
| Hose Outside Diameter (mm) | 33 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 500 |
| Length (m) | 46 |
| Outside Diameter (in) | 1.3 |
| Outside Diameter (mm) | 33 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.45 |
| Packaging | E |
85745
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 1 |
| Minimum Bend Radius (mm) | 25.4 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.51 |
| Hose Outside Diameter (mm) | 13 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.51 |
| Outside Diameter (mm) | 13 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.84 |
| Packaging | T |
85747
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 1.8 |
| Minimum Bend Radius (mm) | 45.7 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 16.8 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 9.49 |
| Packaging | E |
70883
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 1.8 |
| Minimum Bend Radius (mm) | 45.7 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 500 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 16.8 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.19 |
| Packaging | E |
4TR500XREEL
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 1 |
| Minimum Bend Radius (mm) | 25.4 |
| Min. Burst Pressure (psi) | 500 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 500 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.51 |
| Outside Diameter (mm) | 13 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GLP Couplings [G42 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | J1402. DOT FMVSS 106-74. |
85748
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.3 |
| Minimum Bend Radius (mm) | 58.4 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 11.42 |
| Packaging | E |
70884
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.3 |
| Minimum Bend Radius (mm) | 58 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 500 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.23 |
| Packaging | E |
Specifications
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 1 – 4.5 |
| Minimum Bend Radius (mm) | 25.4 – 114.3 |
| Min. Burst Pressure (psi) | 500 – 2000 |
| Hose Inside Diameter (in). | 0.25 – 1 |
| Hose Inside Diameter (mm) | 6.4 – 25.4 |
| Hose Outside Diameter (in) | 0.51 – 1.3 |
| Hose Outside Diameter (mm) | 13 – 33 |
| Inside Diameter (in) | 0.25 – 1 |
| Inside Diameter (mm) | 6.4 – 25.4 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 – 107 |
| Outside Diameter (in) | 0.51 – 1.3 |
| Outside Diameter (mm) | 13 – 33 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | Nitrile - Type C; Black |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74., DOT FMVSS 106-74. |
| Recommended For | Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 – 350 |
| Weight (lbs.) | 0.19 – 22.7 |
| Packaging | E, T |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GLP Couplings [G42 Series] |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | Nitrile - Type C |
PDF Documents
Hydraulics Catalog
Open PDF
