Attributes
| Part Number | 8423-000000-000000 |
|---|
Description

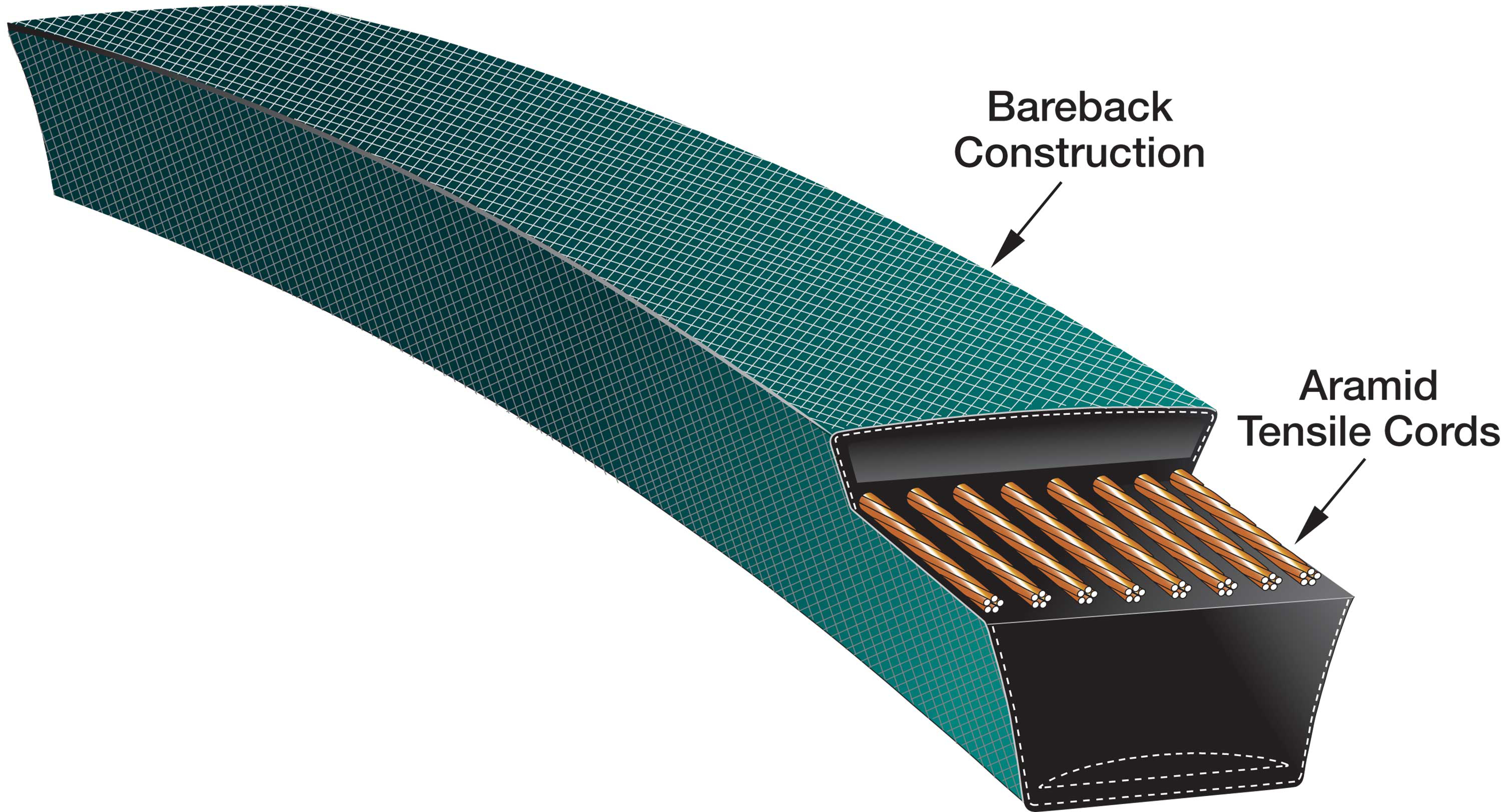

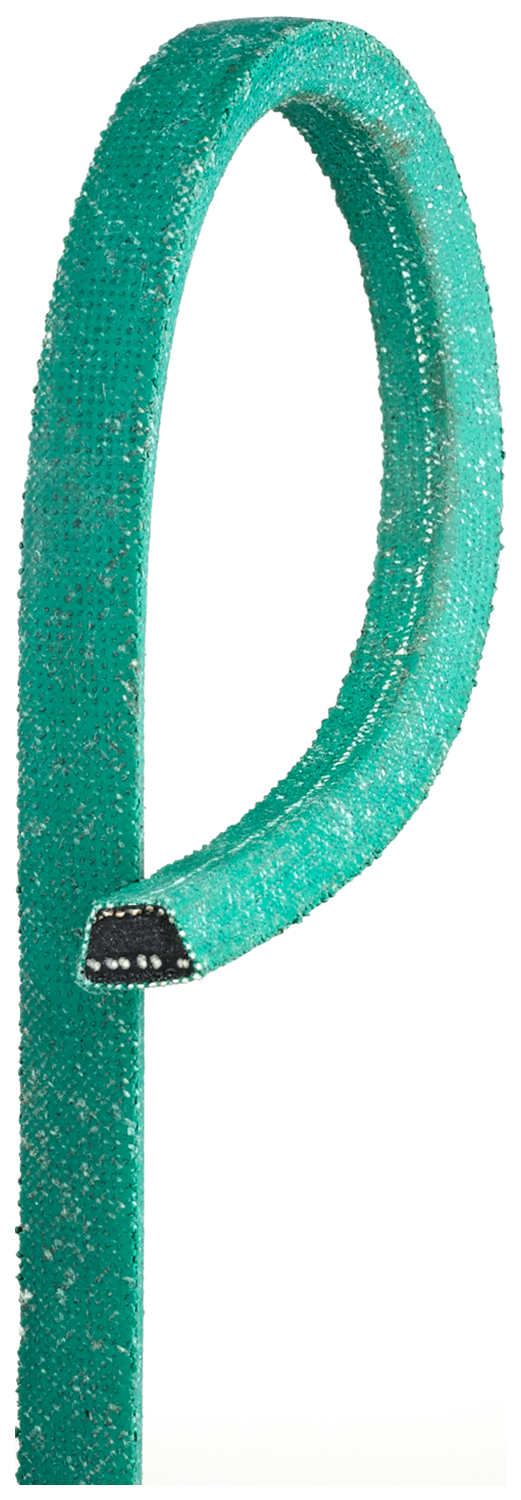

PoweRated™ V-Belts Bareback construction for smooth clutching on shock loaded, backside-idler driven equipment.
Variations (216)
3L160K / 6716
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 15.9 |
| Effective Length (mm) | 404 |
| Notched | false |
| Outside Circumference (in) | 16 |
| Outside Circumference (mm) | 406 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 36 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.032 |
3L170K / 6717
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 16.9 |
| Effective Length (mm) | 429 |
| Notched | false |
| Outside Circumference (in) | 17 |
| Outside Circumference (mm) | 432 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 36 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.032 |
3L180K / 6718
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 17.9 |
| Effective Length (mm) | 455 |
| Notched | false |
| Outside Circumference (in) | 18 |
| Outside Circumference (mm) | 457 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.036 |
3L190K / 6719
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 18.9 |
| Effective Length (mm) | 480 |
| Notched | false |
| Outside Circumference (in) | 19 |
| Outside Circumference (mm) | 483 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 2970 |
| Weight (lbs.) | 0.036 |
3L200K / 6720
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 19.9 |
| Effective Length (mm) | 505 |
| Notched | false |
| Outside Circumference (in) | 20 |
| Outside Circumference (mm) | 508 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.036 |
3L210K / 6721
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 20.9 |
| Effective Length (mm) | 531 |
| Notched | false |
| Outside Circumference (in) | 21 |
| Outside Circumference (mm) | 533 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 120 |
| Weight (lbs.) | 0.043 |
3L220K / 6722
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 21.9 |
| Effective Length (mm) | 556 |
| Notched | false |
| Outside Circumference (in) | 22 |
| Outside Circumference (mm) | 559 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 120 |
| Weight (lbs.) | 0.041 |
3L230K / 6723
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 22.9 |
| Effective Length (mm) | 582 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 120 |
| Weight (lbs.) | 0.045 |
3L240K / 6724
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 23.9 |
| Effective Length (mm) | 607 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 2190 |
| Weight (lbs.) | 0.046 |
3L250K / 6725
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 24.9 |
| Effective Length (mm) | 632 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 110 |
| Weight (lbs.) | 0.05 |
3L260K / 6726
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 25.9 |
| Effective Length (mm) | 658 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 2190 |
| Weight (lbs.) | 0.052 |
3L270K / 6727
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 26.9 |
| Effective Length (mm) | 683 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.045 |
3L280K / 6728
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 27.9 |
| Effective Length (mm) | 709 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.05 |
3L290K / 6729
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 28.9 |
| Effective Length (mm) | 734 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1590 |
| Weight (lbs.) | 0.061 |
3L300K / 6730
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 29.9 |
| Effective Length (mm) | 759 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 37 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.05 |
3L310K / 6731
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 30.9 |
| Effective Length (mm) | 785 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.068 |
3L320K / 6732
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 31.9 |
| Effective Length (mm) | 810 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.054 |
3L330K / 6733
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 32.9 |
| Effective Length (mm) | 836 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.063 |
3L340K / 6734
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 33.9 |
| Effective Length (mm) | 861 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.067 |
3L350K / 6735
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 34.9 |
| Effective Length (mm) | 886 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.059 |
3L360K / 6736
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 35.9 |
| Effective Length (mm) | 912 |
| Notched | false |
| Outside Circumference (in) | 36 |
| Outside Circumference (mm) | 914 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.068 |
3L370K / 6737
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 36.9 |
| Effective Length (mm) | 937 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.068 |
3L380K / 6738
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 37.9 |
| Effective Length (mm) | 963 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.073 |
3L390K / 6739
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 38.9 |
| Effective Length (mm) | 988 |
| Notched | false |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.077 |
3L400K / 6740
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 39.9 |
| Effective Length (mm) | 1013 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1.016 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.073 |
3L410K / 6741
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 40.9 |
| Effective Length (mm) | 1039 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1.041 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.079 |
3L420K / 6742
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 41.9 |
| Effective Length (mm) | 1064 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1.067 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.077 |
3L430K / 6743
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 42.9 |
| Effective Length (mm) | 1090 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1.092 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.082 |
3L440K / 6744
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 43.9 |
| Effective Length (mm) | 1115 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1.118 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.082 |
3L450K / 6745
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 44.9 |
| Effective Length (mm) | 1140 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1.143 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.082 |
3L460K / 6746
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 45.9 |
| Effective Length (mm) | 1166 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1.168 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.086 |
3L470K / 6747
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 46.9 |
| Effective Length (mm) | 1191 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1.194 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.082 |
3L480K / 6748
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 47.9 |
| Effective Length (mm) | 1217 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1.219 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.086 |
3L490K / 6749
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 48.98 |
| Effective Length (mm) | 1244 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1.245 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.091 |
3L500K / 6750
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 49.9 |
| Effective Length (mm) | 1267 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1.27 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.091 |
3L520K / 6752
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 51.9 |
| Effective Length (mm) | 1318 |
| Notched | false |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1321 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.082 |
3L530K / 6753
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 52.9 |
| Effective Length (mm) | 1344 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.084 |
3L540K / 6754
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 53.9 |
| Effective Length (mm) | 1369 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.086 |
3L550K / 6755
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 54.9 |
| Effective Length (mm) | 1394 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1.397 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.088 |
3L560K / 6756
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 55.9 |
| Effective Length (mm) | 1420 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.088 |
3L570K / 6757
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 56.9 |
| Effective Length (mm) | 1445 |
| Notched | false |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.091 |
3L580K / 6758
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 57.9 |
| Effective Length (mm) | 1471 |
| Notched | false |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1.473 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.1 |
3L590K / 6759
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 58.9 |
| Effective Length (mm) | 1496 |
| Notched | false |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1.499 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.093 |
3L600K / 6760
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 59.9 |
| Effective Length (mm) | 1521 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.095 |
3L610K / 6761
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 60.28 |
| Effective Length (mm) | 1531 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1.549 |
| Number of Ribs | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.095 |
3L620K / 6762
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 61.9 |
| Effective Length (mm) | 1572 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1575 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.1 |
3L630K / 6763
No variation attributes.
3L640K / 6764
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 63.9 |
| Effective Length (mm) | 1623 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1626 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.4 |
| Top Width (mm) | 9.5 |
| Angle. | 38 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 5.6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.102 |
3L660K / 6766
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 65.9 |
| Effective Length (mm) | 1674 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.23 |
3L740K / 6774
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 73.9 |
| Effective Length (mm) | 1877 |
| Notched | false |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1880 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.26 |
4L1000K / 68100
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 99.96 |
| Effective Length (mm) | 2539 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2.54 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.295 |
4L1050K / 68105
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 103.75 |
| Effective Length (mm) | 2635 |
| Notched | false |
| Outside Circumference (in) | 105 |
| Outside Circumference (mm) | 2.667 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.318 |
4L1070K / 68107
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 105.73 |
| Effective Length (mm) | 2686 |
| Notched | false |
| Outside Circumference (in) | 107 |
| Outside Circumference (mm) | 2.718 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.318 |
4L1170K / 68117
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 115.61 |
| Effective Length (mm) | 2936 |
| Notched | false |
| Outside Circumference (in) | 117 |
| Outside Circumference (mm) | 2.972 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 15 |
| Weight (lbs.) | 0.34 |
4L170K / 6817
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 16.89 |
| Effective Length (mm) | 429 |
| Notched | false |
| Outside Circumference (in) | 17 |
| Outside Circumference (mm) | 432 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.054 |
4L180K / 6818
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 17.79 |
| Effective Length (mm) | 452 |
| Notched | false |
| Outside Circumference (in) | 18 |
| Outside Circumference (mm) | 457 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 35 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 120 |
| Weight (lbs.) | 0.054 |
4L190K / 6819
No variation attributes.
4L200K / 6820
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 19.76 |
| Effective Length (mm) | 502 |
| Notched | false |
| Outside Circumference (in) | 20 |
| Outside Circumference (mm) | 508 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.054 |
4L210K / 6821
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 20.75 |
| Effective Length (mm) | 527 |
| Notched | false |
| Outside Circumference (in) | 21 |
| Outside Circumference (mm) | 533 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 35 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.059 |
4L220K / 6822
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 21.74 |
| Effective Length (mm) | 552 |
| Notched | false |
| Outside Circumference (in) | 22 |
| Outside Circumference (mm) | 559 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.077 |
4L230K / 6823
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 22.73 |
| Effective Length (mm) | 577 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.077 |
4L240K / 6824
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 23.72 |
| Effective Length (mm) | 602 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.082 |
4L250K / 6825
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 24.7 |
| Effective Length (mm) | 627 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1590 |
| Weight (lbs.) | 0.078 |
4L260K / 6826
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 25.69 |
| Effective Length (mm) | 653 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1590 |
| Weight (lbs.) | 0.086 |
4L270K / 6827
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 26.68 |
| Effective Length (mm) | 678 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.091 |
4L280K / 6828
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 27.67 |
| Effective Length (mm) | 703 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.091 |
4L290K / 6829
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 28.66 |
| Effective Length (mm) | 728 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.088 |
4L300K / 6830
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 29.64 |
| Effective Length (mm) | 753 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 36 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.095 |
4L310K / 6831
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 30.63 |
| Effective Length (mm) | 778 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.1 |
4L320K / 6832
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 31.62 |
| Effective Length (mm) | 803 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.1 |
4L330K / 6833
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 32.61 |
| Effective Length (mm) | 828 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.1 |
4L340K / 6834
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 33.6 |
| Effective Length (mm) | 853 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.104 |
4L350K / 6835
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 34.58 |
| Effective Length (mm) | 878 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.104 |
4L360K / 6836
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 35.57 |
| Effective Length (mm) | 903 |
| Notched | false |
| Outside Circumference (in) | 36 |
| Outside Circumference (mm) | 914 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.105 |
4L370K / 6837
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 36.56 |
| Effective Length (mm) | 929 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.109 |
4L380K / 6838
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 37.55 |
| Effective Length (mm) | 954 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.113 |
4L390K / 6839
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 38.54 |
| Effective Length (mm) | 979 |
| Notched | false |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.127 |
4L400K / 6840
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 39.53 |
| Effective Length (mm) | 1004 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1.016 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.127 |
4L410K / 6841
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 40.51 |
| Effective Length (mm) | 1029 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1.041 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.132 |
4L420K / 6842
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 41.5 |
| Effective Length (mm) | 1054 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1.067 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.132 |
4L430K / 6843
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 42.49 |
| Effective Length (mm) | 1079 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1.092 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.136 |
4L440K / 6844
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 43.48 |
| Effective Length (mm) | 1104 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1.118 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.136 |
4L450K / 6845
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 44.47 |
| Effective Length (mm) | 1130 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1.143 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.141 |
4L460K / 6846
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 45.45 |
| Effective Length (mm) | 1154 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1.168 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.133 |
4L470K / 6847
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 46.44 |
| Effective Length (mm) | 1180 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1.194 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.154 |
4L480K / 6848
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 47.43 |
| Effective Length (mm) | 1205 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1.219 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.154 |
4L490K / 6849
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 48.42 |
| Effective Length (mm) | 1230 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1.245 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.159 |
4L500K / 6850
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 49.41 |
| Effective Length (mm) | 1255 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1.27 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.159 |
4L510K / 6851
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 50.4 |
| Effective Length (mm) | 1280 |
| Notched | false |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1.295 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.163 |
4L520K / 6852
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 51.38 |
| Effective Length (mm) | 1305 |
| Notched | false |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1.321 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.168 |
4L530K / 6853
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 52.37 |
| Effective Length (mm) | 1330 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1.346 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.168 |
4L540K / 6854
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 53.36 |
| Effective Length (mm) | 1355 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1.372 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.159 |
4L550K / 6855
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 54.35 |
| Effective Length (mm) | 1380 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1.397 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.186 |
4L560K / 6856
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 55.34 |
| Effective Length (mm) | 1406 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1.422 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.167 |
4L570K / 6857
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 56.32 |
| Effective Length (mm) | 1431 |
| Notched | false |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1.448 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.168 |
4L580K / 6858
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 57.31 |
| Effective Length (mm) | 1456 |
| Notched | false |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1.473 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.159 |
4L590K / 6859
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 58.3 |
| Effective Length (mm) | 1481 |
| Notched | false |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1.499 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.195 |
4L600K / 6860
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 59.29 |
| Effective Length (mm) | 1506 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1.524 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.191 |
4L610K / 6861
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 60.28 |
| Effective Length (mm) | 1531 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1.549 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.195 |
4L620K / 6862
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 61.26 |
| Effective Length (mm) | 1556 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1.575 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.2 |
4L630K / 6863
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 62.25 |
| Effective Length (mm) | 1581 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1.6 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.184 |
4L640K / 6864
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 63.24 |
| Effective Length (mm) | 1606 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1.626 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.209 |
4L650K / 6865
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 64.23 |
| Effective Length (mm) | 1631 |
| Notched | false |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1.651 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.213 |
4L660K / 6866
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 65.22 |
| Effective Length (mm) | 1657 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1.676 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.186 |
4L670K / 6867
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 66.21 |
| Effective Length (mm) | 1682 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1.702 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.186 |
4L680K / 6868
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 67.19 |
| Effective Length (mm) | 1707 |
| Notched | false |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1.727 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.186 |
4L690K / 6869
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 68.18 |
| Effective Length (mm) | 1732 |
| Notched | false |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1.753 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.222 |
4L700K / 6870
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 69.17 |
| Effective Length (mm) | 1757 |
| Notched | false |
| Outside Circumference (in) | 70 |
| Outside Circumference (mm) | 1.778 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.227 |
4L710K / 6871
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 70.16 |
| Effective Length (mm) | 1782 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1.803 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.231 |
4L720K / 6872
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 71.15 |
| Effective Length (mm) | 1807 |
| Notched | false |
| Outside Circumference (in) | 72 |
| Outside Circumference (mm) | 1.829 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.209 |
4L730K / 6873
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 72.13 |
| Effective Length (mm) | 1832 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1.854 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.209 |
4L740K / 6874
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 73.12 |
| Effective Length (mm) | 1857 |
| Notched | false |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1.88 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.213 |
4L750K / 6875
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 74.11 |
| Effective Length (mm) | 1882 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1.905 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.213 |
4L760K / 6876
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 75.1 |
| Effective Length (mm) | 1908 |
| Notched | false |
| Outside Circumference (in) | 76 |
| Outside Circumference (mm) | 1.93 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.218 |
4L770K / 6877
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 76.09 |
| Effective Length (mm) | 1933 |
| Notched | false |
| Outside Circumference (in) | 77 |
| Outside Circumference (mm) | 1.956 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.215 |
4L780K / 6878
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 77.08 |
| Effective Length (mm) | 1958 |
| Notched | false |
| Outside Circumference (in) | 78 |
| Outside Circumference (mm) | 1.981 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 37 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.249 |
4L790K / 6879
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 78.06 |
| Effective Length (mm) | 1983 |
| Notched | false |
| Outside Circumference (in) | 79 |
| Outside Circumference (mm) | 2.007 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.222 |
4L800K / 6880
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2.032 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.23 |
4L810K / 6881
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 80.04 |
| Effective Length (mm) | 2033 |
| Notched | false |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2.057 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.228 |
4L820K / 6882
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 81.03 |
| Effective Length (mm) | 2058 |
| Notched | false |
| Outside Circumference (in) | 82 |
| Outside Circumference (mm) | 2.083 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.249 |
4L830K / 6883
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 82.02 |
| Effective Length (mm) | 2083 |
| Notched | false |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2.108 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.249 |
4L840K / 6884
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 83 |
| Effective Length (mm) | 2108 |
| Notched | false |
| Outside Circumference (in) | 84 |
| Outside Circumference (mm) | 2.134 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.236 |
4L850K / 6885
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2.159 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.254 |
4L860K / 6886
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 84.98 |
| Effective Length (mm) | 2158 |
| Notched | false |
| Outside Circumference (in) | 86 |
| Outside Circumference (mm) | 2.184 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.24 |
4L870K / 6887
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 85.97 |
| Effective Length (mm) | 2184 |
| Notched | false |
| Outside Circumference (in) | 87 |
| Outside Circumference (mm) | 2.21 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.263 |
4L880K / 6888
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 86.96 |
| Effective Length (mm) | 2209 |
| Notched | false |
| Outside Circumference (in) | 88 |
| Outside Circumference (mm) | 2.235 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.263 |
4L890K / 6889
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 87.94 |
| Effective Length (mm) | 2234 |
| Notched | false |
| Outside Circumference (in) | 89 |
| Outside Circumference (mm) | 2.261 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.249 |
4L900K / 6890
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 88.93 |
| Effective Length (mm) | 2259 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2.286 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.254 |
4L910K / 6891
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 89.92 |
| Effective Length (mm) | 2284 |
| Notched | false |
| Outside Circumference (in) | 91 |
| Outside Circumference (mm) | 2.311 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.263 |
4L920K / 6892
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 90.91 |
| Effective Length (mm) | 2309 |
| Notched | false |
| Outside Circumference (in) | 92 |
| Outside Circumference (mm) | 2.337 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.254 |
4L930K / 6893
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 91.9 |
| Effective Length (mm) | 2334 |
| Notched | false |
| Outside Circumference (in) | 93 |
| Outside Circumference (mm) | 2.362 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.268 |
4L940K / 6894
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 92.89 |
| Effective Length (mm) | 2359 |
| Notched | false |
| Outside Circumference (in) | 94 |
| Outside Circumference (mm) | 2.388 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.244 |
4L950K / 6895
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 93.87 |
| Effective Length (mm) | 2384 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2.413 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.281 |
4L960K / 6896
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 94.86 |
| Effective Length (mm) | 2409 |
| Notched | false |
| Outside Circumference (in) | 96 |
| Outside Circumference (mm) | 2.438 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.277 |
4L970K / 6897
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 95.85 |
| Effective Length (mm) | 2435 |
| Notched | false |
| Outside Circumference (in) | 97 |
| Outside Circumference (mm) | 2.464 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.277 |
4L980K / 6898
No variation attributes.
4L990K / 6899
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 97.83 |
| Effective Length (mm) | 2485 |
| Notched | false |
| Outside Circumference (in) | 99 |
| Outside Circumference (mm) | 2.515 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 12.7 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 7.9 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.272 |
5L1000K / 69100
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 98.81 |
| Effective Length (mm) | 2510 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2.54 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.408 |
5L230K / 6923
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 22.73 |
| Effective Length (mm) | 577 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 34 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.091 |
5L240K / 6924
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 23.72 |
| Effective Length (mm) | 602 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 34 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.104 |
5L250K / 6925
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 24.7 |
| Effective Length (mm) | 627 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 34 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.118 |
5L260K / 6926
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 25.69 |
| Effective Length (mm) | 653 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 34 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.118 |
5L270K / 6927
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 26.68 |
| Effective Length (mm) | 678 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 34 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.122 |
5L280K / 6928
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 27.67 |
| Effective Length (mm) | 703 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.131 |
5L290K / 6929
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 28.66 |
| Effective Length (mm) | 728 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.132 |
5L300K / 6930
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 29.64 |
| Effective Length (mm) | 753 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.136 |
5L310K / 6931
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 30.63 |
| Effective Length (mm) | 778 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 990 |
| Weight (lbs.) | 0.141 |
5L320K / 6932
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 31.62 |
| Effective Length (mm) | 803 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 900 |
| Weight (lbs.) | 0.145 |
5L330K / 6933
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 32.61 |
| Effective Length (mm) | 828 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 900 |
| Weight (lbs.) | 0.146 |
5L340K / 6934
No variation attributes.
5L350K / 6935
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 34.58 |
| Effective Length (mm) | 878 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.159 |
5L360K / 6936
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 35.57 |
| Effective Length (mm) | 903 |
| Notched | false |
| Outside Circumference (in) | 36 |
| Outside Circumference (mm) | 914 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.163 |
5L370K / 6937
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 36.56 |
| Effective Length (mm) | 929 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.168 |
5L380K / 6938
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 37.55 |
| Effective Length (mm) | 954 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.172 |
5L390K / 6939
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 38.54 |
| Effective Length (mm) | 979 |
| Notched | false |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.177 |
5L400K / 6940
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 39.53 |
| Effective Length (mm) | 1004 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1.016 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 795 |
| Weight (lbs.) | 0.181 |
5L410K / 6941
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 40.51 |
| Effective Length (mm) | 1029 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1.041 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.186 |
5L420K / 6942
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 41.5 |
| Effective Length (mm) | 1054 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1.067 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.191 |
5L430K / 6943
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 42.49 |
| Effective Length (mm) | 1079 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1.092 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.195 |
5L440K / 6944
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 43.48 |
| Effective Length (mm) | 1104 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1.118 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.183 |
5L450K / 6945
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 44.47 |
| Effective Length (mm) | 1130 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1.143 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.204 |
5L460K / 6946
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 45.45 |
| Effective Length (mm) | 1154 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1.168 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.209 |
5L470K / 6947
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 46.44 |
| Effective Length (mm) | 1180 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1.194 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.209 |
5L480K / 6948
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 47.43 |
| Effective Length (mm) | 1205 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1.219 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 690 |
| Weight (lbs.) | 0.213 |
5L490K / 6949
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 48.42 |
| Effective Length (mm) | 1230 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1.245 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.218 |
5L500K / 6950
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 49.41 |
| Effective Length (mm) | 1255 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1.27 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.222 |
5L510K / 6951
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 50.4 |
| Effective Length (mm) | 1280 |
| Notched | false |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1.295 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.227 |
5L520K / 6952
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 51.38 |
| Effective Length (mm) | 1305 |
| Notched | false |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1.321 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.227 |
5L530K / 6953
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 52.37 |
| Effective Length (mm) | 1330 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1.346 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.242 |
5L540K / 6954
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 53.36 |
| Effective Length (mm) | 1355 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1.372 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.245 |
5L550K / 6955
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 54.35 |
| Effective Length (mm) | 1380 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1.397 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.24 |
5L560K / 6956
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 55.34 |
| Effective Length (mm) | 1406 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1.422 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.245 |
5L570K / 6957
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 56.32 |
| Effective Length (mm) | 1431 |
| Notched | false |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1.448 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.259 |
5L580K / 6958
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 57.31 |
| Effective Length (mm) | 1456 |
| Notched | false |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1.473 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.282 |
5L590K / 6959
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 58.3 |
| Effective Length (mm) | 1481 |
| Notched | false |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1.499 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.259 |
5L600K / 6960
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 59.29 |
| Effective Length (mm) | 1506 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1.524 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.272 |
5L610K / 6961
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 60.28 |
| Effective Length (mm) | 1531 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1.549 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 36 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.277 |
5L620K / 6962
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 61.26 |
| Effective Length (mm) | 1556 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1.575 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.277 |
5L630K / 6963
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 62.25 |
| Effective Length (mm) | 1581 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1.6 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.281 |
5L640K / 6964
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 63.24 |
| Effective Length (mm) | 1606 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1.626 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.286 |
5L650K / 6965
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 64.96 |
| Effective Length (mm) | 1650 |
| Notched | false |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1.651 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.29 |
5L660K / 6966
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 65.22 |
| Effective Length (mm) | 1657 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1.676 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.295 |
5L670K / 6967
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 66.21 |
| Effective Length (mm) | 1682 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1.702 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.299 |
5L680K / 6968
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 67.19 |
| Effective Length (mm) | 1707 |
| Notched | false |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1.727 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.304 |
5L690K / 6969
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 68.18 |
| Effective Length (mm) | 1732 |
| Notched | false |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1.753 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.331 |
5L700K / 6970
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 69.17 |
| Effective Length (mm) | 1757 |
| Notched | false |
| Outside Circumference (in) | 70 |
| Outside Circumference (mm) | 1.778 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.313 |
5L710K / 6971
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 70.16 |
| Effective Length (mm) | 1782 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1.803 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.327 |
5L720K / 6972
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 71.15 |
| Effective Length (mm) | 1807 |
| Notched | false |
| Outside Circumference (in) | 72 |
| Outside Circumference (mm) | 1.829 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.327 |
5L730K / 6973
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 72.13 |
| Effective Length (mm) | 1832 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1.854 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.331 |
5L740K / 6974
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 73.96 |
| Effective Length (mm) | 1879 |
| Notched | false |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1.88 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.336 |
5L750K / 6975
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 74.11 |
| Effective Length (mm) | 1882 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1.905 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.34 |
5L760K / 6976
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 75.1 |
| Effective Length (mm) | 1908 |
| Notched | false |
| Outside Circumference (in) | 76 |
| Outside Circumference (mm) | 1.93 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.324 |
5L770K / 6977
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 76.09 |
| Effective Length (mm) | 1933 |
| Notched | false |
| Outside Circumference (in) | 77 |
| Outside Circumference (mm) | 1.956 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.349 |
5L780K / 6978
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 77.08 |
| Effective Length (mm) | 1958 |
| Notched | false |
| Outside Circumference (in) | 78 |
| Outside Circumference (mm) | 1.981 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.354 |
5L790K / 6979
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 78.06 |
| Effective Length (mm) | 1983 |
| Notched | false |
| Outside Circumference (in) | 79 |
| Outside Circumference (mm) | 2.007 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.358 |
5L800K / 6980
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2.032 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.363 |
5L810K / 6981
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 80.04 |
| Effective Length (mm) | 2033 |
| Notched | false |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2.057 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.363 |
5L820K / 6982
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 81.03 |
| Effective Length (mm) | 2058 |
| Notched | false |
| Outside Circumference (in) | 82 |
| Outside Circumference (mm) | 2.083 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.367 |
5L830K / 6983
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 82.02 |
| Effective Length (mm) | 2083 |
| Notched | false |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2.108 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 495 |
| Weight (lbs.) | 0.372 |
5L840K / 6984
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 83 |
| Effective Length (mm) | 2108 |
| Notched | false |
| Outside Circumference (in) | 84 |
| Outside Circumference (mm) | 2.134 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 405 |
| Weight (lbs.) | 0.376 |
5L850K / 6985
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2.159 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 405 |
| Weight (lbs.) | 0.376 |
5L860K / 6986
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 84.98 |
| Effective Length (mm) | 2158 |
| Notched | false |
| Outside Circumference (in) | 86 |
| Outside Circumference (mm) | 2.184 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.381 |
5L870K / 6987
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 85.97 |
| Effective Length (mm) | 2184 |
| Notched | false |
| Outside Circumference (in) | 87 |
| Outside Circumference (mm) | 2.21 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.386 |
5L880K / 6988
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 86.96 |
| Effective Length (mm) | 2209 |
| Notched | false |
| Outside Circumference (in) | 88 |
| Outside Circumference (mm) | 2.235 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 405 |
| Weight (lbs.) | 0.39 |
5L890K / 6989
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 87.94 |
| Effective Length (mm) | 2234 |
| Notched | false |
| Outside Circumference (in) | 89 |
| Outside Circumference (mm) | 2.261 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 405 |
| Weight (lbs.) | 0.39 |
5L900K / 6990
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 88.93 |
| Effective Length (mm) | 2259 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2.286 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 405 |
| Weight (lbs.) | 0.395 |
5L910K / 6991
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 89.92 |
| Effective Length (mm) | 2284 |
| Notched | false |
| Outside Circumference (in) | 91 |
| Outside Circumference (mm) | 2.311 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.399 |
5L920K / 6992
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 90.91 |
| Effective Length (mm) | 2309 |
| Notched | false |
| Outside Circumference (in) | 92 |
| Outside Circumference (mm) | 2.337 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.404 |
5L930K / 6993
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 91.9 |
| Effective Length (mm) | 2334 |
| Notched | false |
| Outside Circumference (in) | 93 |
| Outside Circumference (mm) | 2.362 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.417 |
5L940K / 6994
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 92.89 |
| Effective Length (mm) | 2359 |
| Notched | false |
| Outside Circumference (in) | 94 |
| Outside Circumference (mm) | 2.388 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.413 |
5L950K / 6995
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 93.87 |
| Effective Length (mm) | 2384 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2.413 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.417 |
5L960K / 6996
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 94.86 |
| Effective Length (mm) | 2409 |
| Notched | false |
| Outside Circumference (in) | 96 |
| Outside Circumference (mm) | 2.438 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 15 |
| Weight (lbs.) | 0.422 |
5L970K / 6997
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 95.85 |
| Effective Length (mm) | 2435 |
| Notched | false |
| Outside Circumference (in) | 97 |
| Outside Circumference (mm) | 2.464 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 15 |
| Weight (lbs.) | 0.426 |
5L980K / 6998
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 96.84 |
| Effective Length (mm) | 2460 |
| Notched | false |
| Outside Circumference (in) | 98 |
| Outside Circumference (mm) | 2.489 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 15 |
| Weight (lbs.) | 0.431 |
5L990K / 6999
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 97.83 |
| Effective Length (mm) | 2485 |
| Notched | false |
| Outside Circumference (in) | 99 |
| Outside Circumference (mm) | 2.515 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 37 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.435 |
84236713
No variation attributes.
Specifications
| Cross Section | 3L, 4L, 5L |
|---|---|
| Effective Length (in) | 15.9 – 115.61 |
| Effective Length (mm) | 404 – 2936 |
| Notched | false |
| Outside Circumference (in) | 16 – 117 |
| Outside Circumference (mm) | 1.016 – 1880 |
| Number of Ribs | 1 |
| Top Width (in) | 0.39 – 0.7 |
| Top Width (mm) | 9.5 – 16.7 |
| Angle. | 34 – 40 |
| Thickness (in) | 0.22 – 0.37 |
| Thickness (mm) | 5.6 – 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid, Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 10 – 2970 |
| Weight (lbs.) | 0.032 – 0.435 |
| Strand | 1 |
PDF Documents
No PDF documents.
