Attributes
| Part Number | 9052-000000-000000 |
|---|
Description

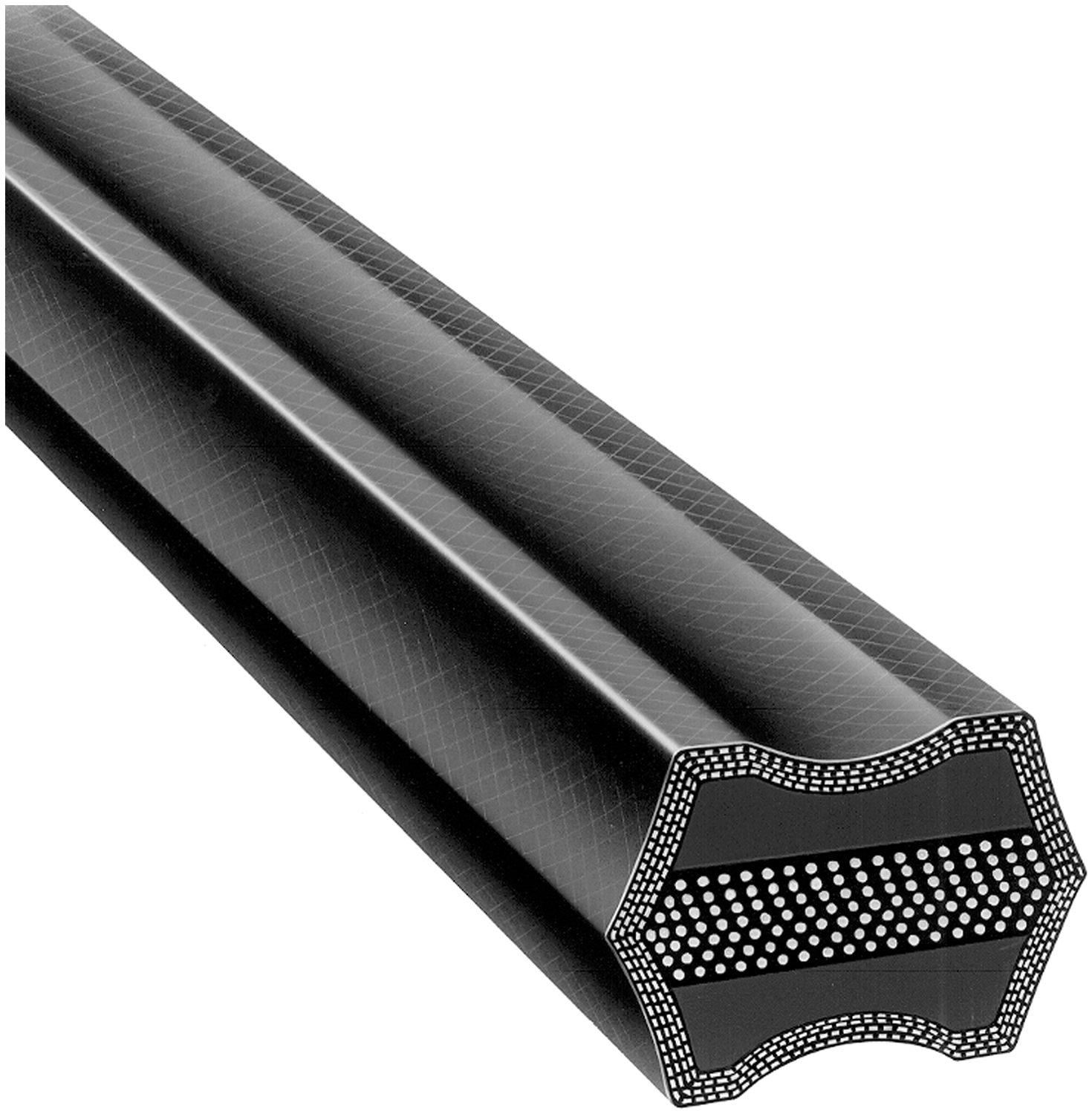

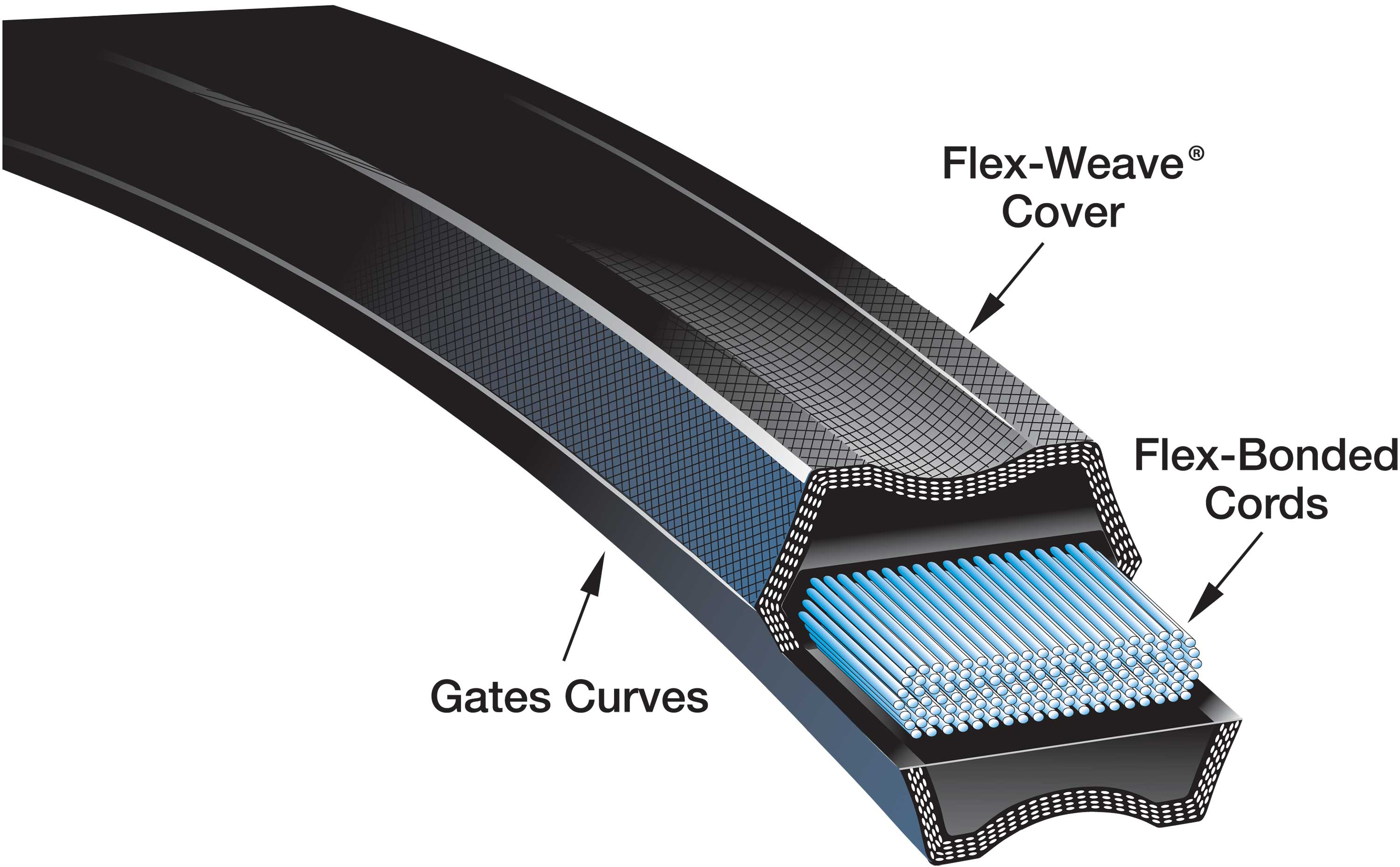

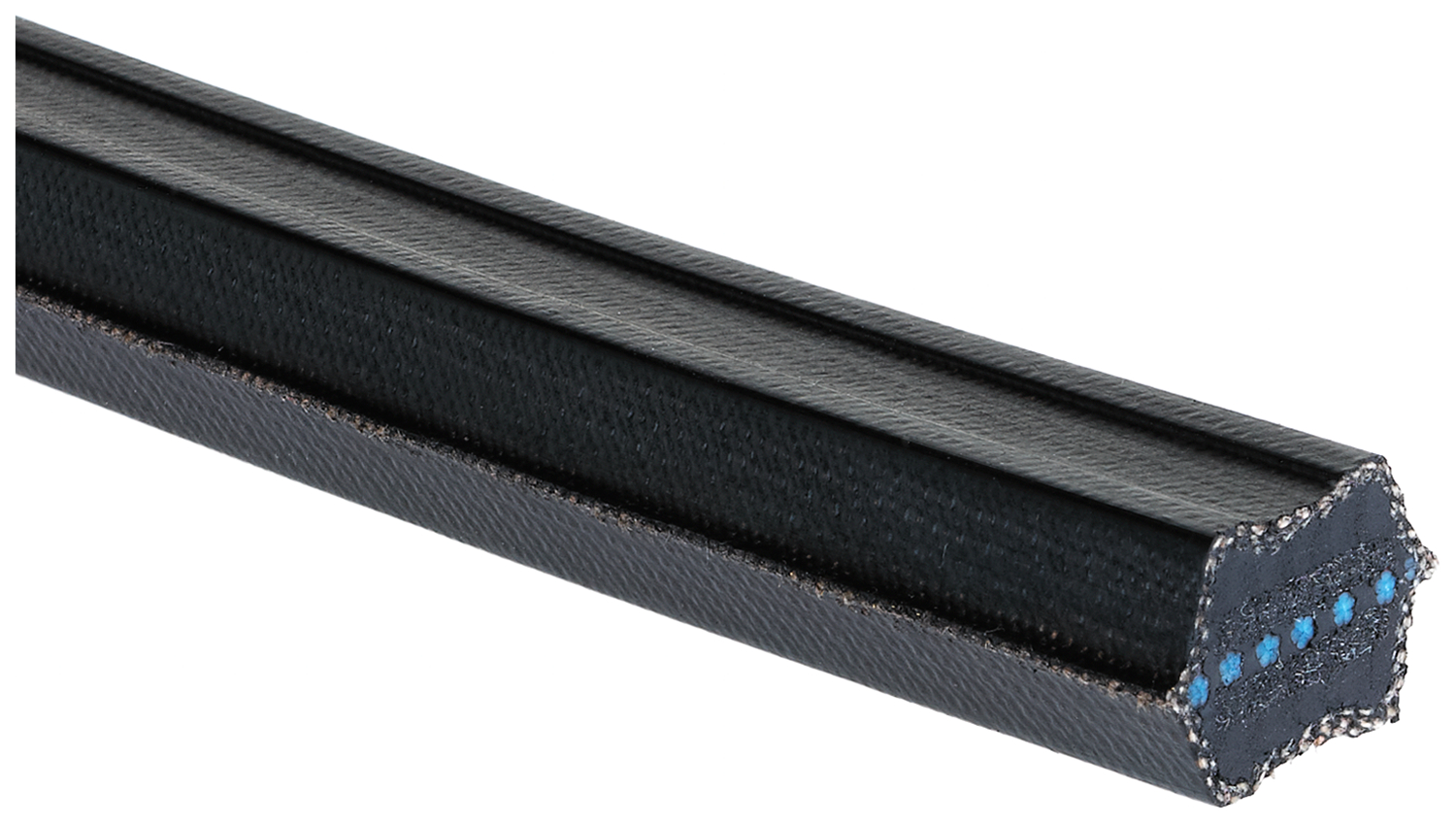

Hi-Power™ Dubl-V Belts Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life. Fully wrapped construction, eliminates debris and dust concerns found in competitive double notch belts.
Variations (136)
AA105
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 105 |
| Inside Circumference (mm) | 2667 |
| Effective Length (in) | 107 |
| Effective Length (mm) | 2718 |
| Notched | false |
| Number of Ribs | 1 |

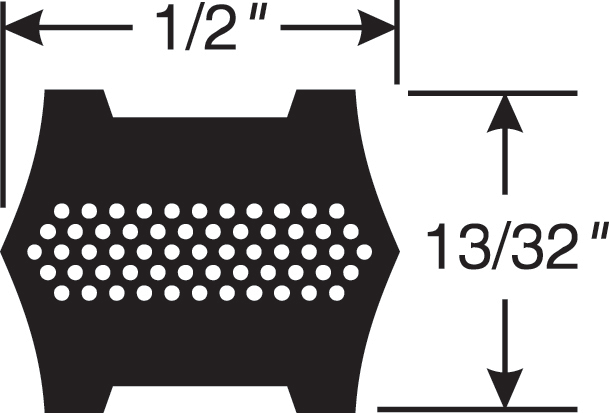

| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.413 |
AA111
No variation attributes.
AA112
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 112 |
| Inside Circumference (mm) | 2845 |
| Effective Length (in) | 114 |
| Effective Length (mm) | 2896 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 55 |
| Weight (lbs.) | 0.44 |
AA120
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 120 |
| Inside Circumference (mm) | 3048 |
| Effective Length (in) | 122 |
| Effective Length (mm) | 3099 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.481 |
AA128
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 128 |
| Inside Circumference (mm) | 3251 |
| Effective Length (in) | 130 |
| Effective Length (mm) | 3302 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.517 |
AA146
No variation attributes.
AA148
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 148 |
| Inside Circumference (mm) | 3759 |
| Effective Length (in) | 150 |
| Effective Length (mm) | 3810 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.562 |
AA163
No variation attributes.
AA51
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 51 |
| Inside Circumference (mm) | 1295 |
| Effective Length (in) | 53 |
| Effective Length (mm) | 1346 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 109 |
| Weight (lbs.) | 0.204 |
AA55
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 55 |
| Inside Circumference (mm) | 1397 |
| Effective Length (in) | 57 |
| Effective Length (mm) | 1448 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 90 |
| Weight (lbs.) | 0.218 |
AA60
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 60 |
| Inside Circumference (mm) | 1524 |
| Effective Length (in) | 62 |
| Effective Length (mm) | 1575 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.236 |
AA62
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 62 |
| Inside Circumference (mm) | 1575 |
| Effective Length (in) | 64 |
| Effective Length (mm) | 1626 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.24 |
AA64
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 64 |
| Inside Circumference (mm) | 1626 |
| Effective Length (in) | 66 |
| Effective Length (mm) | 1676 |
| Notched | false |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.236 |
AA68
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 68 |
| Inside Circumference (mm) | 1727 |
| Effective Length (in) | 70 |
| Effective Length (mm) | 1778 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.263 |
AA70
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 70 |
| Inside Circumference (mm) | 1778 |
| Effective Length (in) | 42 |
| Effective Length (mm) | 1067 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 90 |
| Weight (lbs.) | 0.254 |
AA73
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 73 |
| Inside Circumference (mm) | 1854 |
| Effective Length (in) | 72 |
| Effective Length (mm) | 1829 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.263 |
AA75
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 75 |
| Inside Circumference (mm) | 1905 |
| Effective Length (in) | 77 |
| Effective Length (mm) | 1956 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.286 |
AA77
No variation attributes.
AA78
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 78 |
| Inside Circumference (mm) | 1981 |
| Effective Length (in) | 78 |
| Effective Length (mm) | 1981 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.286 |
AA80
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 80 |
| Inside Circumference (mm) | 2032 |
| Effective Length (in) | 82 |
| Effective Length (mm) | 2083 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.313 |
AA85
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 87 |
| Effective Length (mm) | 2210 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 70 |
| Weight (lbs.) | 0.336 |
AA88
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 88 |
| Inside Circumference (mm) | 2235 |
| Effective Length (in) | 90 |
| Effective Length (mm) | 2286 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 70 |
| Weight (lbs.) | 0.327 |
AA90
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 92 |
| Effective Length (mm) | 2337 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 70 |
| Weight (lbs.) | 0.354 |
AA92
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 92 |
| Inside Circumference (mm) | 2337 |
| Effective Length (in) | 94 |
| Effective Length (mm) | 2388 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 70 |
| Weight (lbs.) | 0.358 |
AA96
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 96 |
| Inside Circumference (mm) | 2438 |
| Effective Length (in) | 98 |
| Effective Length (mm) | 2489 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 65 |
| Weight (lbs.) | 0.376 |
BB100
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 100 |
| Inside Circumference (mm) | 2540 |
| Effective Length (in) | 103 |
| Effective Length (mm) | 2616 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.68 |
BB102
No variation attributes.
BB103
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 103 |
| Inside Circumference (mm) | 2616 |
| Effective Length (in) | 106 |
| Effective Length (mm) | 2692 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.635 |
BB105
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 105 |
| Inside Circumference (mm) | 2667 |
| Effective Length (in) | 108 |
| Effective Length (mm) | 2743 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.712 |
BB107
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 107 |
| Inside Circumference (mm) | 2718 |
| Effective Length (in) | 110 |
| Effective Length (mm) | 2794 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.726 |
BB108
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 108 |
| Inside Circumference (mm) | 2743 |
| Effective Length (in) | 111 |
| Effective Length (mm) | 2819 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.73 |
BB111
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 111 |
| Inside Circumference (mm) | 2819 |
| Effective Length (in) | 114 |
| Effective Length (mm) | 2896 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.758 |
BB112
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 112 |
| Inside Circumference (mm) | 2845 |
| Effective Length (in) | 115 |
| Effective Length (mm) | 2921 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.762 |
BB114
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 114 |
| Inside Circumference (mm) | 2896 |
| Effective Length (in) | 117 |
| Effective Length (mm) | 2972 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.694 |
BB116
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 116 |
| Inside Circumference (mm) | 2946 |
| Effective Length (in) | 119 |
| Effective Length (mm) | 3023 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.789 |
BB118
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 118 |
| Inside Circumference (mm) | 2997 |
| Effective Length (in) | 121 |
| Effective Length (mm) | 3073 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.798 |
BB120
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 120 |
| Inside Circumference (mm) | 3048 |
| Effective Length (in) | 123 |
| Effective Length (mm) | 3124 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.812 |
BB122
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 122 |
| Inside Circumference (mm) | 3099 |
| Effective Length (in) | 125 |
| Effective Length (mm) | 3175 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.826 |
BB123
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 123 |
| Inside Circumference (mm) | 3124 |
| Effective Length (in) | 126 |
| Effective Length (mm) | 3200 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.83 |
BB124
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 124 |
| Inside Circumference (mm) | 3150 |
| Effective Length (in) | 127 |
| Effective Length (mm) | 3226 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.835 |
BB127
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 127 |
| Inside Circumference (mm) | 3226 |
| Effective Length (in) | 130 |
| Effective Length (mm) | 3302 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.853 |
BB128
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 128 |
| Inside Circumference (mm) | 3251 |
| Effective Length (in) | 131 |
| Effective Length (mm) | 3327 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.862 |
BB129
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 129 |
| Inside Circumference (mm) | 3277 |
| Effective Length (in) | 132 |
| Effective Length (mm) | 3353 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.866 |
BB130
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 130 |
| Inside Circumference (mm) | 3302 |
| Effective Length (in) | 133 |
| Effective Length (mm) | 3378 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.871 |
BB133
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 133 |
| Inside Circumference (mm) | 3378 |
| Effective Length (in) | 136 |
| Effective Length (mm) | 3454 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.83 |
BB136
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 136 |
| Inside Circumference (mm) | 3454 |
| Effective Length (in) | 139 |
| Effective Length (mm) | 3531 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.925 |
BB140
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 140 |
| Inside Circumference (mm) | 3556 |
| Effective Length (in) | 143 |
| Effective Length (mm) | 3632 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.962 |
BB144
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 144 |
| Inside Circumference (mm) | 3658 |
| Effective Length (in) | 147 |
| Effective Length (mm) | 3734 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.971 |
BB150
No variation attributes.
BB155
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 155 |
| Inside Circumference (mm) | 3937 |
| Effective Length (in) | 158 |
| Effective Length (mm) | 4013 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.039 |
BB158
No variation attributes.
BB162
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 162 |
| Inside Circumference (mm) | 4115 |
| Effective Length (in) | 165 |
| Effective Length (mm) | 4191 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.998 |
BB168
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 168 |
| Inside Circumference (mm) | 4267 |
| Effective Length (in) | 171 |
| Effective Length (mm) | 4343 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.107 |
BB169
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 169 |
| Inside Circumference (mm) | 4293 |
| Effective Length (in) | 172 |
| Effective Length (mm) | 4369 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.143 |
BB170
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 170 |
| Inside Circumference (mm) | 4318 |
| Effective Length (in) | 173 |
| Effective Length (mm) | 4394 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.025 |
BB173
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 173 |
| Inside Circumference (mm) | 4394 |
| Effective Length (in) | 176 |
| Effective Length (mm) | 4470 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.166 |
BB180
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 180 |
| Inside Circumference (mm) | 4572 |
| Effective Length (in) | 183 |
| Effective Length (mm) | 4648 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.211 |
BB182
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 182 |
| Inside Circumference (mm) | 4623 |
| Effective Length (in) | 185 |
| Effective Length (mm) | 4699 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.089 |
BB187
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 187 |
| Inside Circumference (mm) | 4750 |
| Effective Length (in) | 190 |
| Effective Length (mm) | 4826 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.134 |
BB190
No variation attributes.
BB195
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 195 |
| Inside Circumference (mm) | 4953 |
| Effective Length (in) | 198 |
| Effective Length (mm) | 5029 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.302 |
BB210
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 210 |
| Inside Circumference (mm) | 5334 |
| Effective Length (in) | 213 |
| Effective Length (mm) | 5410 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.424 |
BB226
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 226 |
| Inside Circumference (mm) | 5740 |
| Effective Length (in) | 227 |
| Effective Length (mm) | 5766 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.547 |
BB228
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 228 |
| Inside Circumference (mm) | 5791 |
| Effective Length (in) | 229 |
| Effective Length (mm) | 5817 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.56 |
BB230
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 230 |
| Inside Circumference (mm) | 5842 |
| Effective Length (in) | 231 |
| Effective Length (mm) | 5867 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.35 |
BB240
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 240 |
| Inside Circumference (mm) | 6096 |
| Effective Length (in) | 241 |
| Effective Length (mm) | 6121 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.637 |
BB255
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 255 |
| Inside Circumference (mm) | 6477 |
| Effective Length (in) | 256 |
| Effective Length (mm) | 6502 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.55 |
BB270
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 270 |
| Inside Circumference (mm) | 6858 |
| Effective Length (in) | 271 |
| Effective Length (mm) | 6883 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.892 |
BB277
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 277 |
| Inside Circumference (mm) | 7036 |
| Effective Length (in) | 278 |
| Effective Length (mm) | 7061 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.932 |
BB285
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 285 |
| Inside Circumference (mm) | 7239 |
| Effective Length (in) | 286 |
| Effective Length (mm) | 7264 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.837 |
BB300
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 300 |
| Inside Circumference (mm) | 7620 |
| Effective Length (in) | 301 |
| Effective Length (mm) | 7645 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.077 |
BB35
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 35 |
| Inside Circumference (mm) | 889 |
| Effective Length (in) | 38 |
| Effective Length (mm) | 965 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.245 |
BB43
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 43 |
| Inside Circumference (mm) | 1092 |
| Effective Length (in) | 46 |
| Effective Length (mm) | 1168 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.29 |
BB46
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 46 |
| Inside Circumference (mm) | 1168 |
| Effective Length (in) | 49 |
| Effective Length (mm) | 1245 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.308 |
BB51
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 51 |
| Inside Circumference (mm) | 1295 |
| Effective Length (in) | 54 |
| Effective Length (mm) | 1372 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.336 |
BB53
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 53 |
| Inside Circumference (mm) | 1346 |
| Effective Length (in) | 56 |
| Effective Length (mm) | 1422 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.349 |
BB55
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 55 |
| Inside Circumference (mm) | 1397 |
| Effective Length (in) | 58 |
| Effective Length (mm) | 1473 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.358 |
BB60
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 60 |
| Inside Circumference (mm) | 1524 |
| Effective Length (in) | 63 |
| Effective Length (mm) | 1600 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.122 |
BB64
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 64 |
| Inside Circumference (mm) | 1626 |
| Effective Length (in) | 67 |
| Effective Length (mm) | 1702 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 55 |
| Weight (lbs.) | 0.408 |
BB66
No variation attributes.
BB68
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 68 |
| Inside Circumference (mm) | 1727 |
| Effective Length (in) | 71 |
| Effective Length (mm) | 1803 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 55 |
| Weight (lbs.) | 0.454 |
BB70
No variation attributes.
BB71
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 71 |
| Inside Circumference (mm) | 1803 |
| Effective Length (in) | 74 |
| Effective Length (mm) | 1880 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.476 |
BB72
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 72 |
| Inside Circumference (mm) | 1829 |
| Effective Length (in) | 75 |
| Effective Length (mm) | 1905 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 55 |
| Weight (lbs.) | 0.458 |
BB73
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 73 |
| Inside Circumference (mm) | 1854 |
| Effective Length (in) | 76 |
| Effective Length (mm) | 1930 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.49 |
BB74
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 74 |
| Inside Circumference (mm) | 1880 |
| Effective Length (in) | 77 |
| Effective Length (mm) | 1956 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.494 |
BB75
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 75 |
| Inside Circumference (mm) | 1905 |
| Effective Length (in) | 78 |
| Effective Length (mm) | 1981 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.499 |
BB77
No variation attributes.
BB78
No variation attributes.
BB81
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 81 |
| Inside Circumference (mm) | 2057 |
| Effective Length (in) | 84 |
| Effective Length (mm) | 2134 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.54 |
BB83
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 83 |
| Inside Circumference (mm) | 2108 |
| Effective Length (in) | 86 |
| Effective Length (mm) | 2184 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.526 |
BB85
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 88 |
| Effective Length (mm) | 2235 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.562 |
BB90
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 93 |
| Effective Length (mm) | 2362 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.612 |
BB92
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 92 |
| Inside Circumference (mm) | 2337 |
| Effective Length (in) | 95 |
| Effective Length (mm) | 2413 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.626 |
BB93
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 93 |
| Inside Circumference (mm) | 2362 |
| Effective Length (in) | 96 |
| Effective Length (mm) | 2438 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.631 |
BB94
No variation attributes.
BB95K
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 95 |
| Inside Circumference (mm) | 2413 |
| Effective Length (in) | 98 |
| Effective Length (mm) | 2489 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Aramid |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 1.31 |
BB96
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 96 |
| Inside Circumference (mm) | 2438 |
| Effective Length (in) | 99 |
| Effective Length (mm) | 2515 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.52 |
BB97
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 97 |
| Inside Circumference (mm) | 2464 |
| Effective Length (in) | 100 |
| Effective Length (mm) | 2540 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.662 |
CC105
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 105 |
| Inside Circumference (mm) | 2667 |
| Effective Length (in) | 105 |
| Effective Length (mm) | 2667 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.288 |
CC112
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 112 |
| Inside Circumference (mm) | 2845 |
| Effective Length (in) | 112 |
| Effective Length (mm) | 2845 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.402 |
CC120
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 120 |
| Inside Circumference (mm) | 3048 |
| Effective Length (in) | 124 |
| Effective Length (mm) | 3150 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.488 |
CC126
No variation attributes.
CC128
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 128 |
| Inside Circumference (mm) | 3251 |
| Effective Length (in) | 132 |
| Effective Length (mm) | 3353 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.574 |
CC136
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 136 |
| Inside Circumference (mm) | 3454 |
| Effective Length (in) | 140 |
| Effective Length (mm) | 3556 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.66 |
CC140
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 140 |
| Inside Circumference (mm) | 3556 |
| Effective Length (in) | 144 |
| Effective Length (mm) | 3658 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.588 |
CC144
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 144 |
| Inside Circumference (mm) | 3658 |
| Effective Length (in) | 148 |
| Effective Length (mm) | 3759 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.746 |
CC158
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 158 |
| Inside Circumference (mm) | 4013 |
| Effective Length (in) | 162 |
| Effective Length (mm) | 4115 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.91 |
CC162
No variation attributes.
CC162
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 162 |
| Inside Circumference (mm) | 4115 |
| Effective Length (in) | 166 |
| Effective Length (mm) | 4216 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.95 |
CC173
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 173 |
| Inside Circumference (mm) | 4394 |
| Effective Length (in) | 177 |
| Effective Length (mm) | 4496 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.073 |
CC177
No variation attributes.
CC180
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 180 |
| Inside Circumference (mm) | 4572 |
| Effective Length (in) | 180 |
| Effective Length (mm) | 4572 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.146 |
CC195
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 195 |
| Inside Circumference (mm) | 4953 |
| Effective Length (in) | 199 |
| Effective Length (mm) | 5055 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.368 |
CC210
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 210 |
| Inside Circumference (mm) | 5334 |
| Effective Length (in) | 214 |
| Effective Length (mm) | 5436 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.613 |
CC210K
No variation attributes.
CC240
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 240 |
| Inside Circumference (mm) | 6096 |
| Effective Length (in) | 242 |
| Effective Length (mm) | 6147 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.926 |
CC255
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 255 |
| Inside Circumference (mm) | 6477 |
| Effective Length (in) | 257 |
| Effective Length (mm) | 6528 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.903 |
CC270
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 270 |
| Inside Circumference (mm) | 6858 |
| Effective Length (in) | 272 |
| Effective Length (mm) | 6909 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.466 |
CC300
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 300 |
| Inside Circumference (mm) | 7620 |
| Effective Length (in) | 302 |
| Effective Length (mm) | 7671 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.801 |
CC330
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 330 |
| Inside Circumference (mm) | 8382 |
| Effective Length (in) | 332 |
| Effective Length (mm) | 8433 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.137 |
CC360
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 360 |
| Inside Circumference (mm) | 9144 |
| Effective Length (in) | 362 |
| Effective Length (mm) | 9195 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.472 |
CC390
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 390 |
| Inside Circumference (mm) | 9906 |
| Effective Length (in) | 392 |
| Effective Length (mm) | 9957 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.813 |
CC75
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 75 |
| Inside Circumference (mm) | 1905 |
| Effective Length (in) | 79 |
| Effective Length (mm) | 2007 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.943 |
CC81
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 81 |
| Inside Circumference (mm) | 2057 |
| Effective Length (in) | 85 |
| Effective Length (mm) | 2159 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.007 |
CC85
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 89 |
| Effective Length (mm) | 2261 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.052 |
CC90
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 94 |
| Effective Length (mm) | 2388 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.125 |
CC96
| Cross Section | CC |
|---|---|
| Inside Circumference (in) | 96 |
| Inside Circumference (mm) | 2438 |
| Effective Length (in) | 100 |
| Effective Length (mm) | 2540 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.193 |
AA86
| Cross Section | AA |
|---|---|
| Effective Length (in) | 88 |
| Effective Length (mm) | 2.235 |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Material | Gates Proprietary Compound |
| Weight (lbs.) | 0.313 |
BB103K
No variation attributes.
BB105K
No variation attributes.
BB144K
No variation attributes.
BB150K
No variation attributes.
BB68K
No variation attributes.
BB95
| Cross Section | BB |
|---|---|
| Effective Length (in) | 98 |
| Effective Length (mm) | 2.489 |
| Number of Ribs | 1 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Material | Gates Proprietary Compound |
| Weight (lbs.) | 0.64 |
CC250
| Cross Section | CC |
|---|---|
| Effective Length (in) | 253 |
| Effective Length (mm) | 6.426 |
| Number of Ribs | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Material | Gates Proprietary Compound |
| Weight (lbs.) | 2.815 |
Specifications
| Cross Section | AA, BB, CC |
|---|---|
| Inside Circumference (in) | 35 – 390 |
| Inside Circumference (mm) | 889 – 9906 |
| Effective Length (in) | 38 – 392 |
| Effective Length (mm) | 2.235 – 9957 |
| Notched | false |
| Number of Ribs | 1 |
| Top Width (in) | 0.51 – 0.87 |
| Top Width (mm) | 13 – 22 |
| Angle. | 36 |
| Thickness (in) | 0.39 – 0.71 |
| Thickness (mm) | 10 – 18 |
| Markets/Applications | Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester, Belt Material is SBR. Cord Material is Aramid, Gates Proprietary Compound |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Dubl-V belts are available in AA, BB, CC and DD cross sections. |
| Customer Pack | 5 – 109 |
| Weight (lbs.) | 0.122 – 4.813 |
| Strand | 1 |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
PDF Documents
No PDF documents.
