Attributes
| Part Number | 9658-000000-000000 |
|---|
Description

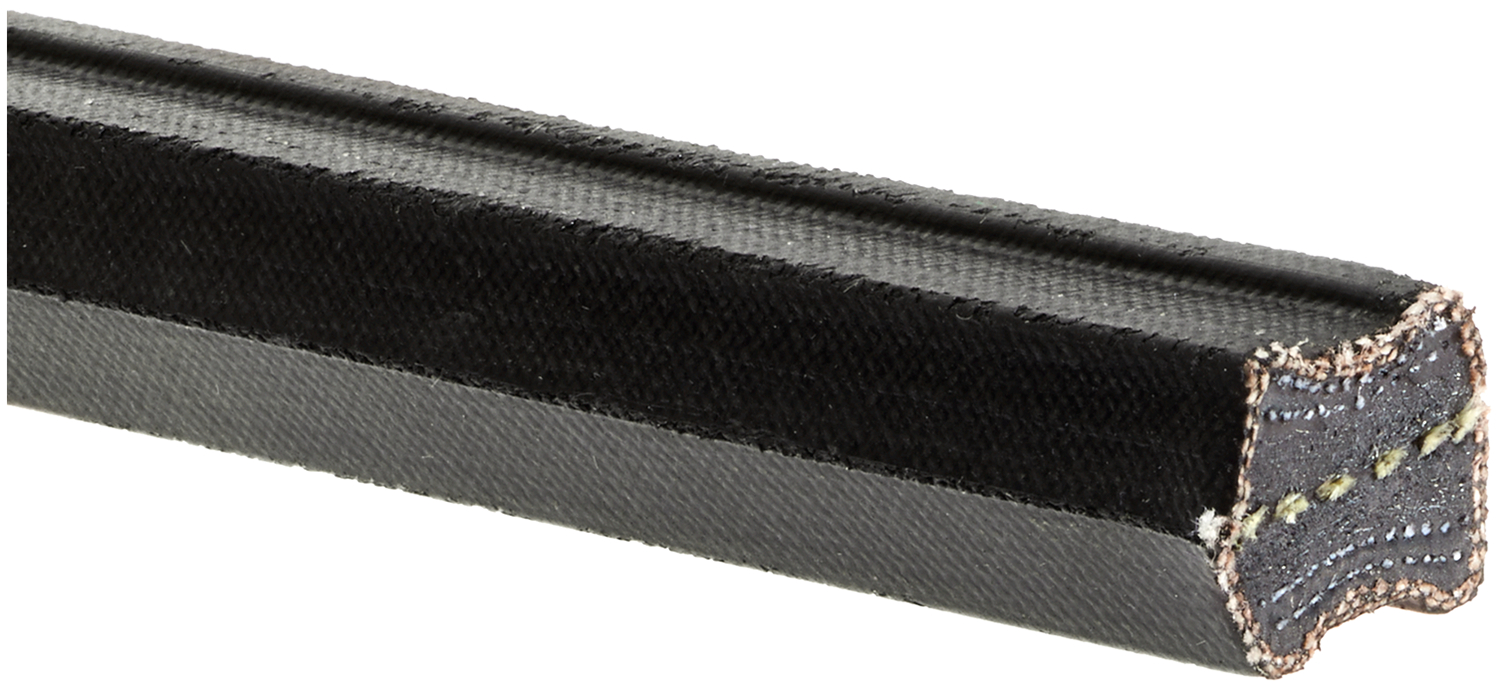

Dubl-V Feather Picker Belts Gates Curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear, and increased belt life. Fully wrapped construction, eliminates debris and dust concerns found in competitive double notch belts.
Variations (3)
AA148FP
| Cross Section | AA |
|---|---|
| Inside Circumference (in) | 148 |
| Inside Circumference (mm) | 3759 |
| Effective Length (in) | 150 |
| Effective Length (mm) | 3810 |
| Outside Circumference (in) | 151 |
| Outside Circumference (mm) | 3835 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Dubl-V Feather Picker belts are specially designed for maximum performance on de-feathering machines found in the poultry industry. Field tests on de-feathering machines prove Gates belts run 3-6 months or more compared to similar competitor belts that last only 1-3 weeks. Belt is suitable for industrial serpentine applications requiring power transmission from either side of the belt. |
| Size Range/Availability | Made-To-Order Belt Sizes are available in lengths: AA section from 43 to 210 inches and BB section from 35 to 660 inches. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Customer Pack | 30 |
| Weight (lbs.) | 1.22 |
AA161FP
No variation attributes.
BB155FP
| Cross Section | BB |
|---|---|
| Inside Circumference (in) | 155 |
| Inside Circumference (mm) | 3937 |
| Effective Length (in) | 158 |
| Effective Length (mm) | 4013 |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Dubl-V Feather Picker belts are specially designed for maximum performance on de-feathering machines found in the poultry industry. Field tests on de-feathering machines prove Gates belts run 3-6 months or more compared to similar competitor belts that last only 1-3 weeks. Belt is suitable for industrial serpentine applications requiring power transmission from either side of the belt. |
| Size Range/Availability | Made-To-Order Belt Sizes are available in lengths: AA section from 43 to 210 inches and BB section from 35 to 660 inches. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Customer Pack | 25 |
| Weight (lbs.) | 2.07 |
Specifications
| Cross Section | AA, BB |
|---|---|
| Inside Circumference (in) | 148 – 155 |
| Inside Circumference (mm) | 3759 – 3937 |
| Effective Length (in) | 150 – 158 |
| Effective Length (mm) | 3810 – 4013 |
| Outside Circumference (in) | 151 – 160 |
| Outside Circumference (mm) | 3835 – 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 – 0.66 |
| Top Width (mm) | 13 – 17 |
| Angle. | 36 |
| Thickness (in) | 0.39 – 0.53 |
| Thickness (mm) | 10 – 13 |
| Markets/Applications | Dubl-V Feather Picker belts are specially designed for maximum performance on de-feathering machines found in the poultry industry. Field tests on de-feathering machines prove Gates belts run 3-6 months or more compared to similar competitor belts that last only 1-3 weeks. Belt is suitable for industrial serpentine applications requiring power transmission from either side of the belt. |
| Size Range/Availability | Made-To-Order Belt Sizes are available in lengths: AA section from 43 to 210 inches and BB section from 35 to 660 inches. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Customer Pack | 25 – 30 |
| Weight (lbs.) | 1.22 – 2.07 |
