Attributes
| Part Number | 4271-000000-000001 |
|---|
Description

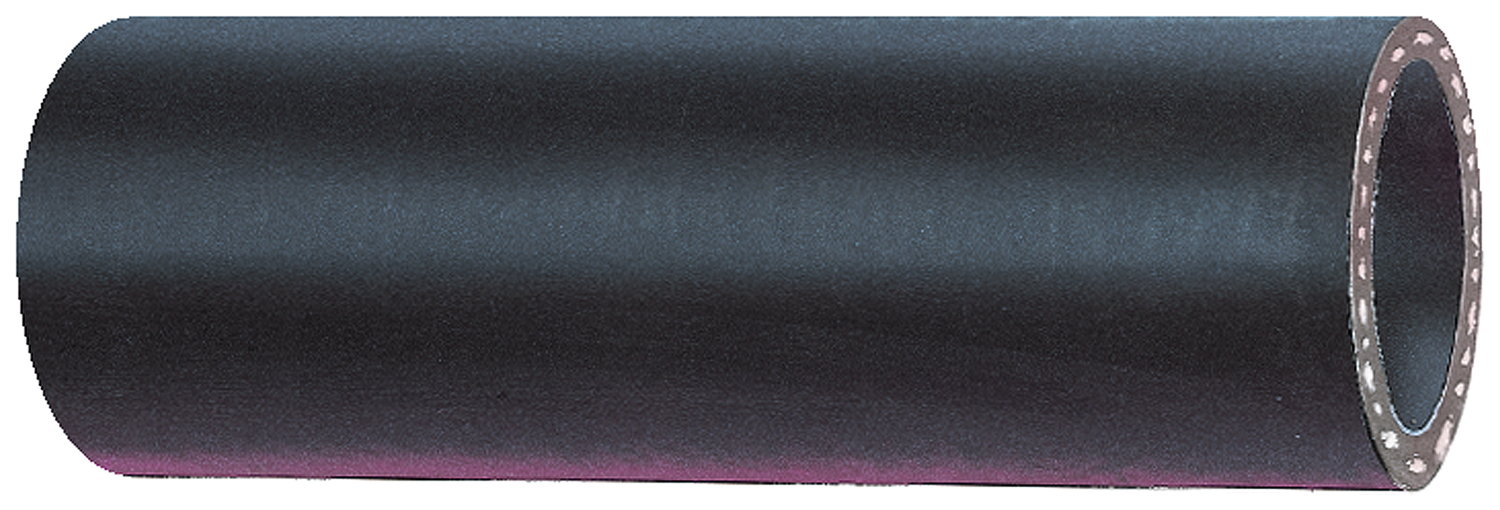

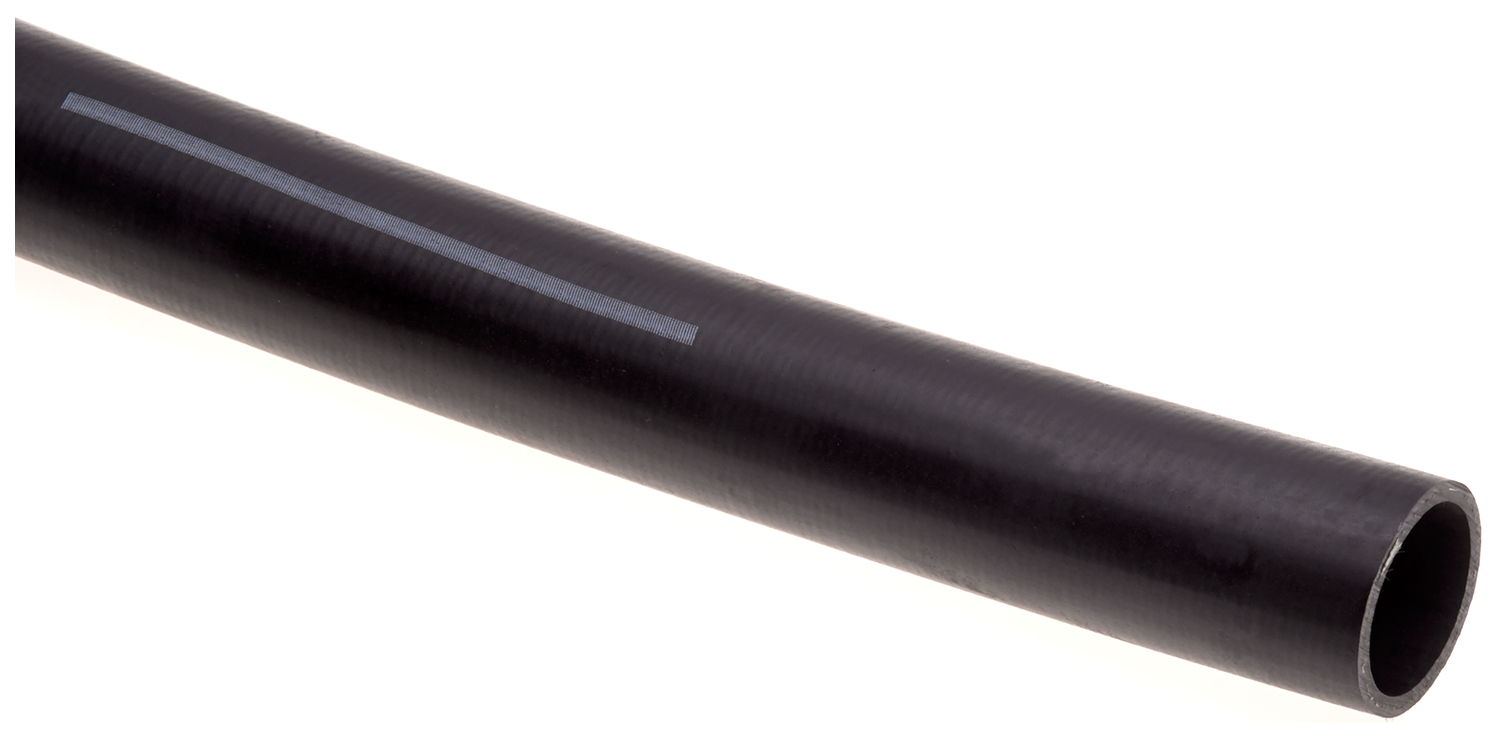

Flexible Fuel Fill Hose Designed specifically for auxiliary gas tanks on recreational vehicles. Excellent replacement for passenger cars and trucks where a straight hose with a minimal bend is required. Suitable for use with gasoline, gasohol blends of ethanol, methanol, ethers, diesel and biodiesel to B20 (up to maximum concentrations allowed by the EPA). Smooth oil resistant cover, tough textile cord reinforcement and petroleum-resistant nitrile tube. Non-wire reinforced. Caution: Not recommended for marine gasoline applications. Nitrile tube, synthetic knit reinforcement, modified nitrile cover. Meets SAE 30R6 or 30R7*(*except oxidized gasoline test). Meets SAE 30R5 - Wall thickness is 4.47±1.42mm (0.176±0.056 inch) excluding embedded wire area.
Features and Benefits Offered in bent formed configurations and straight. Temperature Rating: -40°C to +125°C (-40°F to +257°F). Biodiesel (B20) Temperature Rating: -40°C to +100°C (-40°F to +212°F). Working Pressure: 20 psi.
Variations (8)
23963
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 32 |
| Inside Diameter 1 (in) | 1.25 |
| Inside Diameter 1 (mm) | 32 |
| Inside Diameter 2 (in) | 1.25 |
| Inside Diameter 2 (mm) | 32 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.44 |
23964
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38 |
| Inside Diameter 1 (in) | 1.5 |
| Inside Diameter 1 (mm) | 38 |
| Inside Diameter 2 (in) | 1.5 |
| Inside Diameter 2 (mm) | 38 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 60 |
| Weight (lbs.) | 2.67 |
23968
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.75 |
| Hose Inside Diameter (mm) | 44 |
| Inside Diameter 1 (in) | 1.75 |
| Inside Diameter 1 (mm) | 44 |
| Inside Diameter 2 (in) | 1.75 |
| Inside Diameter 2 (mm) | 44 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 150 |
| Weight (lbs.) | 2.57 |
23972
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 51 |
| Inside Diameter 1 (in) | 2 |
| Inside Diameter 1 (mm) | 51 |
| Inside Diameter 2 (in) | 2 |
| Inside Diameter 2 (mm) | 51 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 125 |
| Weight (lbs.) | 2.92 |
23976
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 2.25 |
| Hose Inside Diameter (mm) | 57 |
| Inside Diameter 1 (in) | 2.25 |
| Inside Diameter 1 (mm) | 57 |
| Inside Diameter 2 (in) | 2.25 |
| Inside Diameter 2 (mm) | 57 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 100 |
| Weight (lbs.) | 3.37 |
23980
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 2.5 |
| Hose Inside Diameter (mm) | 64 |
| Inside Diameter 1 (in) | 2.5 |
| Inside Diameter 1 (mm) | 64 |
| Inside Diameter 2 (in) | 2.5 |
| Inside Diameter 2 (mm) | 64 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 75 |
| Weight (lbs.) | 3.74 |
24702
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.375 |
| Hose Inside Diameter (mm) | 35 |
| Inside Diameter 1 (in) | 1.375 |
| Inside Diameter 1 (mm) | 35 |
| Inside Diameter 2 (in) | 1.375 |
| Inside Diameter 2 (mm) | 35 |
| Working Pressure (psi) | 20 |
| Caution | Not recommended for marine gasoline applications. |
| Customer Pack | 50 |
| Weight (lbs.) | 1.6 |
24703
| Centerline Length (ft) | 1.5 |
|---|---|
| Centerline Length (m) | 0.46 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38 |
| Inside Diameter 1 (in) | 1.5 |
| Inside Diameter 1 (mm) | 38 |
| Inside Diameter 2 (in) | 1.5 |
| Inside Diameter 2 (mm) | 38 |
| Working Pressure (psi) | 20 |
| Caution | Not recommended for marine gasoline applications. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.3 |
Specifications
| Centerline Length (ft) | 1.5 – 3 |
|---|---|
| Centerline Length (m) | 0.46 – 0.91 |
| Hose Inside Diameter (in). | 1.25 – 2.5 |
| Hose Inside Diameter (mm) | 32 – 64 |
| Inside Diameter 1 (in) | 1.25 – 2.5 |
| Inside Diameter 1 (mm) | 32 – 64 |
| Inside Diameter 2 (in) | 1.25 – 2.5 |
| Inside Diameter 2 (mm) | 32 – 64 |
| Working Pressure (psi) | 20 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 25 – 200 |
| Weight (lbs.) | 1.3 – 3.74 |
| Caution | Not recommended for marine gasoline applications. |
