Attributes
| Part Number | 4271-000000-000000 |
|---|
Description

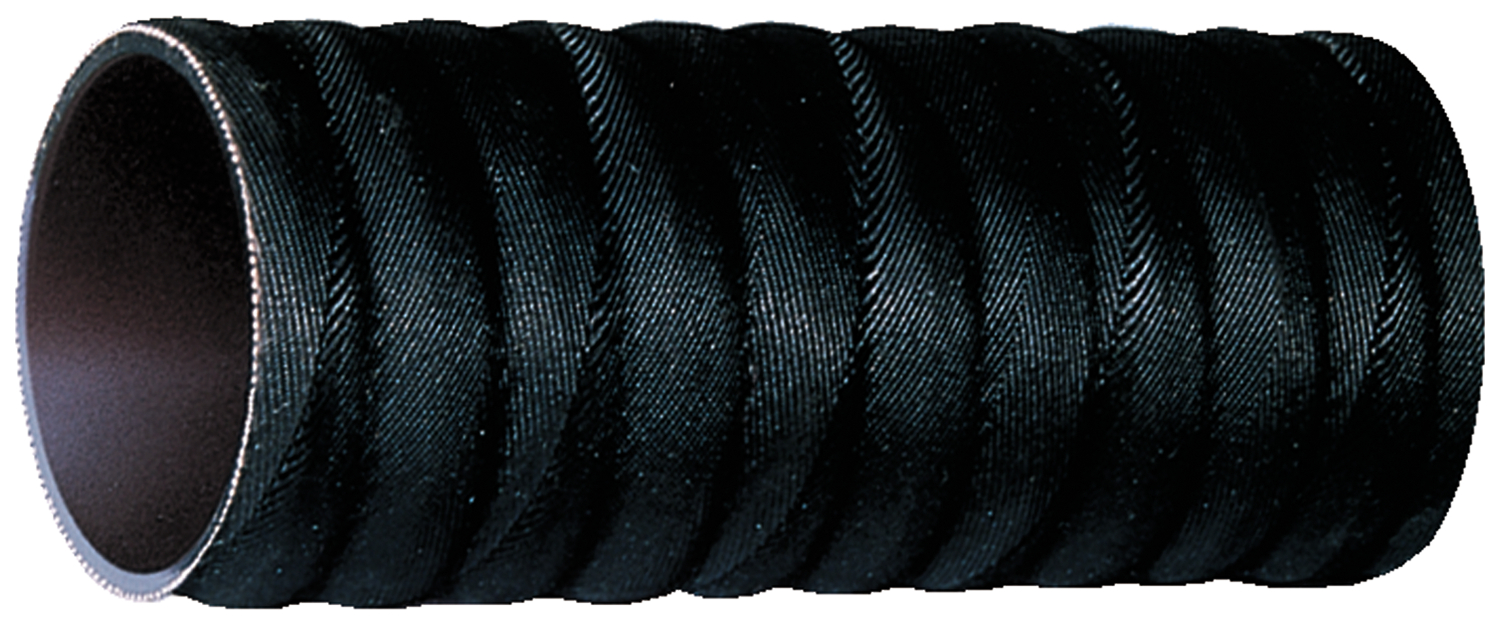

Fuel Fill Hose 4278 Fuel and Oil Hose for engine oil, fuel filler, and hydraulic suction applications. Also, suitable for tank vent and crank case vent. Not for fuel injection or air intake. 4663K Wire Reinforced Fuel and Oil Hose is for fuel or oil fill or cross-over hose applications where tight bends or vacuum is required. 4278 Temperature Range: -40°C to +125°C (-40°F to +257°F). Nitrile tube, synthetic knit reinforcement, modified nitrile cover. Meets SAE 30R6 or SAE 30R7*(*except oxidized gasoline test). Offered in bent formed configurations and straight. 4663K Temperature Range: -40°C to +100°C (-40°F to +212°F). Nitrile tube, synthetic fabric reinforcement w/2 embedded helical wires, neoprene coated fabric cover. Meets SAE 30R5 - Wall thickness is 4.47±1.42mm (0.176±0.056 inch) excluding embedded wire area.
Variations (6)
23924
| Outside Diameter 1 (mm) | 45 |
|---|---|
| Centerline Length (ft) | 3 |
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38 |
| Inside Diameter 1 (in) | 1.5 |
| Inside Diameter 1 (mm) | 38 |
| Inside Diameter 2 (in) | 1.5 |
| Inside Diameter 2 (mm) | 38 |
| Max. Working Pressure (Bar) | 1.4 |
| Length (m) | 0.91 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.39 |
23930
| Outside Diameter 1 (mm) | 55 |
|---|---|
| Centerline Length (ft) | 3 |
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.875 |
| Hose Inside Diameter (mm) | 48 |
| Inside Diameter 1 (in) | 1.875 |
| Inside Diameter 1 (mm) | 48 |
| Inside Diameter 2 (in) | 1.875 |
| Inside Diameter 2 (mm) | 48 |
| Max. Working Pressure (Bar) | 1.4 |
| Length (m) | 0.91 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.7 |
23932
| Outside Diameter 1 (mm) | 57 |
|---|---|
| Centerline Length (ft) | 3 |
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 51 |
| Inside Diameter 1 (in) | 2 |
| Inside Diameter 1 (mm) | 51 |
| Inside Diameter 2 (in) | 2 |
| Inside Diameter 2 (mm) | 51 |
| Max. Working Pressure (Bar) | 1.4 |
| Length (m) | 0.91 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.8 |
23936
| Outside Diameter 1 (mm) | 64 |
|---|---|
| Centerline Length (ft) | 3 |
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 2.25 |
| Hose Inside Diameter (mm) | 57 |
| Inside Diameter 1 (in) | 2.25 |
| Inside Diameter 1 (mm) | 57 |
| Inside Diameter 2 (in) | 2.25 |
| Inside Diameter 2 (mm) | 57 |
| Max. Working Pressure (Bar) | 1.4 |
| Length (m) | 0.91 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 8 |
| Weight (lbs.) | 1.98 |
23940
| Outside Diameter 1 (mm) | 70 |
|---|---|
| Centerline Length (ft) | 3 |
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 2.5 |
| Hose Inside Diameter (mm) | 64 |
| Inside Diameter 1 (in) | 2.5 |
| Inside Diameter 1 (mm) | 64 |
| Inside Diameter 2 (in) | 2.5 |
| Inside Diameter 2 (mm) | 64 |
| Max. Working Pressure (Bar) | 1.4 |
| Length (m) | 0.91 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 8 |
| Weight (lbs.) | 2.19 |
46632200
No variation attributes.
Specifications
| Outside Diameter 1 (mm) | 45 – 70 |
|---|---|
| Centerline Length (ft) | 3 |
| Centerline Length (m) | 0.91 |
| Hose Inside Diameter (in). | 1.5 – 2.5 |
| Hose Inside Diameter (mm) | 38 – 64 |
| Inside Diameter 1 (in) | 1.5 – 2.5 |
| Inside Diameter 1 (mm) | 38 – 64 |
| Inside Diameter 2 (in) | 1.5 – 2.5 |
| Inside Diameter 2 (mm) | 38 – 64 |
| Max. Working Pressure (Bar) | 1.4 |
| Length (m) | 0.91 |
| Automotive Notes | Use Gates Super Hex clamps for reliable installation. |
| Customer Pack | 8 – 10 |
| Weight (lbs.) | 1.39 – 2.19 |
