G Force Recreation Belts

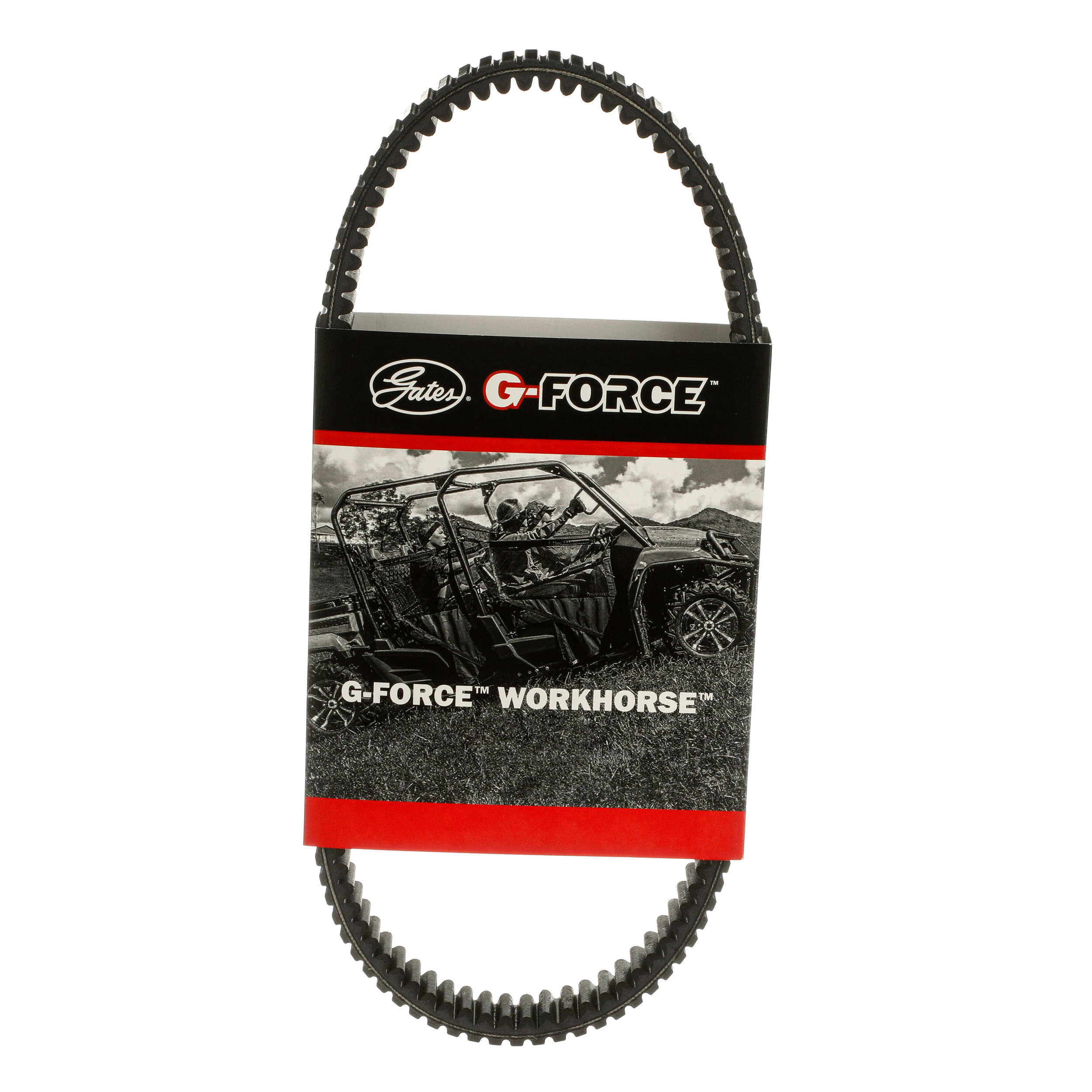

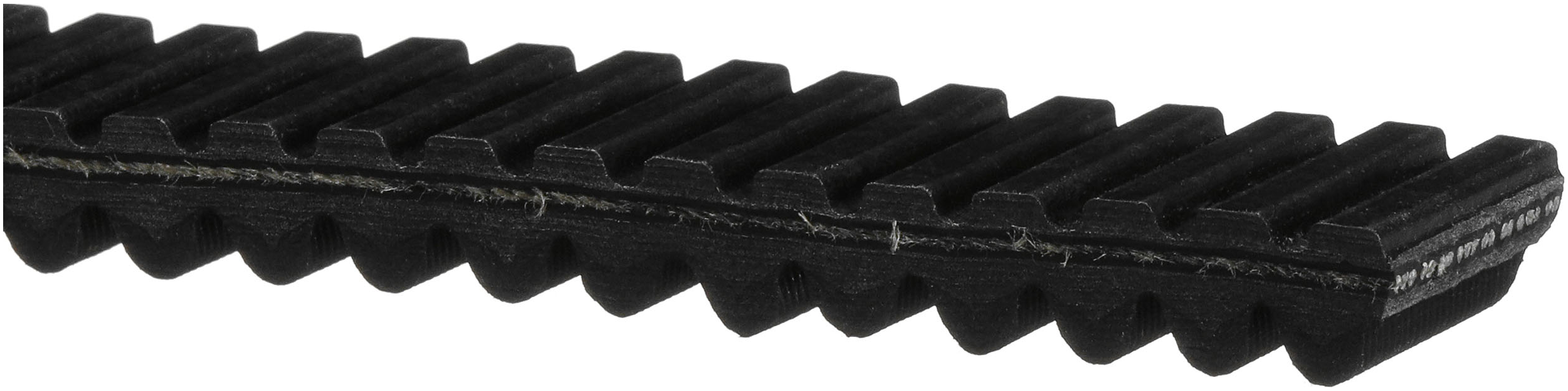

G-Force WorkHorse™ CVT Belts

Scraped SKU: 9825-000000-000000 Series: G-Force WorkHorse™ CVT Belts 2026-06-11 09:29:43

Attributes

Part Number	9825-000000-000000

Description

G-Force WorkHorse™ CVT Belts Our newest Gates G-Force WorkHorse CVT belts, are engineered to handle the toughest tasks and trails. Up to 2x the life of the G-Force Belt. 45% increased heat tolerance. Power for hauling heavy loads across aggressive terrain Improved durability, crack & wear-resistance.

Variations (125)

2530V1690 / 26G3628

Angle	42
Number of Ribs	3
Effective Length (in)	79.05
Outside Circumference (mm)	2032
Effective Length (mm)	2008
Section	5VX
Outside Circumference (in)	80

5/3V1250 / 44G3569

Angle	26
Number of Ribs	1
Effective Length (in)	46.93
Outside Circumference (mm)	1194
Notched	true
Effective Length (mm)	1192
Section	RVS-R
Outside Circumference (in)	47

03G3470

Cross Section	E
Inside Circumference (in)	250
Inside Circumference (mm)	6350
Effective Length (in)	253.5
Effective Length (mm)	6.439
Notched	true
Outside Circumference (in)	35.875
Outside Circumference (mm)	911
Number of Ribs	1
Top Width (in)	1.031
Top Width (mm)	26
Angle.	26
Thickness (in)	0.91
Thickness (mm)	23
Markets/Applications	Suitable for all industrial applications, including v-flat drives.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves
Belt Notes	Gates Hi-Power® belts are available in A, B, C, D and E cross sections.
Customer Pack	1
Weight (lbs.)	15.84

09G3799

Cross Section	3L
Effective Length (in)	56.68
Effective Length (mm)	1.44
Notched	true
Outside Circumference (in)	38.663
Outside Circumference (mm)	982
Number of Ribs	1
Top Width (in)	1.088
Top Width (mm)	28
Angle.	28
Thickness (in)	0.24
Thickness (mm)	6
Markets/Applications	Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch
Belt Notes	Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3).
Customer Pack	150
Weight (lbs.)	0.173

09G3799

Angle	38
Effective Length (in)	45.47
Outside Circumference (mm)	1178
Notched	true
Effective Length (mm)	1155
Section	HC50
Outside Circumference (in)	46.39

11G3218

No variation attributes.

11G3218

No variation attributes.

13G3218

Belt Nominal E.L. (in)	91.20
Cross Section	A
Category	Classical Section Wrapped V-Belts
Effective Length (in)	91.2
Effective Length (mm)	2.316
Notched	true
Outside Circumference (in)	33.375
Outside Circumference (mm)	848
Top Width (in)	1.125
Top Width (mm)	29
Angle.	28
Thickness (in)	0.34
Thickness (mm)	9
Markets/Applications	BladeRunner® belts are specifically designed for use on lawn and garden equipment.
Customer Pack	60
Weight (lbs.)	0.51

16G3332

Angle	39
Number of Ribs	1
Effective Length (in)	116.6
Outside Circumference (mm)	2997
Notched	false
Effective Length (mm)	2962
Section	3V
Outside Circumference (in)	118

16G3332

Cross Section	HC41
Effective Length (in)	71.5
Effective Length (mm)	1.816
Notched	true
Outside Circumference (in)	34.5
Outside Circumference (mm)	876
Top Width (in)	1.156
Top Width (mm)	29
Angle.	28
Thickness (in)	0.33
Thickness (mm)	8
Customer Pack	75
Weight (lbs.)	0.35

18G4620

Angle	40
Effective Length (in)	174.25
Outside Circumference (mm)	4432
Notched	false
Effective Length (mm)	4426
Section	B
Outside Circumference (in)	174.5

18G4620

Cross Section	B
Inside Circumference (in)	187
Inside Circumference (mm)	4750
Effective Length (in)	189.9
Effective Length (mm)	4.823
Notched	true
Outside Circumference (in)	47.374
Outside Circumference (mm)	1203
Number of Ribs	1
Top Width (in)	1.185
Top Width (mm)	30
Angle.	24
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial applications, including v-flat drives.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves
Belt Notes	Gates Hi-Power® belts are available in A, B, C, D and E cross sections.
Customer Pack	10
Weight (lbs.)	2.06

19G3332

Cross Section	5V
Top Width Per Strand (in)	0.62
Top Width Per Strand (mm)	16
Effective Length (in)	70.15
Effective Length (mm)	1.782
Notched	true
Outside Circumference (in)	34.5
Outside Circumference (mm)	876
Number of Ribs	3
Strand	3
Top Width (in)	1.188
Top Width (mm)	30
Angle.	28
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	3.9

19G3450

Angle	36
Number of Ribs	1
Effective Length (in)	69
Notched	false
Effective Length (mm)	1753
Section	BB

19G3982E

Cross Section	B
Top Width Per Strand (in)	0.656
Top Width Per Strand (mm)	17
Effective Length (in)	88.8
Effective Length (mm)	2.256
Notched	true
Outside Circumference (in)	90.2
Outside Circumference (mm)	2.292
Number of Ribs	4
Strand	4
Top Width (in)	2.91
Top Width (mm)	73.9
Angle.	36
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	2.64

19G4022

Angle	38
Number of Ribs	1
Effective Length (in)	57.89
Outside Circumference (mm)	1473
Notched	false
Effective Length (mm)	1470
Section	A
Outside Circumference (in)	58

19G4022

Cross Section	4L
Effective Length (in)	18.77
Effective Length (mm)	477
Notched	true
Outside Circumference (in)	19
Outside Circumference (mm)	483
Number of Ribs	1
Top Width (in)	0.5
Top Width (mm)	12.7
Angle.	36
Thickness (in)	0.31
Thickness (mm)	7.9
Markets/Applications	PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used.
Color	Green
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Recommended For	Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch
Belt Notes	PoweRated® belts do not meet RMA requirements for static conductivity.
Customer Pack	2400
Weight (lbs.)	0.054

20G3596

Cross Section	3VX
Top Width Per Strand (in)	0.38
Top Width Per Strand (mm)	10
Effective Length (in)	33.33
Effective Length (mm)	847
Notched	true
Outside Circumference (in)	37.134
Outside Circumference (mm)	943
Number of Ribs	5
Strand	5
Top Width (in)	1.204
Top Width (mm)	31
Angle.	29
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	1.0

20G3596

Angle	40
Number of Ribs	1
Effective Length (in)	50.88
Outside Circumference (mm)	1295
Notched	true
Effective Length (mm)	1285
Section	BX
Outside Circumference (in)	51

20G4022

Angle	40
Number of Ribs	1
Effective Length (in)	285
Outside Circumference (mm)	7290
Notched	false
Effective Length (mm)	7294
Section	C
Outside Circumference (in)	287

20G4022

Angle	60
Number of Ribs	2
Effective Length (in)	21.06
Notched	false
Effective Length (mm)	535
Section	7M/JB

20G4022

Cross Section	B
Top Width Per Strand (in)	0.656
Top Width Per Strand (mm)	17
Effective Length (in)	81.8
Effective Length (mm)	2.078
Notched	true
Number of Ribs	3
Strand	3
Top Width (in)	2.16
Top Width (mm)	54.9
Angle.	36
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	1.765

20G4154

Angle	40
Number of Ribs	1
Effective Length (in)	494.07
Outside Circumference (mm)	12700
Notched	false
Effective Length (mm)	12549
Section	8V
Outside Circumference (in)	500

20G4154

Cross Section	5VX
Top Width Per Strand (in)	0.62
Top Width Per Strand (mm)	16
Effective Length (in)	131.97
Effective Length (mm)	3.352
Notched	true
Outside Circumference (in)	42.375
Outside Circumference (mm)	1076
Number of Ribs	12
Strand	12
Top Width (in)	1.188
Top Width (mm)	30
Angle.	28
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	25.32

21G3849

Angle	36
Effective Length (in)	120.35
Outside Circumference (mm)	3102
Notched	false
Effective Length (mm)	3057
Section	BB
Outside Circumference (in)	122.12

21G3849

Cross Section	A
Top Width Per Strand (in)	0.524
Top Width Per Strand (mm)	13
Effective Length (in)	112.97
Effective Length (mm)	2.9
Notched	true
Outside Circumference (in)	39.163
Outside Circumference (mm)	995
Number of Ribs	13
Strand	13
Top Width (in)	1.211
Top Width (mm)	31
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	15.8

22G4246

Cross Section	8VP
Top Width Per Strand (in)	1
Top Width Per Strand (mm)	25
Effective Length (in)	132
Effective Length (mm)	3.355
Notched	true
Number of Ribs	4
Strand	4
Top Width (in)	4.38
Top Width (mm)	111.3
Angle.	40
Thickness (in)	0.91
Thickness (mm)	23
Markets/Applications	Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Brown
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Recommended For	Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis.
WARNING	Do NOT use with backside idlers.
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number.
Customer Pack	1
Weight (lbs.)	9.525

22G4246

Cross Section	BX
Inside Circumference (in)	79
Inside Circumference (mm)	2007
Effective Length (in)	82
Effective Length (mm)	2083
Notched	true
Number of Ribs	1
Section	BX
Top Width (in)	0.67
Top Width (mm)	17
Angle.	40
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Customer Pack	10
Weight (lbs.)	0.34

23G3805

Cross Section	C
Inside Circumference (in)	204
Inside Circumference (mm)	5182
Effective Length (in)	204
Effective Length (mm)	5.288
Notched	true
Outside Circumference (in)	39.25
Outside Circumference (mm)	997
Number of Ribs	1
Top Width (in)	1.219
Top Width (mm)	31
Angle.	28
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Suitable for all industrial applications, including v-flat drives.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves
Belt Notes	Gates Hi-Power® belts are available in A, B, C, D and E cross sections.
Customer Pack	5
Weight (lbs.)	3.97

23G3836

Cross Section	B
Top Width Per Strand (in)	0.656
Top Width Per Strand (mm)	17
Effective Length (in)	67.8
Effective Length (mm)	1.722
Notched	true
Number of Ribs	4
Strand	4
Top Width (in)	2.91
Top Width (mm)	73.9
Angle.	36
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	2.377

23G3836

Cross Section	AX
Inside Circumference (in)	69
Inside Circumference (mm)	1753
Effective Length (in)	71
Effective Length (mm)	1803
Notched	true
Number of Ribs	1
Section	AX
Strand	1
Top Width (in)	0.51
Top Width (mm)	13
Angle.	38
Thickness (in)	0.32
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Customer Pack	70
Weight (lbs.)	0.18

23G3935

Angle	38
Effective Length (in)	52.51
Outside Circumference (mm)	1337
Notched	true
Effective Length (mm)	1334
Section	AX
Outside Circumference (in)	52.64

23G4057

Cross Section	A
Top Width Per Strand (in)	0.524
Top Width Per Strand (mm)	13
Effective Length (in)	112.97
Effective Length (mm)	2.9
Notched	true
Outside Circumference (in)	41.75
Outside Circumference (mm)	1060
Number of Ribs	16
Strand	16
Top Width (in)	1.219
Top Width (mm)	31
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	20.47

24G3884

Cross Section	5VP
Inside Circumference (in)	190
Inside Circumference (mm)	4826
Effective Length (in)	188.74
Effective Length (mm)	4.794
Notched	true
Outside Circumference (in)	39.75
Outside Circumference (mm)	1010
Number of Ribs	1
Top Width (in)	1.25
Top Width (mm)	32
Angle.	30
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations.
Color	Brown
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Belt Notes	Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number.
Customer Pack	10
Weight (lbs.)	2.42

24G3982

Cross Section	3V
Top Width Per Strand (in)	0.38
Top Width Per Strand (mm)	10
Effective Length (in)	45
Effective Length (mm)	1.143
Notched	true
Number of Ribs	6
Strand	6
Top Width (in)	2.41
Top Width (mm)	61.2
Angle.	40
Thickness (in)	0.32
Thickness (mm)	8
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	0.762

24G4022

Angle	38
Number of Ribs	20
Effective Length (in)	49.39
Outside Circumference (mm)	1270
Effective Length (mm)	1255
Section	3V
Outside Circumference (in)	50

24G4108

Angle	38
Effective Length (in)	75.01
Outside Circumference (mm)	1911
Notched	true
Effective Length (mm)	1905
Section	AX
Outside Circumference (in)	75.25

24G4108

Angle	38
Number of Ribs	1
Effective Length (in)	44.96
Outside Circumference (mm)	1143
Notched	false
Effective Length (mm)	1092
Section	AP
Outside Circumference (in)	45

24G5596

Angle	40
Number of Ribs	2
Effective Length (in)	106
Notched	false
Effective Length (mm)	2692
Section	8V

25G4108

Angle	39
Effective Length (in)	87.82
Outside Circumference (mm)	2241
Notched	false
Effective Length (mm)	2231
Section	A
Outside Circumference (in)	88.22

25G4238

Cross Section	5VX
Effective Length (in)	54.98
Effective Length (mm)	1.396
Notched	true
Outside Circumference (in)	43.25
Outside Circumference (mm)	1099
Top Width (in)	1.25
Top Width (mm)	32
Angle.	28
Thickness (in)	0.53
Thickness (mm)	13
Markets/Applications	Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical.
Recommended For	Super HC® Sheaves
Belt Notes	Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections.
Customer Pack	75
Weight (lbs.)	0.57

26G3596

Belt Nominal E.L. (in)	112.24
Cross Section	A
Category	Classical Section Wrapped V-Belts
Effective Length (in)	112.24
Effective Length (mm)	2.851
Notched	true
Outside Circumference (in)	37.125
Outside Circumference (mm)	943
Top Width (in)	1.25
Top Width (mm)	32
Angle.	26
Thickness (in)	0.34
Thickness (mm)	9
Markets/Applications	BladeRunner® belts are specifically designed for use on lawn and garden equipment.
Customer Pack	999
Weight (lbs.)	0.73

26G4829

Angle	40
Number of Ribs	12
Effective Length (in)	187.75
Outside Circumference (mm)	4826
Effective Length (mm)	4769
Section	8V
Outside Circumference (in)	190

26G5407

Angle	40
Number of Ribs	16
Effective Length (in)	160.9
Outside Circumference (mm)	4089
Effective Length (mm)	4087
Section	B
Outside Circumference (in)	161

27G3450

Angle	38
Effective Length (in)	37.97
Outside Circumference (mm)	971
Notched	false
Effective Length (mm)	964
Section	HC31
Outside Circumference (in)	38.21

27G3450

Angle	42
Number of Ribs	9
Effective Length (in)	131.97
Outside Circumference (mm)	3353
Effective Length (mm)	3352
Section	5VX
Outside Circumference (in)	132

27G3636

Angle	36
Effective Length (in)	73.7
Outside Circumference (mm)	1907
Notched	false
Effective Length (mm)	1872
Section	AA
Outside Circumference (in)	75.08

27G3636

Cross Section	B
Top Width Per Strand (in)	0.656
Top Width Per Strand (mm)	17
Effective Length (in)	68.9
Effective Length (mm)	1.75
Notched	true
Outside Circumference (in)	37.53
Outside Circumference (mm)	953
Number of Ribs	7
Strand	7
Top Width (in)	1.273
Top Width (mm)	32
Angle.	26
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	7.4

27G3636

Angle	60
Number of Ribs	4
Effective Length (in)	35.43
Notched	false
Effective Length (mm)	900
Section	5M/JB

27G4006

Angle	40
Number of Ribs	9
Effective Length (in)	63.42
Outside Circumference (mm)	1626
Effective Length (mm)	1630
Section	C
Outside Circumference (in)	64

28G3982

Cross Section	3VX
Top Width Per Strand (in)	0.359
Top Width Per Strand (mm)	9
Effective Length (in)	79.77
Effective Length (mm)	2.026
Notched	true
Outside Circumference (in)	40.996
Outside Circumference (mm)	1041
Number of Ribs	16
Strand	16
Top Width (in)	1.276
Top Width (mm)	32
Angle.	25
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	8.0

28G4168

Angle	40
Number of Ribs	7
Effective Length (in)	114.9
Outside Circumference (mm)	2921
Effective Length (mm)	2918
Section	B
Outside Circumference (in)	115

28G4266

Angle	38
Number of Ribs	13
Effective Length (in)	39.52
Outside Circumference (mm)	1016
Effective Length (mm)	1004
Section	3V
Outside Circumference (in)	40

28G4266

Angle	40
Number of Ribs	1
Effective Length (in)	41.053
Outside Circumference (mm)	1041
Notched	true
Effective Length (mm)	1037
Section	AX
Outside Circumference (in)	41

28G4340

Angle	36
Effective Length (in)	115
Outside Circumference (mm)	2966
Notched	false
Effective Length (mm)	2921
Section	BB
Outside Circumference (in)	116.77

28G4588

Cross Section	5V
Top Width Per Strand (in)	0.62
Top Width Per Strand (mm)	16
Effective Length (in)	159.09
Effective Length (mm)	4.041
Notched	true
Outside Circumference (in)	47.055
Outside Circumference (mm)	1195
Number of Ribs	12
Strand	12
Top Width (in)	1.279
Top Width (mm)	32
Angle.	28
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Brown
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Recommended For	Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis.
WARNING	Do NOT use with backside idlers.
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number.
Customer Pack	1
Weight (lbs.)	29.01

29G3627

Angle	40
Number of Ribs	6
Effective Length (in)	158.56
Outside Circumference (mm)	4064
Effective Length (mm)	4069
Section	A
Outside Circumference (in)	160

29G3958

Cross Section	3VX
Top Width Per Strand (in)	0.38
Top Width Per Strand (mm)	10
Effective Length (in)	31.33
Effective Length (mm)	796
Notched	true
Outside Circumference (in)	40.756
Outside Circumference (mm)	1035
Number of Ribs	11
Strand	11
Top Width (in)	1.292
Top Width (mm)	33
Angle.	23
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	2.09

29G4195

Cross Section	3V
Top Width Per Strand (in)	0.359
Top Width Per Strand (mm)	9
Effective Length (in)	35.07
Effective Length (mm)	891
Notched	true
Outside Circumference (in)	43.121
Outside Circumference (mm)	1095
Number of Ribs	17
Strand	17
Top Width (in)	1.293
Top Width (mm)	33
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	3.57

29G4573

Cross Section	BB
Inside Circumference (in)	158
Inside Circumference (mm)	4013
Effective Length (in)	161
Effective Length (mm)	4.089
Notched	true
Number of Ribs	1
Top Width (in)	0.67
Top Width (mm)	17
Angle.	36
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Suitable for all industrial serpentine applications requiring rotation reversal on some driven shafts.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves
Belt Notes	Dubl-V belts are available in AA, BB, CC and DD cross sections.
Customer Pack	10
Weight (lbs.)	1.048

30G3596

No variation attributes.

30G3750

Angle	38
Effective Length (in)	48.85
Outside Circumference (mm)	1244
Notched	false
Effective Length (mm)	1241
Section	A
Outside Circumference (in)	48.98

30G3750

Angle	40
Number of Ribs	9
Effective Length (in)	75.9
Outside Circumference (mm)	1930
Effective Length (mm)	1928
Section	B
Outside Circumference (in)	76

31G3569

Angle	40
Number of Ribs	7
Effective Length (in)	84.9
Outside Circumference (mm)	2159
Effective Length (mm)	2156
Section	B
Outside Circumference (in)	85

31G3569

Cross Section	B
Effective Length (in)	103.9
Effective Length (mm)	2.639
Notched	true
Outside Circumference (in)	36.875
Outside Circumference (mm)	937
Number of Ribs	1
Top Width (in)	1.313
Top Width (mm)	33
Angle.	30
Thickness (in)	0.41
Thickness (mm)	10
Markets/Applications	Ideal for roll-to-roll drives in conveyor applications.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves
Belt Notes	PowerBack® belts are available in B cross section.
Customer Pack	40
Weight (lbs.)	1.1

31G3569

No variation attributes.

33G4313

Cross Section	HC50
Effective Length (in)	34
Effective Length (mm)	864
Notched	true
Outside Circumference (in)	44.25
Outside Circumference (mm)	1124
Top Width (in)	1.344
Top Width (mm)	34
Angle.	28
Thickness (in)	0.36
Thickness (mm)	9
Customer Pack	150
Weight (lbs.)	0.23

33G4313

Cross Section	3V
Top Width Per Strand (in)	0.359
Top Width Per Strand (mm)	9
Effective Length (in)	35.07
Effective Length (mm)	891
Outside Circumference (in)	35.5
Outside Circumference (mm)	902
Number of Ribs	15
Section	3V
Strand	15
Top Width (in)	6.06
Top Width (mm)	154
Angle.	38
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	3.15

33G4313

Angle	36
Number of Ribs	4
Effective Length (in)	64.8
Notched	false
Effective Length (mm)	1646
Section	B

34G3596

Cross Section	3VX
Top Width Per Strand (in)	0.38
Top Width Per Strand (mm)	10
Effective Length (in)	42.01
Effective Length (mm)	1.067
Notched	true
Outside Circumference (in)	42.5
Outside Circumference (mm)	1.08
Number of Ribs	4
Strand	4
Top Width (in)	1.59
Top Width (mm)	40.4
Angle.	40
Thickness (in)	0.31
Thickness (mm)	8
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	0.508

34G3596

Cross Section	BX
Top Width Per Strand (in)	0.66
Top Width Per Strand (mm)	17
Effective Length (in)	142.85
Effective Length (mm)	3628
Outside Circumference (in)	143.6
Outside Circumference (mm)	3658
Number of Ribs	6
Section	BX
Strand	12
Top Width (in)	4.41
Top Width (mm)	112
Angle.	38
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C)
Belt Notes	For example, 90983063 represents a "BX" section PowerBand® (9098) with 3 strands (3) that is 63.0 inches (063) long.
Customer Pack	1
Weight (lbs.)	9.96

35G4361

Cross Section	5VX
Effective Length (in)	85.05
Effective Length (mm)	2.16
Notched	true
Outside Circumference (in)	44.503
Outside Circumference (mm)	1130
Top Width (in)	1.346
Top Width (mm)	34
Angle.	28
Thickness (in)	0.53
Thickness (mm)	13
Markets/Applications	Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical.
Recommended For	Super HC® Sheaves
Belt Notes	Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections.
Customer Pack	35
Weight (lbs.)	0.95

37G4604

Cross Section	3V
Top Width Per Strand (in)	0.359
Top Width Per Strand (mm)	9
Effective Length (in)	93.87
Effective Length (mm)	2.384
Notched	true
Outside Circumference (in)	47.25
Outside Circumference (mm)	1200
Number of Ribs	28
Strand	28
Top Width (in)	1.375
Top Width (mm)	35
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	22.59

39G3935

Angle	40
Number of Ribs	9
Effective Length (in)	315
Effective Length (mm)	8001
Section	8V

39G4266

Cross Section	5VX
Top Width Per Strand (in)	0.62
Top Width Per Strand (mm)	16
Effective Length (in)	149.21
Effective Length (mm)	3.79
Notched	true
Outside Circumference (in)	150
Outside Circumference (mm)	3.81
Number of Ribs	5
Strand	5
Top Width (in)	3.38
Top Width (mm)	85.9
Angle.	40
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	5.366

39G4455

Angle	40
Number of Ribs	12
Effective Length (in)	52.52
Outside Circumference (mm)	1346
Effective Length (mm)	1351
Section	A
Outside Circumference (in)	53

40G3569

Effective Length (in)	52.44
Effective Length (mm)	1332
Section	B

40G3691

Cross Section	3V
Effective Length (in)	47.6
Effective Length (mm)	1.209
Notched	true
Outside Circumference (in)	38.125
Outside Circumference (mm)	968
Top Width (in)	1.406
Top Width (mm)	36
Angle.	26
Thickness (in)	0.31
Thickness (mm)	8
Markets/Applications	Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical.
Material	Gates Neoprene Compound
Recommended For	Super HC® Sheaves
Belt Notes	Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections.
Customer Pack	70
Weight (lbs.)	0.22

40G3691

Angle	40
Number of Ribs	8
Effective Length (in)	180
Effective Length (mm)	4572
Section	8V

40G3856

Cross Section	5VX
Top Width Per Strand (in)	0.688
Top Width Per Strand (mm)	17.5
Effective Length (in)	110.67
Effective Length (mm)	2.811
Notched	true
Outside Circumference (in)	39.735
Outside Circumference (mm)	1009
Number of Ribs	4
Strand	4
Top Width (in)	1.403
Top Width (mm)	36
Angle.	26
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Color	Green
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Aramid
Recommended For	Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis.
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/5VXP1000 represents a 5VXP1000 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 96945125 represents a "5VXP" section PowerBand® (9694) with 5 strands (5) that is 125.0 inches (125) long. When application requires XP™ belt sets, request same group/match number. XP™ belts are not part of the V80® length matching program.
Customer Pack	1
Weight (lbs.)	1.5

40G4683

Angle	40
Number of Ribs	11
Effective Length (in)	79.05
Outside Circumference (mm)	2032
Effective Length (mm)	2008
Section	5V
Outside Circumference (in)	80

40G5053

Cross Section	8VP
Top Width Per Strand (in)	1
Top Width Per Strand (mm)	25
Effective Length (in)	450
Effective Length (mm)	11.43
Notched	true
Number of Ribs	3
Strand	3
Top Width (in)	3.25
Top Width (mm)	82.6
Angle.	40
Thickness (in)	0.91
Thickness (mm)	23
Markets/Applications	Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Brown
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Recommended For	Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis.
WARNING	Do NOT use with backside idlers.
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number.
Customer Pack	1
Weight (lbs.)	24.603

40G5053

Angle	38
Effective Length (in)	68.01
Outside Circumference (mm)	1751
Notched	true
Effective Length (mm)	1727
Section	HC50
Outside Circumference (in)	68.94

40G5053

Angle	40
Number of Ribs	25
Effective Length (in)	110.67
Outside Circumference (mm)	2845
Effective Length (mm)	2811
Section	3V
Outside Circumference (in)	112

40G5053

Effective Length (in)	27.5
Effective Length (mm)	699
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	26.6
Pitch Length (mm)	676
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.38
Top Width (mm)	35
Angle.	30
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

41G4620

Angle	44
Effective Length (in)	34.51
Outside Circumference (mm)	880
Notched	false
Effective Length (mm)	877
Section	3L
Outside Circumference (in)	34.46

42G4266

Angle	40
Number of Ribs	9
Effective Length (in)	148.65
Outside Circumference (mm)	3810
Effective Length (mm)	3815
Section	C
Outside Circumference (in)	150

42G4266

Angle	40
Number of Ribs	3
Effective Length (in)	42.52
Notched	false
Effective Length (mm)	1080
Section	3V

42G4266

Cross Section	BX
Top Width Per Strand (in)	0.66
Top Width Per Strand (mm)	17
Effective Length (in)	86.58
Effective Length (mm)	2.199
Notched	true
Outside Circumference (in)	43.875
Outside Circumference (mm)	1114
Number of Ribs	8
Strand	12
Top Width (in)	1.406
Top Width (mm)	36
Angle.	26
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C)
Belt Notes	For example, 90983063 represents a "BX" section PowerBand® (9098) with 3 strands (3) that is 63.0 inches (063) long.
Customer Pack	1
Weight (lbs.)	8.0

42G4455

Angle	40
Number of Ribs	8
Effective Length (in)	148.65
Outside Circumference (mm)	3810
Effective Length (mm)	3815
Section	C
Outside Circumference (in)	150

42G4474

No variation attributes.

42G4474

Angle	40
Number of Ribs	1
Effective Length (in)	146.9
Outside Circumference (mm)	3736.34
Notched	false
Effective Length (mm)	3731.26
Section	B
Outside Circumference (in)	147.1

42G4620

Cross Section	5V
Top Width Per Strand (in)	0.62
Top Width Per Strand (mm)	16
Effective Length (in)	149.21
Effective Length (mm)	3.79
Notched	true
Outside Circumference (in)	47.375
Outside Circumference (mm)	1203
Number of Ribs	4
Strand	4
Top Width (in)	1.438
Top Width (mm)	37
Angle.	28
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	10.4

42G4620

Angle	38
Number of Ribs	9
Effective Length (in)	74.93
Outside Circumference (mm)	1905
Effective Length (mm)	1903
Section	3VX
Outside Circumference (in)	75

42G4620

Angle	42
Number of Ribs	10
Effective Length (in)	169.82
Outside Circumference (mm)	4318
Effective Length (mm)	4313
Section	5VX
Outside Circumference (in)	170

42G4683

Angle	40
Number of Ribs	12
Effective Length (in)	57.9
Outside Circumference (mm)	1473
Effective Length (mm)	1471
Section	B
Outside Circumference (in)	58

42G4683

Cross Section	B
Top Width Per Strand (in)	0.656
Top Width Per Strand (mm)	17
Effective Length (in)	121
Effective Length (mm)	3.073
Notched	true
Outside Circumference (in)	121.2
Outside Circumference (mm)	3.079
Number of Ribs	4
Strand	4
Top Width (in)	2.91
Top Width (mm)	73.9
Angle.	36
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	3.447

43G4210

Angle	40
Number of Ribs	8
Effective Length (in)	84.24
Outside Circumference (mm)	2159
Effective Length (mm)	2164
Section	C
Outside Circumference (in)	85

43G4289

No variation attributes.

43G4340

Angle	38
Number of Ribs	9
Effective Length (in)	39.82
Outside Circumference (mm)	1016
Effective Length (mm)	1011
Section	3VX
Outside Circumference (in)	40

44G3569

Cross Section	8V
Top Width Per Strand (in)	1
Top Width Per Strand (mm)	25
Effective Length (in)	112
Effective Length (mm)	2.845
Notched	true
Number of Ribs	3
Strand	3
Top Width (in)	3.25
Top Width (mm)	82.6
Angle.	40
Thickness (in)	0.91
Thickness (mm)	23
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	6.015

44G5077

Angle	40
Number of Ribs	16
Effective Length (in)	94.86
Outside Circumference (mm)	2438
Effective Length (mm)	2409
Section	5VP
Outside Circumference (in)	95

45G4368

Angle	38
Number of Ribs	2
Effective Length (in)	92.86
Outside Circumference (mm)	2388
Notched	true
Effective Length (mm)	2359
Section	BX
Outside Circumference (in)	93.6

45G4514

Angle	40
Effective Length (in)	96.18
Outside Circumference (mm)	2448
Notched	false
Effective Length (mm)	2443
Section	C
Outside Circumference (in)	96.39

45G4514

Cross Section	D
Top Width Per Strand (in)	1.304
Top Width Per Strand (mm)	33
Effective Length (in)	302.7
Effective Length (mm)	7.689
Notched	true
Outside Circumference (in)	46.25
Outside Circumference (mm)	1175
Number of Ribs	7
Strand	7
Top Width (in)	1.438
Top Width (mm)	37
Angle.	26
Thickness (in)	0.79
Thickness (mm)	20
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	95.26

45G4514

Cross Section	3V
Top Width Per Strand (in)	0.38
Top Width Per Strand (mm)	10
Effective Length (in)	45
Effective Length (mm)	1143
Notched	false
Number of Ribs	3
Section	3V
Strand	3
Top Width (in)	1.19
Top Width (mm)	30.2
Angle.	40
Thickness (in)	0.32
Thickness (mm)	8
Markets/Applications	Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Super HC® Sheaves
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long.
Customer Pack	1
Weight (lbs.)	0.381

45G4809

Cross Section	C
Top Width Per Strand (in)	0.906
Top Width Per Strand (mm)	23
Effective Length (in)	334.7
Effective Length (mm)	8.489
Notched	true
Outside Circumference (in)	48.875
Outside Circumference (mm)	1241
Number of Ribs	3
Strand	3
Top Width (in)	1.469
Top Width (mm)	37
Angle.	30
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Brown
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Recommended For	Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis.
WARNING	Do NOT use with backside idlers.
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number.
Customer Pack	1
Weight (lbs.)	24.63

45G4809

Angle	38
Number of Ribs	11
Effective Length (in)	53.63
Outside Circumference (mm)	1397
Effective Length (mm)	1362
Section	BX
Outside Circumference (in)	54.6

46G3569

Cross Section	B
Effective Length (in)	83.71
Effective Length (mm)	2.126
Notched	true
Outside Circumference (in)	36.875
Outside Circumference (mm)	937
Top Width (in)	1.469
Top Width (mm)	37
Angle.	28
Thickness (in)	0.42
Thickness (mm)	11
Markets/Applications	Suitable for all industrial applications, including v-flat drives.
Material	Gates Proprietary Compound
Recommended For	Multi-Duty® Sheaves
Belt Notes	Gates Hi-Power® belts are available in A, B, C, D and E cross sections.
Customer Pack	405
Weight (lbs.)	0.9

46G3569

Angle	38
Effective Length (in)	59.04
Outside Circumference (mm)	1523
Notched	true
Effective Length (mm)	1500
Section	HC50
Outside Circumference (in)	59.97

46G3569

Angle	60
Number of Ribs	5
Effective Length (in)	23.82
Notched	false
Effective Length (mm)	605
Section	7M/JB

46G3596

Cross Section	A
Top Width Per Strand (in)	0.524
Top Width Per Strand (mm)	13
Effective Length (in)	110.99
Effective Length (mm)	2.85
Notched	true
Outside Circumference (in)	37.125
Outside Circumference (mm)	943
Number of Ribs	8
Strand	8
Top Width (in)	1.469
Top Width (mm)	37
Angle.	28
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	10.62

46G4387

Cross Section	D
Top Width Per Strand (in)	1.304
Top Width Per Strand (mm)	33
Effective Length (in)	347.7
Effective Length (mm)	8.832
Notched	true
Outside Circumference (in)	45.011
Outside Circumference (mm)	1143
Number of Ribs	8
Strand	8
Top Width (in)	1.43
Top Width (mm)	36
Angle.	26
Thickness (in)	0.79
Thickness (mm)	20
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	124.98

46G4387

Angle	38
Number of Ribs	1
Effective Length (in)	59.95
Outside Circumference (mm)	1524
Notched	false
Effective Length (mm)	1448
Section	BP
Outside Circumference (in)	60

46G4387

Inside Length (in)	46
Markets/Applications	Round Endless belts are ideal for 1/4 turn or twisted drives, serpentine drives, power turn and line shaft conveyors and commercial sewing machines.
Recommended For	Contact the Gates Made-To-Order Metals Team.
WARNING	Do NOT use with backside idlers.
Belt Notes	Standard-stocked Round Endless belts are footnoted. All others are Made-To-Order and may require minimum order quantities. Contact Customer Service for availability.
Weight (lbs.)	0.24

47G4572

Angle	40
Number of Ribs	5
Effective Length (in)	277.67
Outside Circumference (mm)	7112
Notched	false
Effective Length (mm)	7053
Section	5V
Outside Circumference (in)	280

48G4289

Cross Section	B
Top Width Per Strand (in)	0.656
Top Width Per Strand (mm)	17
Effective Length (in)	122.9
Effective Length (mm)	3.122
Notched	true
Outside Circumference (in)	44.066
Outside Circumference (mm)	1119
Number of Ribs	8
Strand	8
Top Width (in)	1.469
Top Width (mm)	37
Angle.	26
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Recommended for drives where single belts vibrate, turn over or jump off the drive.
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
Color	Black
Construction	Banded
Material	Belt Material is SBR. Cord Material is Polyester
Recommended For	Multi-Duty® Sheaves (B, C, D)
Belt Notes	Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long.
Customer Pack	1
Weight (lbs.)	15.7

48G4289

Angle	38
Number of Ribs	22
Effective Length (in)	99.81
Outside Circumference (mm)	2540
Effective Length (mm)	2535
Section	3VX
Outside Circumference (in)	100

48G4289

Cross Section	ROUND
Inside Circumference (in)	57
Inside Circumference (mm)	1448
Inside Length (in)	57
Effective Length (in)	57
Effective Length (mm)	1448
Outside Circumference (in)	59
Outside Circumference (mm)	1499
Section	ROUND
Top Width (in)	0.38
Top Width (mm)	10
Thickness (in)	0.38
Thickness (mm)	10
Markets/Applications	Round Endless belts are ideal for 1/4 turn or twisted drives, serpentine drives, power turn and line shaft conveyors and commercial sewing machines.
Color	Black
Construction	Banded
Material	Belt Material is Gates Proprietary. Cord Material is Nylon
Recommended For	Contact the Gates Made-To-Order Metals Team.
WARNING	Do NOT use with backside idlers.
Belt Notes	Standard-stocked Round Endless belts are footnoted. All others are Made-To-Order and may require minimum order quantities. Contact Customer Service for availability.
Customer Pack	150
Weight (lbs.)	0.29

49G4266

Angle	38
Number of Ribs	1
Effective Length (in)	62.25
Outside Circumference (mm)	1600
Notched	false
Effective Length (mm)	1581
Section	3L
Outside Circumference (in)	63

70G2809

Belt Nominal E.L. (in)	138.90
Cross Section	B
Category	Classical Section Wrapped V-Belts
Effective Length (in)	138.9
Effective Length (mm)	3.528
Notched	true
Outside Circumference (in)	28.875
Outside Circumference (mm)	733
Top Width (in)	0.688
Top Width (mm)	17
Angle.	30
Thickness (in)	0.44
Thickness (mm)	11
Customer Pack	20
Weight (lbs.)	1.79

70G2809

Angle	38
Number of Ribs	3
Effective Length (in)	144
Outside Circumference (mm)	3759
Effective Length (mm)	3658
Section	CX
Outside Circumference (in)	147.6

77G3158

Cross Section	XPA
Inside Circumference (in)	48
Inside Circumference (mm)	1207
Effective Length (in)	47.52
Effective Length (mm)	1.207
Notched	true
Outside Circumference (in)	32.253
Outside Circumference (mm)	819
Number of Ribs	1
Top Width (in)	0.769
Top Width (mm)	20
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Excellent for textile mills, machine tool and food processing applications.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	Classical cross sections include 10X, 13X, and 17X. Metric Power™ belts are molded notch construction in lengths 3,000mm and under. Metric Power™ belts are banded construction in lengths over 3,000mm. Narrow cross sections include: XPZ/SPZ, XPA/SPA, XPB/SPB, and XPC/SPC.
Customer Pack	100
Weight (lbs.)	0.4

78G3640

Angle	40
Number of Ribs	7
Effective Length (in)	175.41
Outside Circumference (mm)	4496
Effective Length (mm)	4500
Section	C
Outside Circumference (in)	177

98G3541

Effective Length (in)	106
Outside Circumference (mm)	2743
Effective Length (mm)	2692
Section	ROUND
Outside Circumference (in)	108

Specifications

Angle	26 – 60
Number of Ribs	1 – 28
Effective Length (in)	18.77 – 494.07
Outside Circumference (mm)	1.08 – 12700
Effective Length (mm)	1.067 – 12549
Section	5VX, RVS-R, HC50, 3V, B, BB, +17 more
Outside Circumference (in)	19 – 500
Notched	true, false
Cross Section	E, 3L, A, HC41, B, 5V, +15 more
Inside Circumference (in)	48 – 250
Inside Circumference (mm)	1207 – 6350
Top Width (in)	0.38 – 6.06
Top Width (mm)	10 – 154
Angle.	23 – 40
Thickness (in)	0.24 – 0.91
Thickness (mm)	6 – 23
Markets/Applications	Suitable for all industrial applications, including v-flat drives., Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors., BladeRunner® belts are specifically designed for use on lawn and garden equipment., Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive., Recommended for drives where single belts vibrate, turn over or jump off the drive., PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used., +6 more
Color	Black, Green, Brown
Construction	Banded, Bandless
Material	Belt Material is SBR. Cord Material is Polyester, Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester, Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid, Belt Material is Ethylene Elastomeric. Cord Material is Polyester, Gates Neoprene Compound, Belt Material is Ethylene Elastomeric. Cord Material is Aramid, +2 more
Recommended For	Multi-Duty® Sheaves, Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch, Super HC® Sheaves, Multi-Duty® Sheaves (B, C, D), Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis., Multi-Duty® Sheaves (B, C), +1 more
Belt Notes	Gates Hi-Power® belts are available in A, B, C, D and E cross sections., Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3)., Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long., Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long., PoweRated® belts do not meet RMA requirements for static conductivity., Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long., +10 more
Customer Pack	1 – 2400
Weight (lbs.)	0.054 – 124.98
Belt Nominal E.L. (in)	91.20 – 138.90
Category	Classical Section Wrapped V-Belts
Top Width Per Strand (in)	0.359 – 1.304
Top Width Per Strand (mm)	9 – 33
Strand	1 – 28
Size Range/Availability	Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time., Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time., Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details., Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time.
WARNING	Do NOT use with backside idlers.
Pitch Length (in)	26.6
Pitch Length (mm)	676
Inside Length (in)	46 – 57

PDF Documents

No PDF documents.

Series

Code	9825-000000-000000
Name	G-Force WorkHorse™ CVT Belts

Links

Source product page API JSON for this product

Images

Raw

ID	62
Code	9825-000000-000000
Categories	G Force Recreation Belts
