Attributes
| Part Number | 9824-000000-000000 |
|---|
Description

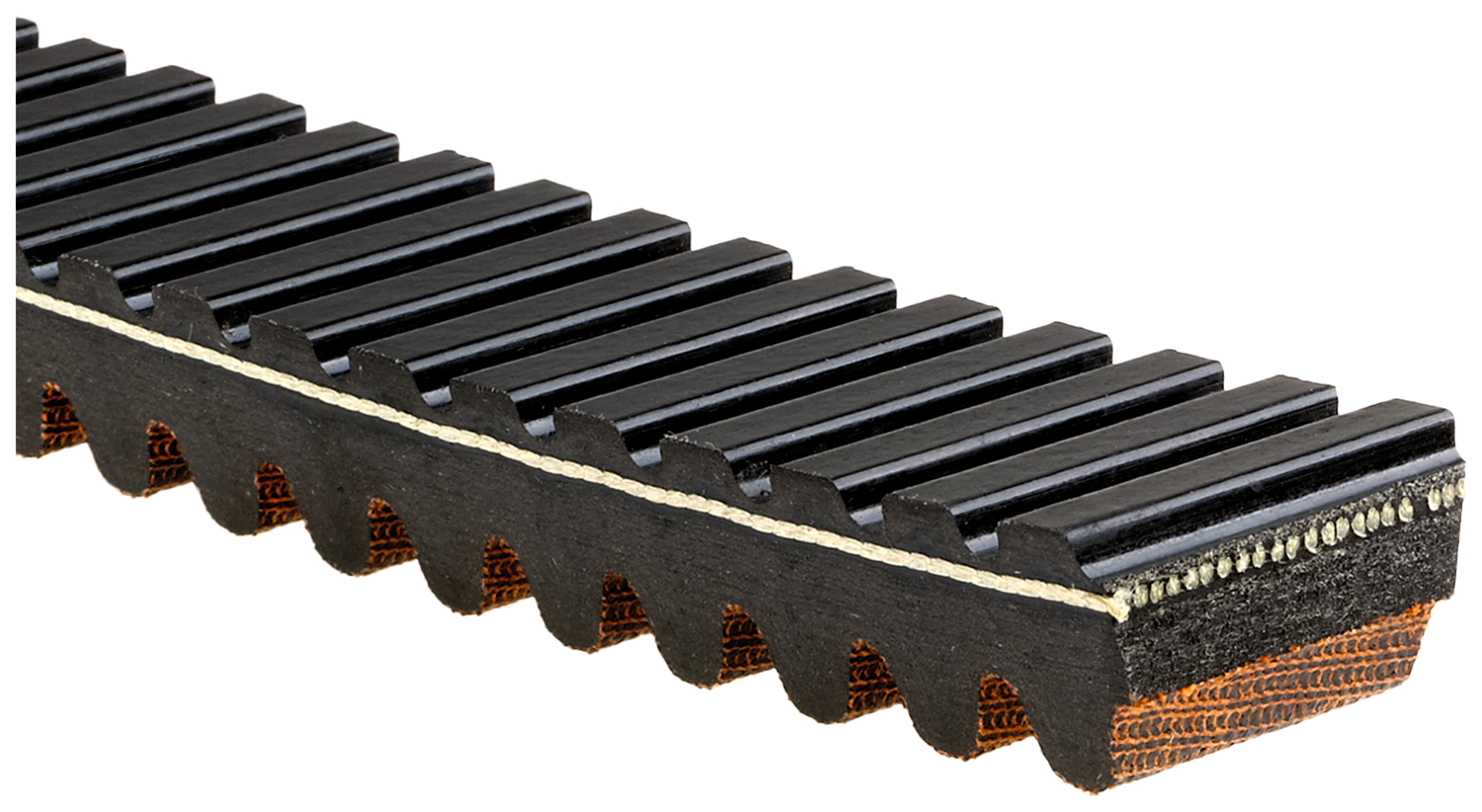

G-Force RedLine™ CVT Belts Why G-Force RedLine™ CVT Belts? Greater heat resistance and recovery, even under severe duty cycles. Optimized, patented EE compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads. Innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments. Improved durability, crack and wear-resistance means a longer-lasting, high-performance power transmission belt for the most demanding applications. Made without chlorinated compounds.
Variations (111)
12/5VX1320 / 47R4266
| Cross Section | RVS-I |
|---|---|
| Effective Length (in) | 44.16 |
| Effective Length (mm) | 1121.664 |
| Notched | true |
| Outside Circumference (in) | 44.2 |
| Outside Circumference (mm) | 1122 |
| Pitch Length (in) | 43.2 |
| Pitch Length (mm) | 1097 |
| Section | RVS-I |
| Top Width (in) | 2 |
| Top Width (mm) | 51 |
| Angle. | 36 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Contact the Gates Made-To-Order Metals Team. |
| Belt Notes | HV in the part number denotes Heavy Construction, which has a thickness of .700+. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.084 |
19R3982
No variation attributes.
21R4140
| Cross Section | XPZ |
|---|---|
| Inside Circumference (in) | 82 |
| Inside Circumference (mm) | 2087 |
| Effective Length (in) | 82.68 |
| Effective Length (mm) | 2100 |
| Notched | true |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2108 |
| Number of Ribs | 1 |
| Section | XPZ |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Excellent for textile mills, machine tool and food processing applications. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Contact the Gates Made-To-Order Metals Team. |
| Belt Notes | Classical cross sections include 10X, 13X, and 17X. Metric Power™ belts are molded notch construction in lengths 3,000mm and under. Metric Power™ belts are banded construction in lengths over 3,000mm. Narrow cross sections include: XPZ/SPZ, XPA/SPA, XPB/SPB, and XPC/SPC. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.35 |
21R4140
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 55.33 |
| Effective Length (mm) | 1405 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 5 |
| Section | 5V |
| Strand | 5 |
| Top Width (in) | 3.38 |
| Top Width (mm) | 86 |
| Angle. | 40 |
| Thickness (in) | 0.59 |
| Thickness (mm) | 15 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.45 |
21R4140
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 55.45 |
| Effective Length (mm) | 1.408 |
| Notched | true |
| Outside Circumference (in) | 42.625 |
| Outside Circumference (mm) | 1083 |
| Pitch Length (in) | 41.4 |
| Pitch Length (mm) | 1052 |
| Pitch Width (in) | 1.134 |
| Pitch Width (mm) | 28.8 |
| Top Width (in) | 1.219 |
| Top Width (mm) | 31 |
| Angle. | 26 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.37 |
21R4140
No variation attributes.
23R3836
No variation attributes.
23R3836
| Cross Section | BX |
|---|---|
| Top Width Per Strand (in) | 0.66 |
| Top Width Per Strand (mm) | 17 |
| Effective Length (in) | 86.58 |
| Effective Length (mm) | 2.199 |
| Notched | true |
| Outside Circumference (in) | 39.5 |
| Outside Circumference (mm) | 1003 |
| Pitch Length (in) | 38.362 |
| Pitch Length (mm) | 974 |
| Pitch Width (in) | 1.15 |
| Pitch Width (mm) | 29.2 |
| Number of Ribs | 6 |
| Strand | 12 |
| Top Width (in) | 1.219 |
| Top Width (mm) | 31 |
| Angle. | 28 |
| Thickness (in) | 0.567 |
| Thickness (mm) | 14.4 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C) |
| Belt Notes | For example, 90983063 represents a "BX" section PowerBand® (9098) with 3 strands (3) that is 63.0 inches (063) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.0 |
23R3856
No variation attributes.
23R4140
| Cross Section | 7MJB |
|---|---|
| Top Width Per Strand (in) | 0.2813 |
| Top Width Per Strand (mm) | 7 |
| Effective Length (in) | 74.53 |
| Effective Length (mm) | 1.893 |
| Notched | true |
| Pitch Length (in) | 41.398 |
| Pitch Length (mm) | 1052 |
| Pitch Width (in) | 1.157 |
| Pitch Width (mm) | 29.4 |
| Number of Ribs | 3 |
| Strand | 3 |
| Top Width (in) | 0.28 |
| Top Width (mm) | 7 |
| Angle. | 60 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5.3 |
| Markets/Applications | Use in place of Polyflex® singles on drives requiring joined sets. A partial listing of applications includes machine tools, computer peripherals, medical equipment, library equipment, small appliances, blower drives and dough mixers. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Polyurethane. Cord Material is Polyester |
| Recommended For | Contact the Gates Made-To-Order Metals Team. |
| Belt Notes | Manufacturing lead times and minimum order quantities may apply to matched sets and to rib configurations other than those listed. Minimum order quantities do not apply for belt lengths listed. Contact Customer Service for details. Polyflex® JB® Belts are available in 3M, 5M, 7M, and 11M cross sections. The Polyflex® JB® belt part number is comprised of the number of belt strands, cross section, effective length and the "JB" signifying joined band construction. For example; part number 3/5M1000JB represents 3 strands joined together, 5mm top width for each belt strand, effective length of 1000mm and joined band (JB) construction. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.163 |
23R4140
No variation attributes.
23R4340
| Cross Section | 8VP |
|---|---|
| Top Width Per Strand (in) | 1 |
| Top Width Per Strand (mm) | 25 |
| Effective Length (in) | 475 |
| Effective Length (mm) | 12.065 |
| Notched | true |
| Pitch Length (in) | 43.402 |
| Pitch Length (mm) | 1102 |
| Pitch Width (in) | 1.15 |
| Pitch Width (mm) | 29.2 |
| Number of Ribs | 2 |
| Strand | 2 |
| Top Width (in) | 2.13 |
| Top Width (mm) | 54.1 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 16.692 |
23R4340
No variation attributes.
23R5045
| Effective Length (mm) | 1113 |
|---|---|
| Notched | true |
| Outside Circumference (in) | 51.625 |
| Outside Circumference (mm) | 1311 |
| Pitch Length (in) | 50.451999999999998 |
| Pitch Length (mm) | 1282 |
| Pitch Width (in) | 1.157 |
| Pitch Width (mm) | 29 |
| Section | RVS-R |
| Top Width (in) | 1.234 |
| Top Width (mm) | 26 |
| Angle. | 26 |
| Thickness (in) | 0.59699999999999998 |
| Thickness (mm) | 15.2 |
| Color | BLACK |
| Construction | Double Notched |
| Material | EPDM |
23R5045
No variation attributes.
23R5045
| Angle Code | E |
|---|---|
| Belt Nominal E.L. (in) | 45.50 |
| Cross Section | RVS-R |
| Category | Snowmobile V-Belts (Standard) |
| Effective Length (in) | 45.5 |
| Effective Length (mm) | 1.156 |
| Notched | true |
| Outside Circumference (in) | 51.625 |
| Outside Circumference (mm) | 1311 |
| Pitch Length (in) | 50.452 |
| Pitch Length (mm) | 1282 |
| Pitch Width (in) | 1.157 |
| Pitch Width (mm) | 29 |
| Top Width (in) | 1.234 |
| Top Width (mm) | 26 |
| Angle. | 26 |
| Thickness (in) | 0.597 |
| Thickness (mm) | 15.2 |
| Customer Pack | 40 |
| Weight (lbs.) | 1.2 |
25R4108
No variation attributes.
26R3856
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 149.21 |
| Effective Length (mm) | 3790 |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Number of Ribs | 12 |
| Section | 5V |
| Strand | 12 |
| Top Width (in) | 8.19 |
| Top Width (mm) | 208 |
| Angle. | 40 |
| Thickness (in) | 0.59 |
| Thickness (mm) | 15 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 31.83 |
26R3856
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 150 |
| Inside Circumference (mm) | 3810 |
| Effective Length (in) | 148.22 |
| Effective Length (mm) | 3.765 |
| Notched | true |
| Outside Circumference (in) | 39.735 |
| Outside Circumference (mm) | 1009.3 |
| Pitch Length (in) | 38.562 |
| Pitch Length (mm) | 979.5 |
| Pitch Width (in) | 1.181 |
| Pitch Width (mm) | 30 |
| Number of Ribs | 1 |
| Top Width (in) | 1.263 |
| Top Width (mm) | 32 |
| Angle. | 28 |
| Thickness (in) | 0.582 |
| Thickness (mm) | 14.8 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.91 |
26R4057
| Notched | true |
|---|---|
| Outside Circumference (in) | 41.743 |
| Outside Circumference (mm) | 1060 |
| Pitch Length (in) | 40.57 |
| Pitch Length (mm) | 1030.5 |
| Pitch Width (in) | 1.1830000000000001 |
| Pitch Width (mm) | 30.1 |
| Section | RVS-R |
| Top Width (in) | 1.26 |
| Top Width (mm) | 32 |
| Angle. | 26 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Color | BLACK |
| Construction | Double Notched |
| Material | EPDM |
27R4159
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 52.37 |
| Effective Length (mm) | 1.33 |
| Notched | true |
| Outside Circumference (in) | 42.887 |
| Outside Circumference (mm) | 1089 |
| Pitch Length (in) | 41.587 |
| Pitch Length (mm) | 1056 |
| Pitch Width (in) | 1.181 |
| Pitch Width (mm) | 30 |
| Number of Ribs | 6 |
| Strand | 6 |
| Top Width (in) | 1.281 |
| Top Width (mm) | 33 |
| Angle. | 26 |
| Thickness (in) | 0.66 |
| Thickness (mm) | 16.8 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.0 |
27R4159
No variation attributes.
28R3636
| Cross Section | 7MJB |
|---|---|
| Top Width Per Strand (in) | 0.2813 |
| Top Width Per Strand (mm) | 7 |
| Effective Length (in) | 39.09 |
| Effective Length (mm) | 993 |
| Notched | true |
| Pitch Length (in) | 36.358 |
| Pitch Length (mm) | 923.5 |
| Pitch Width (in) | 1.211 |
| Pitch Width (mm) | 30.8 |
| Number of Ribs | 5 |
| Strand | 5 |
| Top Width (in) | 0.28 |
| Top Width (mm) | 7 |
| Angle. | 60 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5.3 |
| Markets/Applications | Use in place of Polyflex® singles on drives requiring joined sets. A partial listing of applications includes machine tools, computer peripherals, medical equipment, library equipment, small appliances, blower drives and dough mixers. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Polyurethane. Cord Material is Polyester |
| Recommended For | Contact the Gates Made-To-Order Metals Team. |
| Belt Notes | Manufacturing lead times and minimum order quantities may apply to matched sets and to rib configurations other than those listed. Minimum order quantities do not apply for belt lengths listed. Contact Customer Service for details. Polyflex® JB® Belts are available in 3M, 5M, 7M, and 11M cross sections. The Polyflex® JB® belt part number is comprised of the number of belt strands, cross section, effective length and the "JB" signifying joined band construction. For example; part number 3/5M1000JB represents 3 strands joined together, 5mm top width for each belt strand, effective length of 1000mm and joined band (JB) construction. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.17 |
28R3636
No variation attributes.
28R3856
| Effective Length (mm) | 1009 |
|---|---|
| Notched | true |
| Outside Circumference (in) | 39.56 |
| Outside Circumference (mm) | 1005 |
| Pitch Length (in) | 38.561999999999998 |
| Pitch Length (mm) | 979.5 |
| Pitch Width (in) | 1.2 |
| Pitch Width (mm) | 30 |
| Section | RVS-R |
| Top Width (in) | 1.277 |
| Top Width (mm) | 32 |
| Angle. | 26 |
| Thickness (in) | 0.59699999999999998 |
| Thickness (mm) | 15.2 |
| Color | BLACK |
| Construction | Double Notched |
| Material | EPDM |
28R4313
| Cross Section | A |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 91.8 |
| Effective Length (mm) | 2.332 |
| Notched | true |
| Outside Circumference (in) | 44.25 |
| Outside Circumference (mm) | 1124 |
| Pitch Length (in) | 43.126 |
| Pitch Length (mm) | 1095 |
| Pitch Width (in) | 1.193 |
| Pitch Width (mm) | 30.3 |
| Number of Ribs | 1 |
| Top Width (in) | 1.277 |
| Top Width (mm) | 32 |
| Angle. | 28 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Markets/Applications | Suitable for all industrial applications, including v-flat drives. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Gates Hi-Power® belts are available in A, B, C, D and E cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.61 |
28R4313
| Cross Section | 3VP |
|---|---|
| Top Width Per Strand (in) | 0.38 |
| Top Width Per Strand (mm) | 10 |
| Effective Length (in) | 89.92 |
| Effective Length (mm) | 2286 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2311 |
| Number of Ribs | 5 |
| Section | 3VP |
| Strand | 5 |
| Top Width (in) | 2 |
| Top Width (mm) | 51 |
| Angle. | 40 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.5 |
28R4313
| Double Notch | true |
|---|---|
| Effective Length (mm) | 1124 |
| Notched | true |
| Outside Circumference (in) | 44.25 |
| Outside Circumference (mm) | 1095 |
| Pitch Length (in) | 43.11 |
| Pitch Length (mm) | 1095 |
| Pitch Width (in) | 1.19 |
| Pitch Width (mm) | 30.3 |
| Section | RVS-R |
| Top Width (in) | 1.26 |
| Top Width (mm) | 32 |
| Angle. | 30.3 |
| Thickness (in) | 0.63 |
| Thickness (mm) | 15.9 |
| Application Type | PowerSports |
| Color | BLACK |
| Material | EE |
| Weight (lbs.) | 1.09 |
28R4313
No variation attributes.
29R4266
| Cross Section | 8V |
|---|---|
| Top Width Per Strand (in) | 1 |
| Top Width Per Strand (mm) | 25 |
| Effective Length (in) | 177.87 |
| Effective Length (mm) | 4518 |
| Outside Circumference (in) | 180 |
| Outside Circumference (mm) | 4572 |
| Number of Ribs | 11 |
| Section | 8V |
| Strand | 11 |
| Top Width (in) | 12.25 |
| Top Width (mm) | 311 |
| Angle. | 40 |
| Thickness (in) | 0.98 |
| Thickness (mm) | 25 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 75.42 |
29R4266
| Cross Section | B |
|---|---|
| Effective Length (in) | 126.58 |
| Effective Length (mm) | 3.215 |
| Notched | true |
| Outside Circumference (in) | 43.83 |
| Outside Circumference (mm) | 1113 |
| Pitch Length (in) | 42.656 |
| Pitch Length (mm) | 1083.5 |
| Pitch Width (in) | 1.212 |
| Pitch Width (mm) | 31 |
| Top Width (in) | 1.289 |
| Top Width (mm) | 33 |
| Angle. | 26 |
| Thickness (in) | 0.537 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, including v-flat drives. |
| Material | Gates Proprietary Compound |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Gates Hi-Power® belts are available in A, B, C, D and E cross sections. |
| Customer Pack | 210 |
| Weight (lbs.) | 1.35 |
29R4266
| Cross Section | 8VP |
|---|---|
| Top Width Per Strand (in) | 1 |
| Top Width Per Strand (mm) | 25 |
| Effective Length (in) | 311.26 |
| Effective Length (mm) | 7906 |
| Outside Circumference (in) | 315.5 |
| Outside Circumference (mm) | 8014 |
| Number of Ribs | 11 |
| Section | 8VP |
| Strand | 11 |
| Top Width (in) | 12.25 |
| Top Width (mm) | 311.2 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Bandless |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
29R4266
No variation attributes.
30R3750
| Cross Section | 8V |
|---|---|
| Top Width Per Strand (in) | 1 |
| Top Width Per Strand (mm) | 25 |
| Effective Length (in) | 112 |
| Effective Length (mm) | 2.845 |
| Notched | true |
| Pitch Length (in) | 37.499 |
| Pitch Length (mm) | 952 |
| Pitch Width (in) | 1.22 |
| Pitch Width (mm) | 31 |
| Number of Ribs | 7 |
| Strand | 7 |
| Top Width (in) | 7.75 |
| Top Width (mm) | 196.9 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 14.034 |
30R3750
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 59.95 |
| Effective Length (mm) | 1531 |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1549 |
| Number of Ribs | 12 |
| Section | 5VP |
| Strand | 12 |
| Top Width (in) | 8.19 |
| Top Width (mm) | 208 |
| Angle. | 40 |
| Thickness (in) | 0.59 |
| Thickness (mm) | 15 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 12.07 |
30R3750
No variation attributes.
30R4604
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 70.94 |
| Effective Length (mm) | 1.807 |
| Notched | true |
| Outside Circumference (in) | 47.213 |
| Outside Circumference (mm) | 1199 |
| Pitch Length (in) | 46.039 |
| Pitch Length (mm) | 1169 |
| Pitch Width (in) | 1.217 |
| Pitch Width (mm) | 30.9 |
| Number of Ribs | 9 |
| Strand | 9 |
| Top Width (in) | 1.299 |
| Top Width (mm) | 33 |
| Angle. | 28 |
| Thickness (in) | 0.475 |
| Thickness (mm) | 12.1 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 10.11 |
30R4604
| Double Notch | true |
|---|---|
| Effective Length (mm) | 1199 |
| Notched | true |
| Outside Circumference (in) | 47.2 |
| Outside Circumference (mm) | 1169 |
| Pitch Length (in) | 46.02 |
| Pitch Length (mm) | 1169 |
| Pitch Width (in) | 1.22 |
| Pitch Width (mm) | 30.9 |
| Section | RVS-R |
| Top Width (in) | 1.3 |
| Top Width (mm) | 33 |
| Angle. | 30.9 |
| Thickness (in) | 0.48 |
| Thickness (mm) | 12.1 |
| Application Type | PowerSports |
| Color | BLACK |
| Material | EE |
| Weight (lbs.) | 0.91 |
30R4604
No variation attributes.
31R3892
| Cross Section | BX |
|---|---|
| Effective Length (in) | 53.87 |
| Effective Length (mm) | 1.368 |
| Notched | true |
| Outside Circumference (in) | 40.09 |
| Outside Circumference (mm) | 1018.3 |
| Pitch Length (in) | 38.916 |
| Pitch Length (mm) | 988.5 |
| Pitch Width (in) | 1.227 |
| Pitch Width (mm) | 31.2 |
| Top Width (in) | 1.309 |
| Top Width (mm) | 33 |
| Angle. | 28 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Material | Gates Ethylene Compound |
| Customer Pack | 60 |
| Weight (lbs.) | 0.5 |
31R3892
| Notched | true |
|---|---|
| Outside Circumference (in) | 40.09 |
| Outside Circumference (mm) | 1018.3 |
| Pitch Length (in) | 38.915999999999997 |
| Pitch Length (mm) | 988.5 |
| Pitch Width (in) | 1.2270000000000001 |
| Pitch Width (mm) | 31.2 |
| Section | RVS-R |
| Top Width (in) | 1.309 |
| Top Width (mm) | 33.3 |
| Angle. | 28 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Color | BLACK |
| Construction | Double Notched |
| Material | EPDM |
31R4573
| Cross Section | ROUND |
|---|---|
| Inside Circumference (in) | 38 |
| Inside Circumference (mm) | 965 |
| Inside Length (in) | 38 |
| Effective Length (in) | 38 |
| Effective Length (mm) | 965 |
| Notched | true |
| Outside Circumference (in) | 46.902 |
| Outside Circumference (mm) | 1191 |
| Pitch Length (in) | 45.728 |
| Pitch Length (mm) | 1161.5 |
| Pitch Width (in) | 1.23 |
| Pitch Width (mm) | 31.3 |
| Top Width (in) | 1.307 |
| Top Width (mm) | 33 |
| Angle. | 26 |
| Thickness (in) | 0.472 |
| Thickness (mm) | 12 |
| Markets/Applications | Round Endless belts are ideal for 1/4 turn or twisted drives, serpentine drives, power turn and line shaft conveyors and commercial sewing machines. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Gates Proprietary. Cord Material is Nylon |
| Recommended For | Contact the Gates Made-To-Order Metals Team. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Standard-stocked Round Endless belts are footnoted. All others are Made-To-Order and may require minimum order quantities. Contact Customer Service for availability. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.19 |
31R4573
No variation attributes.
32R4195
No variation attributes.
32R4195
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 40.21 |
| Effective Length (mm) | 1.021 |
| Notched | true |
| Outside Circumference (in) | 43.122 |
| Outside Circumference (mm) | 1095 |
| Pitch Length (in) | 41.949 |
| Pitch Length (mm) | 1065.5 |
| Pitch Width (in) | 1.244 |
| Pitch Width (mm) | 31.6 |
| Top Width (in) | 1.32 |
| Top Width (mm) | 34 |
| Angle. | 26 |
| Thickness (in) | 0.475 |
| Thickness (mm) | 12.1 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.43 |
32R4588
| Cross Section | 3V |
|---|---|
| Top Width Per Strand (in) | 0.359 |
| Top Width Per Strand (mm) | 9 |
| Effective Length (in) | 104.74 |
| Effective Length (mm) | 2.66 |
| Notched | true |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Pitch Length (in) | 45.884 |
| Pitch Length (mm) | 1165 |
| Pitch Width (in) | 1.234 |
| Pitch Width (mm) | 31.4 |
| Number of Ribs | 24 |
| Strand | 24 |
| Top Width (in) | 1.313 |
| Top Width (mm) | 33 |
| Angle. | 28 |
| Thickness (in) | 0.537 |
| Thickness (mm) | 13.6 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 19.44 |
32R4588
No variation attributes.
33R3836
| Cross Section | A |
|---|---|
| Top Width Per Strand (in) | 0.524 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 71.35 |
| Effective Length (mm) | 1.834 |
| Notched | true |
| Outside Circumference (in) | 39.5 |
| Outside Circumference (mm) | 1003 |
| Pitch Length (in) | 38.362 |
| Pitch Length (mm) | 974 |
| Pitch Width (in) | 1.256 |
| Pitch Width (mm) | 31.9 |
| Number of Ribs | 8 |
| Strand | 8 |
| Top Width (in) | 1.344 |
| Top Width (mm) | 34 |
| Angle. | 26 |
| Thickness (in) | 0.567 |
| Thickness (mm) | 14.4 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 7.62 |
33R3836
No variation attributes.
36R4246
| Cross Section | A |
|---|---|
| Top Width Per Strand (in) | 0.524 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 49.55 |
| Effective Length (mm) | 1275 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 10 |
| Section | A |
| Strand | 10 |
| Top Width (in) | 6.13 |
| Top Width (mm) | 156 |
| Angle. | 40 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.58 |
36R4246
| Cross Section | D |
|---|---|
| Inside Circumference (in) | 540 |
| Inside Circumference (mm) | 13716 |
| Effective Length (in) | 543 |
| Effective Length (mm) | 13.792 |
| Notched | true |
| Outside Circumference (in) | 543.5 |
| Outside Circumference (mm) | 13.805 |
| Pitch Length (in) | 42.459 |
| Pitch Length (mm) | 1078.5 |
| Pitch Width (in) | 1.28 |
| Pitch Width (mm) | 32.5 |
| Number of Ribs | 1 |
| Top Width (in) | 1.26 |
| Top Width (mm) | 32 |
| Angle. | 39 |
| Thickness (in) | 0.75 |
| Thickness (mm) | 19 |
| Markets/Applications | Suitable for all industrial applications, including v-flat drives. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Gates Hi-Power® belts are available in A, B, C, D and E cross sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 10.46 |
36R4246
No variation attributes.
36R4368
No variation attributes.
38R4494
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 36.98 |
| Effective Length (mm) | 939 |
| Notched | true |
| Outside Circumference (in) | 46.111 |
| Outside Circumference (mm) | 1172 |
| Pitch Length (in) | 44.937 |
| Pitch Length (mm) | 1141 |
| Pitch Width (in) | 1.335 |
| Pitch Width (mm) | 33.9 |
| Top Width (in) | 1.405 |
| Top Width (mm) | 36 |
| Angle. | 26 |
| Thickness (in) | 0.597 |
| Thickness (mm) | 15.2 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.19 |
38R4494
No variation attributes.
40R3691
| Cross Section | 5VP |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 149.21 |
| Effective Length (mm) | 3790 |
| Notched | false |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3835 |
| Number of Ribs | 3 |
| Section | 5VP |
| Strand | 3 |
| Top Width (in) | 2 |
| Top Width (mm) | 51 |
| Angle. | 40 |
| Thickness (in) | 0.59 |
| Thickness (mm) | 15 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 7.18 |
40R3691
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 22.75 |
| Effective Length (mm) | 578 |
| Notched | true |
| Outside Circumference (in) | 38.125 |
| Outside Circumference (mm) | 968 |
| Pitch Length (in) | 36.906 |
| Pitch Length (mm) | 937 |
| Pitch Width (in) | 1.323 |
| Pitch Width (mm) | 33.6 |
| Top Width (in) | 1.406 |
| Top Width (mm) | 36 |
| Angle. | 26 |
| Thickness (in) | 0.597 |
| Thickness (mm) | 15.2 |
| Customer Pack | 125 |
| Weight (lbs.) | 0.08 |
40R3691
No variation attributes.
40R3856
| Effective Length (mm) | 1187 |
|---|---|
| Notched | true |
| Outside Circumference (in) | 39.735 |
| Outside Circumference (mm) | 1009 |
| Pitch Length (in) | 38.561999999999998 |
| Pitch Length (mm) | 979 |
| Pitch Width (in) | 1.327 |
| Pitch Width (mm) | 34 |
| Section | RVS-R |
| Top Width (in) | 1.403 |
| Top Width (mm) | 36 |
| Angle. | 26 |
| Thickness (in) | 0.58199999999999996 |
| Thickness (mm) | 15 |
| Color | BLACK |
| Construction | Double Notched |
| Material | EPDM |
40R4313
No variation attributes.
40R4340
No variation attributes.
41R3982
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 57.56 |
| Effective Length (mm) | 1.462 |
| Notched | true |
| Outside Circumference (in) | 40.995 |
| Outside Circumference (mm) | 1041 |
| Pitch Length (in) | 39.821 |
| Pitch Length (mm) | 1011.5 |
| Pitch Width (in) | 1.336 |
| Pitch Width (mm) | 33.9 |
| Top Width (in) | 1.413 |
| Top Width (mm) | 36 |
| Angle. | 26 |
| Thickness (in) | 0.597 |
| Thickness (mm) | 14.4 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.79 |
41R3982
No variation attributes.
41R4313
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 178.85 |
| Effective Length (mm) | 4.543 |
| Notched | true |
| Outside Circumference (in) | 44.302 |
| Outside Circumference (mm) | 1125 |
| Pitch Length (in) | 43.128 |
| Pitch Length (mm) | 1095.5 |
| Pitch Width (in) | 1.339 |
| Pitch Width (mm) | 34 |
| Number of Ribs | 10 |
| Strand | 10 |
| Top Width (in) | 1.412 |
| Top Width (mm) | 36 |
| Angle. | 25 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 29.8 |
41R4313
No variation attributes.
41R4514
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 62.94 |
| Effective Length (mm) | 1.606 |
| Notched | true |
| Outside Circumference (in) | 46.311 |
| Outside Circumference (mm) | 1176 |
| Pitch Length (in) | 45.137 |
| Pitch Length (mm) | 1146.5 |
| Pitch Width (in) | 1.344 |
| Pitch Width (mm) | 34.1 |
| Number of Ribs | 8 |
| Strand | 8 |
| Top Width (in) | 1.414 |
| Top Width (mm) | 36 |
| Angle. | 24 |
| Thickness (in) | 0.597 |
| Thickness (mm) | 15.2 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 8.71 |
41R4514
No variation attributes.
42R4266
No variation attributes.
46R4573
No variation attributes.
46R4573
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 33.6 |
| Effective Length (mm) | 853 |
| Notched | true |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Pitch Length (in) | 45.727 |
| Pitch Length (mm) | 1161.5 |
| Pitch Width (in) | 1.388 |
| Pitch Width (mm) | 35.3 |
| Number of Ribs | 1 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 16.7 |
| Angle. | 35 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9.5 |
| Markets/Applications | PoweRated® belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used. |
| Color | Green |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | PoweRated® belts do not meet RMA requirements for static conductivity. |
| Customer Pack | 900 |
| Weight (lbs.) | 0.154 |
46R5289
| Cross Section | C |
|---|---|
| Top Width Per Strand (in) | 0.906 |
| Top Width Per Strand (mm) | 23 |
| Effective Length (in) | 314.15 |
| Effective Length (mm) | 8.056 |
| Notched | true |
| Outside Circumference (in) | 54.066 |
| Outside Circumference (mm) | 1373 |
| Pitch Length (in) | 52.893 |
| Pitch Length (mm) | 1344 |
| Pitch Width (in) | 1.378 |
| Pitch Width (mm) | 35 |
| Number of Ribs | 7 |
| Strand | 7 |
| Top Width (in) | 1.46 |
| Top Width (mm) | 37 |
| Angle. | 28 |
| Thickness (in) | 0.567 |
| Thickness (mm) | 14 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 54.59 |
46R5289
| Cross Section | 3VX |
|---|---|
| Top Width Per Strand (in) | 0.38 |
| Top Width Per Strand (mm) | 10 |
| Effective Length (in) | 70.96 |
| Effective Length (mm) | 1802 |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 11 |
| Section | 3VX |
| Strand | 11 |
| Top Width (in) | 4.44 |
| Top Width (mm) | 113 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.84 |
46R5289
| Double Notch | true |
|---|---|
| Effective Length (mm) | 1373 |
| Notched | true |
| Outside Circumference (in) | 54.06 |
| Outside Circumference (mm) | 1344 |
| Pitch Length (in) | 52.91 |
| Pitch Length (mm) | 1344 |
| Pitch Width (in) | 1.38 |
| Pitch Width (mm) | 35 |
| Section | RVS-R |
| Top Width (in) | 1.46 |
| Top Width (mm) | 37 |
| Angle. | 35 |
| Thickness (in) | 0.55000000000000004 |
| Thickness (mm) | 14 |
| Application Type | PowerSports |
| Color | BLACK |
| Material | EE |
| Weight (lbs.) | 1.36 |
46R5289
No variation attributes.
47R4266
| Cross Section | B |
|---|---|
| Inside Circumference (in) | 49 |
| Inside Circumference (mm) | 1245 |
| Effective Length (in) | 51.76 |
| Effective Length (mm) | 1.315 |
| Notched | true |
| Outside Circumference (in) | 43.831 |
| Outside Circumference (mm) | 1113 |
| Pitch Length (in) | 42.657 |
| Pitch Length (mm) | 1083.5 |
| Pitch Width (in) | 1.394 |
| Pitch Width (mm) | 35.4 |
| Number of Ribs | 1 |
| Top Width (in) | 1.47 |
| Top Width (mm) | 37 |
| Angle. | 26 |
| Thickness (in) | 0.597 |
| Thickness (mm) | 15.2 |
| Markets/Applications | Suitable for all industrial applications, including v-flat drives. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Gates Hi-Power® belts are available in A, B, C, D and E cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.55 |
47R4266
No variation attributes.
47R4368
| Belt Nominal E.L. (in) | 46.09 |
|---|---|
| Cross Section | K |
| Category | Automotive V-Ribbed Belts |
| Effective Length (in) | 46.09 |
| Effective Length (mm) | 1.171 |
| Notched | true |
| Outside Circumference (in) | 44.854 |
| Outside Circumference (mm) | 1139 |
| Pitch Length (in) | 43.68 |
| Pitch Length (mm) | 1109.5 |
| Pitch Width (in) | 1.4 |
| Pitch Width (mm) | 37.5 |
| Top Width (in) | 1.476 |
| Top Width (mm) | 37 |
| Angle. | 26 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Markets/Applications | BladeRunner® belts are specifically designed for use on lawn and garden equipment. |
| Customer Pack | 999 |
| Weight (lbs.) | 0.18 |
47R4368
| Cross Section | 8VP |
|---|---|
| Top Width Per Strand (in) | 1 |
| Top Width Per Strand (mm) | 25 |
| Effective Length (in) | 335 |
| Effective Length (mm) | 8509 |
| Notched | false |
| Outside Circumference (in) | 335.5 |
| Outside Circumference (mm) | 8.522 |
| Number of Ribs | 8 |
| Section | 8VP |
| Strand | 8 |
| Top Width (in) | 8.88 |
| Top Width (mm) | 225.6 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 49.278 |
47R4368
No variation attributes.
47R4572
| Cross Section | C |
|---|---|
| Top Width Per Strand (in) | 0.906 |
| Top Width Per Strand (mm) | 23 |
| Effective Length (in) | 114.96 |
| Effective Length (mm) | 2951 |
| Outside Circumference (in) | 116 |
| Outside Circumference (mm) | 2946 |
| Number of Ribs | 10 |
| Section | C |
| Strand | 10 |
| Top Width (in) | 9.88 |
| Top Width (mm) | 251 |
| Angle. | 40 |
| Thickness (in) | 0.59 |
| Thickness (mm) | 15 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 30.32 |
47R4572
| Cross Section | D |
|---|---|
| Top Width Per Strand (in) | 1.304 |
| Top Width Per Strand (mm) | 33 |
| Effective Length (in) | 347.7 |
| Effective Length (mm) | 8832 |
| Outside Circumference (in) | 348 |
| Outside Circumference (mm) | 8839 |
| Number of Ribs | 6 |
| Section | D |
| Strand | 6 |
| Top Width (in) | 8.44 |
| Top Width (mm) | 214 |
| Angle. | 40 |
| Thickness (in) | 0.79 |
| Thickness (mm) | 20 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 92.13 |
47R4572
| Cross Section | B |
|---|---|
| Top Width Per Strand (in) | 0.656 |
| Top Width Per Strand (mm) | 17 |
| Effective Length (in) | 181.8 |
| Effective Length (mm) | 4.618 |
| Notched | true |
| Outside Circumference (in) | 183.2 |
| Outside Circumference (mm) | 4.654 |
| Pitch Length (in) | 45.724 |
| Pitch Length (mm) | 1161 |
| Pitch Width (in) | 1.382 |
| Pitch Width (mm) | 35.1 |
| Number of Ribs | 3 |
| Strand | 3 |
| Top Width (in) | 2.16 |
| Top Width (mm) | 54.9 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.105 |
47R4572
| Cross Section | BX |
|---|---|
| Inside Circumference (in) | 68 |
| Inside Circumference (mm) | 1727 |
| Effective Length (in) | 71 |
| Effective Length (mm) | 1803 |
| Notched | true |
| Number of Ribs | 1 |
| Section | BX |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Customer Pack | 10 |
| Weight (lbs.) | 0.29 |
47R4572
No variation attributes.
47R4738
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 114.62 |
| Effective Length (mm) | 2.911 |
| Notched | true |
| Outside Circumference (in) | 48.55 |
| Outside Circumference (mm) | 1233 |
| Pitch Length (in) | 47.38 |
| Pitch Length (mm) | 1203 |
| Pitch Width (in) | 1.388 |
| Pitch Width (mm) | 35 |
| Number of Ribs | 1 |
| Top Width (in) | 1.473 |
| Top Width (mm) | 37 |
| Angle. | 29 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.15 |
47R4738
| Double Notch | true |
|---|---|
| Effective Length (mm) | 1233 |
| Notched | true |
| Outside Circumference (in) | 48.54 |
| Outside Circumference (mm) | 1233 |
| Pitch Length (in) | 47.36 |
| Pitch Length (mm) | 1203 |
| Pitch Width (in) | 1.38 |
| Pitch Width (mm) | 35 |
| Section | RVS-R |
| Top Width (in) | 1.46 |
| Top Width (mm) | 37 |
| Angle. | 29 |
| Thickness (in) | 0.63 |
| Thickness (mm) | 15.9 |
| Color | BLACK |
| Material | EE |
47R4738
No variation attributes.
48R4246
| Cross Section | 3VX |
|---|---|
| Top Width Per Strand (in) | 0.359 |
| Top Width Per Strand (mm) | 9 |
| Effective Length (in) | 47.41 |
| Effective Length (mm) | 1.204 |
| Notched | true |
| Outside Circumference (in) | 43.625 |
| Outside Circumference (mm) | 1108 |
| Pitch Length (in) | 42.457 |
| Pitch Length (mm) | 1078 |
| Pitch Width (in) | 1.406 |
| Pitch Width (mm) | 35.71 |
| Number of Ribs | 20 |
| Strand | 20 |
| Top Width (in) | 1.469 |
| Top Width (mm) | 37 |
| Angle. | 26 |
| Thickness (in) | 0.567 |
| Thickness (mm) | 14.4 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VX800 represents a 3VX800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93885080 represents a "3VX" section PowerBand® (9388) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.8 |
48R4246
No variation attributes.
48R4289
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.613 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 124.51 |
| Effective Length (mm) | 3.163 |
| Notched | true |
| Outside Circumference (in) | 44.066 |
| Outside Circumference (mm) | 1119 |
| Pitch Length (in) | 42.893 |
| Pitch Length (mm) | 1089.5 |
| Pitch Width (in) | 1.407 |
| Pitch Width (mm) | 35.8 |
| Number of Ribs | 13 |
| Strand | 13 |
| Top Width (in) | 1.469 |
| Top Width (mm) | 37 |
| Angle. | 28 |
| Thickness (in) | 0.657 |
| Thickness (mm) | 16.7 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 27.57 |
48R4289
No variation attributes.
48R4553
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 124.51 |
| Effective Length (mm) | 3.163 |
| Notched | true |
| Outside Circumference (in) | 46.75 |
| Outside Circumference (mm) | 1187 |
| Pitch Length (in) | 45.53 |
| Pitch Length (mm) | 1156 |
| Pitch Width (in) | 1.398 |
| Pitch Width (mm) | 35.51 |
| Number of Ribs | 11 |
| Strand | 11 |
| Top Width (in) | 1.469 |
| Top Width (mm) | 37 |
| Angle. | 26 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 21.34 |
48R4553
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 222.33 |
| Effective Length (mm) | 5647 |
| Outside Circumference (in) | 224 |
| Outside Circumference (mm) | 5715 |
| Number of Ribs | 9 |
| Section | 5VP |
| Strand | 9 |
| Top Width (in) | 6.13 |
| Top Width (mm) | 156 |
| Angle. | 40 |
| Thickness (in) | 0.59 |
| Thickness (mm) | 15 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Recommended For | Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis. |
| WARNING | Do NOT use with backside idlers. |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 30.36 |
48R4553
No variation attributes.
48R4738
No variation attributes.
48R4867
| Cross Section | 5V |
|---|---|
| Top Width Per Strand (in) | 0.62 |
| Top Width Per Strand (mm) | 16 |
| Effective Length (in) | 248.02 |
| Effective Length (mm) | 6.3 |
| Notched | true |
| Outside Circumference (in) | 49.84 |
| Outside Circumference (mm) | 1266 |
| Pitch Length (in) | 48.666 |
| Pitch Length (mm) | 1236 |
| Pitch Width (in) | 1.406 |
| Pitch Width (mm) | 36 |
| Number of Ribs | 2 |
| Strand | 2 |
| Top Width (in) | 1.482 |
| Top Width (mm) | 38 |
| Angle. | 26 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 8.8 |
48R4867
No variation attributes.
48R4867
| Double Notch | true |
|---|---|
| Effective Length (mm) | 1266 |
| Notched | true |
| Outside Circumference (in) | 49.84 |
| Outside Circumference (mm) | 1236 |
| Pitch Length (in) | 48.66 |
| Pitch Length (mm) | 1236 |
| Pitch Width (in) | 1.42 |
| Pitch Width (mm) | 36 |
| Section | RVS-R |
| Top Width (in) | 1.46 |
| Top Width (mm) | 37 |
| Angle. | 36 |
| Thickness (in) | 0.63 |
| Thickness (mm) | 15.9 |
| Application Type | PowerSports |
| Color | BLACK |
| Material | EE |
| Weight (lbs.) | 1.43 |
48R4867
No variation attributes.
49R3982
| Effective Length (mm) | 1099 |
|---|---|
| Notched | true |
| Outside Circumference (in) | 40.995 |
| Outside Circumference (mm) | 1041.3 |
| Pitch Length (in) | 39.820999999999998 |
| Pitch Length (mm) | 1011.5 |
| Pitch Width (in) | 1.409 |
| Pitch Width (mm) | 36 |
| Section | RVS-R |
| Top Width (in) | 1.491 |
| Top Width (mm) | 38 |
| Angle. | 28 |
| Thickness (in) | 0.58199999999999996 |
| Thickness (mm) | 14.8 |
| Color | BLACK |
| Construction | Double Notched |
| Material | EPDM |
49R3982
| Cross Section | 3V |
|---|---|
| Top Width Per Strand (in) | 0.359 |
| Top Width Per Strand (mm) | 9 |
| Effective Length (in) | 70.13 |
| Effective Length (mm) | 1781 |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 22 |
| Section | 3V |
| Strand | 22 |
| Top Width (in) | 8.9 |
| Top Width (mm) | 226 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 9.68 |
49R3982
| Cross Section | B |
|---|---|
| Top Width Per Strand (in) | 0.656 |
| Top Width Per Strand (mm) | 17 |
| Effective Length (in) | 118 |
| Effective Length (mm) | 2.997 |
| Notched | true |
| Pitch Length (in) | 39.821 |
| Pitch Length (mm) | 1011.5 |
| Pitch Width (in) | 1.409 |
| Pitch Width (mm) | 36 |
| Number of Ribs | 4 |
| Strand | 4 |
| Top Width (in) | 2.91 |
| Top Width (mm) | 73.9 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.357 |
49R4266
No variation attributes.
49R4266
No variation attributes.
49R4313
| Cross Section | B |
|---|---|
| Top Width Per Strand (in) | 0.656 |
| Top Width Per Strand (mm) | 17 |
| Effective Length (in) | 73.8 |
| Effective Length (mm) | 1.875 |
| Notched | true |
| Pitch Length (in) | 43.13 |
| Pitch Length (mm) | 1095.5 |
| Pitch Width (in) | 1.409 |
| Pitch Width (mm) | 35.79 |
| Number of Ribs | 4 |
| Strand | 4 |
| Top Width (in) | 2.91 |
| Top Width (mm) | 73.9 |
| Angle. | 36 |
| Thickness (in) | 0.39 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for drives where single belts vibrate, turn over or jump off the drive. |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves (B, C, D) |
| Belt Notes | Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example; 5/B66 represents a B66 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 90925066 represents an "A" section PowerBand® (9092) with 5 strands (5) that is 66.0 inches (066) long. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.1 |
49R4313
No variation attributes.
49R4368
| Cross Section | BX |
|---|---|
| Effective Length (in) | 87.93 |
| Effective Length (mm) | 2.233 |
| Notched | true |
| Outside Circumference (in) | 44.854 |
| Outside Circumference (mm) | 1139 |
| Pitch Length (in) | 43.68 |
| Pitch Length (mm) | 1109.5 |
| Pitch Width (in) | 1.413 |
| Pitch Width (mm) | 35.9 |
| Top Width (in) | 1.49 |
| Top Width (mm) | 38 |
| Angle. | 26 |
| Thickness (in) | 0.627 |
| Thickness (mm) | 15.9 |
| Material | Gates Ethylene Compound |
| Customer Pack | 30 |
| Weight (lbs.) | 0.85 |
49R4368
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 27.68 |
| Effective Length (mm) | 703 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Section | 3L |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.099 |
49R4368
No variation attributes.
50R4289
| Cross Section | 5MJB |
|---|---|
| Top Width Per Strand (in) | 0.1875 |
| Top Width Per Strand (mm) | 5 |
| Effective Length (in) | 44.09 |
| Effective Length (mm) | 1.12 |
| Notched | true |
| Pitch Length (in) | 42.893 |
| Pitch Length (mm) | 1089.5 |
| Pitch Width (in) | 1.425 |
| Pitch Width (mm) | 36.2 |
| Number of Ribs | 5 |
| Strand | 5 |
| Top Width (in) | 0.2 |
| Top Width (mm) | 5 |
| Angle. | 60 |
| Thickness (in) | 0.13 |
| Thickness (mm) | 3.3 |
| Markets/Applications | Use in place of Polyflex® singles on drives requiring joined sets. A partial listing of applications includes machine tools, computer peripherals, medical equipment, library equipment, small appliances, blower drives and dough mixers. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Polyurethane. Cord Material is Polyester |
| Recommended For | Contact the Gates Made-To-Order Metals Team. |
| Belt Notes | Manufacturing lead times and minimum order quantities may apply to matched sets and to rib configurations other than those listed. Minimum order quantities do not apply for belt lengths listed. Contact Customer Service for details. Polyflex® JB® Belts are available in 3M, 5M, 7M, and 11M cross sections. The Polyflex® JB® belt part number is comprised of the number of belt strands, cross section, effective length and the "JB" signifying joined band construction. For example; part number 3/5M1000JB represents 3 strands joined together, 5mm top width for each belt strand, effective length of 1000mm and joined band (JB) construction. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.045 |
50R4289
No variation attributes.
Specifications
| Cross Section | RVS-I, XPZ, 5V, HC50, BX, 7MJB, +21 more |
|---|---|
| Effective Length (in) | 22.75 – 543 |
| Effective Length (mm) | 1.021 – 8832 |
| Notched | true, false |
| Outside Circumference (in) | 28 – 543.5 |
| Outside Circumference (mm) | 4.654 – 8839 |
| Pitch Length (in) | 36.358 – 52.91 |
| Pitch Length (mm) | 923.5 – 1344 |
| Section | RVS-I, XPZ, 5V, RVS-R, 3VP, 8V, +9 more |
| Top Width (in) | 0.2 – 12.25 |
| Top Width (mm) | 5 – 311.2 |
| Angle. | 24 – 60 |
| Thickness (in) | 0.13 – 0.98 |
| Thickness (mm) | 3.3 – 25 |
| Markets/Applications | Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives., Excellent for textile mills, machine tool and food processing applications., Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive., Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical., Use in place of Polyflex® singles on drives requiring joined sets. A partial listing of applications includes machine tools, computer peripherals, medical equipment, library equipment, small appliances, blower drives and dough mixers., Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations., +6 more |
| Color | Black, Brown, BLACK, Green |
| Construction | Banded, Bandless, Double Notched |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester, Belt Material is Ethylene Elastomeric. Cord Material is Polyester, Belt Material is Polyurethane. Cord Material is Polyester, Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid, EPDM, Belt Material is SBR. Cord Material is Polyester, +4 more |
| Recommended For | Contact the Gates Made-To-Order Metals Team., Super HC® Sheaves, Multi-Duty® Sheaves (B, C), Super HC® Sheaves as recommended by DesignFlex® Pro™ drive analysis., Multi-Duty® Sheaves, Multi-Duty® Sheaves (B, C, D), +1 more |
| Belt Notes | HV in the part number denotes Heavy Construction, which has a thickness of .700+., Classical cross sections include 10X, 13X, and 17X. Metric Power™ belts are molded notch construction in lengths 3,000mm and under. Metric Power™ belts are banded construction in lengths over 3,000mm. Narrow cross sections include: XPZ/SPZ, XPA/SPA, XPB/SPB, and XPC/SPC., Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3V800 represents a 3V800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 93855080 represents a "3V" section PowerBand® (9385) with 5 strands (5) that is 80.0 inches (080) long., For example, 90983063 represents a "BX" section PowerBand® (9098) with 3 strands (3) that is 63.0 inches (063) long., Manufacturing lead times and minimum order quantities may apply to matched sets and to rib configurations other than those listed. Minimum order quantities do not apply for belt lengths listed. Contact Customer Service for details. Polyflex® JB® Belts are available in 3M, 5M, 7M, and 11M cross sections. The Polyflex® JB® belt part number is comprised of the number of belt strands, cross section, effective length and the "JB" signifying joined band construction. For example; part number 3/5M1000JB represents 3 strands joined together, 5mm top width for each belt strand, effective length of 1000mm and joined band (JB) construction., Belt part number is constructed by placing the (#) number of strands required followed by a slash (/) in front of the belt size. For example, 5/3VP800 represents a 3VP800 with 5 joined strands. Belt product number is 8 or 9 digits constructed of product series prefix, number of strands, and belt length. For example, 91805080 represents a "3VP" section PowerBand® (9180) with 5 strands (5) that is 80.0 inches (080) long. Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® PowerBand® belt sets, request same group/match number., +8 more |
| Customer Pack | 1 – 1980 |
| Weight (lbs.) | 0.045 – 92.13 |
| Inside Circumference (in) | 38 – 540 |
| Inside Circumference (mm) | 965 – 13716 |
| Number of Ribs | 1 – 24 |
| Top Width Per Strand (in) | 0.1875 – 1.304 |
| Top Width Per Strand (mm) | 5 – 33 |
| Strand | 2 – 24 |
| Size Range/Availability | Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: 3V (45 to 220 inch), 5V (50 to 660 inch) and 8V (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time., Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: CP (80 to 400 inch), 3VP (45 to 220 inch), 5VP (50 to 660 inch) and 8VP (100 to 660 inch). Check with Customer Service for minimum order quantity and manufacturing lead time., Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. Made-To-Order Belt Lengths are available in any size from: A (38 to 212 inch), B (35 to 663 inch), C (56 to 662 inch) and D (126 to 665 inch). Check with Customer Service for minimum order quantity and manufacturing lead time., Belt Slitters located onsite at several Gates Service Centers can cut down an existing belt in inventory to the strand width needed. Large Inventory of standard lengths and widths are readily available. See sizing table for details. |
| Pitch Width (in) | 1.134 – 1.425 |
| Pitch Width (mm) | 28.8 – 37.5 |
| WARNING | Do NOT use with backside idlers. |
| Angle Code | E |
| Belt Nominal E.L. (in) | 45.50 – 46.09 |
| Category | Snowmobile V-Belts (Standard), Automotive V-Ribbed Belts |
| Double Notch | true |
| Application Type | PowerSports |
| Inside Length (in) | 38 |
PDF Documents
No PDF documents.
