Attributes
| Part Number | 8819-000000-000000 |
|---|
Description

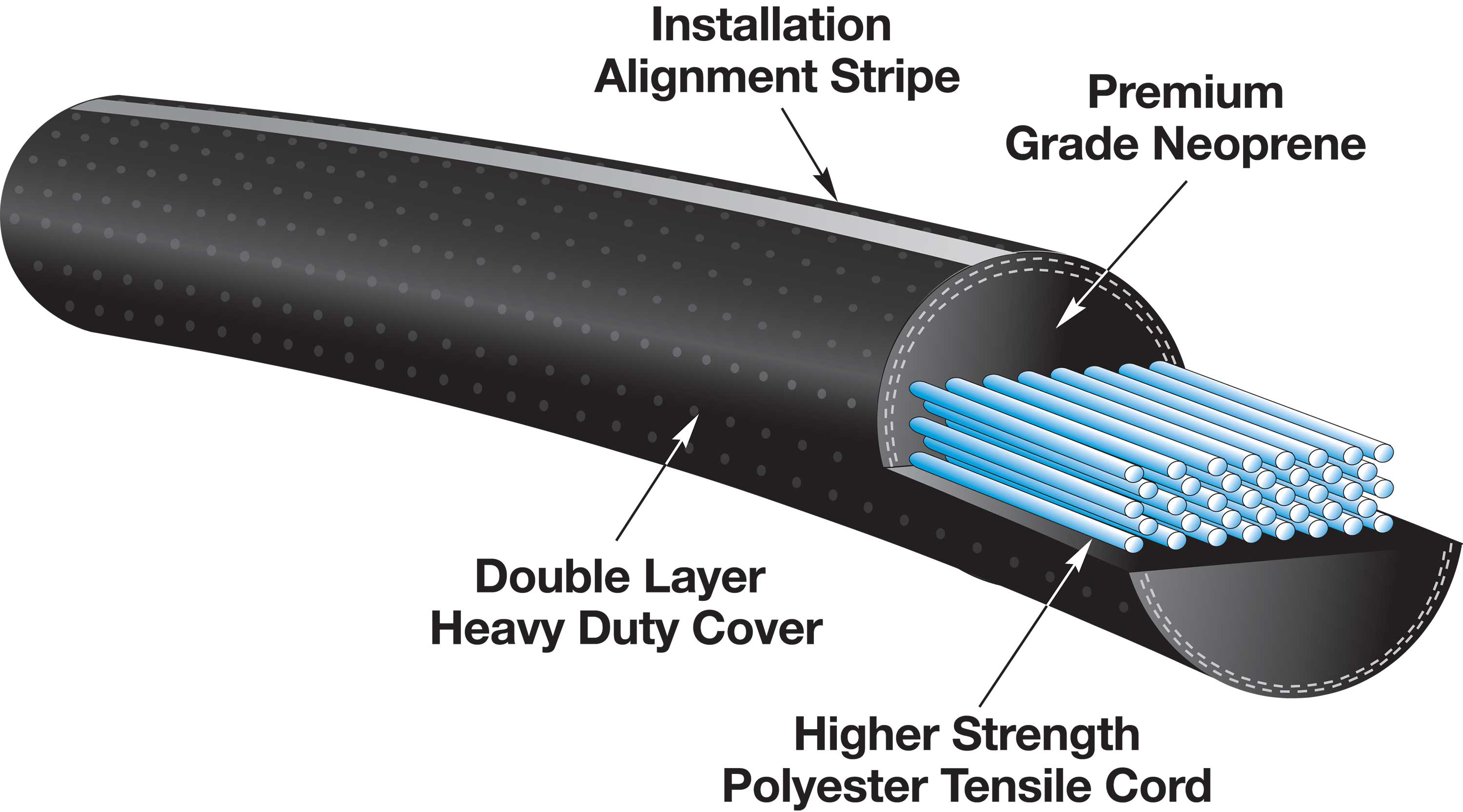

Power Round™ Belts Flex-bonded cords are chemically forged to the belt body, providing equal load distribution and bending stress absorption without cord deterioration.
Variations (13)
9 X 155 PR
| Belt Nominal E.L. (in) | 155 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 155 |
| Inside Circumference (mm) | 3937 |
| Effective Length (in) | 155 |
| Effective Length (mm) | 3937 |
| Outside Circumference (in) | 159 |
| Outside Circumference (mm) | 4039 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 25 |
| Weight (lbs.) | 2.2 |
9 X 190 PR
| Belt Nominal E.L. (in) | 190 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 190 |
| Inside Circumference (mm) | 4826 |
| Effective Length (in) | 190 |
| Effective Length (mm) | 4826 |
| Outside Circumference (in) | 194 |
| Outside Circumference (mm) | 4928 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 20 |
| Weight (lbs.) | 2.69 |
9 X 200 PR
| Belt Nominal E.L. (in) | 200 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 200 |
| Inside Circumference (mm) | 5080 |
| Effective Length (in) | 200 |
| Effective Length (mm) | 5080 |
| Outside Circumference (in) | 204 |
| Outside Circumference (mm) | 5182 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 15 |
| Weight (lbs.) | 2.83 |
9 X 210 PR
| Belt Nominal E.L. (in) | 210 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 210 |
| Inside Circumference (mm) | 5334 |
| Effective Length (in) | 210 |
| Effective Length (mm) | 5334 |
| Outside Circumference (in) | 214 |
| Outside Circumference (mm) | 5436 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 15 |
| Weight (lbs.) | 2.97 |
9 X 233 PR
| Belt Nominal E.L. (in) | 233 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 233 |
| Inside Circumference (mm) | 5918 |
| Effective Length (in) | 233 |
| Effective Length (mm) | 5918 |
| Outside Circumference (in) | 237 |
| Outside Circumference (mm) | 6020 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 15 |
| Weight (lbs.) | 3.29 |
9 X 250 PR
| Belt Nominal E.L. (in) | 250 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 250 |
| Inside Circumference (mm) | 6350 |
| Effective Length (in) | 250 |
| Effective Length (mm) | 6350 |
| Outside Circumference (in) | 254 |
| Outside Circumference (mm) | 6452 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 15 |
| Weight (lbs.) | 3.53 |
9 X 270 PR
| Belt Nominal E.L. (in) | 270 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 270 |
| Inside Circumference (mm) | 6858 |
| Effective Length (in) | 270 |
| Effective Length (mm) | 6858 |
| Outside Circumference (in) | 274 |
| Outside Circumference (mm) | 6960 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 15 |
| Weight (lbs.) | 3.81 |
9 X 308 PR
| Belt Nominal E.L. (in) | 308 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 308 |
| Inside Circumference (mm) | 7823 |
| Effective Length (in) | 308 |
| Effective Length (mm) | 7823 |
| Outside Circumference (in) | 312 |
| Outside Circumference (mm) | 7925 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 10 |
| Weight (lbs.) | 4.34 |
9 X 345 PR
| Belt Nominal E.L. (in) | 345 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 345 |
| Inside Circumference (mm) | 8763 |
| Effective Length (in) | 345 |
| Effective Length (mm) | 8763 |
| Outside Circumference (in) | 349 |
| Outside Circumference (mm) | 8865 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 10 |
| Weight (lbs.) | 4.86 |
9 X 386 PR
| Belt Nominal E.L. (in) | 386 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 386 |
| Inside Circumference (mm) | 9804 |
| Effective Length (in) | 386 |
| Effective Length (mm) | 9804 |
| Outside Circumference (in) | 390 |
| Outside Circumference (mm) | 9906 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 10 |
| Weight (lbs.) | 5.43 |
9 X 416 PR
| Belt Nominal E.L. (in) | 416 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 416 |
| Inside Circumference (mm) | 10566 |
| Effective Length (in) | 416 |
| Effective Length (mm) | 10566 |
| Outside Circumference (in) | 420 |
| Outside Circumference (mm) | 10668 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 10 |
| Weight (lbs.) | 5.85 |
9 X 447 PR
| Belt Nominal E.L. (in) | 447 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 447 |
| Inside Circumference (mm) | 11354 |
| Effective Length (in) | 447 |
| Effective Length (mm) | 11354 |
| Outside Circumference (in) | 451 |
| Outside Circumference (mm) | 11455 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 5 |
| Weight (lbs.) | 6.29 |
9 X 564 PR
| Belt Nominal E.L. (in) | 564 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 564 |
| Inside Circumference (mm) | 14326 |
| Effective Length (in) | 564 |
| Effective Length (mm) | 14326 |
| Outside Circumference (in) | 568 |
| Outside Circumference (mm) | 14427 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 5 |
| Weight (lbs.) | 7.93 |
Specifications
| Belt Nominal E.L. (in) | 155 – 564 |
|---|---|
| Cross Section | ROUND |
| Inside Circumference (in) | 155 – 564 |
| Inside Circumference (mm) | 3937 – 14326 |
| Effective Length (in) | 155 – 564 |
| Effective Length (mm) | 3937 – 14326 |
| Outside Circumference (in) | 159 – 568 |
| Outside Circumference (mm) | 4039 – 14427 |
| Top Width (in) | 0.56 |
| Top Width (mm) | 14 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Customer Pack | 5 – 25 |
| Weight (lbs.) | 2.2 – 7.93 |
