Attributes
| Part Number | 8620-000000-000000 |
|---|
Description

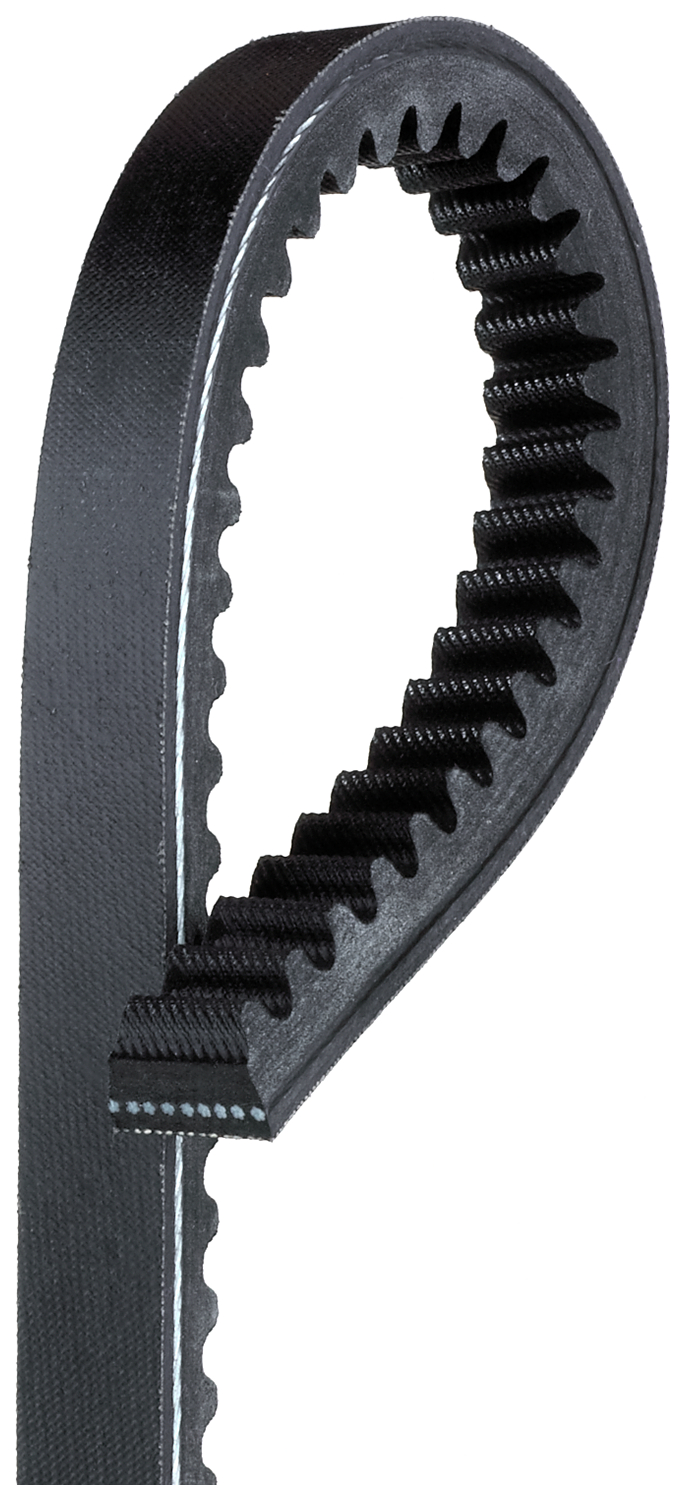

Truck Belts Specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to belt. Its deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool. Special notch design resists cracking while providing tensile member support during operation. Special tensile cords give high stretch resistance. Oil and heat-resistant construction throughout. Meets SAE J636b and SAE J637 specifications.
Variations (136)
TR24489
No variation attributes.
TR28575
No variation attributes.
TR30428
No variation attributes.
TR20412
| Cross Section | S |
|---|---|
| Effective Length (in) | 41.16 |
| Effective Length (mm) | 1045 |
| Notched | true |
| Outside Circumference (in) | 41.625 |
| Outside Circumference (mm) | 1057 |
| Strand | 1 |
| Top Width (in) | 0.604 |
| Top Width (mm) | 15 |
| Angle. | 30 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.4 |
TR20426
| Cross Section | S |
|---|---|
| Effective Length (in) | 42.59 |
| Effective Length (mm) | 1082 |
| Notched | true |
| Outside Circumference (in) | 42.99 |
| Outside Circumference (mm) | 1092 |
| Strand | 1 |
| Top Width (in) | 0.604 |
| Top Width (mm) | 15 |
| Angle. | 30 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.45 |
TR20451
| Cross Section | S |
|---|---|
| Effective Length (in) | 45.07 |
| Effective Length (mm) | 1145 |
| Notched | true |
| Outside Circumference (in) | 45.47 |
| Outside Circumference (mm) | 1155 |
| Strand | 1 |
| Top Width (in) | 0.604 |
| Top Width (mm) | 15 |
| Angle. | 30 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.48 |
TR20544
| Cross Section | S |
|---|---|
| Effective Length (in) | 54.34 |
| Effective Length (mm) | 1380 |
| Notched | true |
| Outside Circumference (in) | 54.73 |
| Outside Circumference (mm) | 1390 |
| Strand | 1 |
| Top Width (in) | 0.604 |
| Top Width (mm) | 15 |
| Angle. | 30 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 67 |
| Weight (lbs.) | 0.6 |
TR20619
| Cross Section | S |
|---|---|
| Effective Length (in) | 62 |
| Effective Length (mm) | 1575 |
| Notched | true |
| Outside Circumference (in) | 62.4 |
| Outside Circumference (mm) | 1585 |
| Strand | 1 |
| Top Width (in) | 0.604 |
| Top Width (mm) | 15 |
| Angle. | 30 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.66 |
TR22299
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 29.9 |
| Effective Length (mm) | 759 |
| Notched | true |
| Outside Circumference (in) | 30.5 |
| Outside Circumference (mm) | 774 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.42 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.31 |
TR22322
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 32.2 |
| Effective Length (mm) | 818 |
| Notched | true |
| Outside Circumference (in) | 32.75 |
| Outside Circumference (mm) | 833 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.34 |
TR22329
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 32.89 |
| Effective Length (mm) | 835 |
| Notched | true |
| Outside Circumference (in) | 33.47 |
| Outside Circumference (mm) | 850 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.34 |
TR22336
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 33.6 |
| Effective Length (mm) | 853 |
| Notched | true |
| Outside Circumference (in) | 34.18 |
| Outside Circumference (mm) | 868 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.35 |
TR22344
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 34.31 |
| Effective Length (mm) | 871 |
| Notched | true |
| Outside Circumference (in) | 34.89 |
| Outside Circumference (mm) | 886 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.36 |
TR22350
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 35.07 |
| Effective Length (mm) | 891 |
| Notched | true |
| Outside Circumference (in) | 35.7 |
| Outside Circumference (mm) | 906.8 |
| Number of Ribs | 0 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Color | BLACK |
| Material | EPDM |
| Customer Pack | 90 |
| Weight (lbs.) | 0.37 |
TR22358
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 35.88 |
| Effective Length (mm) | 911 |
| Notched | true |
| Outside Circumference (in) | 36.46 |
| Outside Circumference (mm) | 926 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.38 |
TR22363
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 36.29 |
| Effective Length (mm) | 922 |
| Notched | true |
| Outside Circumference (in) | 36.87 |
| Outside Circumference (mm) | 937 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.38 |
TR22373
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 37.36 |
| Effective Length (mm) | 949 |
| Notched | true |
| Outside Circumference (in) | 37.94 |
| Outside Circumference (mm) | 964 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.38 |
TR22380
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 37.98 |
| Effective Length (mm) | 965 |
| Notched | true |
| Outside Circumference (in) | 38.56 |
| Outside Circumference (mm) | 980 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.4 |
TR22386
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 38.53 |
| Effective Length (mm) | 979 |
| Notched | true |
| Outside Circumference (in) | 39.11 |
| Outside Circumference (mm) | 993 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.4 |
TR22392
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 39.19 |
| Effective Length (mm) | 995 |
| Notched | true |
| Outside Circumference (in) | 39.77 |
| Outside Circumference (mm) | 1010 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 105 |
| Weight (lbs.) | 0.4 |
TR22397
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 39.67 |
| Effective Length (mm) | 1008 |
| Notched | true |
| Outside Circumference (in) | 40.25 |
| Outside Circumference (mm) | 1022 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.41 |
TR22401
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 39.99 |
| Effective Length (mm) | 1016 |
| Notched | true |
| Outside Circumference (in) | 40.57 |
| Outside Circumference (mm) | 1031 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.42 |
TR22405
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 40.55 |
| Effective Length (mm) | 1030 |
| Notched | true |
| Outside Circumference (in) | 41.13 |
| Outside Circumference (mm) | 1045 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.42 |
TR22410
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 40.99 |
| Effective Length (mm) | 1041 |
| Notched | true |
| Outside Circumference (in) | 41.57 |
| Outside Circumference (mm) | 1056 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.43 |
TR22416
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 41.66 |
| Effective Length (mm) | 1058 |
| Notched | true |
| Outside Circumference (in) | 42.24 |
| Outside Circumference (mm) | 1073 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.44 |
TR22425
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 42.53 |
| Effective Length (mm) | 1080 |
| Notched | true |
| Outside Circumference (in) | 43.11 |
| Outside Circumference (mm) | 1095 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.44 |
TR22434
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 43.39 |
| Effective Length (mm) | 1102 |
| Notched | true |
| Outside Circumference (in) | 44.04 |
| Outside Circumference (mm) | 1118.5 |
| Number of Ribs | 0 |
| Top Width (in) | 0.67 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Color | BLACK |
| Material | EPDM |
| Customer Pack | 90 |
| Weight (lbs.) | 0.45 |
TR22443
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 44.25 |
| Effective Length (mm) | 1124 |
| Notched | true |
| Outside Circumference (in) | 44.83 |
| Outside Circumference (mm) | 1139 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.47 |
TR22448
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 44.75 |
| Effective Length (mm) | 1137 |
| Notched | true |
| Outside Circumference (in) | 45.33 |
| Outside Circumference (mm) | 1151 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.47 |
TR22455
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 45.52 |
| Effective Length (mm) | 1156 |
| Notched | true |
| Outside Circumference (in) | 46.1 |
| Outside Circumference (mm) | 1171 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.48 |
TR22461
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 46.02 |
| Effective Length (mm) | 1169 |
| Notched | true |
| Outside Circumference (in) | 46.6 |
| Outside Circumference (mm) | 1185 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.48 |
TR22474
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 47.35 |
| Effective Length (mm) | 1203 |
| Notched | true |
| Outside Circumference (in) | 47.93 |
| Outside Circumference (mm) | 1218 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.49 |
TR22485
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 48.52 |
| Effective Length (mm) | 1232 |
| Notched | true |
| Outside Circumference (in) | 49.1 |
| Outside Circumference (mm) | 1247 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.51 |
TR22495
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 49.52 |
| Effective Length (mm) | 1258 |
| Notched | true |
| Outside Circumference (in) | 50.1 |
| Outside Circumference (mm) | 1273 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.51 |
TR22508
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 50.84 |
| Effective Length (mm) | 1291 |
| Notched | true |
| Outside Circumference (in) | 51.42 |
| Outside Circumference (mm) | 1306 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.54 |
TR22517
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 51.85 |
| Effective Length (mm) | 1317 |
| Notched | true |
| Outside Circumference (in) | 52.5 |
| Outside Circumference (mm) | 1334 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.53 |
TR22525
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 52.51 |
| Effective Length (mm) | 1334 |
| Notched | true |
| Outside Circumference (in) | 53.09 |
| Outside Circumference (mm) | 1349 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.54 |
TR22534
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 53.33 |
| Effective Length (mm) | 1355 |
| Notched | true |
| Outside Circumference (in) | 53.91 |
| Outside Circumference (mm) | 1369 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.54 |
TR22545
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 54.5 |
| Effective Length (mm) | 1384 |
| Notched | true |
| Outside Circumference (in) | 55.08 |
| Outside Circumference (mm) | 1399 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.56 |
TR22553
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 55.33 |
| Effective Length (mm) | 1405 |
| Notched | true |
| Outside Circumference (in) | 55.91 |
| Outside Circumference (mm) | 1420 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.56 |
TR22570
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 56.99 |
| Effective Length (mm) | 1448 |
| Notched | true |
| Outside Circumference (in) | 57.57 |
| Outside Circumference (mm) | 1462 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.54 |
TR22578
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 57.65 |
| Effective Length (mm) | 1464 |
| Notched | true |
| Outside Circumference (in) | 58.23 |
| Outside Circumference (mm) | 1479 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.55 |
TR22588
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 58.82 |
| Effective Length (mm) | 1494 |
| Notched | true |
| Outside Circumference (in) | 59.4 |
| Outside Circumference (mm) | 1509 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.56 |
TR22607
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 60.71 |
| Effective Length (mm) | 1542 |
| Notched | true |
| Outside Circumference (in) | 61.29 |
| Outside Circumference (mm) | 1556 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 70 |
| Weight (lbs.) | 0.62 |
TR22625
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 62.48 |
| Effective Length (mm) | 1587 |
| Notched | true |
| Outside Circumference (in) | 63.06 |
| Outside Circumference (mm) | 1602 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.65 |
TR22635
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 63.48 |
| Effective Length (mm) | 1612 |
| Notched | true |
| Outside Circumference (in) | 64.06 |
| Outside Circumference (mm) | 1627 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.66 |
TR22648
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 64.71 |
| Effective Length (mm) | 1644 |
| Notched | true |
| Outside Circumference (in) | 65.29 |
| Outside Circumference (mm) | 1658 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.67 |
TR22657
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 65.64 |
| Effective Length (mm) | 1667 |
| Notched | true |
| Outside Circumference (in) | 66.22 |
| Outside Circumference (mm) | 1682 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.68 |
TR22664
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 66.46 |
| Effective Length (mm) | 1688 |
| Notched | true |
| Outside Circumference (in) | 67.04 |
| Outside Circumference (mm) | 1703 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.68 |
TR22676
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 67.46 |
| Effective Length (mm) | 1713 |
| Notched | true |
| Outside Circumference (in) | 68.04 |
| Outside Circumference (mm) | 1728 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.69 |
TR22692
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 69.2 |
| Effective Length (mm) | 1758 |
| Notched | true |
| Outside Circumference (in) | 69.78 |
| Outside Circumference (mm) | 1773 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.72 |
TR22720
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 72.03 |
| Effective Length (mm) | 1830 |
| Notched | true |
| Outside Circumference (in) | 72.61 |
| Outside Circumference (mm) | 1844 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.75 |
TR22752
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 75.16 |
| Effective Length (mm) | 1909 |
| Notched | true |
| Outside Circumference (in) | 75.74 |
| Outside Circumference (mm) | 1924 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 45 |
| Weight (lbs.) | 0.78 |
TR22792
| Cross Section | 15A |
|---|---|
| Effective Length (in) | 79 |
| Effective Length (mm) | 2007 |
| Notched | true |
| Outside Circumference (in) | 79.58 |
| Outside Circumference (mm) | 2021 |
| Strand | 1 |
| Top Width (in) | 0.594 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 40 |
| Weight (lbs.) | 0.82 |
TR24281
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 28.08 |
| Effective Length (mm) | 713 |
| Notched | true |
| Outside Circumference (in) | 28.66 |
| Outside Circumference (mm) | 728 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.33 |
TR24308
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 30.87 |
| Effective Length (mm) | 784 |
| Notched | true |
| Outside Circumference (in) | 31.45 |
| Outside Circumference (mm) | 799 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 110 |
| Weight (lbs.) | 0.36 |
TR24315
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 31.37 |
| Effective Length (mm) | 797 |
| Notched | true |
| Outside Circumference (in) | 31.95 |
| Outside Circumference (mm) | 812 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 105 |
| Weight (lbs.) | 0.36 |
TR24355
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 35.56 |
| Effective Length (mm) | 903 |
| Notched | true |
| Outside Circumference (in) | 36.14 |
| Outside Circumference (mm) | 918 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.41 |
TR24365
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 36.53 |
| Effective Length (mm) | 928 |
| Notched | true |
| Outside Circumference (in) | 37.11 |
| Outside Circumference (mm) | 943 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.43 |
TR24379
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 37.85 |
| Effective Length (mm) | 961 |
| Notched | true |
| Outside Circumference (in) | 38.5 |
| Outside Circumference (mm) | 978 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.44 |
TR24400
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 40.05 |
| Effective Length (mm) | 1017 |
| Notched | true |
| Outside Circumference (in) | 40.63 |
| Outside Circumference (mm) | 1032 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.46 |
TR24407
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 40.64 |
| Effective Length (mm) | 1032 |
| Notched | true |
| Outside Circumference (in) | 41.22 |
| Outside Circumference (mm) | 1047 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.47 |
TR24424
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 42.34 |
| Effective Length (mm) | 1075 |
| Notched | true |
| Outside Circumference (in) | 42.92 |
| Outside Circumference (mm) | 1090 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.49 |
TR24438
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 43.75 |
| Effective Length (mm) | 1111 |
| Notched | true |
| Outside Circumference (in) | 44.33 |
| Outside Circumference (mm) | 1126 |
| Number of Ribs | 0 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Color | BLACK |
| Material | EPDM |
| Customer Pack | 75 |
| Weight (lbs.) | 0.5 |
TR24449
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 45 |
| Effective Length (mm) | 1143 |
| Notched | true |
| Outside Circumference (in) | 45.58 |
| Outside Circumference (mm) | 1158 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.52 |
TR24457
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 45.64 |
| Effective Length (mm) | 1159 |
| Notched | true |
| Outside Circumference (in) | 46.22 |
| Outside Circumference (mm) | 1174 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.53 |
TR24461
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 46 |
| Effective Length (mm) | 1168 |
| Notched | true |
| Outside Circumference (in) | 46.58 |
| Outside Circumference (mm) | 1183 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.53 |
TR24465
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 46.47 |
| Effective Length (mm) | 1180 |
| Notched | true |
| Outside Circumference (in) | 47.05 |
| Outside Circumference (mm) | 1195 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.55 |
TR24476
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 47.63 |
| Effective Length (mm) | 1210 |
| Notched | true |
| Outside Circumference (in) | 48.21 |
| Outside Circumference (mm) | 1225 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
TR24500
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 49.99 |
| Effective Length (mm) | 1270 |
| Notched | true |
| Outside Circumference (in) | 50.57 |
| Outside Circumference (mm) | 1285 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 55 |
| Weight (lbs.) | 0.59 |
TR24515
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 51.31 |
| Effective Length (mm) | 1303 |
| Notched | true |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1320 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.58 |
TR24530
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 53.03 |
| Effective Length (mm) | 1347 |
| Notched | true |
| Outside Circumference (in) | 53.61 |
| Outside Circumference (mm) | 1362 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.6 |
TR24538
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 53.71 |
| Effective Length (mm) | 1364 |
| Notched | true |
| Outside Circumference (in) | 54.375 |
| Outside Circumference (mm) | 1380 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.63 |
TR24562
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 56.02 |
| Effective Length (mm) | 1423 |
| Notched | true |
| Outside Circumference (in) | 56.6 |
| Outside Circumference (mm) | 1438 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.59 |
TR24578
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 57.7 |
| Effective Length (mm) | 1466 |
| Notched | true |
| Outside Circumference (in) | 58.28 |
| Outside Circumference (mm) | 1480 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.66 |
TR24597
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 59.69 |
| Effective Length (mm) | 1516 |
| Notched | true |
| Outside Circumference (in) | 60.27 |
| Outside Circumference (mm) | 1530 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.69 |
TR24619
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 61.97 |
| Effective Length (mm) | 1574 |
| Notched | true |
| Outside Circumference (in) | 62.55 |
| Outside Circumference (mm) | 1589 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.71 |
TR24638
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 63.62 |
| Effective Length (mm) | 1616 |
| Notched | true |
| Outside Circumference (in) | 64.2 |
| Outside Circumference (mm) | 1631 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.74 |
TR24647
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 64.69 |
| Effective Length (mm) | 1643 |
| Notched | true |
| Outside Circumference (in) | 65.27 |
| Outside Circumference (mm) | 1658 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.75 |
TR24664
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 66.43 |
| Effective Length (mm) | 1687 |
| Notched | true |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.77 |
TR24688
| Cross Section | 17A |
|---|---|
| Effective Length (in) | 68.68 |
| Effective Length (mm) | 1744 |
| Notched | true |
| Outside Circumference (in) | 69.26 |
| Outside Circumference (mm) | 1759 |
| Strand | 1 |
| Top Width (in) | 0.656 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Customer Pack | 45 |
| Weight (lbs.) | 0.8 |
TR26353
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 35.36 |
| Effective Length (mm) | 898 |
| Notched | true |
| Outside Circumference (in) | 35.94 |
| Outside Circumference (mm) | 913 |
| Strand | 1 |
| Top Width (in) | 0.729 |
| Top Width (mm) | 19 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.5 |
TR26366
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 36.71 |
| Effective Length (mm) | 932 |
| Notched | true |
| Outside Circumference (in) | 37.125 |
| Outside Circumference (mm) | 945 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.51 |
TR28333
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 33.24 |
| Effective Length (mm) | 844 |
| Notched | true |
| Outside Circumference (in) | 33.82 |
| Outside Circumference (mm) | 859 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.5 |
TR28376
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 37.59 |
| Effective Length (mm) | 955 |
| Notched | true |
| Outside Circumference (in) | 38.25 |
| Outside Circumference (mm) | 971 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.56 |
TR28386
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 38.59 |
| Effective Length (mm) | 980 |
| Notched | true |
| Outside Circumference (in) | 39.25 |
| Outside Circumference (mm) | 996 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.58 |
TR28390
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 39.05 |
| Effective Length (mm) | 992 |
| Notched | true |
| Outside Circumference (in) | 39.63 |
| Outside Circumference (mm) | 1007 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.58 |
TR28400
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 40.04 |
| Effective Length (mm) | 1017 |
| Notched | true |
| Outside Circumference (in) | 40.62 |
| Outside Circumference (mm) | 1032 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.6 |
TR28406
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 40.6 |
| Effective Length (mm) | 1031 |
| Notched | true |
| Outside Circumference (in) | 41.18 |
| Outside Circumference (mm) | 1046 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.6 |
TR28412
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 41.24 |
| Effective Length (mm) | 1047 |
| Notched | true |
| Outside Circumference (in) | 41.82 |
| Outside Circumference (mm) | 1062 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.63 |
TR28423
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 42.25 |
| Effective Length (mm) | 1073 |
| Notched | true |
| Outside Circumference (in) | 42.83 |
| Outside Circumference (mm) | 1088 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.64 |
TR28429
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 42.92 |
| Effective Length (mm) | 1090 |
| Notched | true |
| Outside Circumference (in) | 43.5 |
| Outside Circumference (mm) | 1105 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.65 |
TR28437
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 43.72 |
| Effective Length (mm) | 1110 |
| Notched | true |
| Outside Circumference (in) | 44.3 |
| Outside Circumference (mm) | 1125 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.66 |
TR28445
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 44.51 |
| Effective Length (mm) | 1131 |
| Notched | true |
| Outside Circumference (in) | 45.09 |
| Outside Circumference (mm) | 1145 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.67 |
TR28454
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 45.33 |
| Effective Length (mm) | 1151 |
| Notched | true |
| Outside Circumference (in) | 45.91 |
| Outside Circumference (mm) | 1166 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.68 |
TR28463
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 46.25 |
| Effective Length (mm) | 1175 |
| Notched | true |
| Outside Circumference (in) | 46.83 |
| Outside Circumference (mm) | 1190 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.69 |
TR28473
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 47.3 |
| Effective Length (mm) | 1201 |
| Notched | true |
| Outside Circumference (in) | 47.88 |
| Outside Circumference (mm) | 1216 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.71 |
TR28480
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 48.08 |
| Effective Length (mm) | 1221 |
| Notched | true |
| Outside Circumference (in) | 48.66 |
| Outside Circumference (mm) | 1235 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.72 |
TR28483
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 48.25 |
| Effective Length (mm) | 1226 |
| Notched | true |
| Outside Circumference (in) | 48.83 |
| Outside Circumference (mm) | 1240 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 55 |
| Weight (lbs.) | 0.73 |
TR28492
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 49.22 |
| Effective Length (mm) | 1250 |
| Notched | true |
| Outside Circumference (in) | 49.875 |
| Outside Circumference (mm) | 1267 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.75 |
TR28498
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 49.71 |
| Effective Length (mm) | 1263 |
| Notched | true |
| Outside Circumference (in) | 50.29 |
| Outside Circumference (mm) | 1277 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.75 |
TR28501
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 50.25 |
| Effective Length (mm) | 1276 |
| Notched | true |
| Outside Circumference (in) | 50.83 |
| Outside Circumference (mm) | 1291 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.76 |
TR28510
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 51.06 |
| Effective Length (mm) | 1297 |
| Notched | true |
| Outside Circumference (in) | 51.64 |
| Outside Circumference (mm) | 1311 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.77 |
TR28514
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 51.4 |
| Effective Length (mm) | 1306 |
| Notched | true |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1320 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 45 |
| Weight (lbs.) | 0.78 |
TR28522
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 52.24 |
| Effective Length (mm) | 1327 |
| Notched | true |
| Outside Circumference (in) | 52.82 |
| Outside Circumference (mm) | 1342 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.78 |
TR28545
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 54.56 |
| Effective Length (mm) | 1386 |
| Notched | true |
| Outside Circumference (in) | 55.14 |
| Outside Circumference (mm) | 1401 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.81 |
TR28550
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 55.06 |
| Effective Length (mm) | 1399 |
| Notched | true |
| Outside Circumference (in) | 55.64 |
| Outside Circumference (mm) | 1413 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.82 |
TR28557
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 55.72 |
| Effective Length (mm) | 1415 |
| Notched | true |
| Outside Circumference (in) | 56.3 |
| Outside Circumference (mm) | 1430 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.77 |
TR28565
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 56.56 |
| Effective Length (mm) | 1437 |
| Notched | true |
| Outside Circumference (in) | 57.14 |
| Outside Circumference (mm) | 1451 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.78 |
TR28570
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 57.06 |
| Effective Length (mm) | 1449 |
| Notched | true |
| Outside Circumference (in) | 57.64 |
| Outside Circumference (mm) | 1464 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.85 |
TR28583
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 58.25 |
| Effective Length (mm) | 1480 |
| Notched | true |
| Outside Circumference (in) | 58.875 |
| Outside Circumference (mm) | 1495 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.86 |
TR28596
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 59.64 |
| Effective Length (mm) | 1515 |
| Notched | true |
| Outside Circumference (in) | 60.22 |
| Outside Circumference (mm) | 1530 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.88 |
TR28616
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 61.55 |
| Effective Length (mm) | 1563 |
| Notched | true |
| Outside Circumference (in) | 62.25 |
| Outside Circumference (mm) | 1580 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.85 |
TR28628
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 62.78 |
| Effective Length (mm) | 1595 |
| Notched | true |
| Outside Circumference (in) | 63.36 |
| Outside Circumference (mm) | 1609 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.87 |
TR28649
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 64.9 |
| Effective Length (mm) | 1648 |
| Notched | true |
| Outside Circumference (in) | 65.48 |
| Outside Circumference (mm) | 1663 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.9 |
TR28657
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 65.71 |
| Effective Length (mm) | 1669 |
| Notched | true |
| Outside Circumference (in) | 66.29 |
| Outside Circumference (mm) | 1684 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.91 |
TR28680
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 68.09 |
| Effective Length (mm) | 1729 |
| Notched | true |
| Outside Circumference (in) | 68.67 |
| Outside Circumference (mm) | 1744 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 40 |
| Weight (lbs.) | 1.02 |
TR28693
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 69.27 |
| Effective Length (mm) | 1759 |
| Notched | true |
| Outside Circumference (in) | 69.85 |
| Outside Circumference (mm) | 1775 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.96 |
TR28706
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 70.58 |
| Effective Length (mm) | 1793 |
| Notched | true |
| Outside Circumference (in) | 71.16 |
| Outside Circumference (mm) | 1807 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 40 |
| Weight (lbs.) | 1.05 |
TR28733
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 73.24 |
| Effective Length (mm) | 1860 |
| Notched | true |
| Outside Circumference (in) | 73.82 |
| Outside Circumference (mm) | 1875 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 40 |
| Weight (lbs.) | 1.09 |
TR28786
| Cross Section | 20A |
|---|---|
| Effective Length (in) | 78.5 |
| Effective Length (mm) | 1994 |
| Notched | true |
| Outside Circumference (in) | 79.08 |
| Outside Circumference (mm) | 2009 |
| Strand | 1 |
| Top Width (in) | 0.775 |
| Top Width (mm) | 20 |
| Angle. | 36 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.19 |
TR30408
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 40.91 |
| Effective Length (mm) | 1039 |
| Notched | true |
| Outside Circumference (in) | 41.49 |
| Outside Circumference (mm) | 1054 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.69 |
TR30467
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 46.7 |
| Effective Length (mm) | 1186 |
| Notched | true |
| Outside Circumference (in) | 47.28 |
| Outside Circumference (mm) | 1201 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.79 |
TR30484
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 48.39 |
| Effective Length (mm) | 1229 |
| Notched | true |
| Outside Circumference (in) | 48.97 |
| Outside Circumference (mm) | 1244 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.81 |
TR30506
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 50.54 |
| Effective Length (mm) | 1284 |
| Notched | true |
| Outside Circumference (in) | 51.12 |
| Outside Circumference (mm) | 1299 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.84 |
TR30543
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 54.25 |
| Effective Length (mm) | 1378 |
| Notched | true |
| Outside Circumference (in) | 54.83 |
| Outside Circumference (mm) | 1393 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.84 |
TR30624
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 62.35 |
| Effective Length (mm) | 1584 |
| Notched | true |
| Outside Circumference (in) | 62.93 |
| Outside Circumference (mm) | 1599 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 40 |
| Weight (lbs.) | 1.04 |
TR30652
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 65.19 |
| Effective Length (mm) | 1656 |
| Notched | true |
| Outside Circumference (in) | 65.77 |
| Outside Circumference (mm) | 1671 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.11 |
TR30672
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 67.2 |
| Effective Length (mm) | 1707 |
| Notched | true |
| Outside Circumference (in) | 67.78 |
| Outside Circumference (mm) | 1721 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.14 |
TR30710
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 70.98 |
| Effective Length (mm) | 1803 |
| Notched | true |
| Outside Circumference (in) | 71.56 |
| Outside Circumference (mm) | 1818 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.19 |
TR30722
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 72.22 |
| Effective Length (mm) | 1834 |
| Notched | true |
| Outside Circumference (in) | 72.8 |
| Outside Circumference (mm) | 1849 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.21 |
TR30754
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 75.38 |
| Effective Length (mm) | 1915 |
| Notched | true |
| Outside Circumference (in) | 75.75 |
| Outside Circumference (mm) | 1925 |
| Strand | 1 |
| Top Width (in) | 0.875 |
| Top Width (mm) | 22 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.26 |
TR34435
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 43.53 |
| Effective Length (mm) | 1106 |
| Notched | true |
| Outside Circumference (in) | 43.875 |
| Outside Circumference (mm) | 1115 |
| Strand | 1 |
| Top Width (in) | 0.991 |
| Top Width (mm) | 25 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 45 |
| Weight (lbs.) | 0.84 |
TR34495
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 49.53 |
| Effective Length (mm) | 1258 |
| Notched | true |
| Outside Circumference (in) | 49.875 |
| Outside Circumference (mm) | 1265 |
| Strand | 1 |
| Top Width (in) | 0.991 |
| Top Width (mm) | 25 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 0.98 |
TR34604
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 60.54 |
| Effective Length (mm) | 1538 |
| Notched | true |
| Outside Circumference (in) | 61.125 |
| Outside Circumference (mm) | 1553 |
| Strand | 1 |
| Top Width (in) | 0.991 |
| Top Width (mm) | 25 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.16 |
TR34771
| Cross Section | 23A |
|---|---|
| Effective Length (in) | 77.18 |
| Effective Length (mm) | 1960 |
| Notched | true |
| Outside Circumference (in) | 77.75 |
| Outside Circumference (mm) | 1975 |
| Strand | 1 |
| Top Width (in) | 0.991 |
| Top Width (mm) | 25 |
| Angle. | 36 |
| Thickness (in) | 0.5 |
| Thickness (mm) | 13 |
| Customer Pack | 20 |
| Weight (lbs.) | 1.45 |
Specifications
| Cross Section | S, 15A, 17A, 20A, 23A |
|---|---|
| Effective Length (in) | 28.08 – 79 |
| Effective Length (mm) | 713 – 2007 |
| Notched | true |
| Outside Circumference (in) | 28.66 – 79.58 |
| Outside Circumference (mm) | 728 – 2021 |
| Strand | 1 |
| Top Width (in) | 0.594 – 0.991 |
| Top Width (mm) | 15 – 25 |
| Angle. | 30 – 40 |
| Thickness (in) | 0.42 – 0.5 |
| Thickness (mm) | 11 – 13 |
| Customer Pack | 20 – 110 |
| Weight (lbs.) | 0.31 – 1.45 |
| Number of Ribs | 0 |
| Color | BLACK |
| Material | EPDM |
PDF Documents
No PDF documents.
