Coolant Hose

Molded Silicone Coolant Hose

Scraped SKU: 4191-000000-000000 Series: Molded Silicone Coolant Hose 2026-06-21 14:02:18

Attributes

Part Number4191-000000-000000

Description

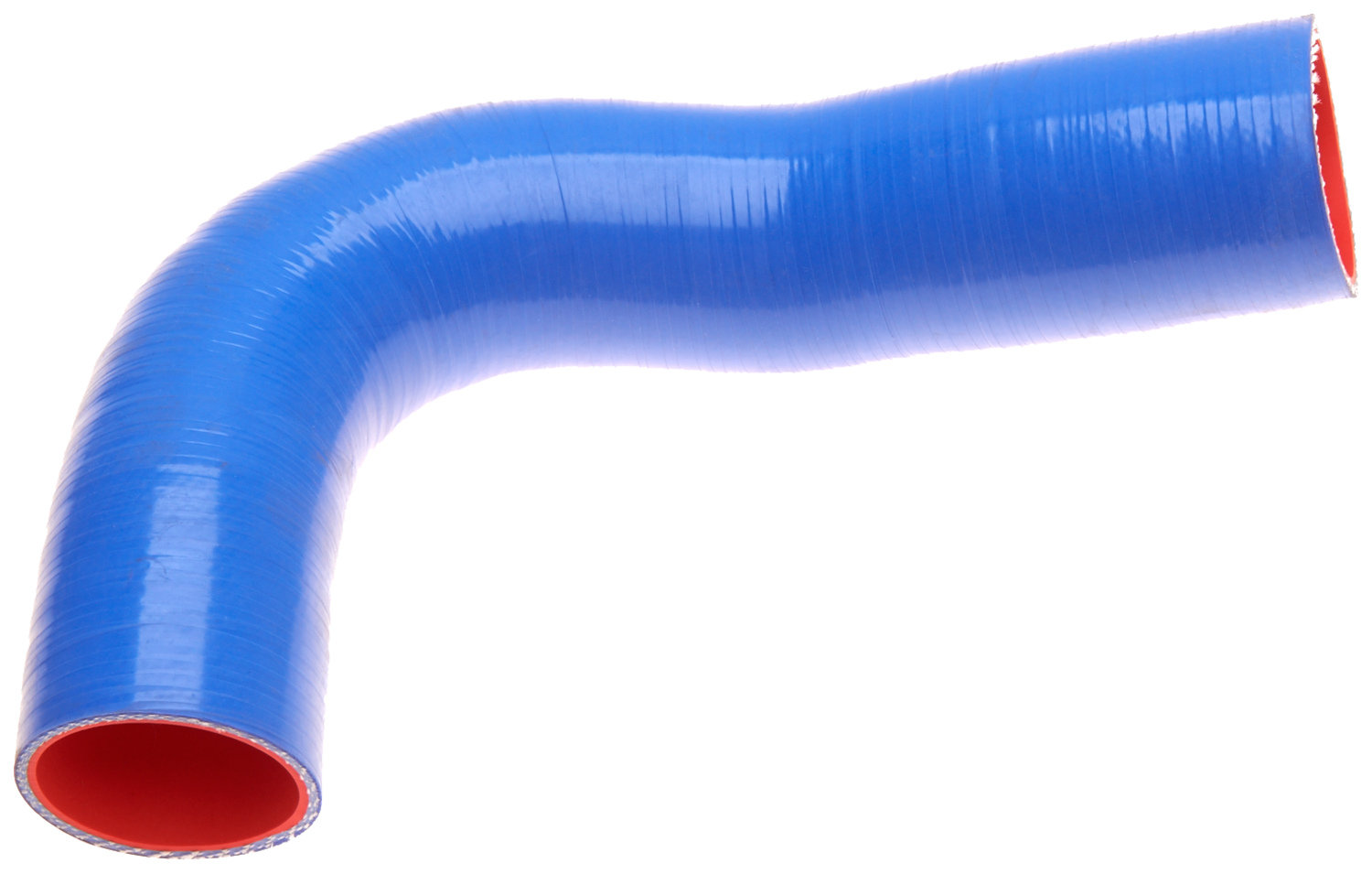

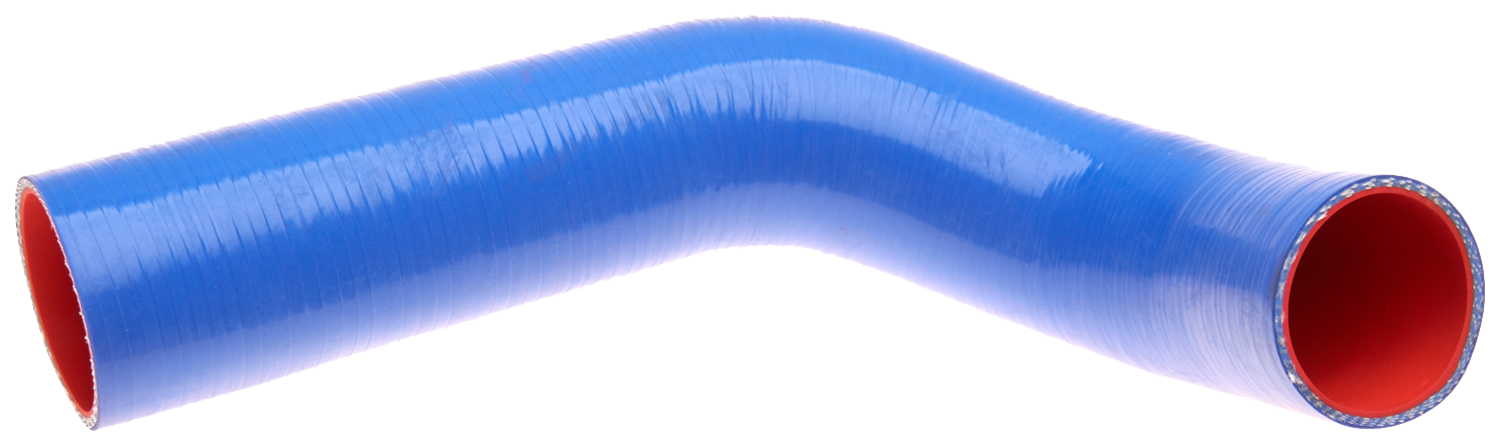

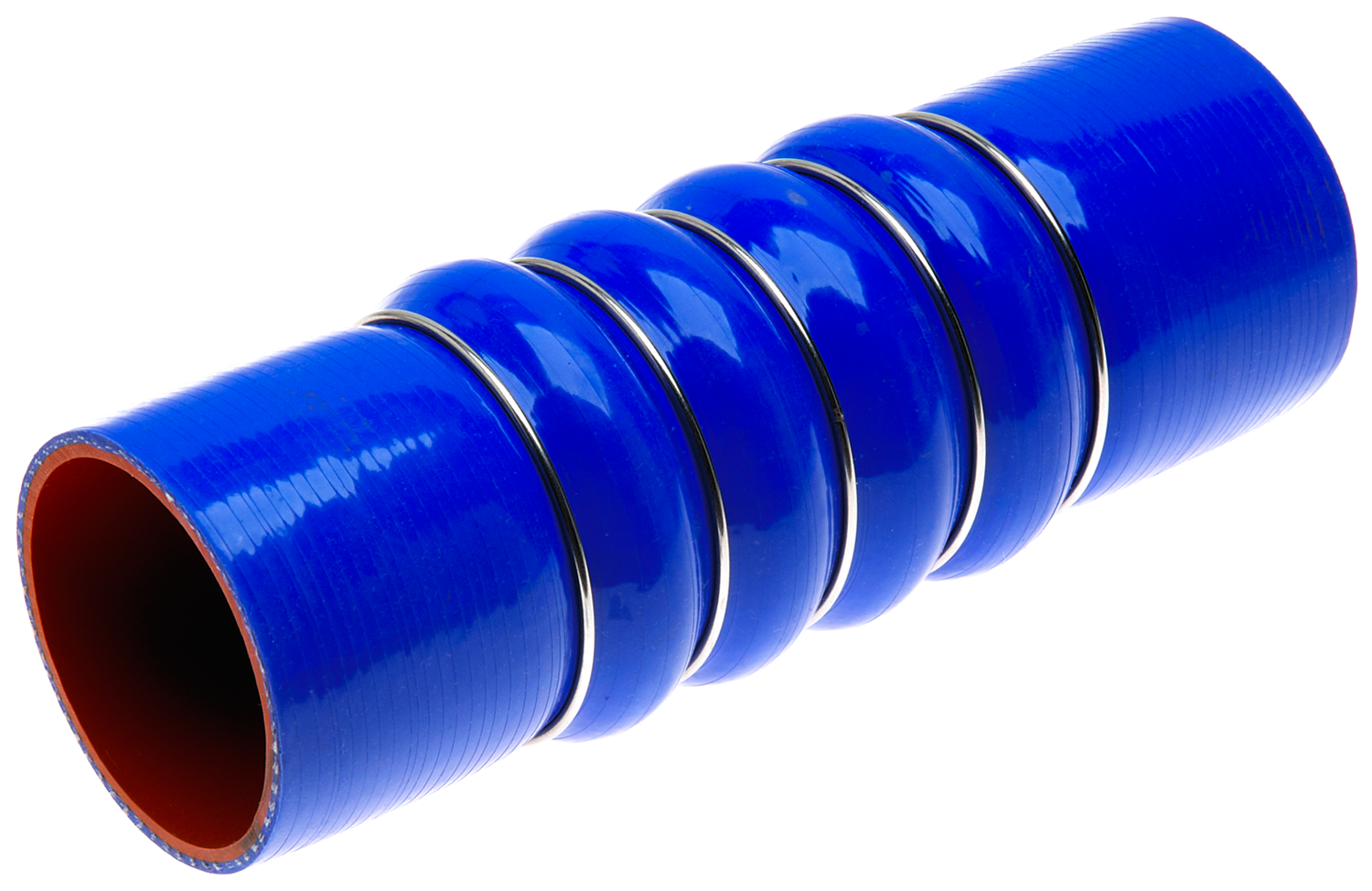

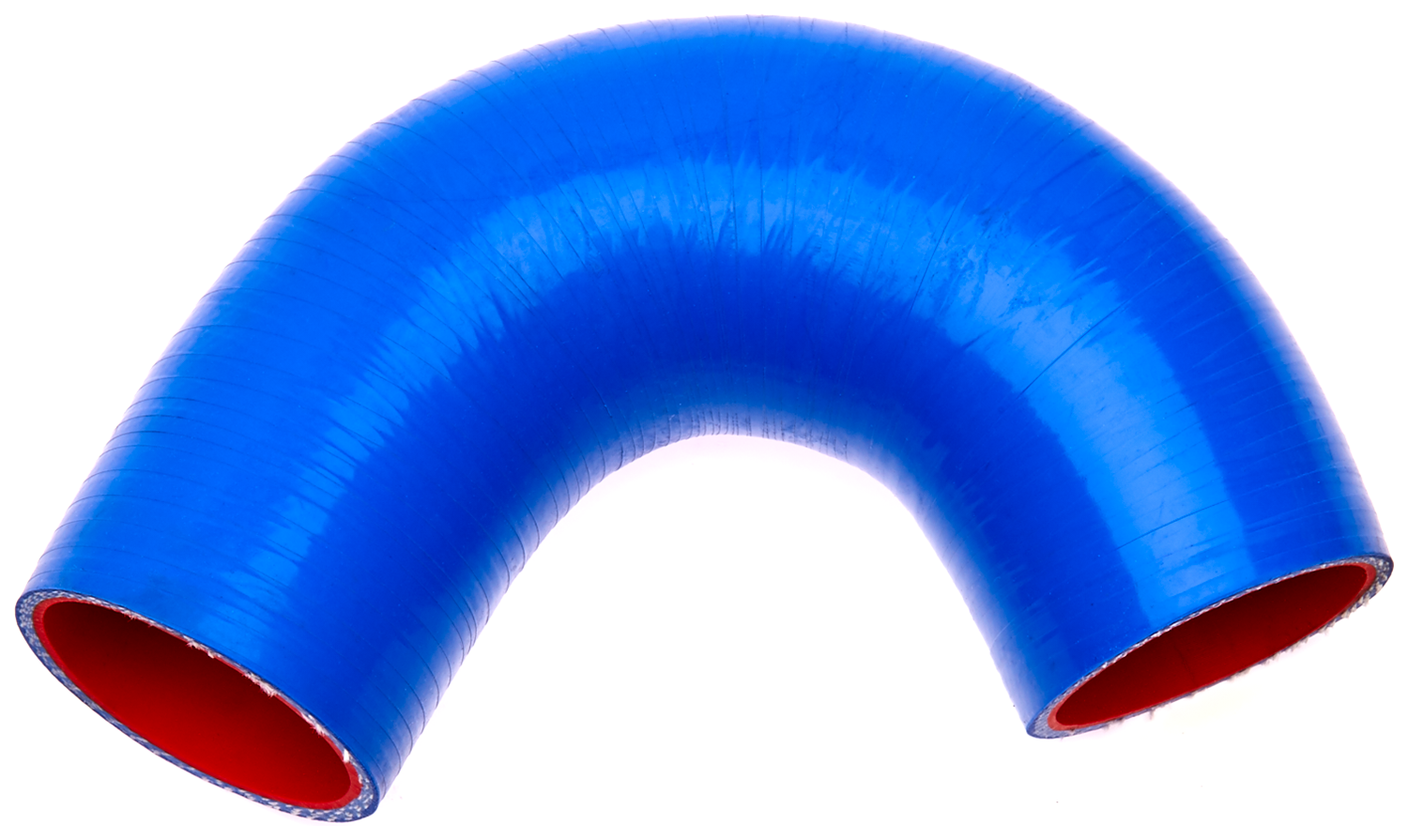

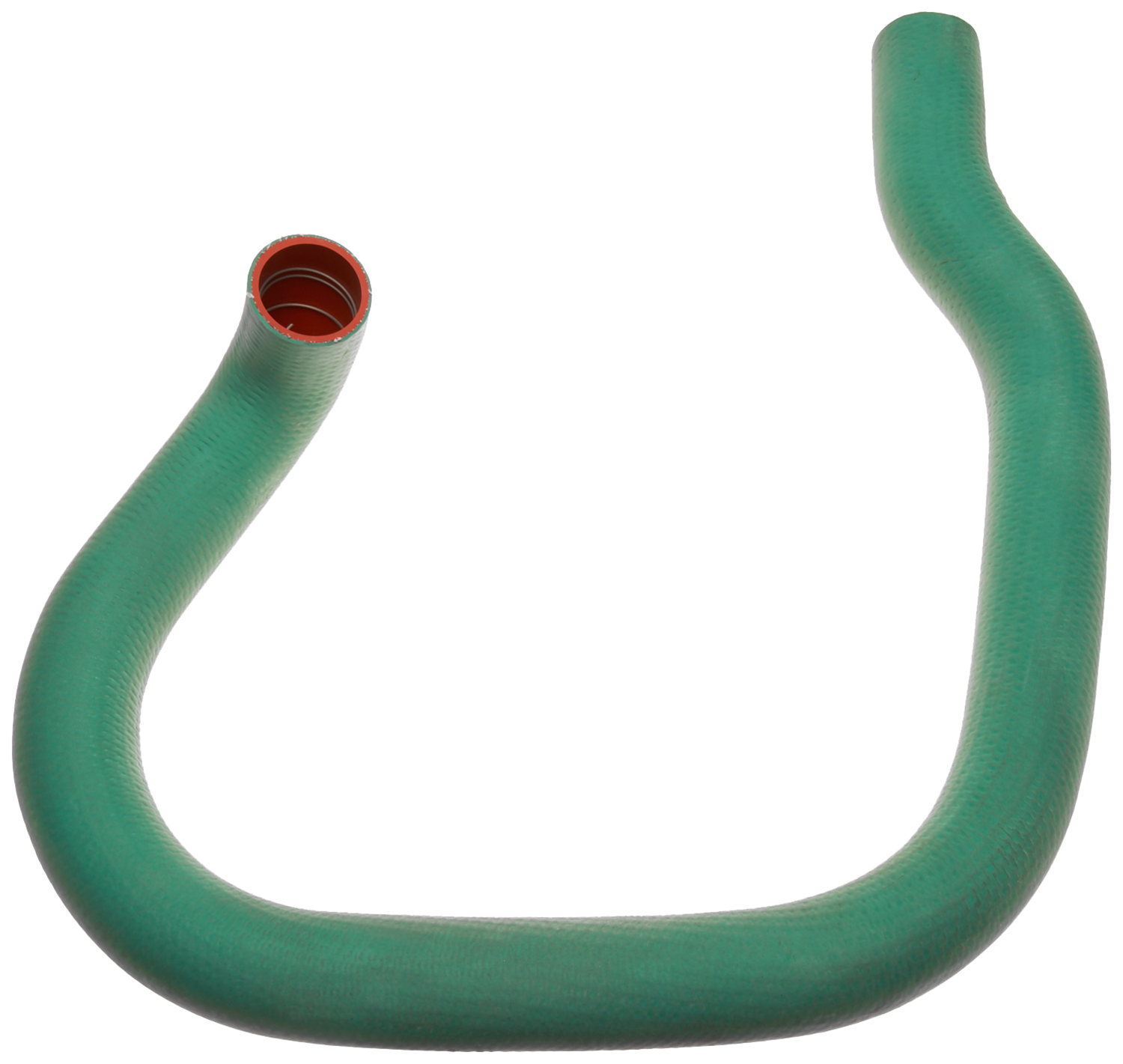

# Molded Silicone Coolant Hose Gates Silicone Molded Coolant Hose is built to surpass performance of the OE hose. Same dimensional specifications of the OEM hose. Silicone cover resists high temperature ambient environments. 3-ply polyester woven fabric reinforcement guarantees high burst strength and superior service life. Tube constructed with a thick silicone liner designed to handle coolants, including new extended life coolants. Provides long-life service in both low and high temperature environments. - Temperature: -54°C to +149°C (-65°F to +300°F). - 3-ply polyester woven fabric reinforcement guarantees high burst strength and superior service life. - Tube constructed with a thick silicone liner designed to handle coolants, including new extended life coolants. - Provides long-life service in both low and high temperature environments.

Variations (15)

28357

Contains Springfalse
Number of Branches0
Centerline Length (in)20.5
Centerline Length (mm)521
Hose Inside Diameter (in).2.25
Hose Inside Diameter (mm)57
Inside Diameter 1 (in)2.25
Inside Diameter 1 (mm)57
Inside Diameter 2 (in)1.88
Inside Diameter 2 (mm)48
Customer Pack140
Weight (lbs.)1.13

28358

Contains Springfalse
Number of Branches0
Centerline Length (in)15
Centerline Length (mm)381
Hose Inside Diameter (in).1.88
Hose Inside Diameter (mm)48
Inside Diameter 1 (in)1.88
Inside Diameter 1 (mm)48
Inside Diameter 2 (in)2.25
Inside Diameter 2 (mm)57
Customer Pack175
Weight (lbs.)0.62

28359

Contains Springfalse
Number of Branches0
Centerline Length (in)8.5
Centerline Length (mm)216
Hose Inside Diameter (in).2.5
Hose Inside Diameter (mm)64
Inside Diameter 1 (in)2.5
Inside Diameter 1 (mm)64
Inside Diameter 2 (in)2.5
Inside Diameter 2 (mm)64
Customer Pack175
Weight (lbs.)0.62

28360

Contains Springfalse
Number of Branches0
Centerline Length (in)28
Centerline Length (mm)711
Hose Inside Diameter (in).2.45
Hose Inside Diameter (mm)62
Inside Diameter 1 (in)2.45
Inside Diameter 1 (mm)62
Inside Diameter 2 (in)2.45
Inside Diameter 2 (mm)62
Customer Pack35
Weight (lbs.)1.3

28361

Contains Springfalse
Number of Branches0
Centerline Length (in)10.5
Centerline Length (mm)267
Hose Inside Diameter (in).2.25
Hose Inside Diameter (mm)57
Inside Diameter 1 (in)2.25
Inside Diameter 1 (mm)57
Inside Diameter 2 (in)2.25
Inside Diameter 2 (mm)57
Customer Pack35
Weight (lbs.)0.75

28362

Contains Springfalse
Number of Branches0
Centerline Length (in)7.5
Centerline Length (mm)191
Hose Inside Diameter (in).2.25
Hose Inside Diameter (mm)57
Inside Diameter 1 (in)2.25
Inside Diameter 1 (mm)57
Inside Diameter 2 (in)2.25
Inside Diameter 2 (mm)57
Customer Pack999
Weight (lbs.)0.5

28363

Contains Springfalse
Number of Branches0
Centerline Length (in)20.5
Centerline Length (mm)521
Hose Inside Diameter (in).2.28
Hose Inside Diameter (mm)58
Inside Diameter 1 (in)2.28
Inside Diameter 1 (mm)58
Inside Diameter 2 (in)2.42
Inside Diameter 2 (mm)61
Customer Pack140
Weight (lbs.)1.43

28364

Contains Springfalse
Number of Branches0
Centerline Length (in)12.5
Centerline Length (mm)318
Hose Inside Diameter (in).2.25
Hose Inside Diameter (mm)57
Inside Diameter 1 (in)2.25
Inside Diameter 1 (mm)57
Inside Diameter 2 (in)2.44
Inside Diameter 2 (mm)62
Customer Pack105
Weight (lbs.)1.24

28365

Contains Springfalse
Number of Branches0
Centerline Length (in)18
Centerline Length (mm)457
Hose Inside Diameter (in).2.312
Hose Inside Diameter (mm)59
Inside Diameter 1 (in)2.31
Inside Diameter 1 (mm)59
Inside Diameter 2 (in)2.5
Inside Diameter 2 (mm)64
Customer Pack999
Weight (lbs.)1.24

28366

Contains Springfalse
Number of Branches0
Centerline Length (in)17.75
Centerline Length (mm)451
Hose Inside Diameter (in).2.281
Hose Inside Diameter (mm)58
Inside Diameter 1 (in)2.28
Inside Diameter 1 (mm)58
Inside Diameter 2 (in)2.47
Inside Diameter 2 (mm)63
Customer Pack999
Weight (lbs.)1.125

28367

Contains Springfalse
Number of Branches0
Centerline Length (in)18.5
Centerline Length (mm)470
Hose Inside Diameter (in).2.28
Hose Inside Diameter (mm)58
Inside Diameter 1 (in)2.28
Inside Diameter 1 (mm)58
Inside Diameter 2 (in)2.42
Inside Diameter 2 (mm)61
Customer Pack999
Weight (lbs.)1.3

28368

Contains Springfalse
Number of Branches0
Centerline Length (in)8.956
Centerline Length (mm)227
Hose Inside Diameter (in).2.25
Hose Inside Diameter (mm)57
Inside Diameter 1 (in)2.25
Inside Diameter 1 (mm)57
Inside Diameter 2 (in)2.4
Inside Diameter 2 (mm)61
Customer Pack350
Weight (lbs.)0.66

28369

Contains Springfalse
Number of Branches0
Centerline Length (in)5.25
Centerline Length (mm)133
Hose Inside Diameter (in).2.5
Hose Inside Diameter (mm)64
Inside Diameter 1 (in)2.5
Inside Diameter 1 (mm)64
Inside Diameter 2 (in)2.5
Inside Diameter 2 (mm)64
Customer Pack350
Weight (lbs.)0.41

28372

Contains Springtrue
Number of Branches0
Centerline Length (in)54
Centerline Length (mm)1372
Hose Inside Diameter (in).2
Hose Inside Diameter (mm)51
Inside Diameter 1 (in)2
Inside Diameter 1 (mm)51
Inside Diameter 2 (in)2
Inside Diameter 2 (mm)51
Customer Pack40
Weight (lbs.)3.26

28375

No variation attributes.

Specifications

Contains Springfalse, true
Number of Branches0
Centerline Length (in)5.25 – 54
Centerline Length (mm)133 – 1372
Hose Inside Diameter (in).1.88 – 2.5
Hose Inside Diameter (mm)48 – 64
Inside Diameter 1 (in)1.88 – 2.5
Inside Diameter 1 (mm)48 – 64
Inside Diameter 2 (in)1.88 – 2.5
Inside Diameter 2 (mm)48 – 64
Customer Pack35 – 999
Weight (lbs.)0.41 – 3.26
