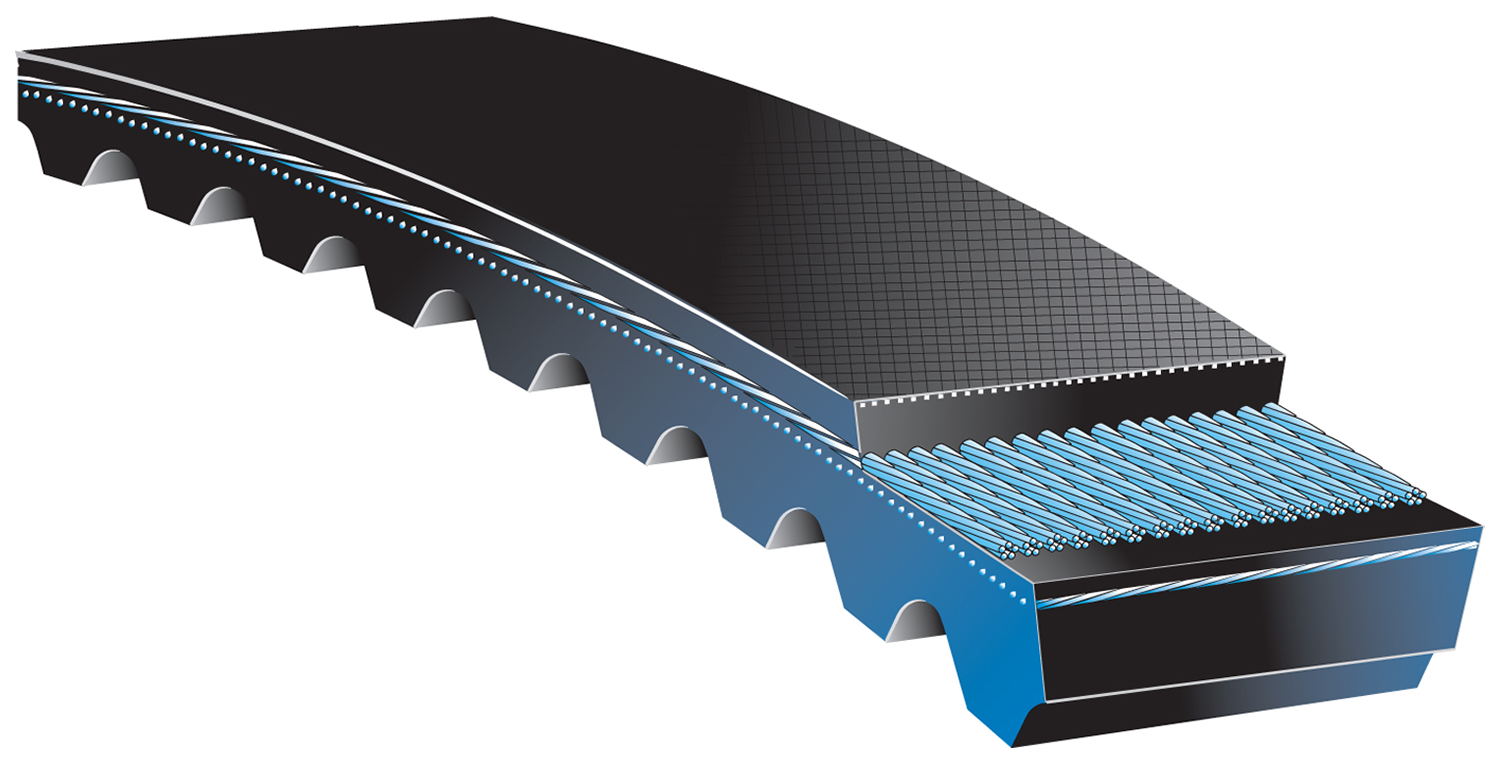

Multi-Speed Belt

Part Number	9804-000000-000000

1228V255

Effective Length (in)	23.99
Effective Length (mm)	609
Outside Circumference (in)	24
Outside Circumference (mm)	610
Pitch Length (in)	23.5
Pitch Length (mm)	597
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1230V348

Cross Section	RVS-R
Effective Length (in)	34.8
Effective Length (mm)	884
Notched	true
Outside Circumference (in)	35
Outside Circumference (mm)	889
Pitch Length (in)	34.8
Pitch Length (mm)	884
Number of Ribs	1
Strand	1
Top Width (in)	0.75
Top Width (mm)	19
Angle.	30
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.58

1330V242

Cross Section	RVS-R
Effective Length (in)	24.7
Effective Length (mm)	627
Notched	true
Outside Circumference (in)	25
Outside Circumference (mm)	635
Pitch Length (in)	24.2
Pitch Length (mm)	615
Number of Ribs	1
Strand	1
Top Width (in)	0.81
Top Width (mm)	21
Angle.	30
Thickness (in)	0.31
Thickness (mm)	8
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.55

1422V235

Effective Length (in)	23.99
Effective Length (mm)	609
Outside Circumference (in)	24
Outside Circumference (mm)	610
Pitch Length (in)	23.5
Pitch Length (mm)	597
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V240

Effective Length (in)	24.66
Effective Length (mm)	626
Outside Circumference (in)	25
Outside Circumference (mm)	635
Pitch Length (in)	24
Pitch Length (mm)	610
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V270

Effective Length (in)	27.66
Effective Length (mm)	703
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	27
Pitch Length (mm)	686
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V290

Effective Length (in)	29.69
Effective Length (mm)	754
Outside Circumference (in)	30
Outside Circumference (mm)	762
Pitch Length (in)	29
Pitch Length (mm)	737
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V300

Effective Length (in)	30.66
Effective Length (mm)	779
Outside Circumference (in)	31
Outside Circumference (mm)	787
Pitch Length (in)	30
Pitch Length (mm)	762
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V330

Effective Length (in)	33.66
Effective Length (mm)	855
Outside Circumference (in)	34
Outside Circumference (mm)	864
Pitch Length (in)	33
Pitch Length (mm)	838
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V340

Effective Length (in)	34.59
Effective Length (mm)	879
Outside Circumference (in)	35
Outside Circumference (mm)	889
Pitch Length (in)	34
Pitch Length (mm)	864
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V360

Effective Length (in)	36.66
Effective Length (mm)	931
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	36
Pitch Length (mm)	914
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V400

Effective Length (in)	40
Effective Length (mm)	1016
Outside Circumference (in)	40.5
Outside Circumference (mm)	1029
Pitch Length (in)	40
Pitch Length (mm)	1016
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V420

Effective Length (in)	42.79
Effective Length (mm)	1087
Outside Circumference (in)	43
Outside Circumference (mm)	1092
Pitch Length (in)	42
Pitch Length (mm)	1067
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V440

Effective Length (in)	44
Effective Length (mm)	1118
Outside Circumference (in)	44.5
Outside Circumference (mm)	1130
Pitch Length (in)	44
Pitch Length (mm)	1118
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V460

Effective Length (in)	46
Effective Length (mm)	1168
Outside Circumference (in)	46.5
Outside Circumference (mm)	1181
Pitch Length (in)	46
Pitch Length (mm)	1168
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V466

Effective Length (in)	46.6
Effective Length (mm)	1184
Outside Circumference (in)	47
Outside Circumference (mm)	1194
Pitch Length (in)	46.6
Pitch Length (mm)	1184
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V480

Effective Length (in)	48.66
Effective Length (mm)	1236
Outside Circumference (in)	49
Outside Circumference (mm)	1245
Pitch Length (in)	48
Pitch Length (mm)	1219
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V540

Effective Length (in)	54.68
Effective Length (mm)	1389
Outside Circumference (in)	55
Outside Circumference (mm)	1397
Pitch Length (in)	54
Pitch Length (mm)	1372
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V600

Effective Length (in)	60.66
Effective Length (mm)	1541
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	60
Pitch Length (mm)	1524
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1422V660

Effective Length (in)	66
Effective Length (mm)	1676
Outside Circumference (in)	67
Outside Circumference (mm)	1702
Pitch Length (in)	66
Pitch Length (mm)	1676
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1426V328

Effective Length (in)	32.8
Effective Length (mm)	833
Outside Circumference (in)	33
Outside Circumference (mm)	838
Pitch Length (in)	32.8
Pitch Length (mm)	833
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1430V215

Effective Length (in)	21.5
Effective Length (mm)	546
Outside Circumference (in)	21.8
Outside Circumference (mm)	554
Pitch Length (in)	21.5
Pitch Length (mm)	546
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	30
Thickness (in)	0.24
Thickness (mm)	6
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1430V375

Effective Length (in)	37.5
Effective Length (mm)	953
Outside Circumference (in)	38
Outside Circumference (mm)	965
Pitch Length (in)	37.5
Pitch Length (mm)	953
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.88
Top Width (mm)	22
Angle.	30
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1526V264

Effective Length (in)	26.4
Effective Length (mm)	671
Outside Circumference (in)	27
Outside Circumference (mm)	686
Pitch Length (in)	26.4
Pitch Length (mm)	671
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.94
Top Width (mm)	24
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1528V326

Effective Length (in)	32.6
Effective Length (mm)	828
Outside Circumference (in)	33.1
Outside Circumference (mm)	841
Pitch Length (in)	32.6
Pitch Length (mm)	828
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.94
Top Width (mm)	24
Angle.	28
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1528V360

Effective Length (in)	36.53
Effective Length (mm)	928
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	36
Pitch Length (mm)	914
Number of Ribs	1
Section	RVS-R
Top Width (in)	0.94
Top Width (mm)	24
Angle.	28
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1528V414

Cross Section	RVS-R
Effective Length (in)	41.93
Effective Length (mm)	1065
Notched	true
Outside Circumference (in)	42
Outside Circumference (mm)	1067
Pitch Length (in)	41.4
Pitch Length (mm)	1052
Number of Ribs	1
Strand	1
Top Width (in)	0.94
Top Width (mm)	24
Angle.	28
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.79

1622V270

Effective Length (in)	27.53
Effective Length (mm)	699
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	27
Pitch Length (mm)	686
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1622V307

Effective Length (in)	30.7
Effective Length (mm)	780
Outside Circumference (in)	31
Outside Circumference (mm)	787
Pitch Length (in)	30.7
Pitch Length (mm)	780
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V262

Effective Length (in)	26.73
Effective Length (mm)	679
Outside Circumference (in)	27
Outside Circumference (mm)	686
Pitch Length (in)	26.2
Pitch Length (mm)	665
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V304

Effective Length (in)	30.9
Effective Length (mm)	785
Outside Circumference (in)	31
Outside Circumference (mm)	787
Pitch Length (in)	30.4
Pitch Length (mm)	772
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V330

Effective Length (in)	33.68
Effective Length (mm)	855
Outside Circumference (in)	34
Outside Circumference (mm)	864
Pitch Length (in)	33
Pitch Length (mm)	838
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V339

Effective Length (in)	34.8
Effective Length (mm)	884
Outside Circumference (in)	35
Outside Circumference (mm)	889
Pitch Length (in)	33.9
Pitch Length (mm)	861
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V380

Effective Length (in)	38.53
Effective Length (mm)	979
Outside Circumference (in)	39
Outside Circumference (mm)	991
Pitch Length (in)	38
Pitch Length (mm)	965
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V384

Effective Length (in)	38.4
Effective Length (mm)	975
Outside Circumference (in)	39
Outside Circumference (mm)	991
Pitch Length (in)	38.4
Pitch Length (mm)	975
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V395

Effective Length (in)	39.5
Effective Length (mm)	1003
Outside Circumference (in)	40
Outside Circumference (mm)	1016
Pitch Length (in)	39.5
Pitch Length (mm)	1003
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V411

Effective Length (in)	41.9
Effective Length (mm)	1064
Outside Circumference (in)	42
Outside Circumference (mm)	1067
Pitch Length (in)	41.1
Pitch Length (mm)	1044
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V440

Effective Length (in)	44.68
Effective Length (mm)	1135
Outside Circumference (in)	45
Outside Circumference (mm)	1143
Pitch Length (in)	44
Pitch Length (mm)	1118
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V455

Effective Length (in)	45.5
Effective Length (mm)	1156
Outside Circumference (in)	46
Outside Circumference (mm)	1168
Pitch Length (in)	45.5
Pitch Length (mm)	1156
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	28
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V513

Effective Length (in)	51.83
Effective Length (mm)	1316
Outside Circumference (in)	52
Outside Circumference (mm)	1321
Pitch Length (in)	51.3
Pitch Length (mm)	1303
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V517

Effective Length (in)	51.7
Effective Length (mm)	1313
Outside Circumference (in)	52
Outside Circumference (mm)	1321
Pitch Length (in)	51.7
Pitch Length (mm)	1313
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V597

Effective Length (in)	60.65
Effective Length (mm)	1541
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	59.7
Pitch Length (mm)	1516
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1626V604

Effective Length (in)	60.4
Effective Length (mm)	1534
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	60.4
Pitch Length (mm)	1534
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	26
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1628V210

Effective Length (in)	21
Effective Length (mm)	533
Outside Circumference (in)	21.3
Outside Circumference (mm)	541
Pitch Length (in)	21
Pitch Length (mm)	533
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	28
Thickness (in)	0.28
Thickness (mm)	7
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1628V315

Effective Length (in)	32.86
Effective Length (mm)	835
Outside Circumference (in)	33
Outside Circumference (mm)	838
Pitch Length (in)	31.5
Pitch Length (mm)	800
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	28
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1632V210

Effective Length (in)	21
Effective Length (mm)	533
Outside Circumference (in)	22
Outside Circumference (mm)	559
Pitch Length (in)	21
Pitch Length (mm)	533
Number of Ribs	1
Section	RVS-R
Top Width (in)	1
Top Width (mm)	25
Angle.	32
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1822V290

Effective Length (in)	26.6
Effective Length (mm)	676
Outside Circumference (in)	27
Outside Circumference (mm)	686
Pitch Length (in)	29
Pitch Length (mm)	737
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.13
Top Width (mm)	29
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1822V328

Effective Length (in)	32.8
Effective Length (mm)	833
Outside Circumference (in)	33
Outside Circumference (mm)	838
Pitch Length (in)	32.8
Pitch Length (mm)	833
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.13
Top Width (mm)	29
Angle.	22
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1828V368

Effective Length (in)	37.6
Effective Length (mm)	955
Outside Circumference (in)	38
Outside Circumference (mm)	965
Pitch Length (in)	36.8
Pitch Length (mm)	935
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.13
Top Width (mm)	29
Angle.	28
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V277

Effective Length (in)	27.7
Effective Length (mm)	704
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	27.7
Pitch Length (mm)	704
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V282

Effective Length (in)	28.9
Effective Length (mm)	734
Outside Circumference (in)	29
Outside Circumference (mm)	737
Pitch Length (in)	28.2
Pitch Length (mm)	716
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V298

Effective Length (in)	30.52
Effective Length (mm)	775
Outside Circumference (in)	31
Outside Circumference (mm)	787
Pitch Length (in)	29.8
Pitch Length (mm)	757
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V302

Effective Length (in)	30.8
Effective Length (mm)	782
Outside Circumference (in)	31
Outside Circumference (mm)	787
Pitch Length (in)	30.2
Pitch Length (mm)	767
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V321

Effective Length (in)	32.1
Effective Length (mm)	815
Outside Circumference (in)	33
Outside Circumference (mm)	838
Pitch Length (in)	32.1
Pitch Length (mm)	815
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V332

Effective Length (in)	32.61
Effective Length (mm)	828
Outside Circumference (in)	33
Outside Circumference (mm)	838
Pitch Length (in)	33.2
Pitch Length (mm)	843
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V338

Effective Length (in)	34.67
Effective Length (mm)	881
Outside Circumference (in)	35
Outside Circumference (mm)	889
Pitch Length (in)	33.8
Pitch Length (mm)	859
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V363

Effective Length (in)	36.3
Effective Length (mm)	922
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	36.3
Pitch Length (mm)	922
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V381

Effective Length (in)	38.75
Effective Length (mm)	984
Outside Circumference (in)	39
Outside Circumference (mm)	991
Pitch Length (in)	38.1
Pitch Length (mm)	968
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V386

Effective Length (in)	38.6
Effective Length (mm)	980
Outside Circumference (in)	39
Outside Circumference (mm)	991
Pitch Length (in)	38.6
Pitch Length (mm)	980
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V403

Effective Length (in)	40.3
Effective Length (mm)	1024
Outside Circumference (in)	41
Outside Circumference (mm)	1041
Pitch Length (in)	40.3
Pitch Length (mm)	1024
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V417

Effective Length (in)	42.59
Effective Length (mm)	1082
Outside Circumference (in)	43
Outside Circumference (mm)	1092
Pitch Length (in)	41.7
Pitch Length (mm)	1059
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V426

Effective Length (in)	43.55
Effective Length (mm)	1106
Outside Circumference (in)	44
Outside Circumference (mm)	1118
Pitch Length (in)	42.6
Pitch Length (mm)	1082
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V443

Effective Length (in)	44.3
Effective Length (mm)	1125
Outside Circumference (in)	45
Outside Circumference (mm)	1143
Pitch Length (in)	44.3
Pitch Length (mm)	1125
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V454

Effective Length (in)	45.4
Effective Length (mm)	1153
Outside Circumference (in)	46
Outside Circumference (mm)	1168
Pitch Length (in)	45.4
Pitch Length (mm)	1153
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V460

Cross Section	RVS-R
Effective Length (in)	46.75
Effective Length (mm)	1187
Notched	true
Outside Circumference (in)	47
Outside Circumference (mm)	1194
Pitch Length (in)	46
Pitch Length (mm)	1168
Number of Ribs	1
Strand	1
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.14

1922V484

Effective Length (in)	48.4
Effective Length (mm)	1229
Outside Circumference (in)	49
Outside Circumference (mm)	1245
Pitch Length (in)	48.4
Pitch Length (mm)	1229
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V526

Effective Length (in)	52.6
Effective Length (mm)	1336
Outside Circumference (in)	53
Outside Circumference (mm)	1346
Pitch Length (in)	52.6
Pitch Length (mm)	1336
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V544

Effective Length (in)	54.4
Effective Length (mm)	1382
Outside Circumference (in)	55
Outside Circumference (mm)	1397
Pitch Length (in)	54.4
Pitch Length (mm)	1382
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V604

Effective Length (in)	60.4
Effective Length (mm)	1534
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	60.4
Pitch Length (mm)	1534
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V630

Effective Length (in)	63.64
Effective Length (mm)	1616
Outside Circumference (in)	64
Outside Circumference (mm)	1626
Pitch Length (in)	63
Pitch Length (mm)	1600
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V646

Effective Length (in)	64.6
Effective Length (mm)	1641
Outside Circumference (in)	65
Outside Circumference (mm)	1651
Pitch Length (in)	64.6
Pitch Length (mm)	1641
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V666

Effective Length (in)	66.6
Effective Length (mm)	1692
Outside Circumference (in)	67
Outside Circumference (mm)	1702
Pitch Length (in)	66.6
Pitch Length (mm)	1692
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1922V686

Effective Length (in)	68.6
Effective Length (mm)	1742
Outside Circumference (in)	69
Outside Circumference (mm)	1753
Pitch Length (in)	68.6
Pitch Length (mm)	1742
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

1922V706

Effective Length (in)	70.6
Effective Length (mm)	1793
Outside Circumference (in)	71
Outside Circumference (mm)	1803
Pitch Length (in)	70.6
Pitch Length (mm)	1793
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

1922V756

Effective Length (in)	75.6
Effective Length (mm)	1920
Outside Circumference (in)	76
Outside Circumference (mm)	1930
Pitch Length (in)	75.6
Pitch Length (mm)	1920
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

1922V806

Effective Length (in)	81.65
Effective Length (mm)	2074
Outside Circumference (in)	82
Outside Circumference (mm)	2083
Pitch Length (in)	80.6
Pitch Length (mm)	2047
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

1922V846

Effective Length (in)	84.6
Effective Length (mm)	2149
Outside Circumference (in)	85
Outside Circumference (mm)	2159
Pitch Length (in)	84.6
Pitch Length (mm)	2149
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

1926V250

Effective Length (in)	25.71
Effective Length (mm)	653
Outside Circumference (in)	26
Outside Circumference (mm)	660
Pitch Length (in)	25
Pitch Length (mm)	635
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	26
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1926V407

Effective Length (in)	40.7
Effective Length (mm)	1034
Outside Circumference (in)	41
Outside Circumference (mm)	1041
Pitch Length (in)	40.7
Pitch Length (mm)	1034
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1926V427

Effective Length (in)	42.7
Effective Length (mm)	1085
Outside Circumference (in)	43
Outside Circumference (mm)	1092
Pitch Length (in)	42.7
Pitch Length (mm)	1085
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	26
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1926V507

Effective Length (in)	50.7
Effective Length (mm)	1288
Outside Circumference (in)	51
Outside Circumference (mm)	1295
Pitch Length (in)	50.7
Pitch Length (mm)	1288
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	26
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V355

Effective Length (in)	35.5
Effective Length (mm)	902
Outside Circumference (in)	36
Outside Circumference (mm)	914
Pitch Length (in)	35.5
Pitch Length (mm)	902
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V375

Effective Length (in)	37.5
Effective Length (mm)	953
Outside Circumference (in)	38
Outside Circumference (mm)	965
Pitch Length (in)	37.5
Pitch Length (mm)	953
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V425

Cross Section	RVS-R
Effective Length (in)	42.5
Effective Length (mm)	1080
Notched	true
Outside Circumference (in)	43
Outside Circumference (mm)	1092
Pitch Length (in)	42.5
Pitch Length (mm)	1080
Number of Ribs	1
Strand	1
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.04

1930V431

Effective Length (in)	42.49
Effective Length (mm)	1079
Outside Circumference (in)	43
Outside Circumference (mm)	1092
Pitch Length (in)	43.1
Pitch Length (mm)	1095
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V450

Effective Length (in)	45.64
Effective Length (mm)	1159
Outside Circumference (in)	46
Outside Circumference (mm)	1168
Pitch Length (in)	45
Pitch Length (mm)	1143
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V491

Effective Length (in)	49.93
Effective Length (mm)	1268
Outside Circumference (in)	50
Outside Circumference (mm)	1270
Pitch Length (in)	49.1
Pitch Length (mm)	1247
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V530

Effective Length (in)	53.64
Effective Length (mm)	1362
Outside Circumference (in)	54
Outside Circumference (mm)	1372
Pitch Length (in)	53
Pitch Length (mm)	1346
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

1930V541

Cross Section	RVS-R
Effective Length (in)	53.36
Effective Length (mm)	1355
Notched	true
Outside Circumference (in)	54
Outside Circumference (mm)	1372
Pitch Length (in)	54.1
Pitch Length (mm)	1374
Number of Ribs	1
Strand	1
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.25

1930V585

Effective Length (in)	58.5
Effective Length (mm)	1486
Outside Circumference (in)	59
Outside Circumference (mm)	1499
Pitch Length (in)	58.5
Pitch Length (mm)	1486
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.19
Top Width (mm)	30
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2026V445

Effective Length (in)	44.5
Effective Length (mm)	1130
Outside Circumference (in)	45
Outside Circumference (mm)	1143
Pitch Length (in)	44.5
Pitch Length (mm)	1130
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.25
Top Width (mm)	32
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2026V474

Cross Section	RVS-R
Effective Length (in)	47.4
Effective Length (mm)	1204
Notched	true
Outside Circumference (in)	48
Outside Circumference (mm)	1219
Pitch Length (in)	47.4
Pitch Length (mm)	1204
Number of Ribs	1
Strand	1
Top Width (in)	1.25
Top Width (mm)	32
Angle.	26
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.06

2026V607

Effective Length (in)	60.7
Effective Length (mm)	1542
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	60.7
Pitch Length (mm)	1542
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.25
Top Width (mm)	32
Angle.	26
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2030V381

Effective Length (in)	38.1
Effective Length (mm)	968
Outside Circumference (in)	39
Outside Circumference (mm)	991
Pitch Length (in)	38.1
Pitch Length (mm)	968
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.25
Top Width (mm)	32
Angle.	30
Thickness (in)	0.28
Thickness (mm)	7
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2126V309

Effective Length (in)	31.69
Effective Length (mm)	805
Outside Circumference (in)	32
Outside Circumference (mm)	813
Pitch Length (in)	30.9
Pitch Length (mm)	785
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.31
Top Width (mm)	33
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2126V365

Effective Length (in)	36.5
Effective Length (mm)	927
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	36.5
Pitch Length (mm)	927
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.31
Top Width (mm)	33
Angle.	26
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2126V468

Cross Section	RVS-R
Effective Length (in)	46.8
Effective Length (mm)	1189
Notched	true
Outside Circumference (in)	47
Outside Circumference (mm)	1194
Pitch Length (in)	46.8
Pitch Length (mm)	1189
Number of Ribs	1
Strand	1
Top Width (in)	1.31
Top Width (mm)	33
Angle.	26
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.25

2230V273

Effective Length (in)	27.93
Effective Length (mm)	709
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	27.3
Pitch Length (mm)	693
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.38
Top Width (mm)	35
Angle.	30
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2230V275

Effective Length (in)	27.95
Effective Length (mm)	710
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	27.5
Pitch Length (mm)	699
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.38
Top Width (mm)	35
Angle.	30
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2230V326

Effective Length (in)	33.5
Effective Length (mm)	851
Outside Circumference (in)	34
Outside Circumference (mm)	864
Pitch Length (in)	32.6
Pitch Length (mm)	828
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.38
Top Width (mm)	35
Angle.	30
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2230V375

Effective Length (in)	37.5
Effective Length (mm)	953
Outside Circumference (in)	38
Outside Circumference (mm)	965
Pitch Length (in)	37.5
Pitch Length (mm)	953
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.38
Top Width (mm)	35
Angle.	30
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V347

Cross Section	RVS-R
Effective Length (in)	34.7
Effective Length (mm)	881
Notched	true
Outside Circumference (in)	35
Outside Circumference (mm)	889
Pitch Length (in)	34.7
Pitch Length (mm)	881
Number of Ribs	1
Strand	1
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.07

2322V364 / 43R4210

Effective Length (in)	36.4
Effective Length (mm)	925
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	36.4
Pitch Length (mm)	925
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V396

Effective Length (in)	40.69
Effective Length (mm)	1034
Outside Circumference (in)	41
Outside Circumference (mm)	1041
Pitch Length (in)	39.6
Pitch Length (mm)	1006
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V421

Effective Length (in)	42.88
Effective Length (mm)	1089
Outside Circumference (in)	43
Outside Circumference (mm)	1092
Pitch Length (in)	42.1
Pitch Length (mm)	1069
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.51
Thickness (mm)	13
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V441

Effective Length (in)	45.13
Effective Length (mm)	1146
Outside Circumference (in)	46
Outside Circumference (mm)	1168
Pitch Length (in)	44.1
Pitch Length (mm)	1120
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V461

Effective Length (in)	46.8
Effective Length (mm)	1189
Outside Circumference (in)	47
Outside Circumference (mm)	1194
Pitch Length (in)	46.1
Pitch Length (mm)	1171
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.47
Thickness (mm)	12
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V481

Effective Length (in)	48.1
Effective Length (mm)	1222
Outside Circumference (in)	49
Outside Circumference (mm)	1245
Pitch Length (in)	48.1
Pitch Length (mm)	1222
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V521

Effective Length (in)	52.84
Effective Length (mm)	1342
Outside Circumference (in)	53
Outside Circumference (mm)	1346
Pitch Length (in)	52.1
Pitch Length (mm)	1323
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V541

Effective Length (in)	54.1
Effective Length (mm)	1374
Outside Circumference (in)	55
Outside Circumference (mm)	1397
Pitch Length (in)	54.1
Pitch Length (mm)	1374
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V601

Effective Length (in)	60.1
Effective Length (mm)	1527
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	60.1
Pitch Length (mm)	1527
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V621

Effective Length (in)	62.8
Effective Length (mm)	1595
Outside Circumference (in)	63
Outside Circumference (mm)	1600
Pitch Length (in)	62.1
Pitch Length (mm)	1577
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V661

Effective Length (in)	66.1
Effective Length (mm)	1679
Outside Circumference (in)	67
Outside Circumference (mm)	1702
Pitch Length (in)	66.1
Pitch Length (mm)	1679
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2322V681

Effective Length (in)	68.79
Effective Length (mm)	1747
Outside Circumference (in)	69
Outside Circumference (mm)	1753
Pitch Length (in)	68.1
Pitch Length (mm)	1730
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.39
Thickness (mm)	10
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

2322V701

Effective Length (in)	70.1
Effective Length (mm)	1781
Outside Circumference (in)	71
Outside Circumference (mm)	1803
Pitch Length (in)	70.1
Pitch Length (mm)	1781
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

2322V721

Effective Length (in)	72.1
Effective Length (mm)	1831
Outside Circumference (in)	73
Outside Circumference (mm)	1854
Pitch Length (in)	72.1
Pitch Length (mm)	1831
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

2322V801

Effective Length (in)	80.1
Effective Length (mm)	2035
Outside Circumference (in)	81
Outside Circumference (mm)	2057
Pitch Length (in)	80.1
Pitch Length (mm)	2035
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	22
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester

2326V359

Effective Length (in)	36.59
Effective Length (mm)	929
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	35.9
Pitch Length (mm)	912
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	26
Thickness (in)	0.43
Thickness (mm)	11
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2330V273

Effective Length (in)	27.86
Effective Length (mm)	708
Outside Circumference (in)	28
Outside Circumference (mm)	711
Pitch Length (in)	27.3
Pitch Length (mm)	693
Number of Ribs	1
Section	RVS-R
Top Width (in)	1.44
Top Width (mm)	37
Angle.	30
Thickness (in)	0.31
Thickness (mm)	8
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2330V338

Effective Length (in)	34.5
Effective Length (mm)	876
Outside Circumference (in)	35
Outside Circumference (mm)	889
Pitch Length (in)	33.8
Pitch Length (mm)	859
Number of Ribs	1
Section	RVS-I
Top Width (in)	1.44
Top Width (mm)	37
Angle.	34
Thickness (in)	0.35
Thickness (mm)	9
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester

2426V343

Cross Section	RVS-I
Effective Length (in)	34.3
Effective Length (mm)	871
Notched	true
Outside Circumference (in)	35.4
Outside Circumference (mm)	898
Pitch Length (in)	34.3
Pitch Length (mm)	871
Strand	1
Top Width (in)	1.5
Top Width (mm)	38
Angle.	26
Thickness (in)	0.46
Thickness (mm)	12
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.608

2430V297

Cross Section	RVS-R
Effective Length (in)	30.7
Effective Length (mm)	780
Notched	true
Outside Circumference (in)	31
Outside Circumference (mm)	787
Pitch Length (in)	29.7
Pitch Length (mm)	754
Number of Ribs	1
Strand	1
Top Width (in)	1.5
Top Width (mm)	38
Angle.	30
Thickness (in)	0.35
Thickness (mm)	9
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.04

2430V345

Cross Section	RVS-R
Effective Length (in)	34.5
Effective Length (mm)	876
Notched	true
Outside Circumference (in)	35.2
Outside Circumference (mm)	894
Pitch Length (in)	34.5
Pitch Length (mm)	876
Strand	1
Top Width (in)	1.5
Top Width (mm)	38
Angle.	22
Thickness (in)	0.44
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.567

2526V314

Cross Section	RVS-I
Effective Length (in)	31.4
Effective Length (mm)	798
Notched	true
Outside Circumference (in)	32
Outside Circumference (mm)	813
Pitch Length (in)	31.4
Pitch Length (mm)	798
Strand	1
Top Width (in)	1.56
Top Width (mm)	40
Angle.	26
Thickness (in)	0.47
Thickness (mm)	12
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.33

2530V610

Cross Section	RVS-I
Effective Length (in)	60.28
Effective Length (mm)	1531
Notched	true
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	61
Pitch Length (mm)	1549
Number of Ribs	1
Strand	1
Top Width (in)	1.56
Top Width (mm)	40
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.15

2530V630

Cross Section	RVS-I
Effective Length (in)	63
Effective Length (mm)	1600
Notched	true
Outside Circumference (in)	64.2
Outside Circumference (mm)	1630
Pitch Length (in)	63
Pitch Length (mm)	1600
Strand	1
Top Width (in)	1.56
Top Width (mm)	40
Angle.	30
Thickness (in)	0.64
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.778

2530V790

Cross Section	RVS-I
Effective Length (in)	78.06
Effective Length (mm)	1983
Notched	true
Outside Circumference (in)	79
Outside Circumference (mm)	2007
Pitch Length (in)	79
Pitch Length (mm)	2007
Strand	1
Top Width (in)	1.56
Top Width (mm)	40
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.096

2530V840

Cross Section	RVS-I
Effective Length (in)	83
Effective Length (mm)	2108
Notched	true
Outside Circumference (in)	84
Outside Circumference (mm)	2134
Pitch Length (in)	84
Pitch Length (mm)	2134
Strand	1
Top Width (in)	1.56
Top Width (mm)	40
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.805

2530V934

Cross Section	RVS-I
Effective Length (in)	93.4
Effective Length (mm)	2372
Notched	true
Outside Circumference (in)	94
Outside Circumference (mm)	2388
Pitch Length (in)	93.4
Pitch Length (mm)	2372
Strand	1
Top Width (in)	1.56
Top Width (mm)	40
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.386

2630V395

Cross Section	RVS-R
Effective Length (in)	39.5
Effective Length (mm)	1003
Notched	true
Outside Circumference (in)	40
Outside Circumference (mm)	1016
Pitch Length (in)	39.5
Pitch Length (mm)	1003
Strand	1
Top Width (in)	1.63
Top Width (mm)	41
Angle.	30
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.765

2822V778

Cross Section	RVS-I
Effective Length (in)	79.5
Effective Length (mm)	2019
Notched	true
Outside Circumference (in)	80
Outside Circumference (mm)	2032
Pitch Length (in)	77.8
Pitch Length (mm)	1976
Strand	1
Top Width (in)	1.75
Top Width (mm)	44
Angle.	22
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.155

2830V363

Cross Section	RVS-R
Effective Length (in)	36.3
Effective Length (mm)	922
Notched	true
Outside Circumference (in)	37
Outside Circumference (mm)	940
Pitch Length (in)	36.3
Pitch Length (mm)	922
Strand	1
Top Width (in)	1.75
Top Width (mm)	44
Angle.	30
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.676

2830V367

Cross Section	RVS-I
Effective Length (in)	37.88
Effective Length (mm)	962
Notched	true
Outside Circumference (in)	37.9
Outside Circumference (mm)	962
Pitch Length (in)	36.7
Pitch Length (mm)	932
Strand	1
Top Width (in)	1.75
Top Width (mm)	44
Angle.	30
Thickness (in)	0.49
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.816

2926V491

Cross Section	RVS-I
Effective Length (in)	48.42
Effective Length (mm)	1230
Notched	true
Outside Circumference (in)	50
Outside Circumference (mm)	1270
Pitch Length (in)	49.1
Pitch Length (mm)	1247
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	26
Thickness (in)	0.49
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.474

2926V521

Cross Section	RVS-I
Effective Length (in)	51.38
Effective Length (mm)	1305
Notched	true
Outside Circumference (in)	52
Outside Circumference (mm)	1321
Pitch Length (in)	52.1
Pitch Length (mm)	1323
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.533

2926V546

Cross Section	RVS-I
Effective Length (in)	54.6
Effective Length (mm)	1387
Notched	true
Outside Circumference (in)	55
Outside Circumference (mm)	1397
Pitch Length (in)	54.6
Pitch Length (mm)	1387
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	30
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.569

2926V574

Cross Section	RVS-I
Effective Length (in)	57.4
Effective Length (mm)	1458
Notched	true
Outside Circumference (in)	58
Outside Circumference (mm)	1473
Pitch Length (in)	57.4
Pitch Length (mm)	1458
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.633

2926V586

Cross Section	RVS-I
Effective Length (in)	59.5
Effective Length (mm)	1511
Notched	true
Outside Circumference (in)	60
Outside Circumference (mm)	1524
Pitch Length (in)	58.6
Pitch Length (mm)	1488
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.647

2926V606

Cross Section	RVS-I
Effective Length (in)	60.6
Effective Length (mm)	1539
Notched	true
Outside Circumference (in)	61.5
Outside Circumference (mm)	1562
Pitch Length (in)	60.6
Pitch Length (mm)	1539
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	26
Thickness (in)	0.5
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.696

2926V646

Cross Section	RVS-I
Effective Length (in)	65.5
Effective Length (mm)	1664
Notched	true
Outside Circumference (in)	65.5
Outside Circumference (mm)	1664
Pitch Length (in)	64.6
Pitch Length (mm)	1641
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.765

2926V666

Cross Section	RVS-I
Effective Length (in)	67.5
Effective Length (mm)	1715
Notched	true
Outside Circumference (in)	67.5
Outside Circumference (mm)	1715
Pitch Length (in)	66.6
Pitch Length (mm)	1692
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.814

2926V686

Cross Section	RVS-I
Effective Length (in)	69.5
Effective Length (mm)	1765
Notched	true
Outside Circumference (in)	69.5
Outside Circumference (mm)	1765
Pitch Length (in)	68.6
Pitch Length (mm)	1742
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.855

2926V726

Cross Section	RVS-I
Effective Length (in)	73.5
Effective Length (mm)	1867
Notched	true
Outside Circumference (in)	74
Outside Circumference (mm)	1880
Pitch Length (in)	72.6
Pitch Length (mm)	1844
Number of Ribs	1
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.55

2926V776

Cross Section	RVS-I
Effective Length (in)	78.5
Effective Length (mm)	1994
Notched	true
Outside Circumference (in)	78.5
Outside Circumference (mm)	1994
Pitch Length (in)	77.6
Pitch Length (mm)	1971
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	30
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.023

2926V786

Cross Section	RVS-I
Effective Length (in)	78.6
Effective Length (mm)	1996
Notched	true
Outside Circumference (in)	79
Outside Circumference (mm)	2007
Pitch Length (in)	78.6
Pitch Length (mm)	1996
Number of Ribs	1
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.85

2926V834

Cross Section	RVS-I
Effective Length (in)	83.4
Effective Length (mm)	2118
Notched	true
Outside Circumference (in)	84
Outside Circumference (mm)	2134
Pitch Length (in)	83.4
Pitch Length (mm)	2118
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.141

2926V856

Cross Section	RVS-I
Effective Length (in)	85.6
Effective Length (mm)	2174
Notched	true
Outside Circumference (in)	86
Outside Circumference (mm)	2184
Pitch Length (in)	85.6
Pitch Length (mm)	2174
Strand	1
Top Width (in)	1.81
Top Width (mm)	46
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.2

2926V906

Cross Section	RVS-I
Effective Length (in)	91.5
Effective Length (mm)	2324
Notched	true
Outside Circumference (in)	91.5
Outside Circumference (mm)	2324
Pitch Length (in)	90.6
Pitch Length (mm)	2301
Strand	1
Top Width (in)	1.81
Top Width (mm)	47
Angle.	26
Thickness (in)	0.51
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.286

3226V1023

Cross Section	RVS-I
Effective Length (in)	102.3
Effective Length (mm)	2598
Notched	true
Outside Circumference (in)	103.4
Outside Circumference (mm)	2626
Pitch Length (in)	102.3
Pitch Length (mm)	2598
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.51

3226V1083

Cross Section	RVS-I
Effective Length (in)	108.3
Effective Length (mm)	2751
Notched	true
Outside Circumference (in)	109.4
Outside Circumference (mm)	2778
Pitch Length (in)	108.3
Pitch Length (mm)	2751
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.549

3226V392

Cross Section	RVS-I
Effective Length (in)	39.72
Effective Length (mm)	1009
Notched	true
Outside Circumference (in)	39.7
Outside Circumference (mm)	1009
Pitch Length (in)	39.2
Pitch Length (mm)	996
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	26
Thickness (in)	0.53
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.002

3226V433

Cross Section	RVS-R
Effective Length (in)	43.3
Effective Length (mm)	1100
Notched	true
Outside Circumference (in)	44
Outside Circumference (mm)	1118
Pitch Length (in)	43.3
Pitch Length (mm)	1100
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.8

3226V465

Cross Section	RVS-I
Effective Length (in)	46.5
Effective Length (mm)	1181
Notched	true
Outside Circumference (in)	47.3
Outside Circumference (mm)	1202
Pitch Length (in)	46.5
Pitch Length (mm)	1181
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.388

3226V505

Cross Section	RVS-I
Effective Length (in)	50.5
Effective Length (mm)	1283
Notched	true
Outside Circumference (in)	51.4
Outside Circumference (mm)	1305
Pitch Length (in)	50.5
Pitch Length (mm)	1283
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.235

3226V545

Cross Section	RVS-I
Effective Length (in)	54.5
Effective Length (mm)	1384
Notched	true
Outside Circumference (in)	55
Outside Circumference (mm)	1397
Pitch Length (in)	54.5
Pitch Length (mm)	1384
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.166

3226V603

Cross Section	RVS-I
Effective Length (in)	61.52
Effective Length (mm)	1563
Notched	true
Outside Circumference (in)	61.5
Outside Circumference (mm)	1563
Pitch Length (in)	60.3
Pitch Length (mm)	1532
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	26
Thickness (in)	0.56
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.932

3226V663

Cross Section	RVS-I
Effective Length (in)	66.3
Effective Length (mm)	1684
Notched	true
Outside Circumference (in)	67.4
Outside Circumference (mm)	1711
Pitch Length (in)	66.3
Pitch Length (mm)	1684
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.765

3226V723

Cross Section	RVS-I
Effective Length (in)	72.3
Effective Length (mm)	1836
Notched	true
Outside Circumference (in)	73
Outside Circumference (mm)	1854
Pitch Length (in)	72.3
Pitch Length (mm)	1836
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.873

3226V783

Cross Section	RVS-I
Effective Length (in)	79.52
Effective Length (mm)	2020
Notched	true
Outside Circumference (in)	79.5
Outside Circumference (mm)	2020
Pitch Length (in)	78.3
Pitch Length (mm)	1989
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	26
Thickness (in)	0.56
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.39

3226V843

Cross Section	RVS-I
Effective Length (in)	84.3
Effective Length (mm)	2141
Notched	true
Outside Circumference (in)	85
Outside Circumference (mm)	2159
Pitch Length (in)	84.3
Pitch Length (mm)	2141
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.1

3226V903

Cross Section	RVS-I
Effective Length (in)	90.3
Effective Length (mm)	2294
Notched	true
Outside Circumference (in)	91
Outside Circumference (mm)	2311
Pitch Length (in)	90.3
Pitch Length (mm)	2294
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.5

3226V963

Cross Section	RVS-I
Effective Length (in)	96.3
Effective Length (mm)	2446
Notched	true
Outside Circumference (in)	97
Outside Circumference (mm)	2464
Pitch Length (in)	96.3
Pitch Length (mm)	2446
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	28
Thickness (in)	0.43
Thickness (mm)	11
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.327

3230HV856

Cross Section	RVS-I
Effective Length (in)	86.7
Effective Length (mm)	2202
Notched	true
Outside Circumference (in)	87
Outside Circumference (mm)	2210
Pitch Length (in)	85.6
Pitch Length (mm)	2174
Number of Ribs	1
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	30
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	6.44

3230HV931

Cross Section	RVS-I
Effective Length (in)	93.1
Effective Length (mm)	2365
Notched	true
Outside Circumference (in)	94
Outside Circumference (mm)	2388
Pitch Length (in)	93.1
Pitch Length (mm)	2365
Number of Ribs	1
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	30
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.9

3230V481

Cross Section	RVS-R
Effective Length (in)	48.93
Effective Length (mm)	1243
Notched	true
Outside Circumference (in)	49.4
Outside Circumference (mm)	1254
Pitch Length (in)	48.1
Pitch Length (mm)	1222
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	30
Thickness (in)	0.53
Thickness (mm)	13
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.007

3230V670

Cross Section	RVS-R
Effective Length (in)	67.83
Effective Length (mm)	1723
Notched	true
Outside Circumference (in)	67.7
Outside Circumference (mm)	1719
Pitch Length (in)	67
Pitch Length (mm)	1702
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	30
Thickness (in)	0.49
Thickness (mm)	12
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.82

3236HV553

Cross Section	RVS-I
Effective Length (in)	55.3
Effective Length (mm)	1405
Notched	true
Outside Circumference (in)	56
Outside Circumference (mm)	1422
Pitch Length (in)	55.3
Pitch Length (mm)	1405
Number of Ribs	1
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	36
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.6

3236HV670

Cross Section	RVS-I
Effective Length (in)	67.99
Effective Length (mm)	1727
Notched	true
Outside Circumference (in)	68
Outside Circumference (mm)	1727
Pitch Length (in)	67
Pitch Length (mm)	1702
Number of Ribs	1
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	36
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.45

3236HV702

Cross Section	RVS-I
Effective Length (in)	70.2
Effective Length (mm)	1783
Notched	true
Outside Circumference (in)	71
Outside Circumference (mm)	1803
Pitch Length (in)	70.2
Pitch Length (mm)	1783
Number of Ribs	1
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	36
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.7

3236HV821

Cross Section	RVS-I
Effective Length (in)	82.1
Effective Length (mm)	2085
Notched	true
Outside Circumference (in)	83
Outside Circumference (mm)	2108
Pitch Length (in)	82.1
Pitch Length (mm)	2085
Number of Ribs	1
Strand	1
Top Width (in)	2
Top Width (mm)	51
Angle.	36
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.6

3432V450

Cross Section	RVS-R
Effective Length (in)	45.86
Effective Length (mm)	1165
Notched	true
Outside Circumference (in)	46
Outside Circumference (mm)	1168
Pitch Length (in)	45
Pitch Length (mm)	1143
Strand	1
Top Width (in)	2.13
Top Width (mm)	54
Angle.	32
Thickness (in)	0.54
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.939

3432V456

Cross Section	RVS-R
Effective Length (in)	46.52
Effective Length (mm)	1182
Notched	true
Outside Circumference (in)	46.7
Outside Circumference (mm)	1185
Pitch Length (in)	45.6
Pitch Length (mm)	1158
Strand	1
Top Width (in)	2.13
Top Width (mm)	54
Angle.	32
Thickness (in)	0.54
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.12

3432V480

Cross Section	RVS-R
Effective Length (in)	48.67
Effective Length (mm)	1236
Notched	true
Outside Circumference (in)	48.8
Outside Circumference (mm)	1239
Pitch Length (in)	48
Pitch Length (mm)	1219
Strand	1
Top Width (in)	2.13
Top Width (mm)	54
Angle.	32
Thickness (in)	0.54
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.161

3432V528

Cross Section	RVS-R
Effective Length (in)	52.8
Effective Length (mm)	1341
Notched	true
Outside Circumference (in)	53
Outside Circumference (mm)	1346
Pitch Length (in)	52.8
Pitch Length (mm)	1341
Strand	1
Top Width (in)	2.13
Top Width (mm)	54
Angle.	32
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.198

3636V479

Cross Section	RVS-I
Effective Length (in)	48.82
Effective Length (mm)	1240
Notched	true
Outside Circumference (in)	49
Outside Circumference (mm)	1245
Pitch Length (in)	47.9
Pitch Length (mm)	1217
Strand	1
Top Width (in)	2.25
Top Width (mm)	57
Angle.	36
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	1.765

3826V465

Cross Section	RVS-I
Effective Length (in)	47.5
Effective Length (mm)	1207
Notched	true
Outside Circumference (in)	48
Outside Circumference (mm)	1219
Pitch Length (in)	46.5
Pitch Length (mm)	1181
Number of Ribs	1
Strand	1
Top Width (in)	2.38
Top Width (mm)	60
Angle.	26
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.73

3830V510

Cross Section	RVS-I
Effective Length (in)	50.4
Effective Length (mm)	1280
Notched	true
Outside Circumference (in)	51
Outside Circumference (mm)	1295
Pitch Length (in)	51
Pitch Length (mm)	1295
Strand	1
Top Width (in)	2.38
Top Width (mm)	60
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.159

3830V517

Cross Section	RVS-I
Effective Length (in)	52.72
Effective Length (mm)	1339
Notched	true
Outside Circumference (in)	53
Outside Circumference (mm)	1346
Pitch Length (in)	51.7
Pitch Length (mm)	1313
Strand	1
Top Width (in)	2.38
Top Width (mm)	60
Angle.	30
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.44

3830V580

Cross Section	RVS-I
Effective Length (in)	57.31
Effective Length (mm)	1456
Notched	true
Outside Circumference (in)	58
Outside Circumference (mm)	1473
Pitch Length (in)	58
Pitch Length (mm)	1473
Strand	1
Top Width (in)	2.38
Top Width (mm)	60
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.386

4230V556

Cross Section	RVS-I
Effective Length (in)	56.75
Effective Length (mm)	1441
Notched	true
Outside Circumference (in)	57
Outside Circumference (mm)	1448
Pitch Length (in)	55.6
Pitch Length (mm)	1412
Strand	1
Top Width (in)	2.63
Top Width (mm)	67
Angle.	32
Thickness (in)	0.59
Thickness (mm)	15
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.404

4230V605

Cross Section	RVS-I
Effective Length (in)	59.29
Effective Length (mm)	1506
Notched	true
Outside Circumference (in)	60
Outside Circumference (mm)	1524
Pitch Length (in)	60.5
Pitch Length (mm)	1537
Strand	1
Top Width (in)	2.63
Top Width (mm)	67
Angle.	32
Thickness (in)	0.55
Thickness (mm)	14
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.377

4234V998

Cross Section	RVS-I
Effective Length (in)	98.81
Effective Length (mm)	2510
Notched	true
Outside Circumference (in)	100
Outside Circumference (mm)	2540
Pitch Length (in)	99.8
Pitch Length (mm)	2535
Strand	1
Top Width (in)	2.63
Top Width (mm)	67
Angle.	34
Thickness (in)	0.79
Thickness (mm)	20
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.365

4330V521

Cross Section	RVS-I
Effective Length (in)	52.1
Effective Length (mm)	1323
Notched	true
Outside Circumference (in)	53.1
Outside Circumference (mm)	1350
Pitch Length (in)	52.1
Pitch Length (mm)	1323
Strand	1
Top Width (in)	2.69
Top Width (mm)	68
Angle.	30
Thickness (in)	0.69
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.599

4430V1000

Cross Section	RVS-I
Effective Length (in)	100
Effective Length (mm)	2540
Notched	true
Outside Circumference (in)	101.1
Outside Circumference (mm)	2568
Pitch Length (in)	100
Pitch Length (mm)	2540
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.69
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.645

4430V1030

Cross Section	RVS-I
Effective Length (in)	103.96
Effective Length (mm)	2641
Notched	true
Outside Circumference (in)	104
Outside Circumference (mm)	2641
Pitch Length (in)	103
Pitch Length (mm)	2616
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.65
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.45

4430V1090

Cross Section	RVS-I
Effective Length (in)	107.71
Effective Length (mm)	2736
Notched	true
Outside Circumference (in)	110
Outside Circumference (mm)	2794
Pitch Length (in)	109
Pitch Length (mm)	2769
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.65
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.677

4430V1150

Cross Section	RVS-I
Effective Length (in)	113.64
Effective Length (mm)	2886
Notched	true
Outside Circumference (in)	116
Outside Circumference (mm)	2946
Pitch Length (in)	115
Pitch Length (mm)	2921
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.82
Thickness (mm)	21
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.997

4430V1250

Cross Section	RVS-I
Effective Length (in)	125
Effective Length (mm)	3175
Notched	true
Outside Circumference (in)	126.1
Outside Circumference (mm)	3203
Pitch Length (in)	125
Pitch Length (mm)	3175
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.69
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.688

4430V1320

Cross Section	RVS-I
Effective Length (in)	130.43
Effective Length (mm)	3313
Notched	true
Outside Circumference (in)	132
Outside Circumference (mm)	3353
Pitch Length (in)	132
Pitch Length (mm)	3353
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.57

4430V1410

Cross Section	RVS-R
Effective Length (in)	141.3
Effective Length (mm)	3589
Notched	true
Outside Circumference (in)	143
Outside Circumference (mm)	3632
Pitch Length (in)	141
Pitch Length (mm)	3581
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.71
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	6.137

4430V1460

Cross Section	RVS-R
Effective Length (in)	144.27
Effective Length (mm)	3664
Notched	true
Outside Circumference (in)	147
Outside Circumference (mm)	3734
Pitch Length (in)	146
Pitch Length (mm)	3708
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.69
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	6.337

4430V1610

Cross Section	RVS-R
Effective Length (in)	160.08
Effective Length (mm)	4066
Notched	true
Outside Circumference (in)	162
Outside Circumference (mm)	4115
Pitch Length (in)	161
Pitch Length (mm)	4089
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.69
Thickness (mm)	18
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	6.936

4430V600

Cross Section	RVS-R
Effective Length (in)	61.03
Effective Length (mm)	1550
Notched	true
Outside Circumference (in)	62
Outside Circumference (mm)	1575
Pitch Length (in)	60
Pitch Length (mm)	1524
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	32
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.531

4430V610

Cross Section	RVS-I
Effective Length (in)	60.28
Effective Length (mm)	1531
Notched	true
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	61
Pitch Length (mm)	1549
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.862

4430V630

Cross Section	RVS-I
Effective Length (in)	62.25
Effective Length (mm)	1581
Notched	true
Outside Circumference (in)	63
Outside Circumference (mm)	1600
Pitch Length (in)	63
Pitch Length (mm)	1600
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.926

4430V660

Cross Section	RVS-I
Effective Length (in)	65.22
Effective Length (mm)	1657
Notched	true
Outside Circumference (in)	66
Outside Circumference (mm)	1676
Pitch Length (in)	66
Pitch Length (mm)	1676
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.039

4430V670

Cross Section	RVS-I
Effective Length (in)	66.21
Effective Length (mm)	1682
Notched	true
Outside Circumference (in)	67
Outside Circumference (mm)	1702
Pitch Length (in)	67
Pitch Length (mm)	1702
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.089

4430V690

Cross Section	RVS-I
Effective Length (in)	68.18
Effective Length (mm)	1732
Notched	true
Outside Circumference (in)	69
Outside Circumference (mm)	1753
Pitch Length (in)	69
Pitch Length (mm)	1753
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	2.89

4430V700

Cross Section	RVS-I
Effective Length (in)	69.17
Effective Length (mm)	1757
Notched	true
Outside Circumference (in)	70
Outside Circumference (mm)	1778
Pitch Length (in)	70
Pitch Length (mm)	1778
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.202

4430V730

Cross Section	RVS-I
Effective Length (in)	73.96
Effective Length (mm)	1879
Notched	true
Outside Circumference (in)	74
Outside Circumference (mm)	1880
Pitch Length (in)	73
Pitch Length (mm)	1854
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.316

4430V760

Cross Section	RVS-R
Effective Length (in)	76
Effective Length (mm)	1930
Notched	true
Outside Circumference (in)	77
Outside Circumference (mm)	1956
Pitch Length (in)	76
Pitch Length (mm)	1930
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	36
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.107

4430V772

Cross Section	RVS-R
Effective Length (in)	78.63
Effective Length (mm)	1997
Notched	true
Outside Circumference (in)	79
Outside Circumference (mm)	2007
Pitch Length (in)	77.2
Pitch Length (mm)	1961
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	33
Thickness (in)	0.87
Thickness (mm)	22
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Bandless
Material	Belt Material is Ethylene Elastomeric. Cord Material is Aramid
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.994

4430V790

Cross Section	RVS-I
Effective Length (in)	79.96
Effective Length (mm)	2031
Notched	true
Outside Circumference (in)	80
Outside Circumference (mm)	2031
Pitch Length (in)	79
Pitch Length (mm)	2007
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.65
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.543

4430V850

Cross Section	RVS-I
Effective Length (in)	85.96
Effective Length (mm)	2183
Notched	true
Outside Circumference (in)	85.9
Outside Circumference (mm)	2183
Pitch Length (in)	85
Pitch Length (mm)	2159
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.65
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.769

4430V910

Cross Section	RVS-I
Effective Length (in)	89.92
Effective Length (mm)	2284
Notched	true
Outside Circumference (in)	92
Outside Circumference (mm)	2337
Pitch Length (in)	91
Pitch Length (mm)	2311
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.65
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.996

4430V970

Cross Section	RVS-I
Effective Length (in)	95.85
Effective Length (mm)	2435
Notched	true
Outside Circumference (in)	97
Outside Circumference (mm)	2464
Pitch Length (in)	97
Pitch Length (mm)	2464
Number of Ribs	1
Strand	1
Top Width (in)	2.75
Top Width (mm)	70
Angle.	30
Thickness (in)	0.63
Thickness (mm)	16
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	8.4

4626V596

Cross Section	RVS-I
Effective Length (in)	60.57
Effective Length (mm)	1538
Notched	true
Outside Circumference (in)	61
Outside Circumference (mm)	1549
Pitch Length (in)	59.6
Pitch Length (mm)	1514
Number of Ribs	1
Strand	1
Top Width (in)	2.88
Top Width (mm)	73
Angle.	26
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	7.1

4630V1070

Cross Section	RVS-I
Effective Length (in)	107
Effective Length (mm)	2718
Notched	true
Outside Circumference (in)	108
Outside Circumference (mm)	2743
Pitch Length (in)	107
Pitch Length (mm)	2718
Strand	1
Top Width (in)	2.88
Top Width (mm)	73
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.218

4630V663

Cross Section	RVS-I
Effective Length (in)	66.3
Effective Length (mm)	1684
Notched	true
Outside Circumference (in)	67.2
Outside Circumference (mm)	1708
Pitch Length (in)	66.3
Pitch Length (mm)	1684
Strand	1
Top Width (in)	2.88
Top Width (mm)	73
Angle.	32
Thickness (in)	0.84
Thickness (mm)	21
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.851

4830V699

Cross Section	RVS-I
Effective Length (in)	69.17
Effective Length (mm)	1757
Notched	true
Outside Circumference (in)	70
Outside Circumference (mm)	1778
Pitch Length (in)	69.9
Pitch Length (mm)	1775
Strand	1
Top Width (in)	3
Top Width (mm)	76
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.656

4830V730

Cross Section	RVS-I
Effective Length (in)	73
Effective Length (mm)	1854
Notched	true
Outside Circumference (in)	74
Outside Circumference (mm)	1880
Pitch Length (in)	73
Pitch Length (mm)	1854
Strand	1
Top Width (in)	3
Top Width (mm)	76
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.828

4830V750

Cross Section	RVS-I
Effective Length (in)	74.11
Effective Length (mm)	1882
Notched	true
Outside Circumference (in)	75
Outside Circumference (mm)	1905
Pitch Length (in)	75
Pitch Length (mm)	1905
Strand	1
Top Width (in)	3
Top Width (mm)	76
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.878

4836V655

Cross Section	RVS-I
Effective Length (in)	66.62
Effective Length (mm)	1692
Notched	true
Outside Circumference (in)	66.6
Outside Circumference (mm)	1692
Pitch Length (in)	65.5
Pitch Length (mm)	1664
Strand	1
Top Width (in)	3
Top Width (mm)	76
Angle.	36
Thickness (in)	0.69
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	3.42

4836V850

Cross Section	RVS-I
Effective Length (in)	85
Effective Length (mm)	2159
Notched	true
Outside Circumference (in)	86
Outside Circumference (mm)	2184
Pitch Length (in)	85
Pitch Length (mm)	2159
Number of Ribs	1
Strand	1
Top Width (in)	3
Top Width (mm)	76
Angle.	30
Thickness (in)	0.67
Thickness (mm)	17
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	9.1

5126V938

Cross Section	RVS-I
Effective Length (in)	92.89
Effective Length (mm)	2359
Notched	true
Outside Circumference (in)	94
Outside Circumference (mm)	2388
Pitch Length (in)	93.8
Pitch Length (mm)	2383
Strand	1
Top Width (in)	3.19
Top Width (mm)	81
Angle.	26
Thickness (in)	0.75
Thickness (mm)	19
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.861

5130V732

Cross Section	RVS-I
Effective Length (in)	74.55
Effective Length (mm)	1894
Notched	true
Outside Circumference (in)	75
Outside Circumference (mm)	1905
Pitch Length (in)	73.2
Pitch Length (mm)	1859
Strand	1
Top Width (in)	3.19
Top Width (mm)	81
Angle.	30
Thickness (in)	0.87
Thickness (mm)	22
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.931

5228V930

Cross Section	RVS-I
Effective Length (in)	93
Effective Length (mm)	2362
Notched	true
Outside Circumference (in)	94
Outside Circumference (mm)	2388
Pitch Length (in)	93
Pitch Length (mm)	2362
Number of Ribs	1
Strand	1
Top Width (in)	3.25
Top Width (mm)	83
Angle.	28
Thickness (in)	0.87
Thickness (mm)	22
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	10.5

5230V662

Cross Section	RVS-I
Effective Length (in)	66.2
Effective Length (mm)	1681
Notched	true
Outside Circumference (in)	67
Outside Circumference (mm)	1702
Pitch Length (in)	66.2
Pitch Length (mm)	1681
Strand	1
Top Width (in)	3.25
Top Width (mm)	83
Angle.	30
Thickness (in)	0.75
Thickness (mm)	19
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.246

5230V734

Cross Section	RVS-I
Effective Length (in)	73.4
Effective Length (mm)	1864
Notched	true
Outside Circumference (in)	75
Outside Circumference (mm)	1905
Pitch Length (in)	73.4
Pitch Length (mm)	1864
Strand	1
Top Width (in)	3.25
Top Width (mm)	83
Angle.	30
Thickness (in)	0.87
Thickness (mm)	22
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.935

5636V774

Cross Section	RVS-I
Effective Length (in)	78.68
Effective Length (mm)	1998
Notched	true
Outside Circumference (in)	79
Outside Circumference (mm)	2007
Pitch Length (in)	77.4
Pitch Length (mm)	1966
Strand	1
Top Width (in)	3.5
Top Width (mm)	89
Angle.	36
Thickness (in)	0.94
Thickness (mm)	24
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	5.915

5836V737

Cross Section	RVS-I
Effective Length (in)	73.7
Effective Length (mm)	1872
Notched	true
Outside Circumference (in)	75
Outside Circumference (mm)	1906
Pitch Length (in)	73.7
Pitch Length (mm)	1872
Strand	1
Top Width (in)	3.63
Top Width (mm)	92
Angle.	36
Thickness (in)	0.75
Thickness (mm)	19
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	4.89

6236V762

Cross Section	RVS-I
Effective Length (in)	77.62
Effective Length (mm)	1972
Notched	true
Outside Circumference (in)	77.6
Outside Circumference (mm)	1972
Pitch Length (in)	76.2
Pitch Length (mm)	1935
Strand	1
Top Width (in)	3.88
Top Width (mm)	99
Angle.	36
Thickness (in)	0.89
Thickness (mm)	23
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Color	Black
Construction	Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	6.115

Effective Length (in)	21 – 160.08
Effective Length (mm)	533 – 4066
Outside Circumference (in)	21.3 – 162
Outside Circumference (mm)	541 – 4115
Pitch Length (in)	21 – 161
Pitch Length (mm)	533 – 4089
Number of Ribs	1
Section	RVS-R, RVS-I
Top Width (in)	0.75 – 3.88
Top Width (mm)	19 – 99
Angle.	22 – 36
Thickness (in)	0.24 – 0.94
Thickness (mm)	6 – 24
Color	Black
Construction	Bandless, Banded
Material	Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester, Belt Material is Ethylene Elastomeric. Cord Material is Polyester, Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid, Belt Material is Ethylene Elastomeric. Cord Material is Aramid
Cross Section	RVS-R, RVS-I
Notched	true
Strand	1
Markets/Applications	Suitable for all industrial, wide-speed range open pulley or enclosed device variable speed drives.
Recommended For	Contact the Gates Made-To-Order Metals Team.
Belt Notes	HV in the part number denotes Heavy Construction, which has a thickness of .700+.
Customer Pack	1
Weight (lbs.)	0.55 – 10.5

Multi-Speed Belt

Attributes

Description

Variations (222)

1228V255

1230V348

1330V242

1422V235

1422V240

1422V270

1422V290

1422V300

1422V330

1422V340

1422V360

1422V400

1422V420

1422V440

1422V460

1422V466

1422V480

1422V540

1422V600

1422V660

1426V328

1430V215

1430V375

1526V264

1528V326

1528V360

1528V414

1622V270

1622V307

1626V262

1626V304

1626V330

1626V339

1626V380

1626V384

1626V395

1626V411

1626V440

1626V455

1626V513

1626V517

1626V597

1626V604

1628V210

1628V315

1632V210

1822V290

1822V328

1828V368

1922V277

1922V282

1922V298

1922V302

1922V321

1922V332

1922V338

1922V363

1922V381

1922V386

1922V403

1922V417

1922V426

1922V443

1922V454

1922V460

1922V484

1922V526

1922V544

1922V604

1922V630

1922V646

1922V666

1922V686

1922V706

1922V756

1922V806
