Attributes
| Part Number | 9808-000000-000000 |
|---|
Description

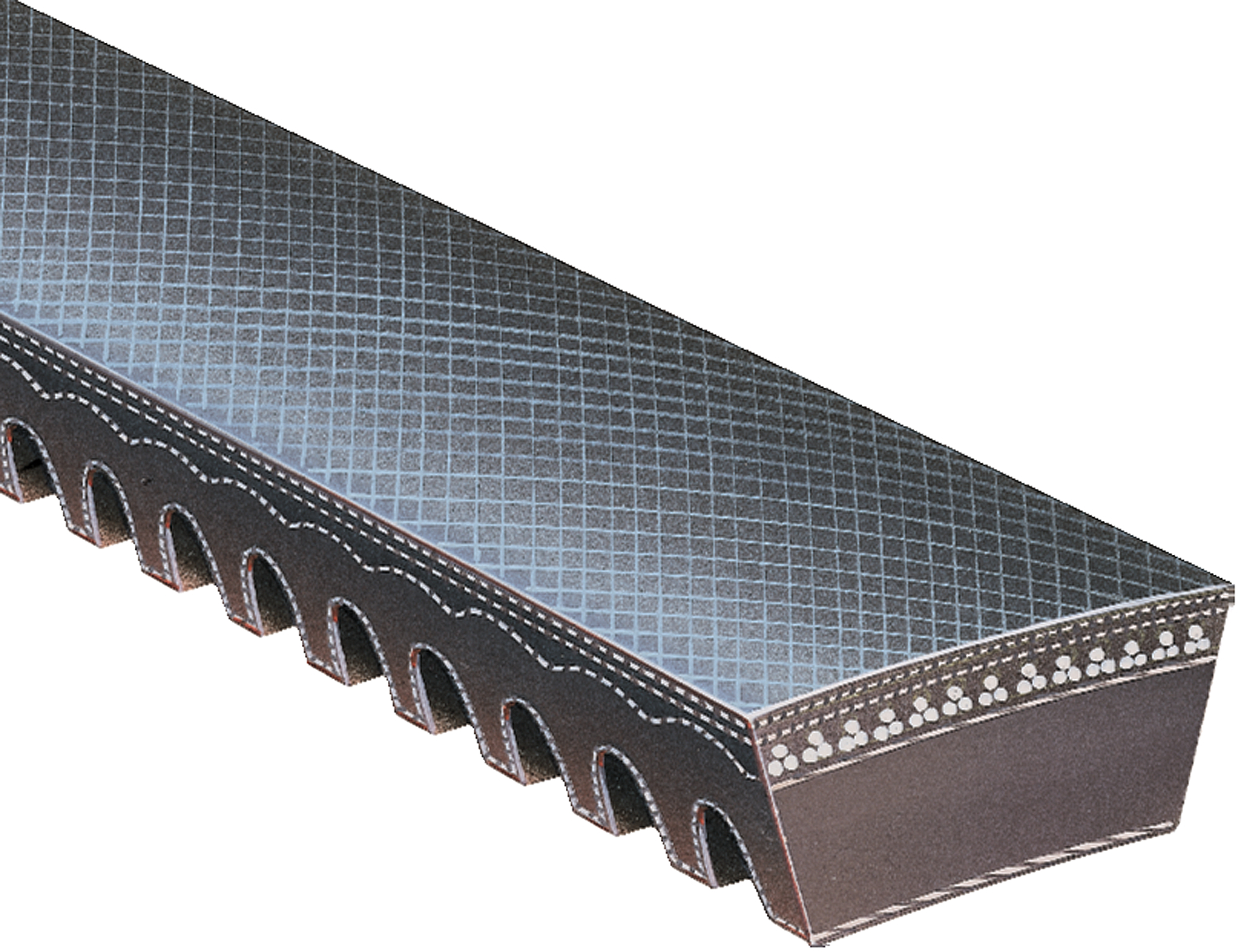

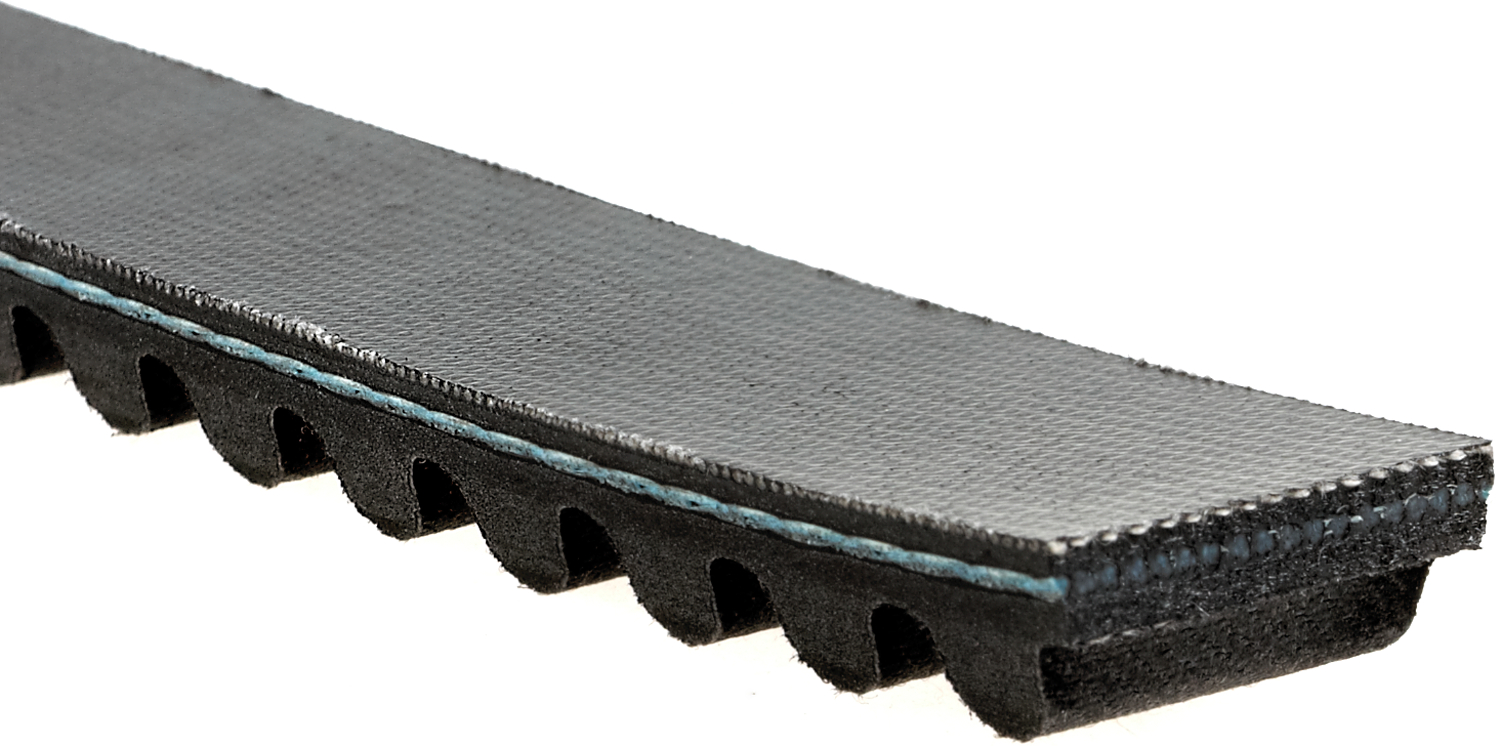

PowerLink™ Belts We've specially designed our Powerlink™ drive belts for your motorized Continuous Variable Transmission (CVT) applications, including street-legal, step-through scooters, and Go-Karts. Gates Powerlink™ belts are available in two types: Conventional belt, which offers OE-equivalent performance and exceptional durability, and our Premium belt, designed for reliable durability in your high performance applications. Exact speed control. Maximum speed adjustment. Fast and easy acceleration. Smooth scooter operation. For applications with 50-150cc range.
Variations (14)
PL20507
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 26.338 |
| Outside Circumference (mm) | 669 |
| Top Width (in) | 0.708 |
| Top Width (mm) | 18 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.21 |
PL20705
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 32.874 |
| Outside Circumference (mm) | 835 |
| Top Width (in) | 0.787 |
| Top Width (mm) | 20 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.3 |
PL20707
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 29.252 |
| Outside Circumference (mm) | 743 |
| Top Width (in) | 0.787 |
| Top Width (mm) | 20 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.3 |
PL20708
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 33.149 |
| Outside Circumference (mm) | 842 |
| Top Width (in) | 0.787 |
| Top Width (mm) | 20 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.3 |
PL30206
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 30.78 |
| Outside Circumference (mm) | 782 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.2 |
PL30208
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 27.09 |
| Outside Circumference (mm) | 688 |
| Top Width (in) | 0.649 |
| Top Width (mm) | 16.5 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.24 |
PL30210
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 29.05 |
| Outside Circumference (mm) | 738 |
| Top Width (in) | 0.64 |
| Top Width (mm) | 16.5 |
| Angle. | 28 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.15 |
PL30507
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 26.338 |
| Outside Circumference (mm) | 669 |
| Top Width (in) | 0.708 |
| Top Width (mm) | 18 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.17 |
PL30508
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 25.98 |
| Outside Circumference (mm) | 660 |
| Top Width (in) | 0.708 |
| Top Width (mm) | 18 |
| Angle. | 28 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.2 |
PL30509
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 30.91 |
| Outside Circumference (mm) | 785 |
| Top Width (in) | 0.7 |
| Top Width (mm) | 17.9 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.25 |
PL30705
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 32.874 |
| Outside Circumference (mm) | 835 |
| Top Width (in) | 0.787 |
| Top Width (mm) | 20 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.35 |
PL30707
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 29.252 |
| Outside Circumference (mm) | 743 |
| Top Width (in) | 0.787 |
| Top Width (mm) | 20 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.25 |
PL30708
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 33.149 |
| Outside Circumference (mm) | 842 |
| Top Width (in) | 0.787 |
| Top Width (mm) | 20 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.25 |
PL30807
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 29.88 |
| Outside Circumference (mm) | 759 |
| Top Width (in) | 0.85 |
| Top Width (mm) | 21.8 |
| Angle. | 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.3 |
Specifications
| Cross Section | RVS-R |
|---|---|
| Notched | true |
| Outside Circumference (in) | 25.98 – 33.149 |
| Outside Circumference (mm) | 660 – 842 |
| Top Width (in) | 0.63 – 0.85 |
| Top Width (mm) | 16 – 21.8 |
| Angle. | 28 – 30 |
| Construction | Notched |
| Customer Pack | 999 |
| Weight (lbs.) | 0.15 – 0.35 |
