Attributes
| Part Number | 8595-000000-000001 |
|---|
Description

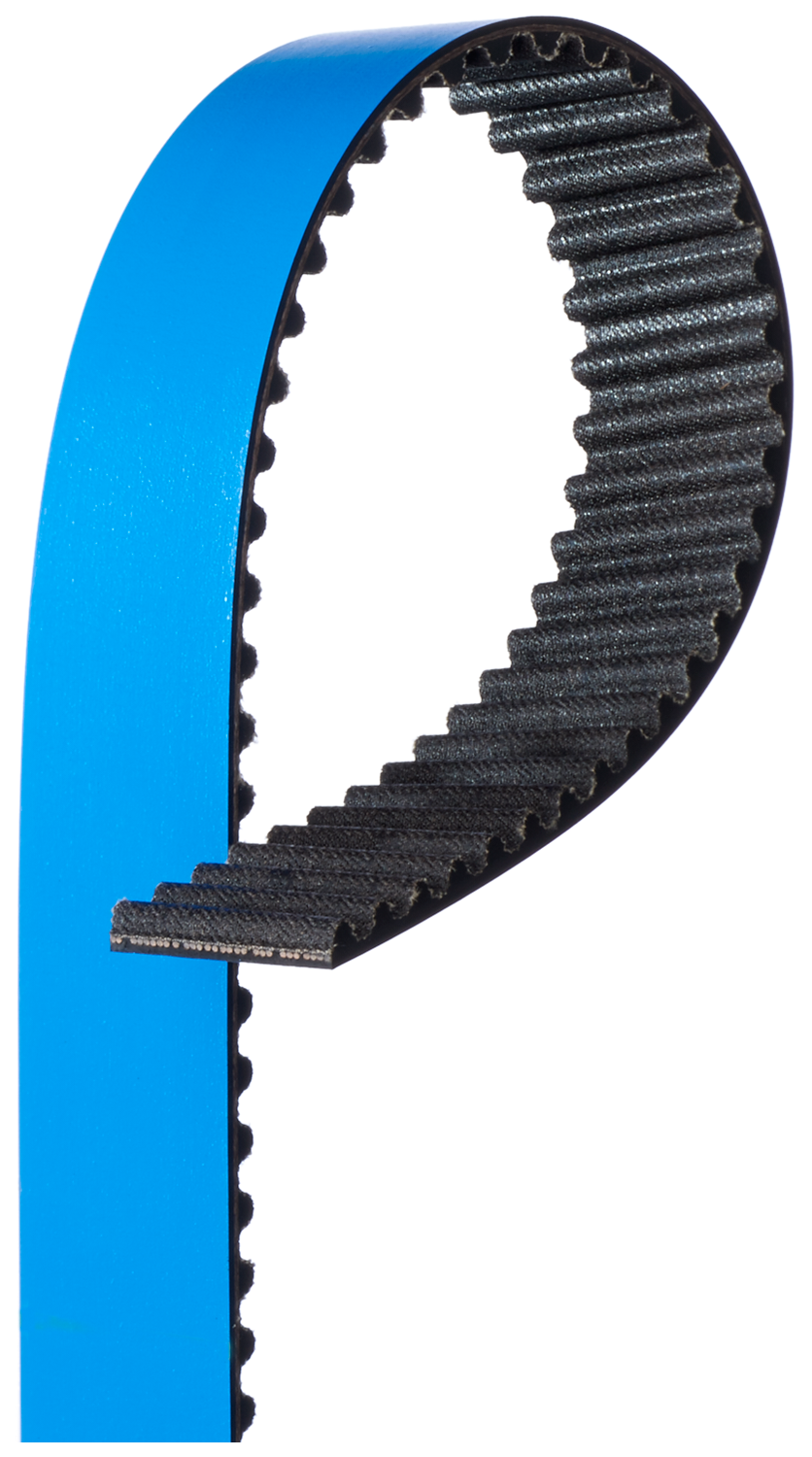

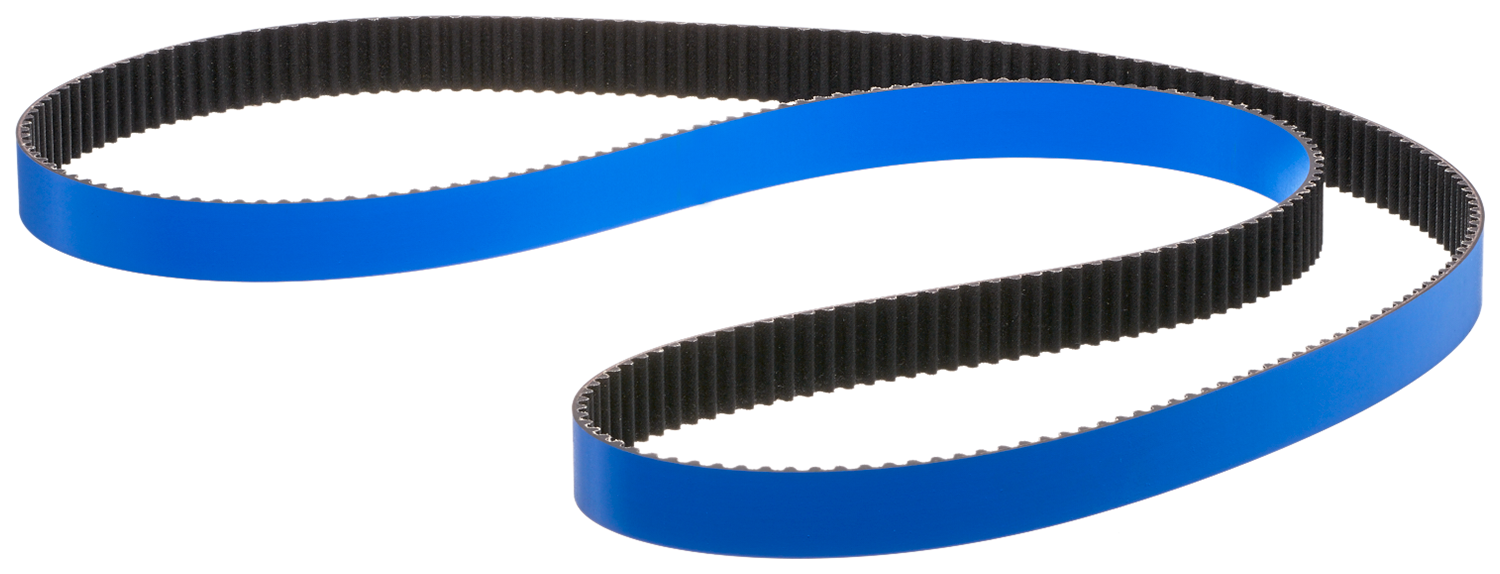

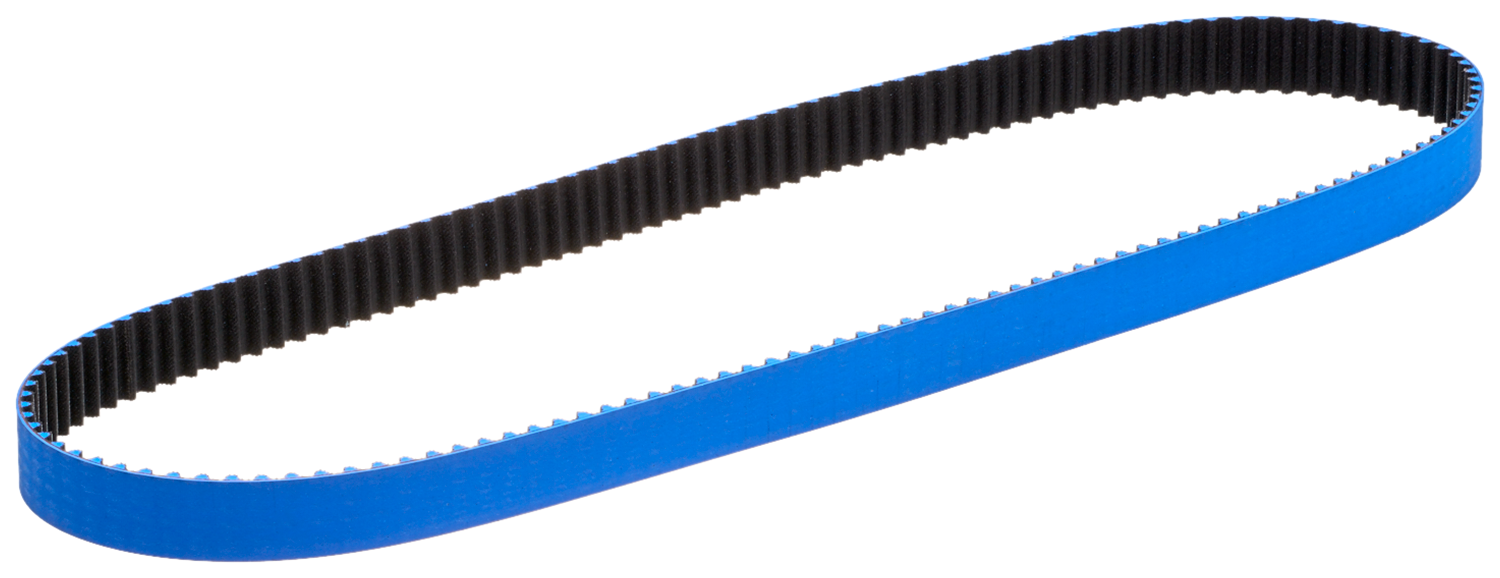

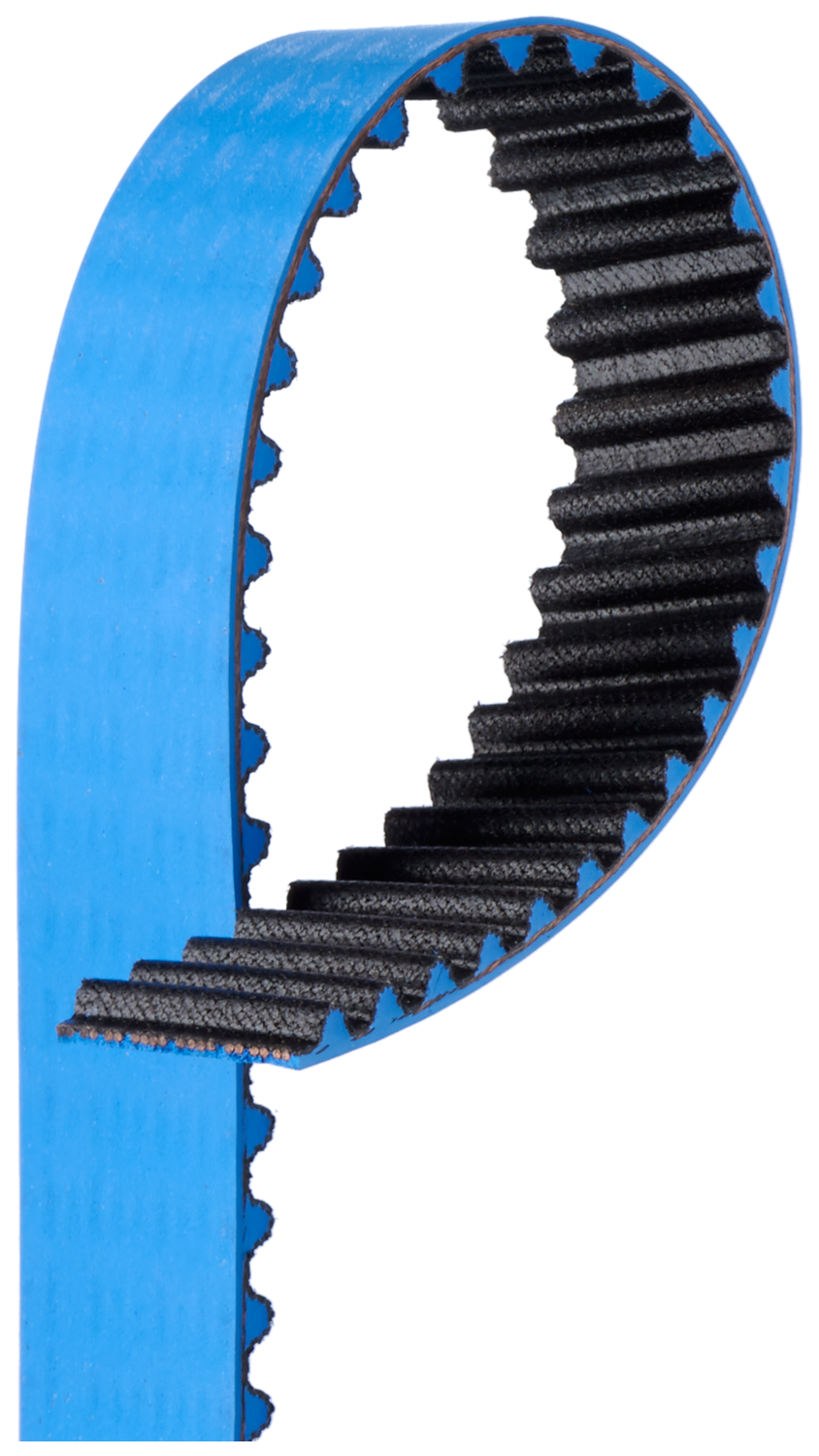

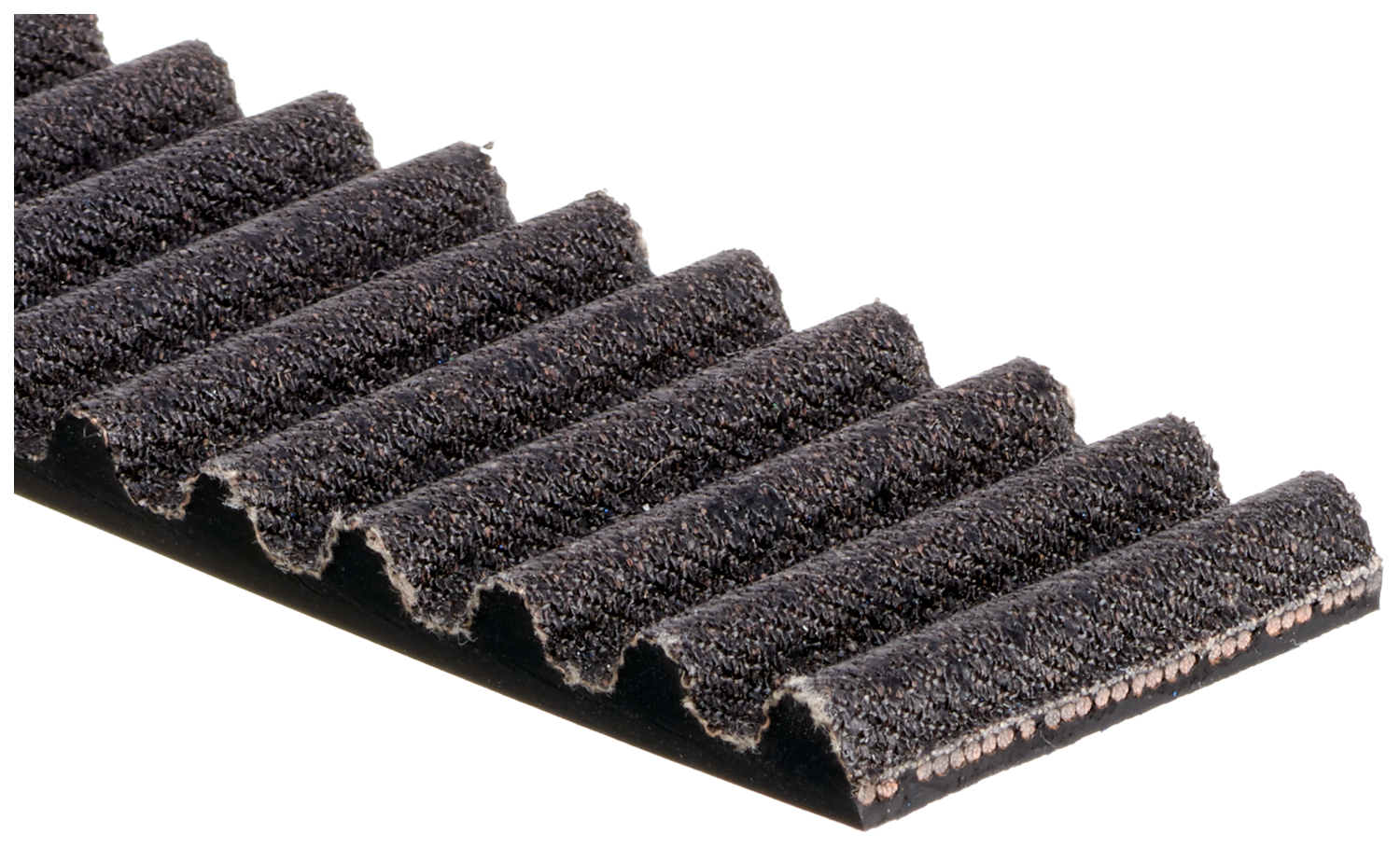

RPM™ Timing Belts No other belts protect your engine while delivering powerfully high performance like Gates Racing, Performance, Muscle (RPM) Timing Belts. Gates RPM Timing Belts are incredibly strong and extremely heat resistant, engineered to take on high speeds and rapid accelerations. Constructed of HNBR elastomeric composites, Gates RPM Timing Belts are as much as 300% stronger than stock belts and deliver up to three times the heat resistance. You can count on RPM to hold up to the rigors of high horsepower required for interference engines. Superior construction provides up to three times the heat resistance, wear resistance, and performance. Belt tooth jacket is reinforced with high-performance nylon material to minimize wear. High-strength tensile cords withstand higher horsepower, for timing belts that can hold up with interference engines. Specially formulated HSN rubber compound to improve strength and resist degradation due to contact with engine fluids.
Variations (54)
T1040RB
No variation attributes.
T125RB
No variation attributes.
T131RB
No variation attributes.
T137RB
No variation attributes.
T167RB
No variation attributes.
T176RB
No variation attributes.
T179RB
No variation attributes.
T215RB
No variation attributes.
T224RB
No variation attributes.
T227RB
No variation attributes.
T247RB
No variation attributes.
T281RB
No variation attributes.
T291RB
No variation attributes.
T294RB
No variation attributes.
T297RB
No variation attributes.
T306RB
No variation attributes.
T317RB
No variation attributes.
T328RB
No variation attributes.
T332RB
No variation attributes.
T334RB
No variation attributes.
T104RB
| Pitch Length (in) | 49.875 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 133 |
| Top Width (in) | 0.98 |
| Top Width (mm) | 25 |
| Length (in) | 49.88 |
| Length (mm) | 1.267 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.5 |
T107RB
| Pitch Length (in) | 43.875 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 117 |
| Top Width (in) | 0.75 |
| Top Width (mm) | 19 |
| Length (in) | 43.86 |
| Length (mm) | 1.114 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.4 |
T112RB
| Pitch Length (in) | 42.38 |
|---|---|
| Pitch (in) | 0.375 |
| Pitch (mm) | 10 |
| Number of Teeth | 113 |
| Top Width (in) | 0.75 |
| Top Width (mm) | 19 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.152 |
T142RB
| Pitch Length (in) | 46.5 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 124 |
| Top Width (in) | 0.94 |
| Top Width (mm) | 24 |
| Length (in) | 46.5 |
| Length (mm) | 1.181 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.45 |
T145RB
| Pitch Length (in) | 40.125 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 107 |
| Top Width (in) | 0.94 |
| Top Width (mm) | 24 |
| Length (in) | 40.12 |
| Length (mm) | 1.019 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.41 |
T152RB
| Pitch Length (in) | 44.63 |
|---|---|
| Pitch (in) | 0.375 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 119 |
| Top Width (mm) | 25.4 |
| Length (mm) | 1.133 |
| Color | BLACK |
| Material | HNBR |
| Customer Pack | 999 |
| Weight (lbs.) | 0.63 |
T167RB1
| Pitch Length (in) | 57.38 |
|---|---|
| Pitch (in) | .375 |
| Pitch (mm) | 9.5 |
| Number of Teeth | 153 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.55 |
T184RB
| Pitch Length (in) | 46.88 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 125 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Length (in) | 46.89 |
| Length (mm) | 1.191 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.49 |
T186RB
| Pitch Length (in) | 25.25 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 70 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Length (in) | 26.26 |
| Length (mm) | 667 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.08 |
T195RB
| Pitch Length (in) | 80.945 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 257 |
| Top Width (in) | 1.26 |
| Top Width (mm) | 32 |
| Length (in) | 80.94 |
| Length (mm) | 2.056 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 999 |
| Weight (lbs.) | 1.0 |
T199RB
| Pitch Length (in) | 51.338 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 163 |
| Top Width (in) | 1.06 |
| Top Width (mm) | 27 |
| Length (in) | 51.34 |
| Length (mm) | 1.304 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.52 |
T201RB
| Pitch Length (in) | 38.11 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 121 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Length (in) | 38.11 |
| Length (mm) | 968 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.46 |
T208RB
No variation attributes.
T210RB
| Pitch Length (in) | 48.38 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 129 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Length (in) | 48.39 |
| Length (mm) | 1.229 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.31 |
T225RB
| Pitch Length (in) | 47.56 |
|---|---|
| Pitch (in) | 0.315 |
| Pitch (mm) | 8 |
| Number of Teeth | 151 |
| Top Width (in) | 0.75 |
| Top Width (mm) | 19 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.171 |
T226RB
| Pitch (in) | 0.31 |
|---|---|
| Pitch (mm) | 8 |
| Number of Teeth | 155 |
| Top Width (in) | 0.94 |
| Top Width (mm) | 24 |
| Length (in) | 48.82 |
| Length (mm) | 1.24 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 198 |
| Weight (lbs.) | 0.2214 |
T228RB
| Pitch Length (in) | 42.52 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 135 |
| Top Width (in) | 1 |
| Top Width (mm) | 25.4 |
| Length (in) | 42.52 |
| Length (mm) | 1.08 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.5 |
T235RB
| Pitch Length (in) | 38.11 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 121 |
| Top Width (in) | 0.83 |
| Top Width (mm) | 21 |
| Length (in) | 38.11 |
| Length (mm) | 968 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.4 |
T237RB
| Pitch Length (in) | 50.079 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 159 |
| Top Width (in) | 0.98 |
| Top Width (mm) | 25 |
| Length (in) | 50.08 |
| Length (mm) | 1.272 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.49 |
T244RB
| Pitch Length (in) | 42 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 112 |
| Top Width (in) | 0.94 |
| Top Width (mm) | 24 |
| Length (in) | 42.01 |
| Length (mm) | 1.067 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.3 |
T245RB
| Pitch Length (in) | 42 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 112 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Length (in) | 42.01 |
| Length (mm) | 1.067 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.47 |
T246RB
| Pitch Length (in) | 56.25 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 150 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Length (in) | 56.26 |
| Length (mm) | 1.429 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.59 |
T249RB
| Pitch Length (in) | 49.88 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 133 |
| Top Width (in) | 0.98 |
| Top Width (mm) | 25 |
| Length (in) | 49.88 |
| Length (mm) | 1.267 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.5 |
T251RB
| Pitch Length (in) | 71.81 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 228 |
| Top Width (in) | 1.26 |
| Top Width (mm) | 32 |
| Length (in) | 71.81 |
| Length (mm) | 1.824 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 198 |
| Weight (lbs.) | 0.67 |
T256RB
| Pitch Length (in) | 57.75 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 154 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Length (in) | 57.76 |
| Length (mm) | 1.467 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.317 |
T262RB
| Pitch Length (in) | 46.5 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 124 |
| Top Width (in) | 0.71 |
| Top Width (mm) | 18 |
| Length (in) | 46.5 |
| Length (mm) | 1.181 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.5 |
T265RB
| Pitch Length (in) | 54.75 |
|---|---|
| Pitch Length (mm) | 1391 |
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 146 |
| Top Width (in) | 1.1 |
| Top Width (mm) | 28 |
| Length (in) | 54.76 |
| Length (mm) | 1.391 |
| Width (mm) | 28 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.22 |
T286RB
| Pitch Length (in) | 62.05 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 197 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Length (in) | 62.05 |
| Length (mm) | 1.576 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.47 |
T304RB
| Pitch Length (in) | 70.236 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 223 |
| Top Width (in) | 1.06 |
| Top Width (mm) | 27 |
| Length (in) | 70.24 |
| Length (mm) | 1.784 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 198 |
| Weight (lbs.) | 0.73 |
T312RB
| Pitch Length (in) | 39 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 104 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Length (in) | 39.02 |
| Length (mm) | 991 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.4 |
T329RB
| Pitch Length (in) | 62.047 |
|---|---|
| Pitch (in) | 0.31 |
| Pitch (mm) | 8 |
| Number of Teeth | 197 |
| Top Width (in) | 0.79 |
| Top Width (mm) | 20 |
| Length (in) | 62.05 |
| Length (mm) | 1.576 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 198 |
| Weight (lbs.) | 0.45 |
T331RB
| Pitch Length (in) | 53 |
|---|---|
| Pitch (in) | 0.38 |
| Pitch (mm) | 9.525 |
| Number of Teeth | 142 |
| Top Width (in) | 0.91 |
| Top Width (mm) | 23 |
| Length (in) | 53.27 |
| Length (mm) | 1.353 |
| Color | BLUE |
| Material | HNBR |
| Customer Pack | 300 |
| Weight (lbs.) | 0.192 |
85868950
No variation attributes.
859530055
No variation attributes.
Specifications
| Pitch Length (in) | 25.25 – 80.945 |
|---|---|
| Pitch (in) | 0.31 – 0.38 |
| Pitch (mm) | 8 – 10 |
| Number of Teeth | 70 – 257 |
| Top Width (in) | 0.63 – 1.26 |
| Top Width (mm) | 16 – 32 |
| Length (in) | 26.26 – 80.94 |
| Length (mm) | 1.019 – 991 |
| Color | BLUE, BLACK |
| Material | HNBR |
| Customer Pack | 198 – 999 |
| Weight (lbs.) | 0.08 – 1.0 |
| Pitch Length (mm) | 1391 |
| Width (mm) | 28 |
