Attributes
| Part Number | 9901-000000-000001 |
|---|
Description

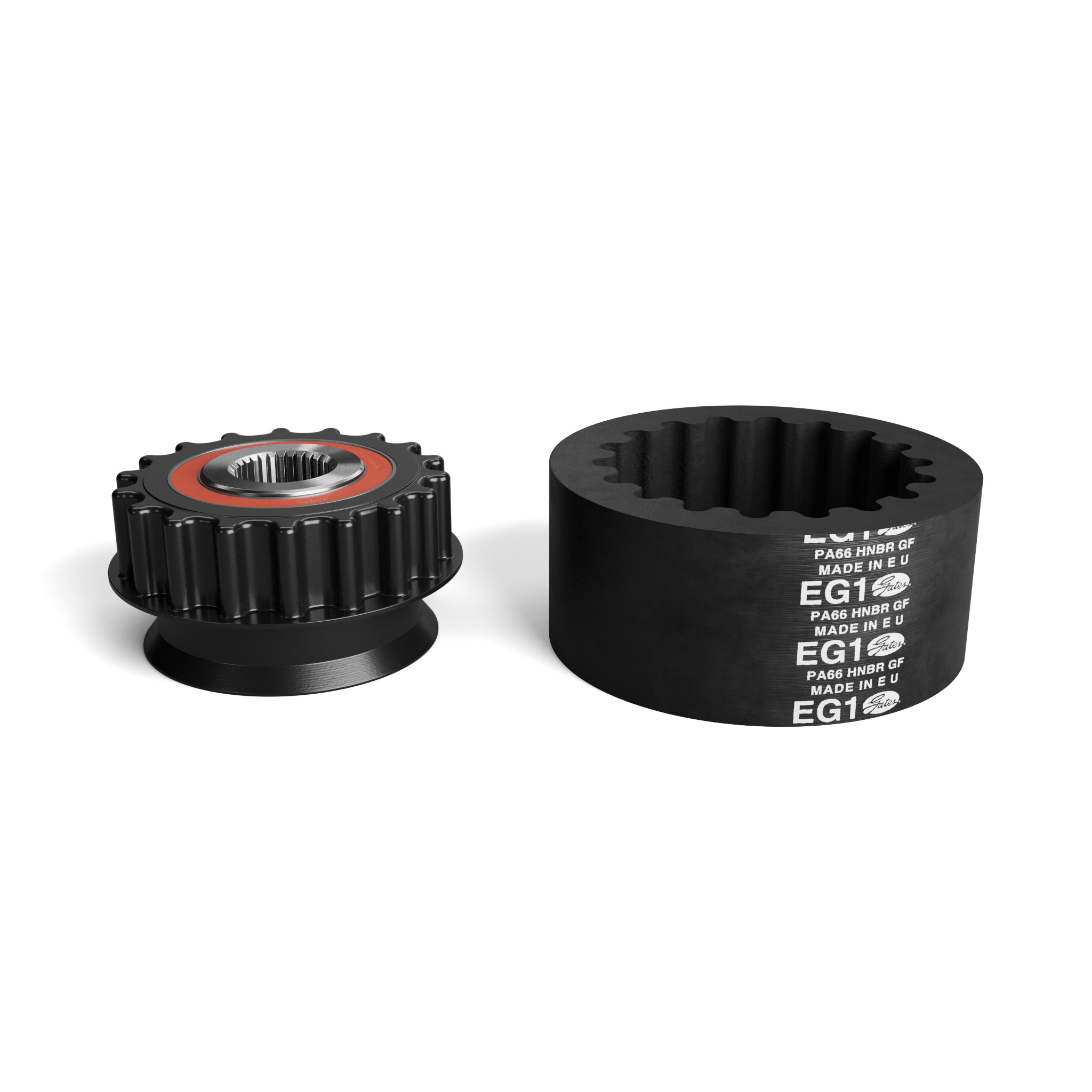

EuroGrip™ Flexible Couplings Gates® EuroGrip™ Flexible Couplings are developed to transmit torque to drive engine accessories and to dampen vibrations between two connected shafts, they relieve the stress that would result from a rigid coupling on applications where these 2 shafts are subject to misalignment and axial movement. Furthermore, they connect a decoupler pulley or a one-way clutch and accessory. Controls damping characteristics and provides excellent long-term aging resistance. Glass fiber cord provides excellent dimensional stability at high rotational speeds. Lubricated jacket minimizes coupling and end piece wear and retains tooth integrity.
Variations (2)
EG1
| Belt Width (in) | 1.37 |
|---|---|
| Belt Width (mm) | 35 |
| Outside Circumference (in) | 9.75 |
| Outside Circumference (mm) | 248 |
| Pitch (in) | 0.41 |
| Pitch (mm) | 10.4 |
| Number of Teeth | 18 |
| Outside Diameter (in) | 3.1 |
| Outside Diameter (mm) | 79 |
| Automotive Notes | Gates also offers EuroGrip® Coupler Kits - so you can replace the drive coupler and decoupler pulley at the same time. |
| Customer Pack | 504 |
| Weight (lbs.) | 0.3 |
EG2
| Belt Width (in) | 1.37 |
|---|---|
| Belt Width (mm) | 35 |
| Outside Circumference (in) | 9 |
| Outside Circumference (mm) | 229 |
| Pitch (in) | 0.41 |
| Pitch (mm) | 10.4 |
| Number of Teeth | 18 |
| Outside Diameter (in) | 2.86 |
| Outside Diameter (mm) | 73 |
| Automotive Notes | Gates also offers EuroGrip® Coupler Kits - so you can replace the drive coupler and decoupler pulley at the same time. |
| Customer Pack | 504 |
| Weight (lbs.) | 0.21 |
Specifications
| Belt Width (in) | 1.37 |
|---|---|
| Belt Width (mm) | 35 |
| Outside Circumference (in) | 9 – 9.75 |
| Outside Circumference (mm) | 229 – 248 |
| Pitch (in) | 0.41 |
| Pitch (mm) | 10.4 |
| Number of Teeth | 18 |
| Outside Diameter (in) | 2.86 – 3.1 |
| Outside Diameter (mm) | 73 – 79 |
| Automotive Notes | Gates also offers EuroGrip® Coupler Kits - so you can replace the drive coupler and decoupler pulley at the same time. |
| Customer Pack | 504 |
| Weight (lbs.) | 0.21 – 0.3 |
